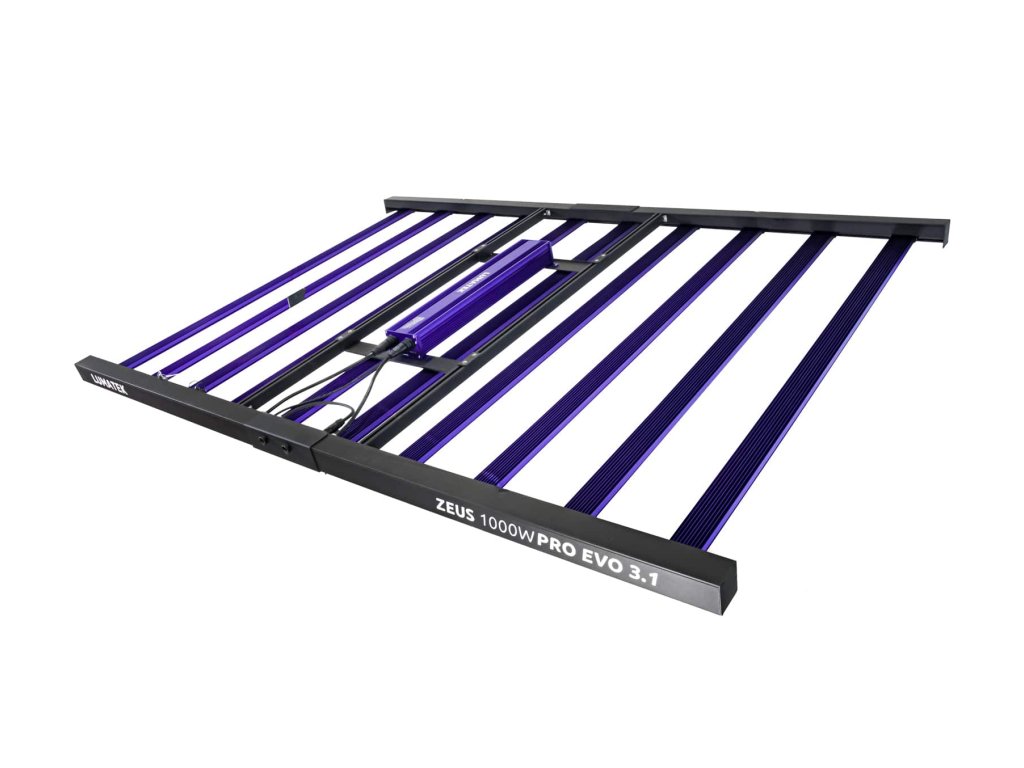

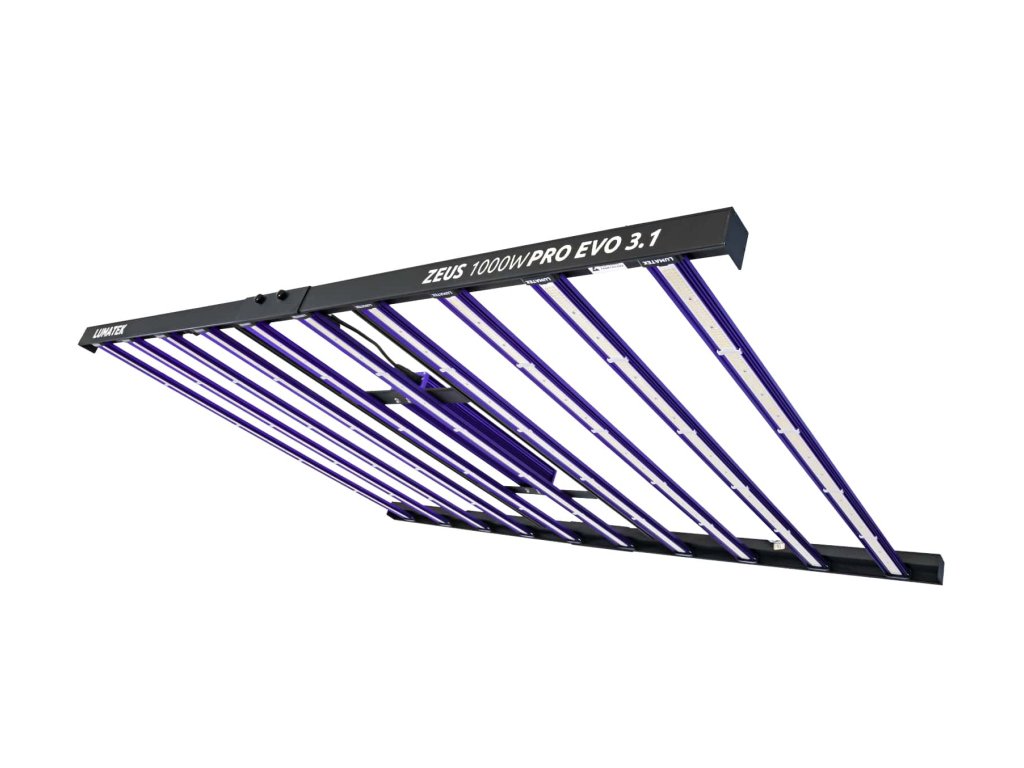

Lumatek Zeus 1000W PRO EVO 3.1qmol/j

Product detailed description

EFFICACY & PPF
Engineered for optimal performance with an improved 3.1 efficacy, the new Zeus 1000W PRO 3.1 version is ideal for 2.0 x 1.5 m grow spaces, delivering high light intensity with low power consumptions for maximum productivity.

With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. LUMATEK full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution.

DIODE TECHNOLOGY
The new 3.1 version ZEUS – worthy successor to the Spannabis best cultivation product award winner ZEUS 600W PRO 2.9 – is built using high quality, efficient LUMATEK drivers and the latest generation top bin LEDs from Samsung and Osram generating a full-spectrum light source ideal for full cycle growing. The clear glue protection cover technology on the LED bars results in higher light transmittance of 99% without higher light losses, extended diodes lifetime, extra corrosion resistance and IP65 ingress protection.

PRODUCT CONFIGURATION
Lumatek’s innovative magnetic modular bar design ensures easy installation, maintenance, and customization. With 3 low-powered, high-efficacy LED bars, the fixture reduces heat output, enhances light uniformity, and prolongs component lifespan.

Supplemental UV & Far-Red LED bars can be added for a wider spectrum curve range. Achieve the perfect light spectrum balance for every phase of your plant’s life cycle with these powerful add-ons.

KEY SPECIFICATIONS
PRODUCT CODE: LUMLED027
EFFICACY: 3.1 µmol/J
PPF: 3125 µmol/s
INPUT VOLTAGE: 220-240V, 50-60Hz
INPUT POWER at 100%: 1025W (±5%) @ 230 V AC
FOOTPRINT: 2.0 x 1.5 m
WATERPROOF: IP65
L90: 90% output at 60,000 h
LIGHT DISTRIBUTION: 120°
RED DIODES: Osram 4.3 µmol/J
WHITE DIODES: Samsung 3 µmol/J
THERMAL MANAGEMENT: Passive Cooling
DIMMABLE: OFF-25%-50%-75%-100% with 0-10 V Light Dimmer (Included)
EXTERNAL CONTROL: With Lumatek Controller or Universal Controller 0-10 V, 1% steps
WEIGHT: 18 Kg
DIMENSIONS: 1700 x 1200 x 84 mm
SPECTRUM: Full Spectrum F
WARRANTY: 5 Years
CERTIFICATIONS: CE, EMC, LVD, TISI, RCM, L90
BTU (WITH DRIVER ATTACHED): 3668 BTUs/h (Max)
BTU (WITH DRIVER REMOTE): 3411 BTUs/h (Max)

KEY FEATURES
- L90: 90% output at 60,000 h
- High efficacy of 3.1 µmol/J
- Very high PPF output of 3125 µmol/s

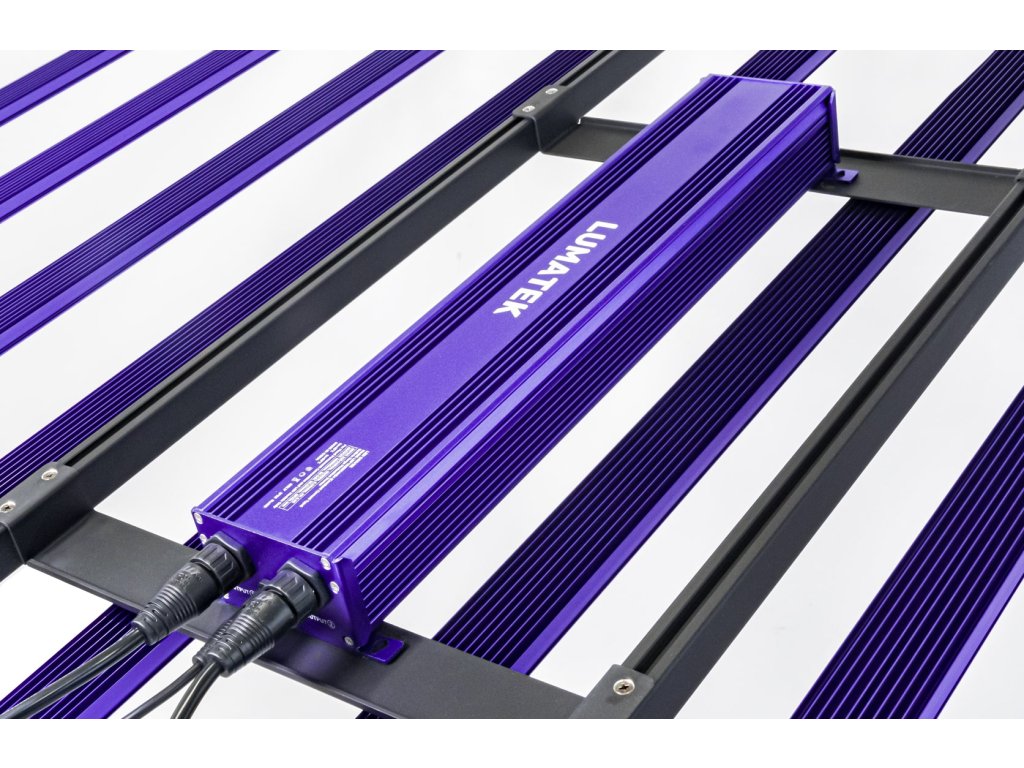

- High quality Lumatek LED drivers
- Unique and improved frame designed for wider rectangular coverage
- Outstanding light spread and distribution in 2.0 x 1.5 m grow area

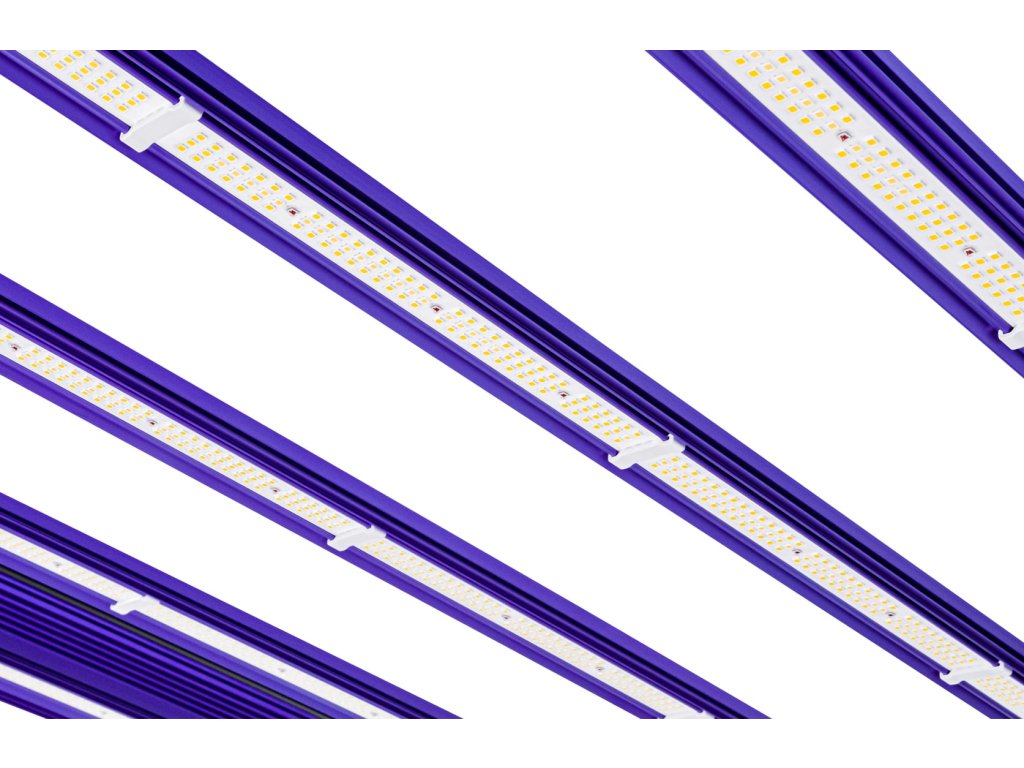

- Clear Glue protection cover technology on LED bars
- Featuring the latest Samsung and Osram diodes
- Balanced full spectrum
- External control with Lumatek Controllers or Universal Controllers 0-10V
- Replaceable 100W Pro 3.1 magnet light bars
- Fully Dimmable
- User friendly Plug & Play Assembling
- 5 Year Warranty

ITEMS INCLUDED
- 10 x Lumatek 100W Pro 3.1 Full-Spectrum Magnet Light Bars
- 1 x Lumatek 1000W PRO EVO 3.1 Driver with connecting cables
- 1 x LED Fixture Structure with connecting cables
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Product Manual

CONTROL SYSTEMS
This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.

Universal Control Systems Compatibility
Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
