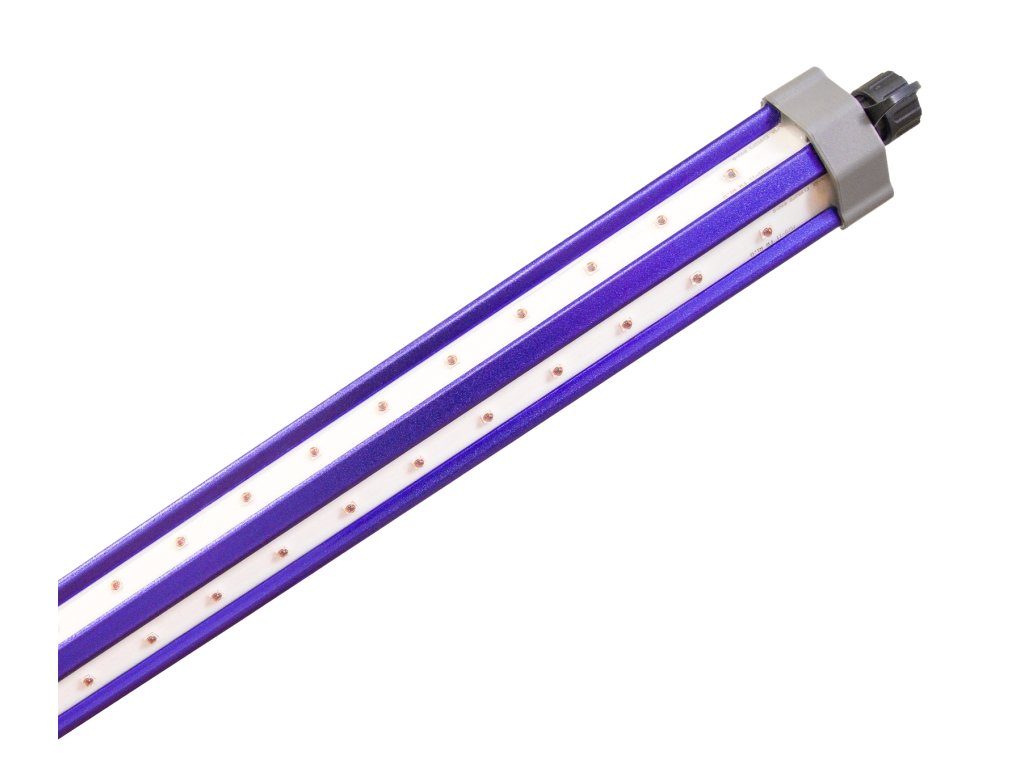

Lumatek Far-Red LED Bar - 50W

Product detailed description

EFFICACY & PPF

The LUMATEK 50W FAR-RED LED BAR is a supplemental adding to your crop that has been specifically created to extend the ZEUS LED [400-700] nm Full-Spectrum range to [400-750] nm.

Designed to fit directly on the popular LUMATEK ZEUS LED fixtures frames, the integration of the very valuable FAR-RED photons [701-750] nm harnesses the principles of the EMERSON Enhancement effect, allowing growers to promote stem elongation and leaf expansion during the vegetative and the early days of flowering stages enabling them to fill in the grow area. Also, taking advantage of their high efficacy, they can be used at the end of the life cycle to improve the overall photosynthetic efficiency.

DIODE TECHNOLOGY

With its peak at 730 nm and an output of 13 μmol/s [600-700] nm and 140 μmol/s [701-800] nm, the LUMATEK 50W FAR-RED is a supplemental LED bar tool, to help growers enhance PSII photochemical efficiency and photosynthetic rate when added to the provided Full-Spectrum by the ZEUS range.

This unit has an independent power source and can also be connected in series with daisy-chain link cables. To ensure unit performance, this LED bar has a single input and output socket for the Power Cable or Daisy Chain link Cable, depending on the use of that bar. For this reason, the Power (4 m) and Daisy Chain (1.5 m) cables are sold separately.

Recommended Coverage

The LUMATEK 50W FAR-RED LED BAR was designed to fit directly into the ZEUS fixtures and when FAR-RED photons are mixed with the produced Full-Spectrum from the ZEUS range, a 10-20% ratio is secured.

Integrate a minimum of 1 unit of LUMATEK 50W FAR-RED LED BAR, with:
- ZEUS 300W PRO 3.1 | 1.2 x 0.6 m footprint

Integrate a minimum of 2 units of LUMATEK 50W FAR-RED LED BAR, with:
- ZEUS 465W PRO 3.1 | 1.2 x 1.2 m footprint
- ZEUS 465W PRO 2.9 | 1.2 x 1.2 m footprint
- ZEUS 600W PRO 3.1 | 1.5 x 1.5 m footprint
- ZEUS 1000W XTREME 3.1 | 1.5 x 1.5 m footprint w/ CO2 Supplement
- ZEUS 1000W XTREME CO2 | 1.5 x 1.5 m footprint w/ CO2 Supplement

Integrate a minimum of 3 units of LUMATEK 50W FAR-RED LED BAR, with:
- ZEUS 1000W PRO EVO 3.1 | 1.5 x 2.0 m footprint

Product code: LUMLED030
EFFICACY (400 – 750) nm: 3.1 µmol /J
PPF (400 – 750) nm: 155 µmol/s
INPUT VOLTAGE: 220-240 V AC 50-60 Hz
INPUT POWER(100%): 50 W (±5%) @230 V AC
WATERPROOF: IP65
L90: 90% output at 45,000 h
LIGHT DISTRIBUTION: 140°
THERMAL MANAGEMENT: Passive Cooling
DIMENSIONS: 1000 X 48 X 42 mm
WEIGHT: 1.2 Kg
THERMAL MANAGEMENT: Passive Heat Sink
DIMMABLE: No
DAISY-CHAIN CAPABILITY: Yes (Max. 18 PCS)
SPECTRUM: Far-Red (730 nm peak)
Warranty: 3 Years
Certifications: CE, EMC, LVD, TISI, RCM, L90
BTU: 159 BTUs/h (Max)

CONTROL SYSTEMS

This Lumatek LED fixture is fully compatible with external control systems, including the Lumatek Digital Panel Plus 2.0. Manage light timing, automated dimming in one per cent increments, temperature safety features, and dynamic Sunrise and Sunset Modes. Control up to 100 fixtures from a single controller and fine-tune your lighting environment with professional precision.

Universal Control Systems Compatibility

Whether you´re using Lumatek´s controller or another system with a 0-10V output signal, you´re covered. Even if your setup includes a controller with an RJ port interface, our LED fixtures remain compatible by using a signal converter that adapts the RJ port to 0-10V control. That means flexibility across platforms without needing to overhaul your existing gear. Designed for scalability and ease of integration, Lumatek empowers growers to take full command of their lighting setups, from tents to large-scale operations.
