Agrolite LED QB 1080W 3.0 qmol/J

Product detailed description

Agrolite's QB1080 3.0 consists of 9 bid (Balanced Impact Distribution) bars with a light source size of 1 x 1.8 m, designed to illuminate 1.2 x 2 m growing trays.

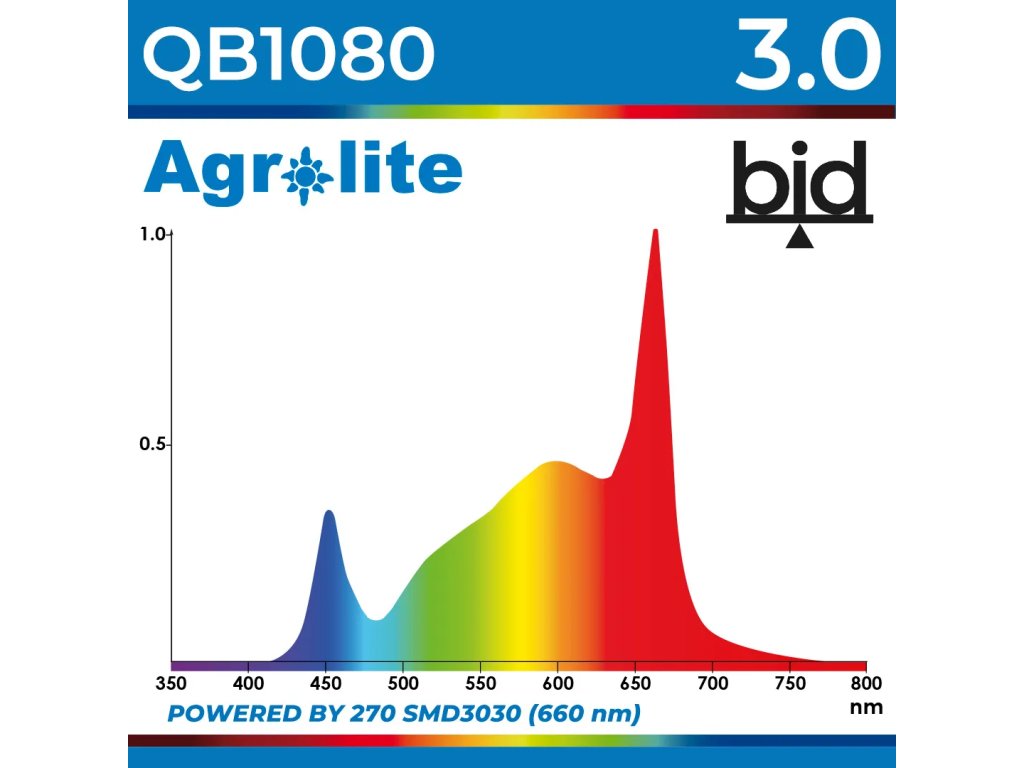

Agrolite's QB1080 3.0 is designed to provide uniform and precise lighting in growing environments. Its Balanced Impact Distribution (bid) technology and red-enriched light spectrum (SMD 3030 red x 270 chips) ensure even distribution and optimize growth and flowering.

The extended design of this luminaire amplifies the bid effect across the entire illuminated surface, providing an amazingly balanced light footprint.

The energy consumed per square meter is optimized thanks to the greater separation between the bars. This equipment makes the most of every watt to achieve optimal and uniform light impact. Agrolite delves into the benefits of extended multi-bar luminaire designs, obtaining the best performance thanks to the dimensions of the equipment.

Specifications:

• Power: 1080W
• Input voltage ± 10%: 220 - 240 V / 50 - 60 Hz
• Input Voltage Range: 175 - 264 V
• Input current at 100%: 4.9 - 4.5 A
• Input power at 100%: 1080W
• Power output settings (plus EXT): EXT/OFF/100%/80%/60%/40%
• SMD 3030 270 chips 660 nm
• Colour temperature: 3425 K
• PPF: 3240 µmol/s
• Efficacy : 3.0 µmol/J
• Working Lifetime: 60.000 hours
• Integrated dimmable driver
• Control ports in/out RJ11 (0-10V dimming)
• Light Distribution: 120º
• Fixture Dimension: 1105 x 1835 x 48 mm
• Weight: 10 Kg
• Recommended area of use 1.20 x 2.00 m
• Recommended distance of use at 100%:
  • Growing 70/100cm
  • Flowering 40/60cm
