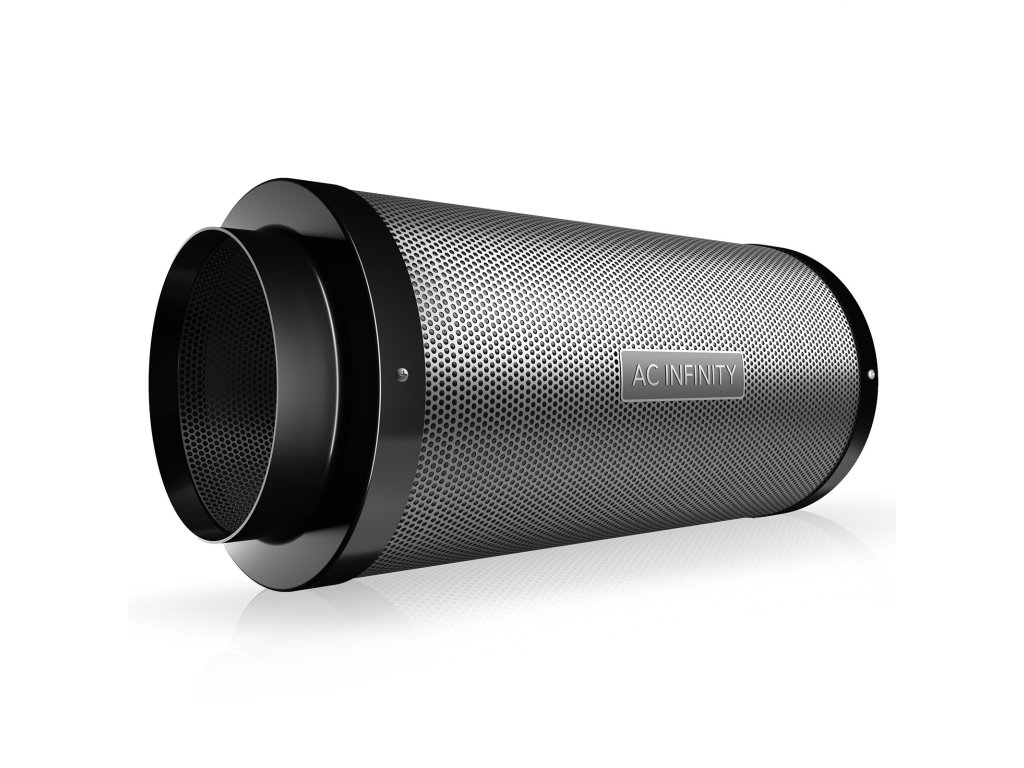

AC Infinity Duct Carbon Filter, Australian Charcoal, 300mm

Product detailed description

• 300 mm inline filter, designed to prevent odors and chemicals from escaping from grow tents and hydroponic rooms.
• Features premium Australian activated carbon with higher adsorption capacity and longer service life.

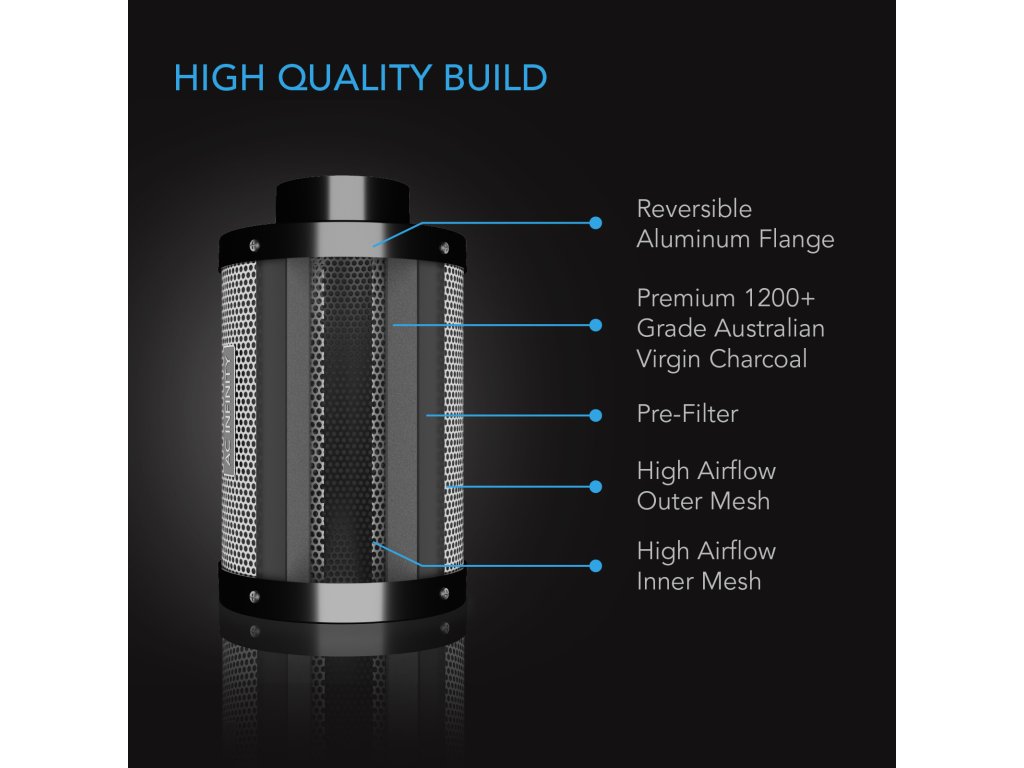

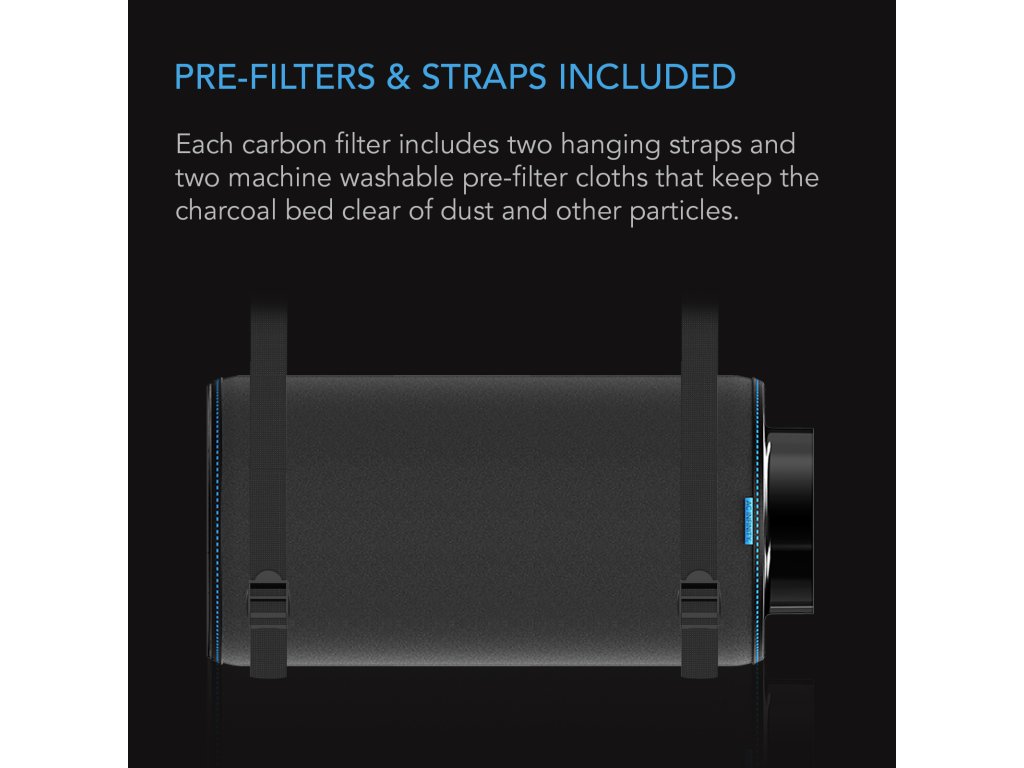

• Includes robust aluminium flanges, galvanized steel mesh, two suspension straps and two fabric-covered pre-filters.

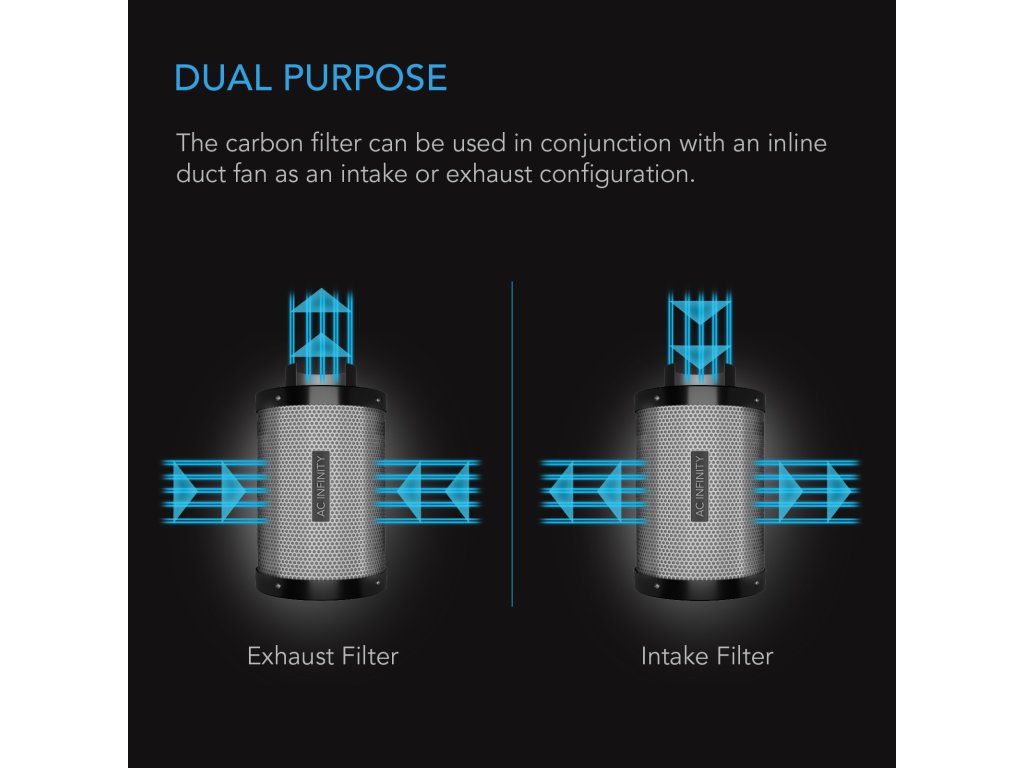

• Enables maximum air flow rate for supply and extract air configurations.
• Air inlet: 300 mm | Length: 711 mm | Air flow rate: ≈ 2 834 m³/h | Carbon: Australian RC412 with 1200+ IAV | Thickness: 38 mm

Product description

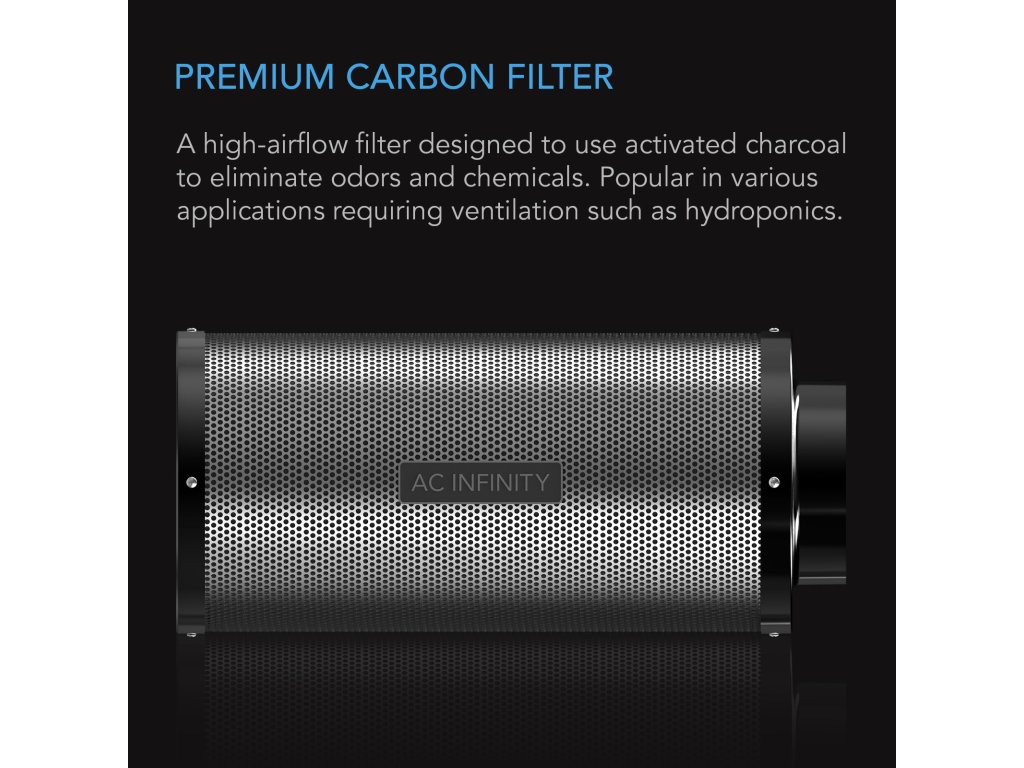

The high airflow inline duct filter uses activated carbon to remove odors and chemicals and is commonly used in hydroponics, grow rooms, kitchens, smoking areas and other ventilation projects. Fitted with a high quality Australian Virgin activated carbon bed. The filter can be operated with an inline duct fan in both supply and exhaust configurations. The heavy-duty construction includes aluminium flanges and a galvanized steel mesh on both sides. Flanges are reversible to extend filter life. Includes two machine-washable pre-filter cloths to prevent carbon buildup and two hanging straps for easy installation.

High-quality activated carbon

Each carbon filter has a high-quality Australian Virgin activated carbon bed with a rating of 1200+ IAV. Thanks to higher microporosity and a large surface area, a carbon bed thickness of 38 mm and larger mesh openings are achieved. This combination enables a higher adsorption rate without restricting the free flow of air and extends the filter's service life by up to 33%.

Manufacturer	AC Infinity Inc.
Product name	Ducted activated charcoal filter 300 mm
Model	AC-DCF12
UPC code	819137021617

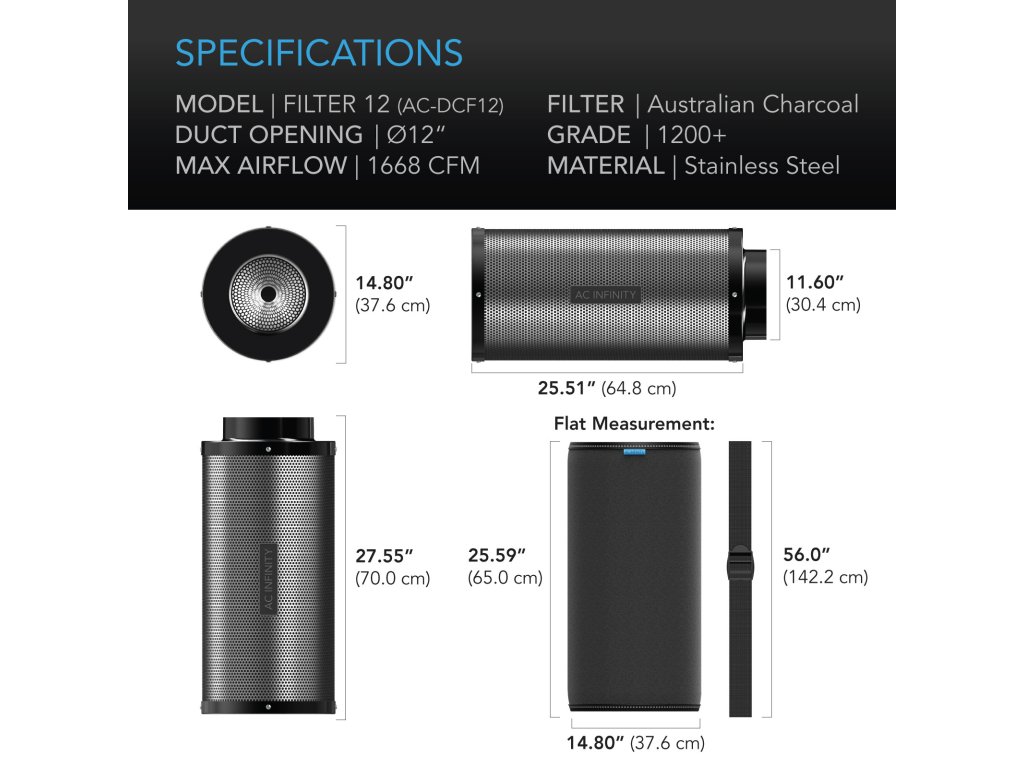

Product and assembly dimensions
Connection diameter	300 mm
Overall dimensions	700 × 376 mm
Flange length	52 mm
Product performance and technical data
Flange material	Aluminum
Flange design	Reversible
Grille material	Galvanized steel
Activated carbon type	Australian Virgin Activated Carbon RC412
Activated carbon quality	1200+ IAV
Carbon bed thickness	38 mm
Maximum air flow rate	≈ 2 834 m³/h
Operating instructions
Operating instructions	PDF
