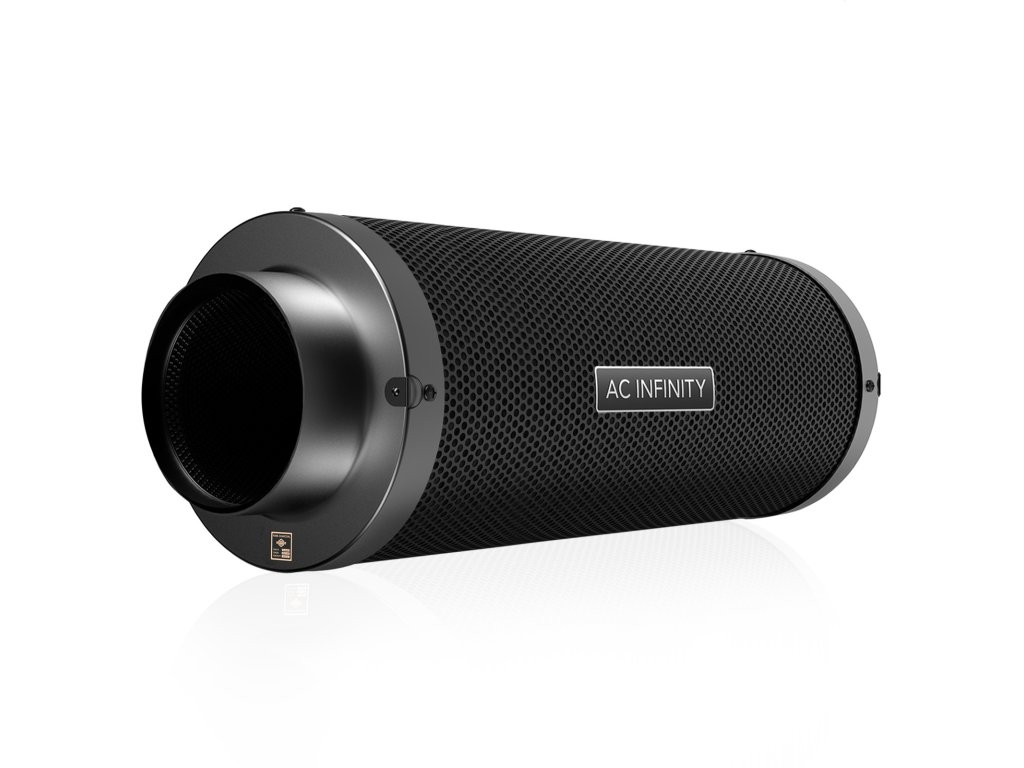

AC Infinity Duct Carbon Filter, Australian Charcoal, 250mm

Product detailed description

• 250 mm inline filter, designed to prevent odors and chemicals from escaping from grow tents and hydroponic rooms.
• Features premium Australian activated carbon with higher adsorption capacity and longer service life.

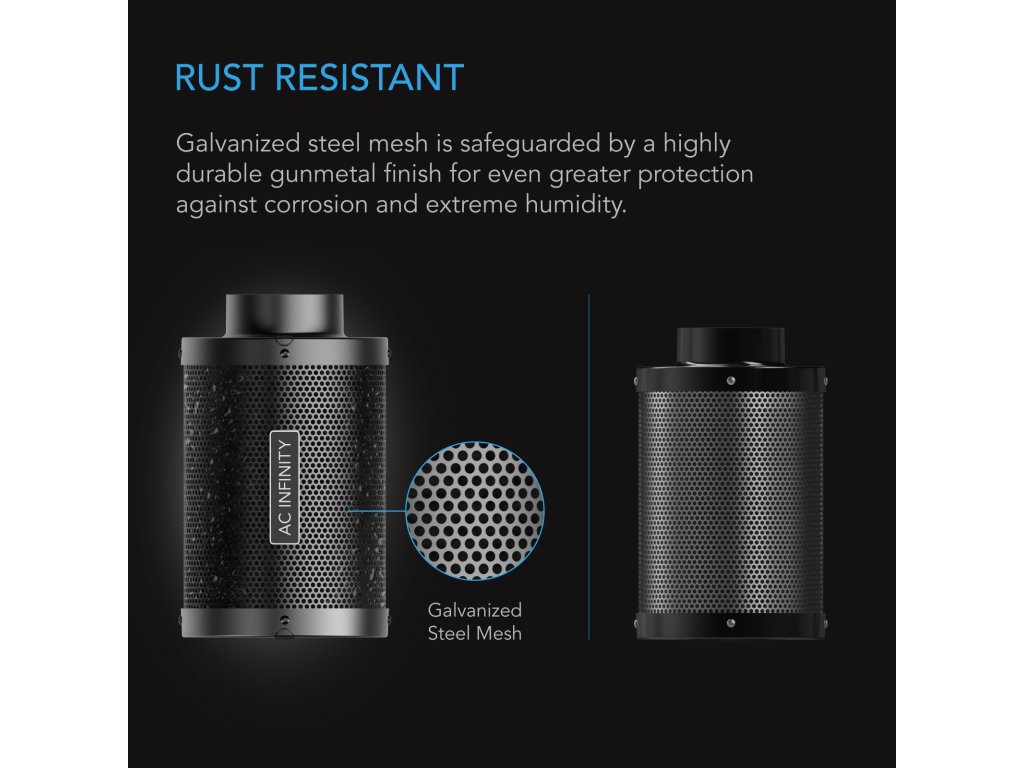

• Burnished metal is known for its high durability and rust resistance to high humidity.

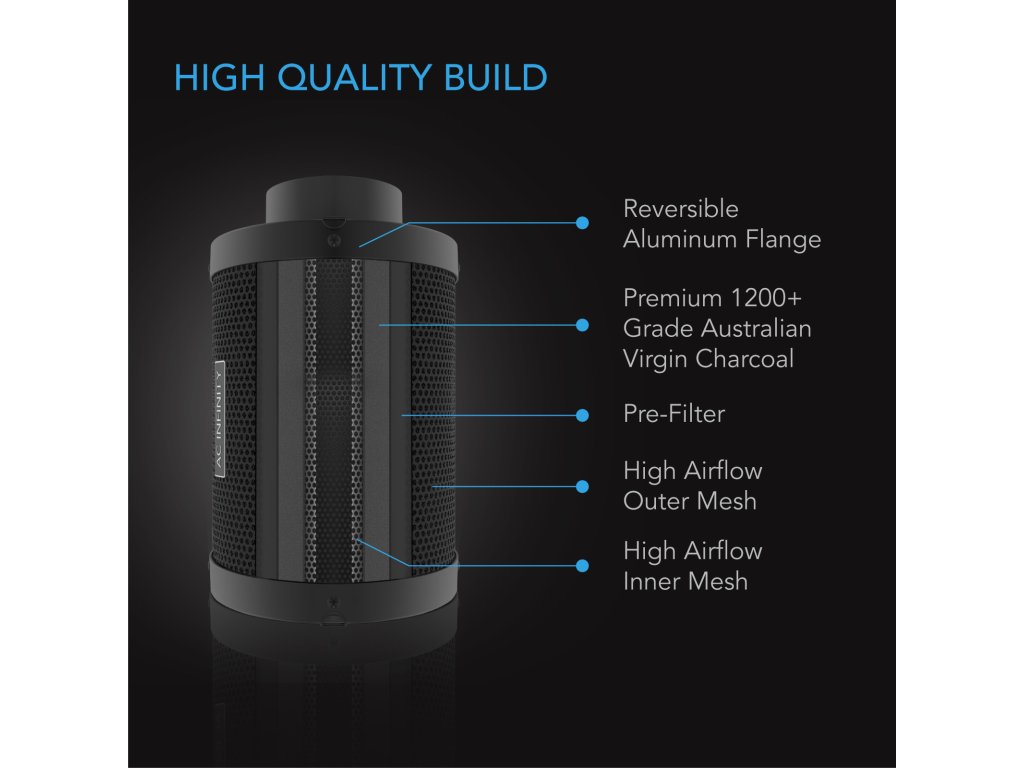

• Manufactured with aluminium flanges and a galvanized steel mesh.

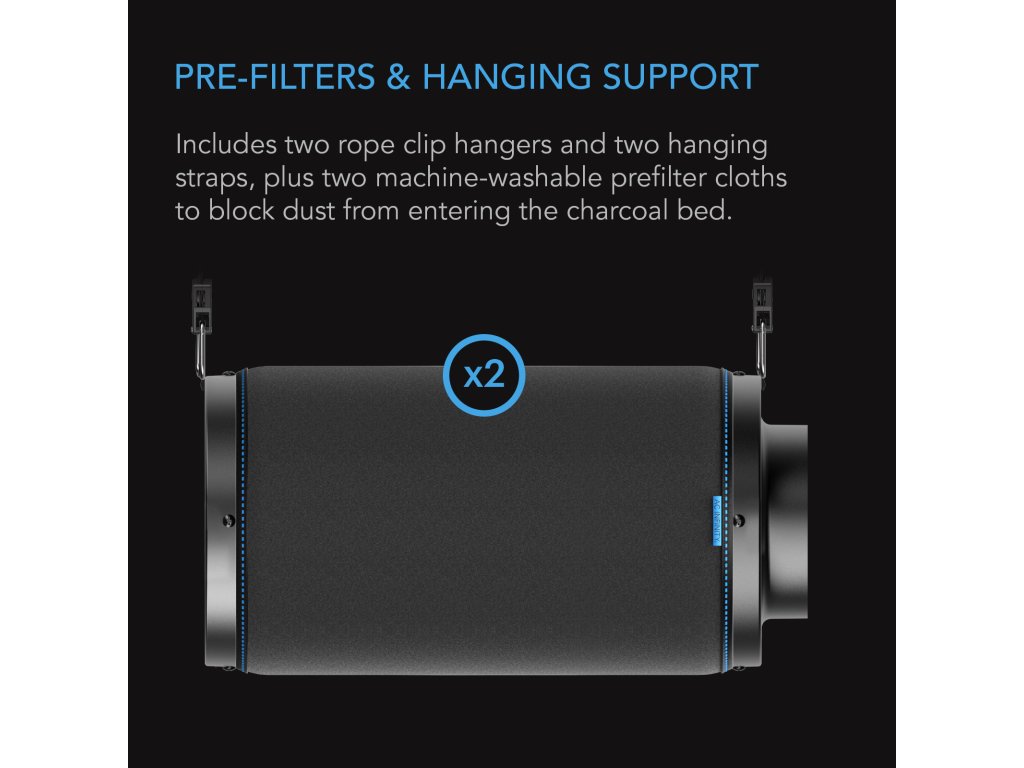

• Includes two hanging straps and two pre-filters.
• Air inlet: 250 mm | Length: 610 mm | Air flow rate: ≈ 2 123 m³/h | Carbon: Australian RC412 with 1200+ IAV | Thickness: 38 mm

Product description

A high airflow air filter for the removal of odors and chemicals that uses a high quality Australian Virgin activated carbon bed. This activated carbon bed has an RC412 pore size which allows for a high adsorption rate and longer life. The robust construction with aluminium flanges and galvanized steel mesh on both sides with a rust-free gunmetal finish resists corrosion and high humidity. The activated carbon filter can be used with an inline fan for intake and exhaust configurations, and its flanges can be reversed to further extend its service life. Included are two machine-washable pre-filter cloths to prevent carbon buildup and two hanging straps for easy installation.

High-quality activated carbon

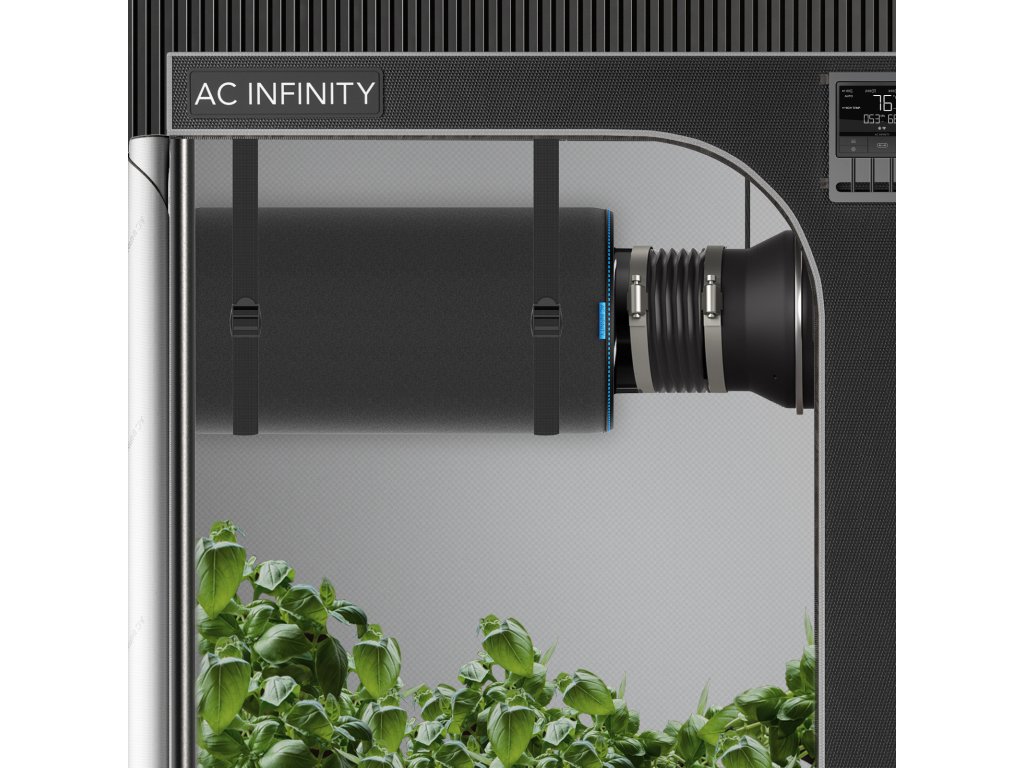

Each carbon filter is made from high quality Australian virgin carbon with an IAV value of 1200+. It consists of a 38 mm thick carbon bed, which has a higher microporosity and contributes to a larger surface area. Combined with the large mesh size, this not only allows a higher adsorption rate without restricting the free flow of air, but also extends its life by up to 33%. It is mainly used in hydroponic systems, tents, grow rooms, kitchens, smoking areas and other ventilation projects.

Manufacturer	AC Infinity Inc.
Product name	Duct carbon filter 100 mm
Model	AC-DCF4
UPC code	819137020665
Product and assembly dimensions
Spigot opening	100 mm (4")
Overall dimensions	300 × 177 mm (11.8 × 7.0")
Flange length	37 mm (1.46")
Technical data
Flange material	Aluminum
Flange design	Reversible
Grille material	Galvanized steel with gunmetal coating
Carbon type	Australian Virgin RC412
Carbon quality	1200+ IAV
Carbon thickness	38 mm
Max. Air flow	357 m³/h
User manual
Product manual	PDF
