AC Infinity CLOUDLINE T8, Quiet Inline Fan System with Temperature Humidity VPD Controller, 200mm
Code: AI-CLT8Related products
Product detailed description
- Developed for the ventilation of grow tents and grow rooms, to support heating and cooling systems, to cool AV cabinets and to remove odors.
- Dynamic control of temperature, humidity and VPD, with timers, grow cycles, schedules and minimum speed.
- Connect to the AC Infinity app via WiFi to use advanced programs, climate data and automation.
- Mixed-current design combined with PWM-controlled EC motor for particularly quiet and energy-efficient operation.
- Pipe size: 200 mm | Dimensions: 216 × 302 × 234 mm | Air flow: 1371 m³/h | Noise level: 39 dBA | Bearing: double ball bearing
Product description

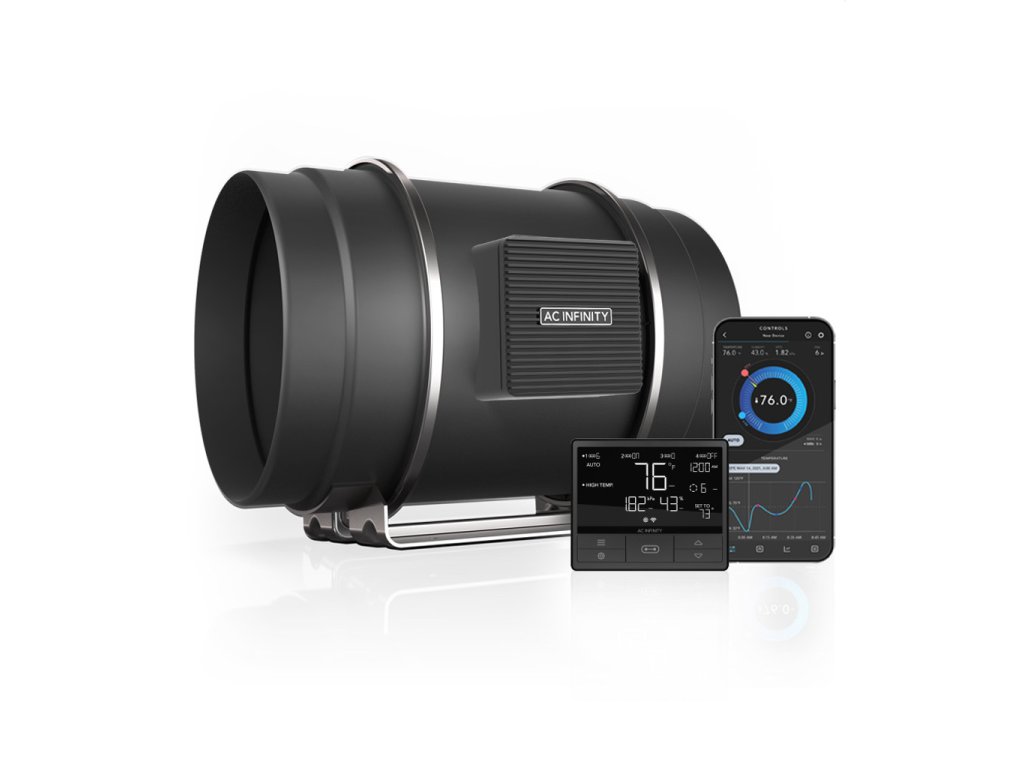

This intelligent inline tube fan is designed to quietly and efficiently ventilate grow tents and grow rooms, boost heating and cooling air, circulate fresh air, remove odors and cool AV cabinets. Thanks to the inline mixed-flow design, the air performance remains constant even at high static pressure. The built-in EC motor with PWM control ensures quiet, energy-efficient operation with minimal heat generation. The motor housing with rotor and blades is removable, which makes cleaning and maintenance easier. The scope of delivery includes an intelligent controller with dynamic climate and time programs that can be connected to several UIS devices. As part of the UIS™ platform, it can be seamlessly integrated into a Smart Grow system to create a perfectly tuned growing climate.

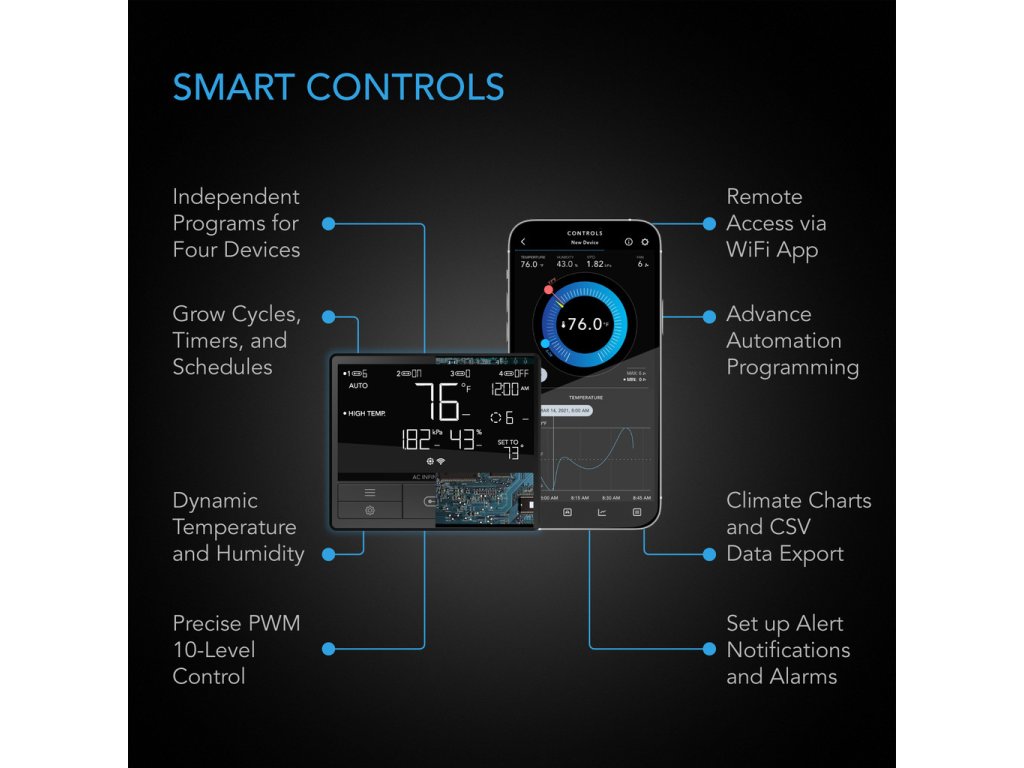

Smart Controller
The CONTROLLER 69 PRO offers intelligent programming with temperature, humidity and VPD triggers and enables dynamic fan speeds that automatically adapt to climate changes. A minimum speed can also be set, which runs continuously and only increases when required. Other functions such as timer, cycle and schedule modes allow individual control. The fan can be securely connected to the AC Infinity app via WiFi. This allows advanced programs to be used, notifications to be set, climate diagrams to be displayed and CSV data to be exported. The controller supports up to four UIS devices, including series such as CLOUDLINE, CLOUDRAY and IONFRAME. Grow Lights or socket devices from other brands can also be integrated via adapters.

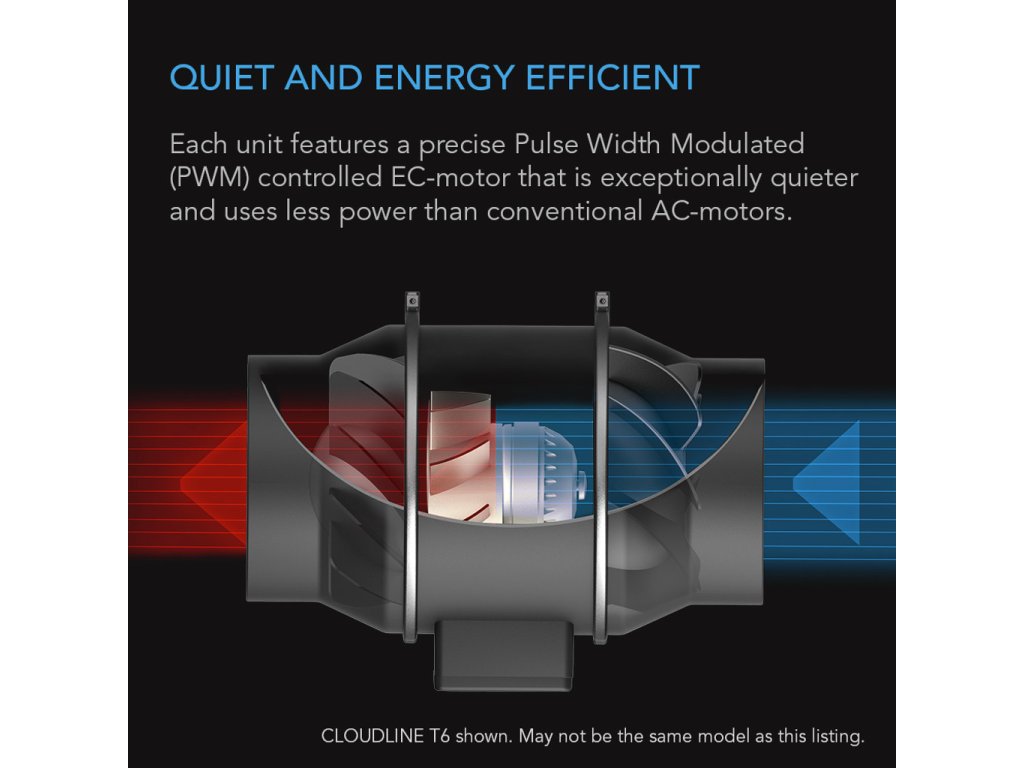

Quiet and energy-efficient design
In contrast to conventional AC fans, this inline fan uses a PWM-controlled EC motor that runs smoothly and quietly even at very low speeds - without generating additional heat. The mixed-flow design with stator blades and two hydrodynamic air ducts ensures high static pressure and constant airflow, even when air movement is restricted. The motor is equipped with double ball bearings, which are designed for a service life of around 67,000 hours and enable installation in any position. With its IP44 certification, the device is reliably protected against dust and splash water and is also suitable for demanding environments.

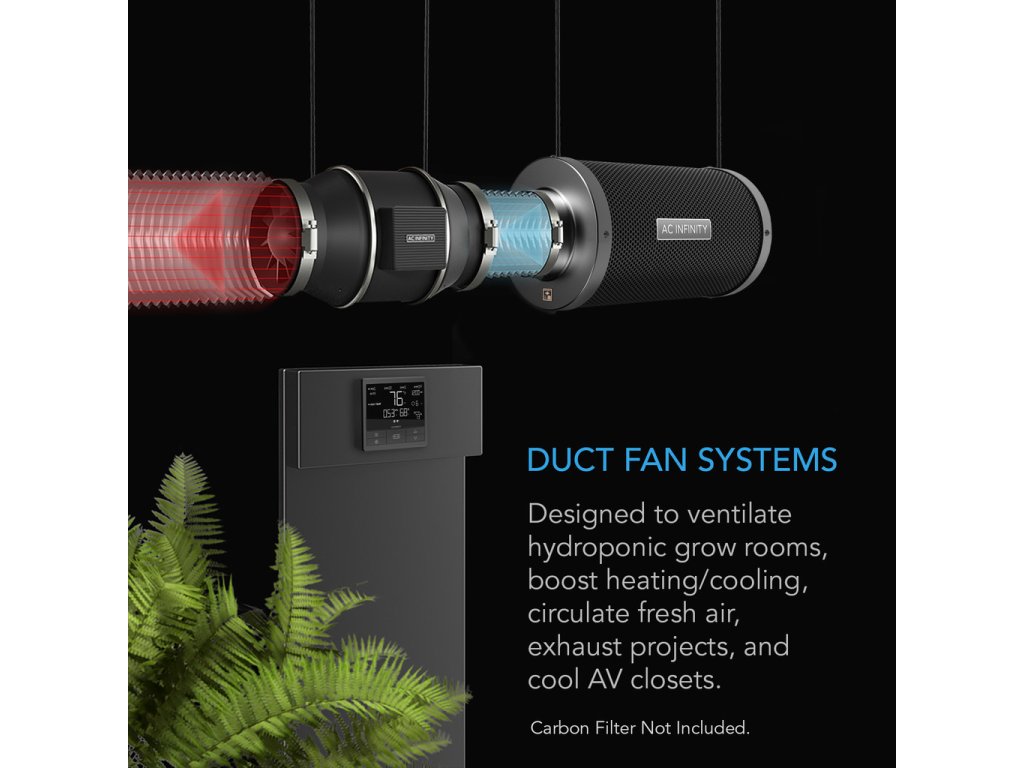

Areas of application

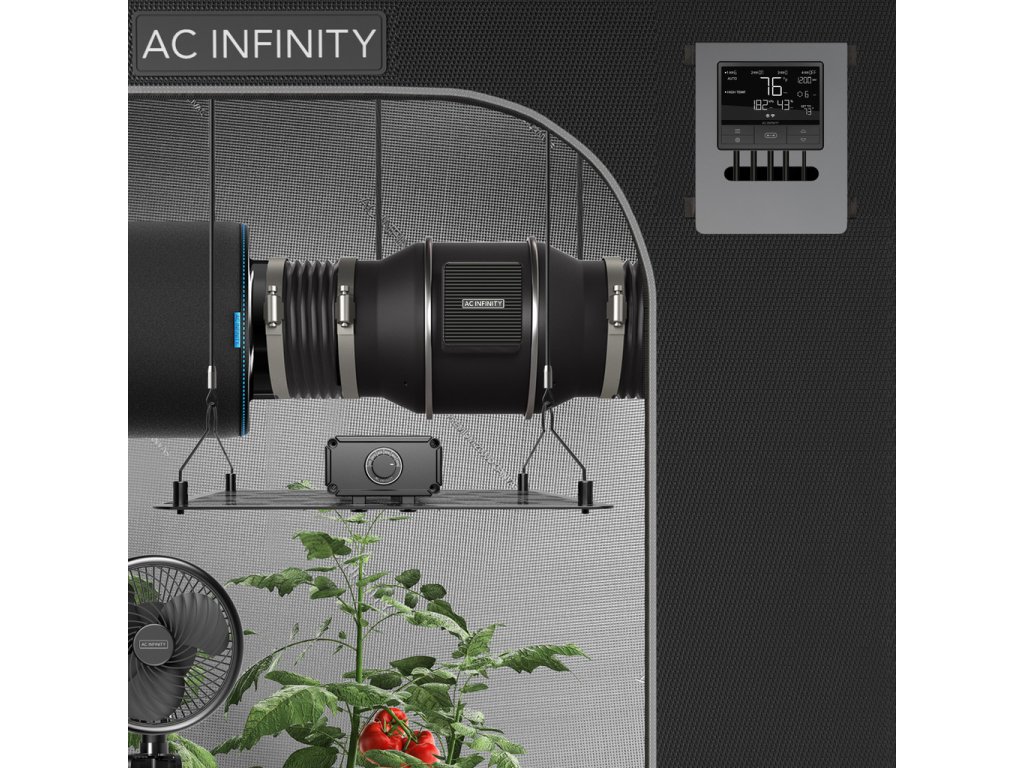

This quiet inline fan system has a wide range of uses - from cooling AV cabinets, racks and technical rooms to ventilating grow tents and rooms, bathrooms, attics and other recirculation and exhaust air projects.

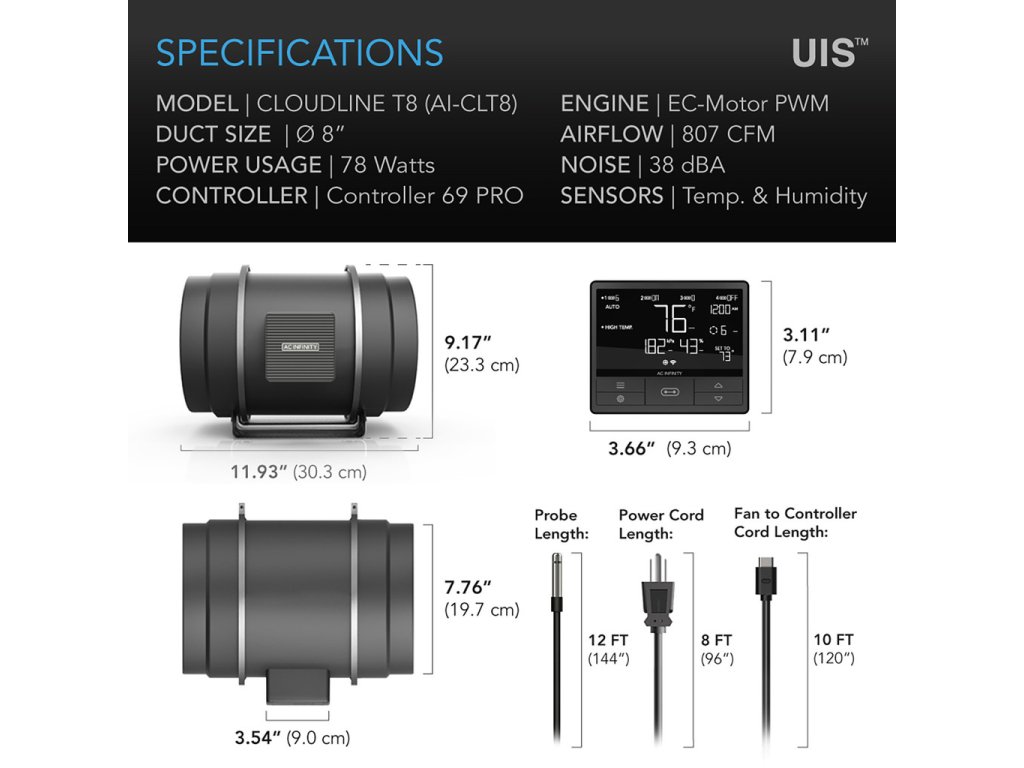

| Manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE T8 |
| Product model | AI-CLT8 |
| UPC code | 819137020276 |
| Product and installation dimensions - Fan unit | |
| Pipe/hose size | 200 mm (8″) |
| Overall dimensions | 216 × 302 × 234 mm (8.54 × 11.89 × 9.17 in.) |
| Hole-to-hole mounting distance | 100 × 94 mm (3.94 × 3.70 in.) |
| Screw hole size | Ø 5.5 mm (Ø 0.217 in.) |
| Cable length to the controller | 3.05 m (120 in., 10 ft) |
| Cable length to mains plug | 2.44 m (96 in., 8 ft) |
| Product and assembly dimensions - Controller | |
| Overall dimensions | 132 × 74 × 27 mm (5.19 × 2.91 × 1.06 in.) |
| Hole-to-hole mounting distance | 120 × 67 mm (4.71 × 2.64 in.) |
| Screw hole size | Ø 3 mm (Ø 0.119 in.) |
| Display size | 89 × 36 mm (3.5 × 1.4 in.) |
| Sensor probe length | 3.66 m (144 in., 12 ft) |
| Performance and technical data | |
| Air flow rate (total) | 1371 m³/h (807 CFM) |
| Noise level (total) | 39 dBA |
| Static pressure | 746 Pa |
| Tension | 100-240 V AC |
| Frequency | 50/60 Hz |
| Maximum power consumption | 180 W |
| Average power consumption | 78 W |
| Amperage | 2,3 A |
| Mains plug type | EU plug (country-specific, type C/F) |
| Operating humidity | 35-85 % RH |
| Operating temperature | 0-60 °C (32-140 °F) |
| Protection class | IP 44 |
| Warehouse | Double ball bearing |
| Mounting positions | Horizontal or vertical |
| L10 service life | 67,000 hours |
| CE certification (complete product) |  PDF |
| ETL certificate (complete product) | PDF |
| RoHS certificate (entire product) | PDF |
| SAA certificate (complete product) | PDF |
| FCC certification | PDF |
| IC certificate (complete product) | PDF |
| Operating instructions | |
| Product manual | English German |
Additional parameters
| Category: | Inline Fan Systems |
|---|---|
| EAN: | 819137020276 |
