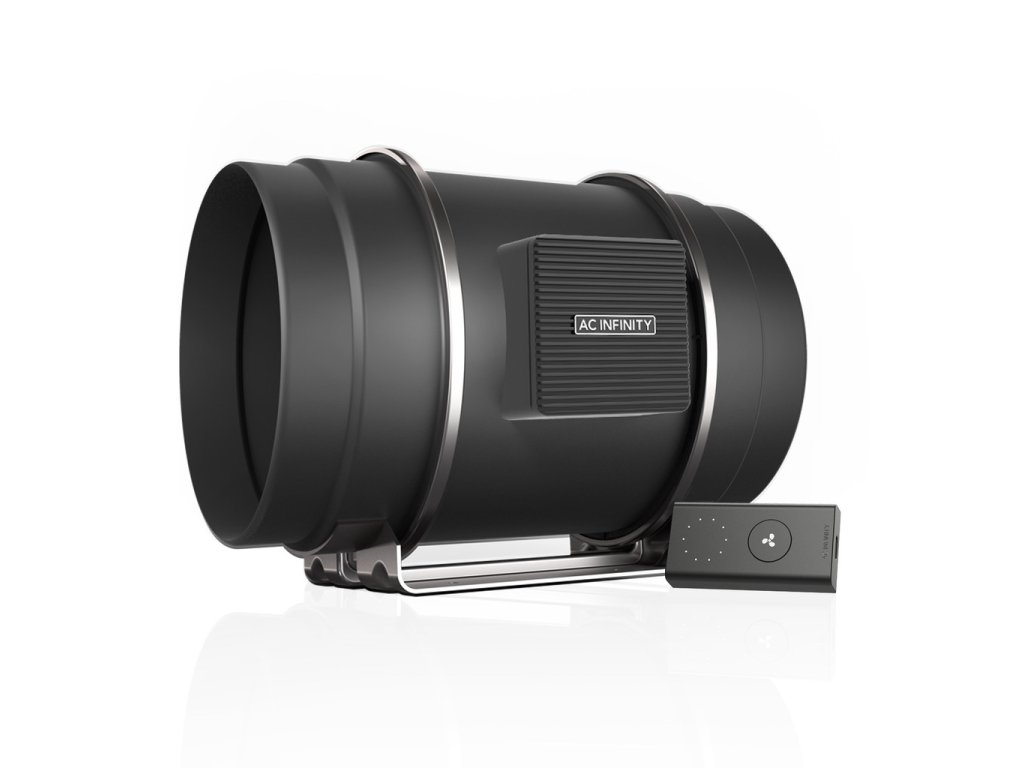

AC Infinity CLOUDLINE S8, Quiet Inline Fan System with Speed Controller, 200mm
Code: AI-CLS8Related products
Product detailed description
- For low-noise ventilation of grow tents to dissipate heat and cold and supply fresh air.
- Includes wired 10-step speed controller; also compatible with all UIS controllers with intelligent programming.
- The PWM-controlled EC motor ensures quiet and energy-efficient operation with minimal heat and noise development.
- The mixed-flow design with stator blades and hydrodynamic air ducts ensures strong airflow even in environments with high resistance.
- Connection size: 200 mm | Dimensions: 216 × 302 × 234 mm | Air flow: 1257 m³/h | Noise level: 39 dBA | Bearing: double ball bearing
Product description

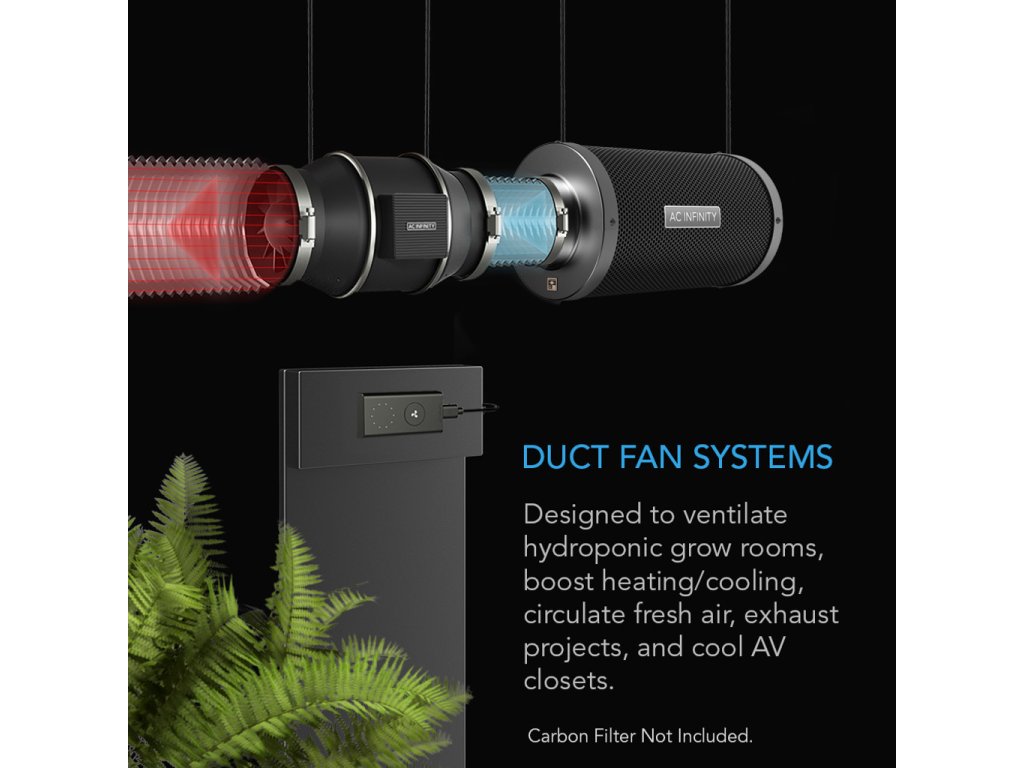

This intelligent inline tube fan is designed to quietly and efficiently ventilate grow tents and grow rooms, support heating and cooling air, circulate fresh air, remove odors and cool AV cabinets. Thanks to its inline mixed flow design, it delivers constant and reliable air performance even at high static pressure. The integrated EC motor with PWM control ensures particularly quiet and energy-efficient operation with minimal heat generation. The motor housing with rotor and blades can be removed from the frame, making cleaning and maintenance much easier. The scope of delivery includes an intelligent controller with dynamic climate and time programs, which can also be connected to several UIS devices. As part of the UIS™ platform of grow devices and smart controllers, it can be seamlessly integrated into a networked system to create an ideal grow environment.

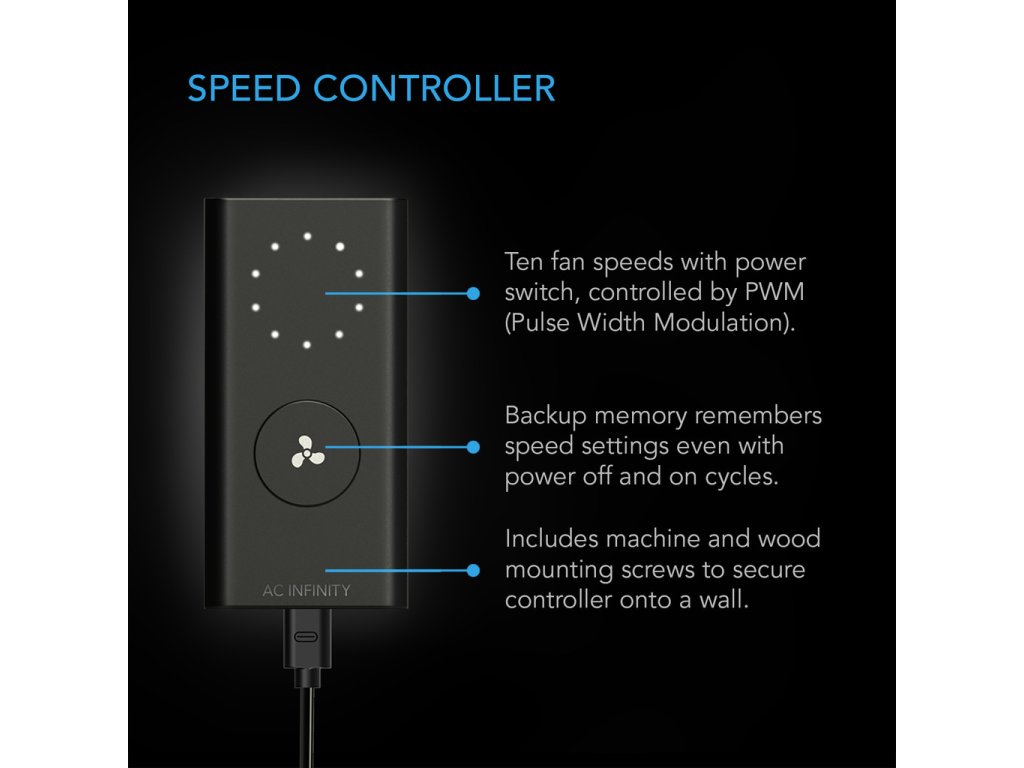

Precise speed controller
The controller allows the fan speed to be adjusted in ten stages in order to optimally adapt the airflow and noise level to different environments. The precise control is based on the EC motor with PWM technology, which runs smoothly and silently even at very low speeds. In addition, the controller has a memory function that automatically restores the last selected setting after a power failure.

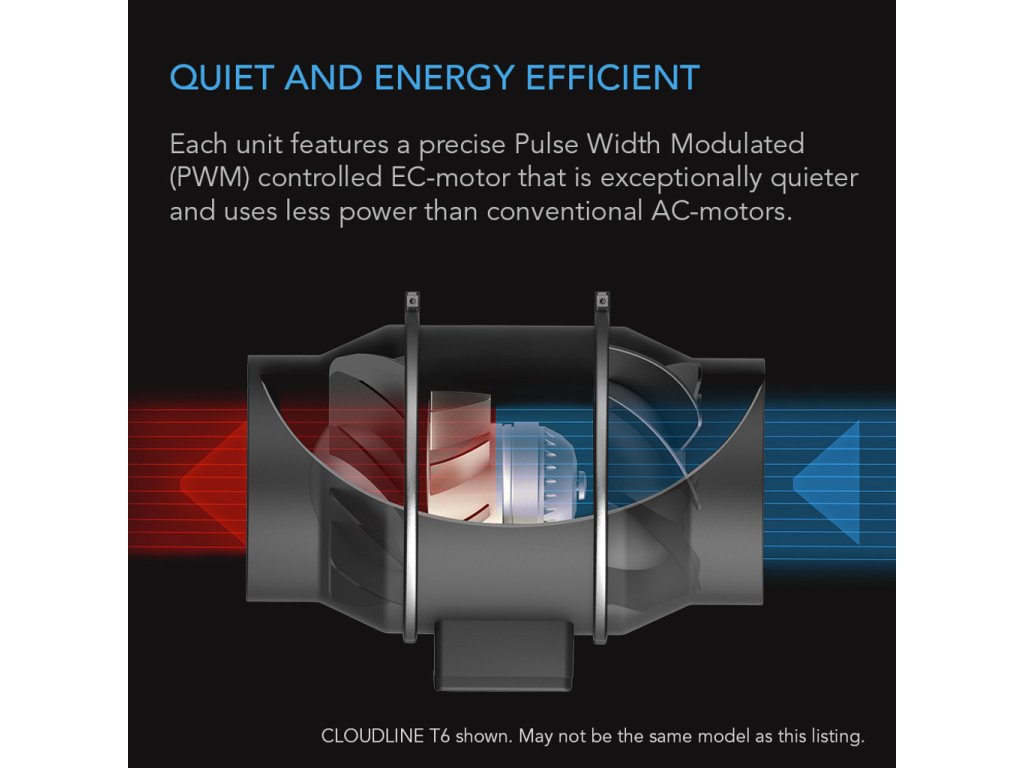

Quiet and energy-efficient design
Thanks to the mixed-flow design with stator blades and two hydrodynamic air ducts, the fan delivers reliable airflow even when air movement is restricted. The motor is equipped with double ball bearings, which are designed for a service life of around 67,000 hours and enable installation in any position. The housing is certified to IP44 and therefore reliably protected against dust and splash water - ideal for operation even in demanding environments.

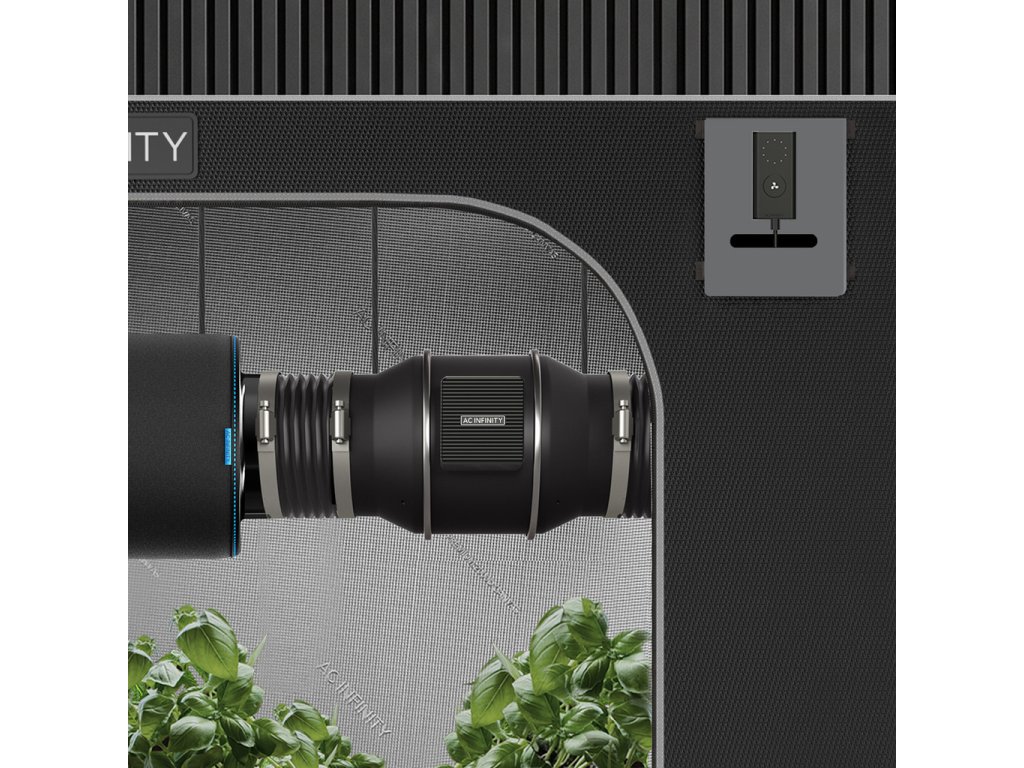

Areas of application
This quiet inline fan system has a wide range of applications: It is used to cool AV cabinets, racks and technical rooms and is equally suitable for grow rooms, grow tents, bathrooms, attics and numerous other recirculation and exhaust air projects thanks to its low noise level and intelligent control.
| Manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE S8 |
| Product model | AI-CLS8 |
| UPC code | 819137020849 |

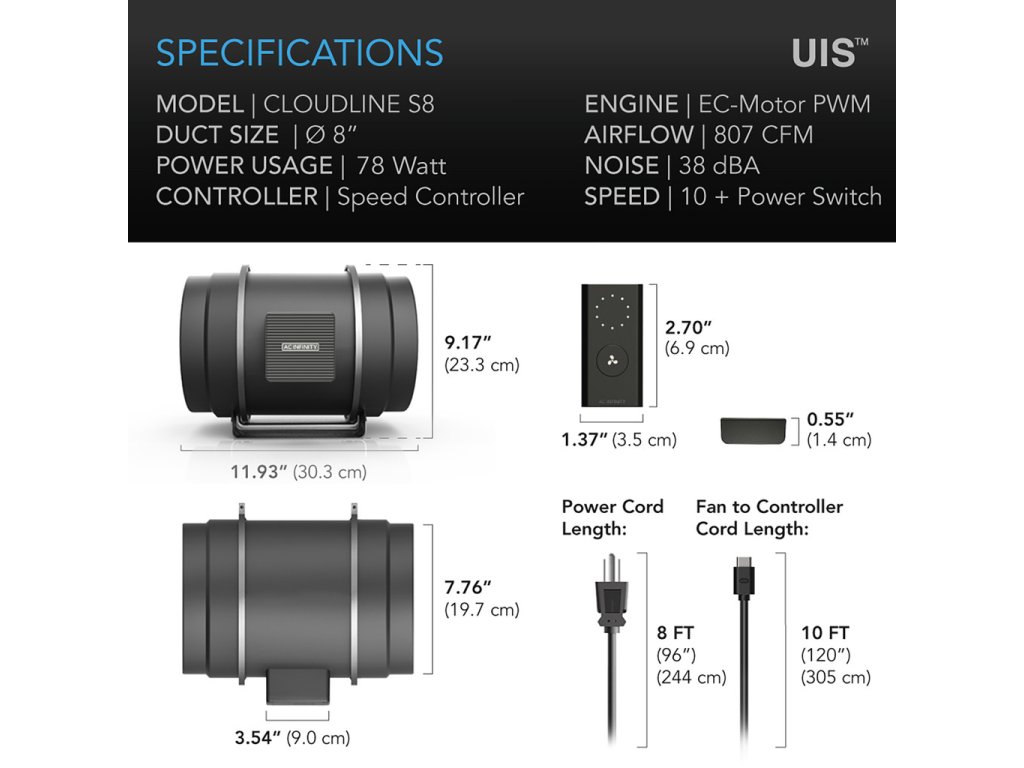

| Product and installation dimensions - Fan unit | |
| Pipe/hose size | 200 mm (8″) |
| Overall dimensions | 217 × 302 × 234 mm (8.54 × 11.89 × 9.17 in.) |
| Hole-to-hole mounting distance | 100 × 94 mm (3.94 × 3.70 in.) |
| Screw hole size | Ø 5.5 mm (Ø 0.217 in.) |
| Cable length to the controller | 3.05 m (120 in., 10 ft) |
| Cable length to mains plug | 2.44 m (96 in., 8 ft) |
| Product and assembly dimensions - Controller | |
| Overall dimensions | 85 × 36 × 13 mm (3.34 × 2.95 × 0.51 in.) |
| Performance and technical data | |
| Air flow rate (total) | 1371 m³/h (807 CFM) |
| Noise level (total) | 39 dBA |
| Static pressure | 746 Pa |
| Tension | 100-240 V AC |
| Frequency | 50/60 Hz |
| Maximum power consumption | 180 W |
| Average power consumption | 78 W |
| Amperage | 2,3 A |
| Mains plug type | EU plug (country-specific, type C/F) |
| Operating humidity | 35-85 % RH |
| Operating temperature | 0-60 °C (32-140 °F) |
| Protection class | IP 44 |
| Warehouse | Double ball bearing |
| Mounting positions | Horizontal or vertical |
| L10 service life | 67,000 hours |
| CE certification (complete product) |  PDF |
| ETL certificate (complete product) | PDF |
| RoHS certificate (entire product) | PDF |
| SAA certificate (complete product) | PDF |
| IC certificate (complete product) | PDF |
| Operating instructions | |
| Product manual | English German |
Additional parameters
| Category: | Inline Fan Systems |
|---|---|
| EAN: | 819137020849 |
