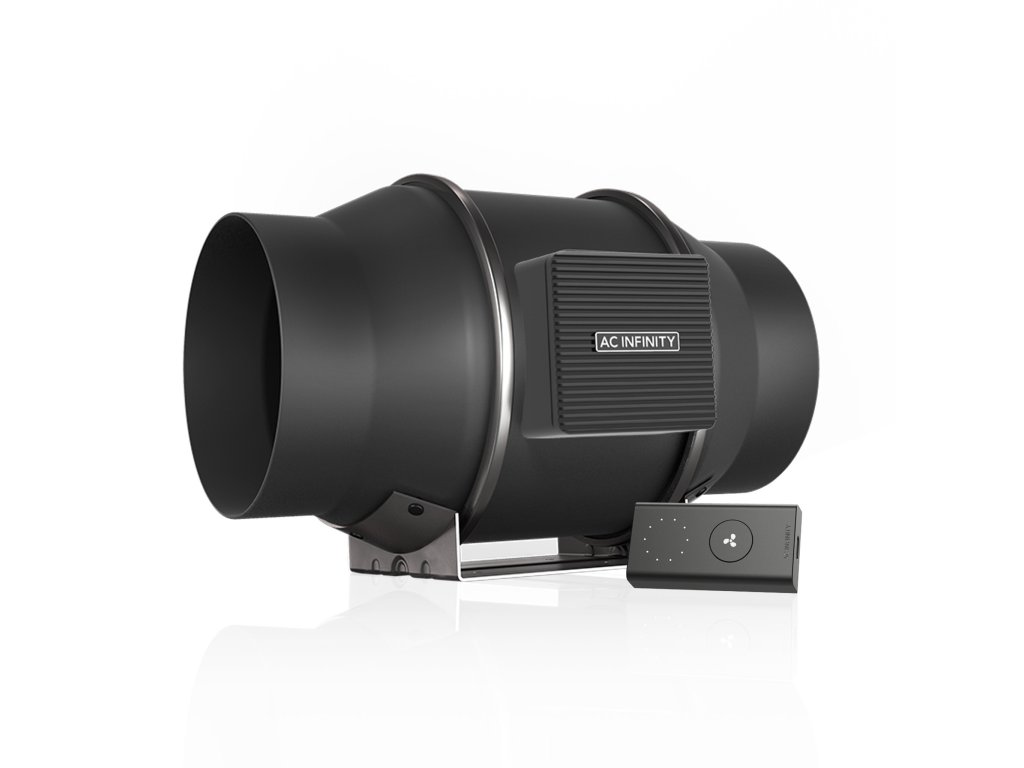

AC Infinity CLOUDLINE S6, Quiet Inline Fan System with Speed Controller, 150mm
Code: AI-CLS6Related products
Product detailed description
- For low-noise ventilation of grow tents, for transferring heating and cooling capacity, for supplying fresh air and for cooling AV cabinets.
- Includes wired 10-step speed controller; also compatible with all UIS controllers with intelligent programming.
- The PWM-controlled EC motor ensures quiet and energy-efficient operation with minimal heat and noise development.
- Mixed-flow design with stator blades and hydrodynamic air ducts ensures air performance even with high resistance.
- Connection size: 150 mm | Dimensions: 212 × 320 × 200 mm | Air flow: 683 m³/h | Noise level: 32 dBA | Bearing: double ball bearing
Product description
This intelligent inline tube fan was developed to quietly ventilate grow tents, redirect heating and cooling capacity, supply fresh air and cool AV cabinets. Thanks to the mixed-flow design, the air output remains constant even at high static pressure. The EC motor with PWM control ensures quiet, efficient operation. The motor housing can be removed for cleaning. The controller offers dynamic programs and is compatible with multiple UIS devices. As part of the UIS™ platform, the system can be seamlessly integrated into smart grow setups.

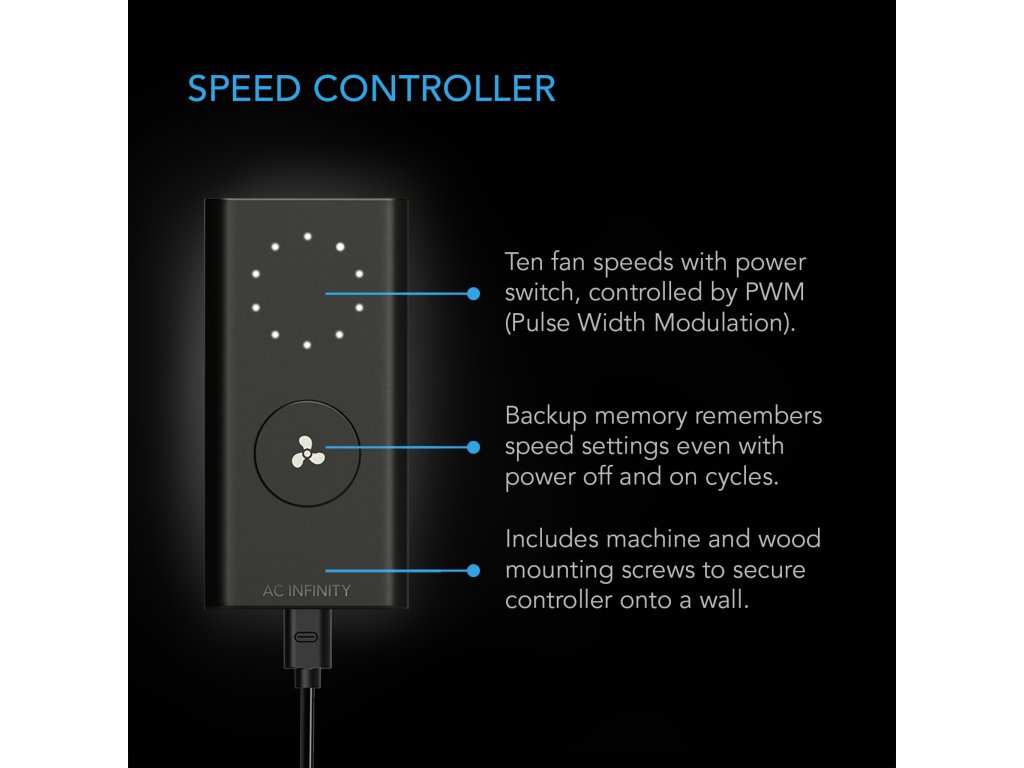

Precise speed controller
The fan speed can be precisely adjusted to noise and airflow requirements in ten stages using the speed controller. PWM technology enables smooth, low-noise operation even at very low speeds. A memory function automatically restores the last setting after a power failure.

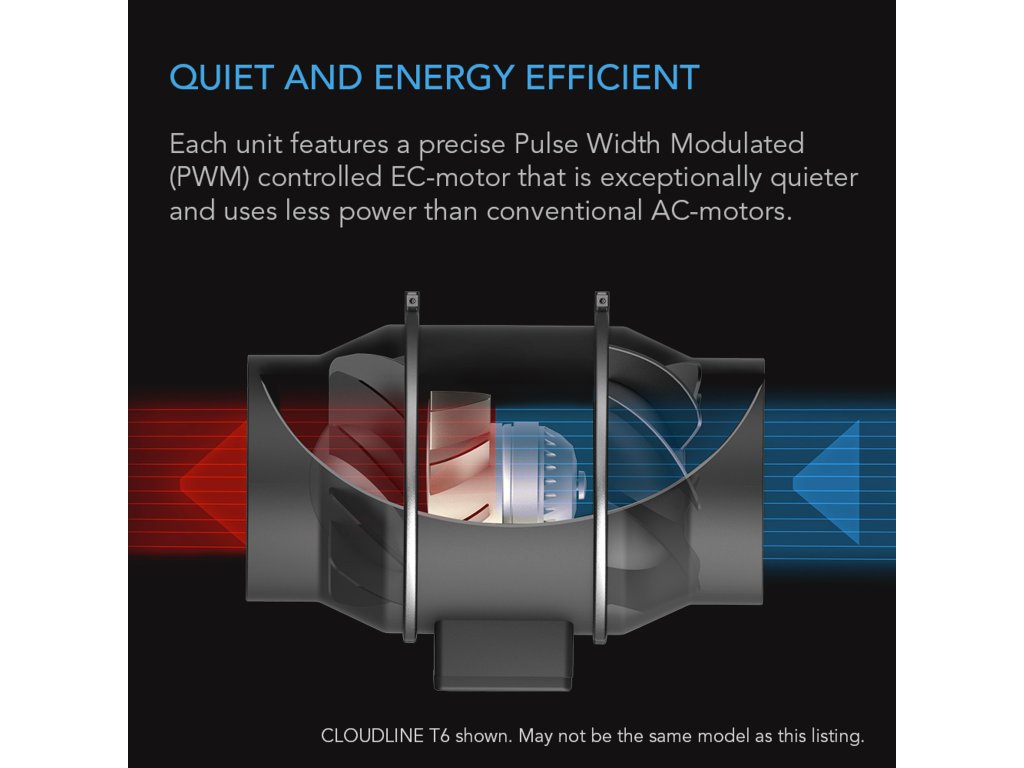

Quiet and energy-efficient design
The mixed-flow design with stator blades and two hydrodynamic air ducts ensures high air flow even with limited air movement. Double ball bearings are designed for around 67,000 hours and allow installation in any position. With IP44 protection, the fan is reliably protected against dust and splash water.

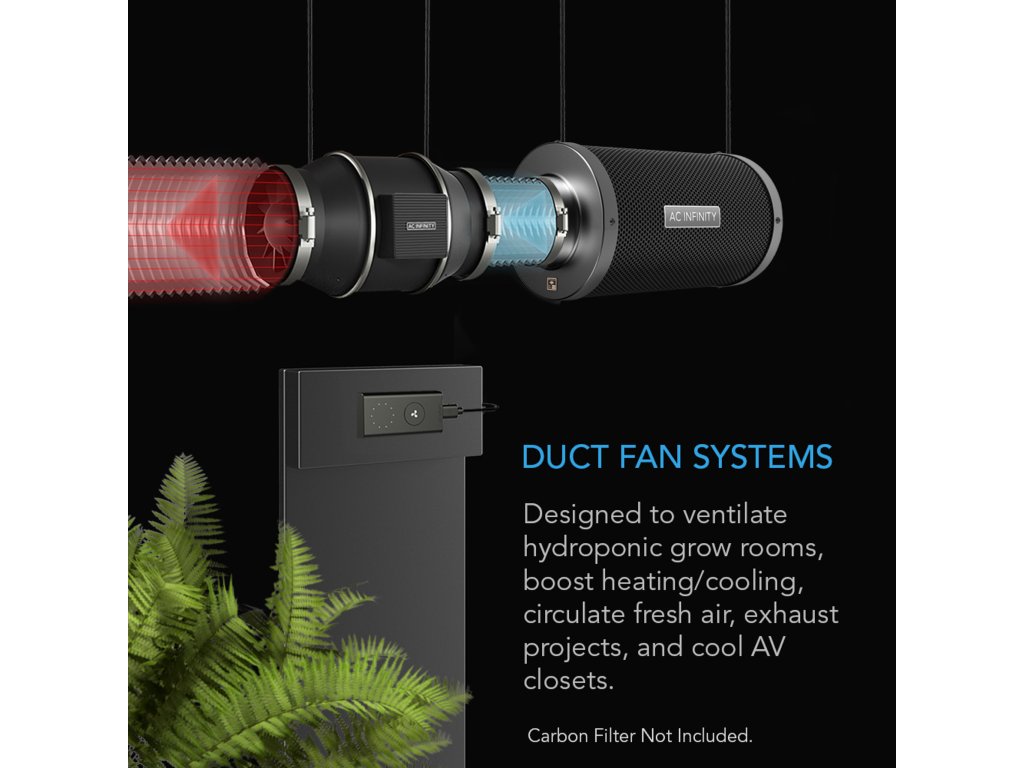

Areas of application

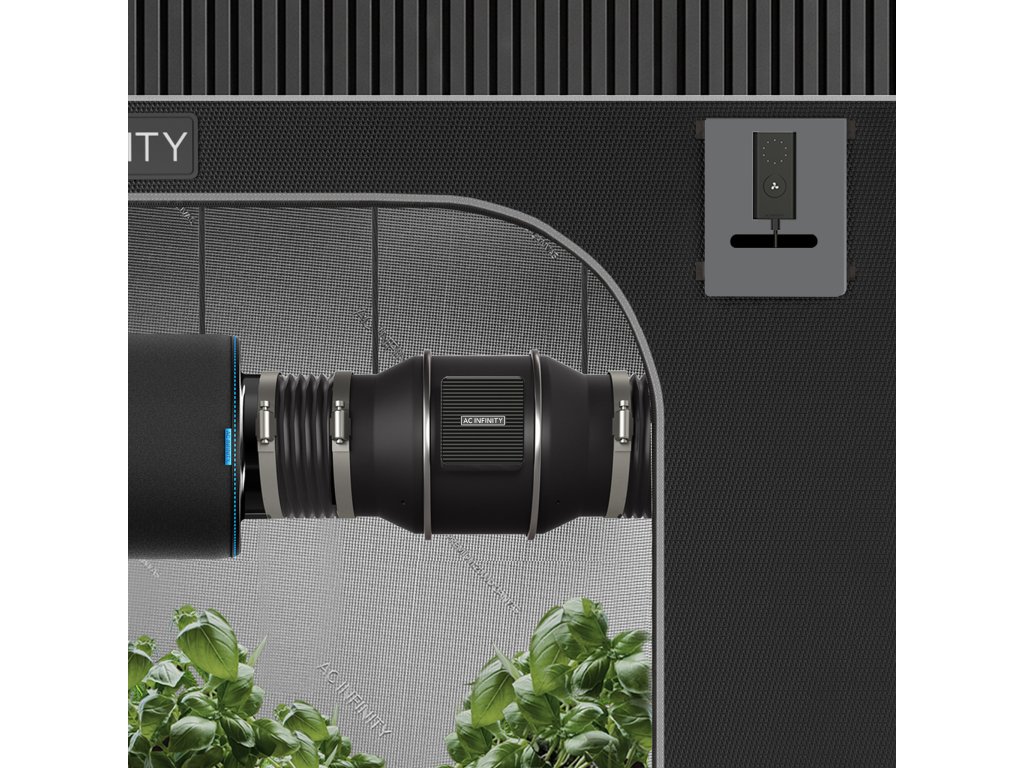

Ideal for AV cabinets, racks and technical rooms as well as for grow tents and rooms, bathrooms, attics and numerous other recirculation and exhaust air projects.
| Manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE S6 |
| Product model | AI-CLS6 |
| UPC code | 819137020306 |

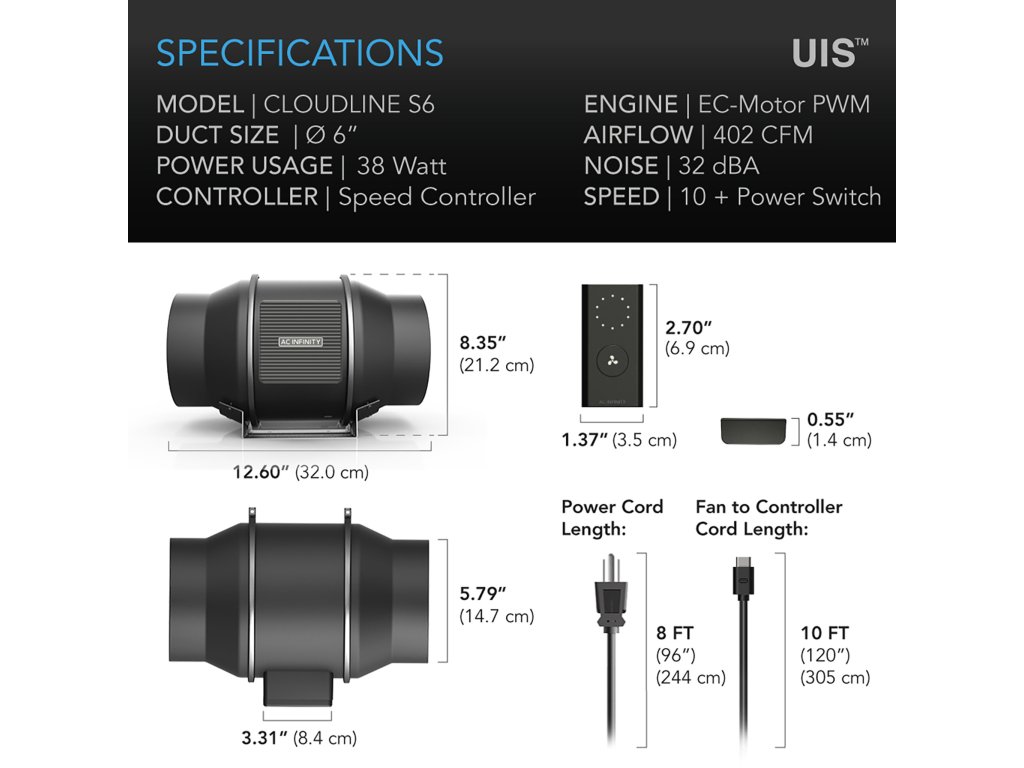

| Product and installation dimensions - Fan unit | |
| Pipe/hose size | 150 mm (6″) |
| Overall dimensions | 212 × 320 × 200 mm (7.87 × 12.60 × 8.35 in.) |
| Hole-to-hole mounting distance | 80 × 60 mm (3.15 × 2.36 in.) |
| Screw hole size | Ø 6.0 mm (Ø 0.236 in.) |
| Cable length to the controller | 3.05 m (120 in., 10 ft) |
| Product and assembly dimensions - Controller | |
| Overall dimensions | 85 × 36 × 13 mm (3.34 × 2.95 × 0.51 in.) |
| Performance and technical data | |
| Air flow rate (total) | 683 m³/h (402 CFM) |
| Noise level (total) | 32 dBA |
| Static pressure | 503 Pa |
| Tension | 100-240 V AC |
| Frequency | 50/60 Hz |
| Maximum power consumption | 70 W |
| Average power consumption | 38 W |
| Amperage | 0,94 A |
| Mains plug type | EU plug (country-specific, type C/F) |
| Operating humidity | 35-85 % RH |
| Operating temperature | 0-60 °C (32-140 °F) |
| Protection class | IP 44 |
| Warehouse | Double ball bearing |
| Mounting positions | Horizontal or vertical |
| L10 service life | 67,000 hours |
| CE certification (complete product) |  PDF |
| ETL certificate (complete product) | PDF |
| RoHS certificate (entire product) | PDF |
| SAA certificate (complete product) | PDF |
| IC certificate (complete product) | PDF |
| Operating instructions | |
| Product manual | English German |
Additional parameters
| Category: | Inline Fan Systems |
|---|---|
| EAN: | 819137020306 |
