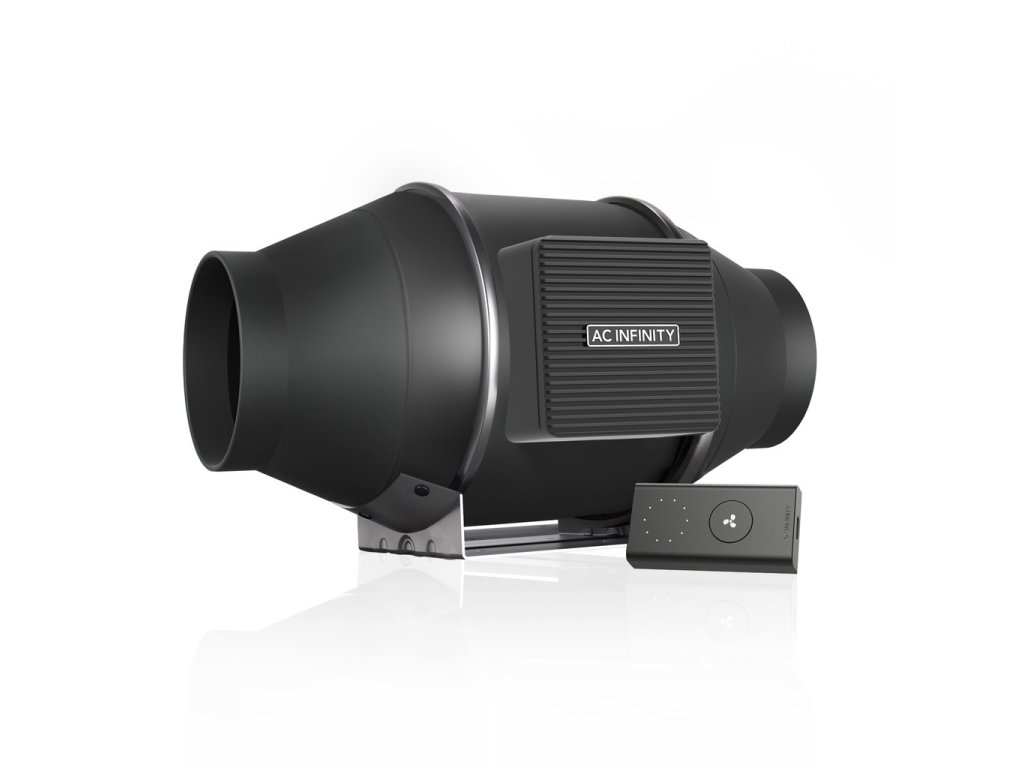

AC Infinity CLOUDLINE S4, Quiet Inline Fan System with Speed Controller, 100mm
Code: AI-CLS4Related products
Product detailed description

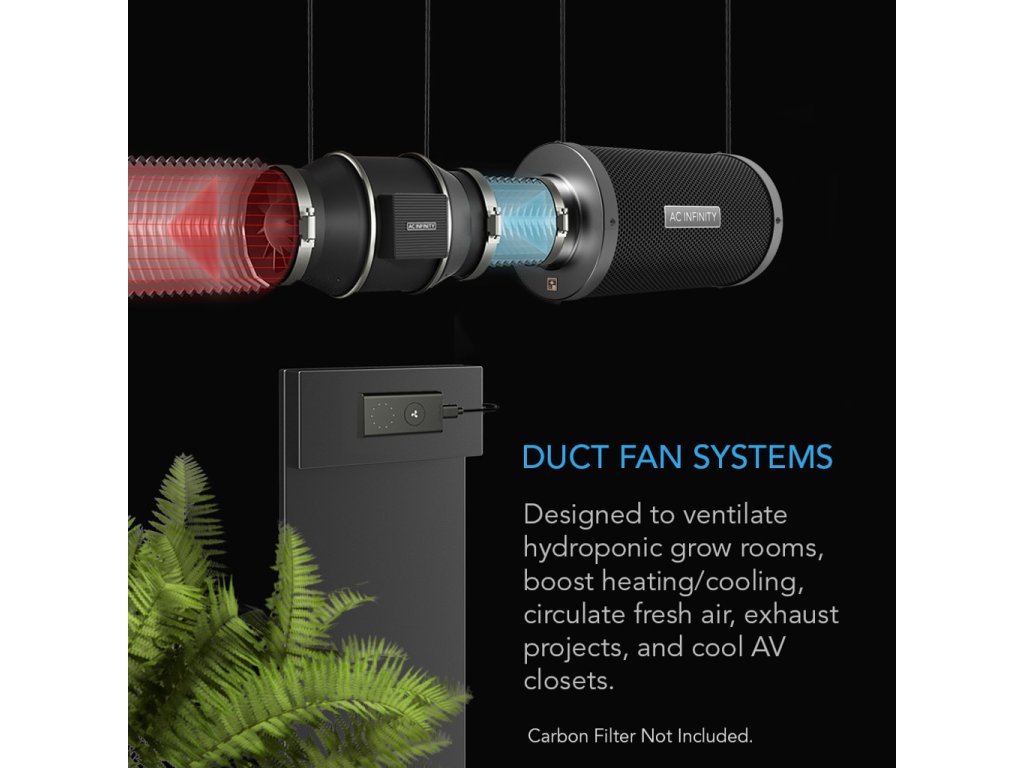

- For low-noise ventilation of grow tents, for transferring heating and cooling capacity, for supplying fresh air and for cooling AV cabinets.
- Includes wired 10-step speed controller; also compatible with all UIS controllers with intelligent programming.
- The PWM-controlled EC motor ensures quiet and energy-efficient operation with minimal heat and noise development.
- Mixed-flow design with stator blades and hydrodynamic air ducts ensures air performance even with high resistance.
- Connection size: 100 mm | Dimensions: 188 × 303 × 176 mm | Air flow: 348 m³/h | Noise level: 28 dBA | Bearing: double ball bearing
Product description
This intelligent inline tube fan was developed to quietly ventilate grow tents, redirect heating and cooling capacity, supply fresh air and cool AV cabinets. Thanks to the mixed-flow design, the air output remains constant even at high static pressure. The EC motor with PWM control ensures quiet, efficient operation. The motor housing can be removed for cleaning. The controller offers 10 levels and is compatible with UIS devices. The UIS™ platform enables integration into intelligent grow setups.

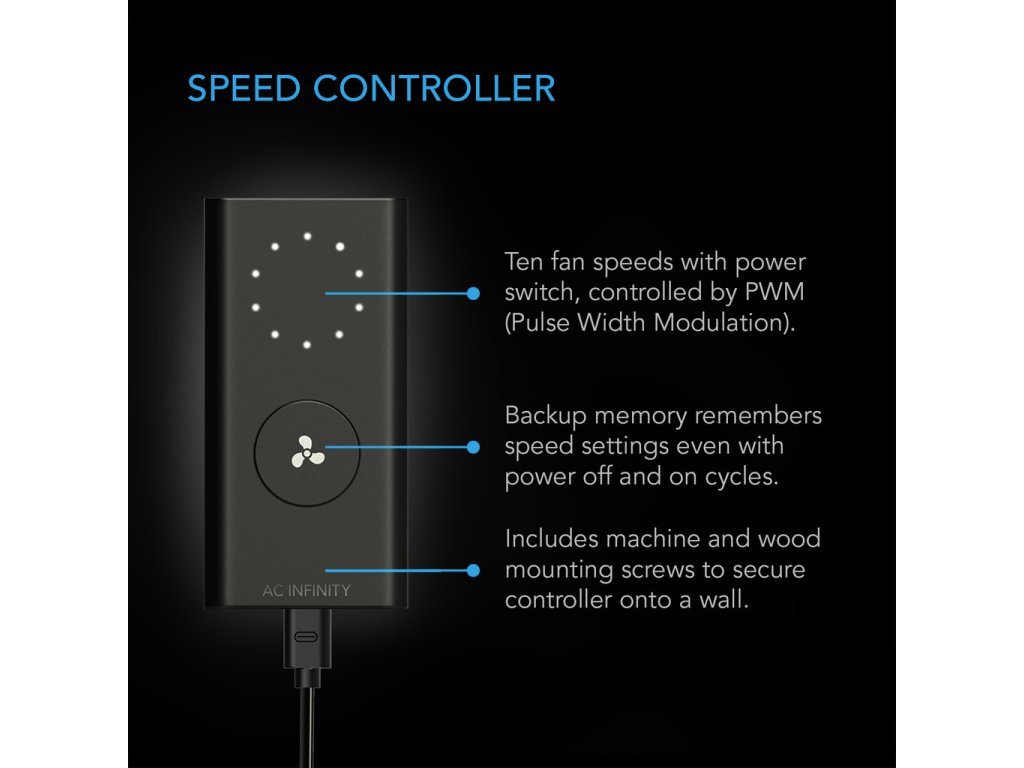

Precise speed controller
The fan speed can be precisely adjusted to the environment in ten stages using the speed controller. PWM technology enables smooth, quiet operation even at low speeds. In addition, a memory function ensures that the last setting is retained after a power failure.

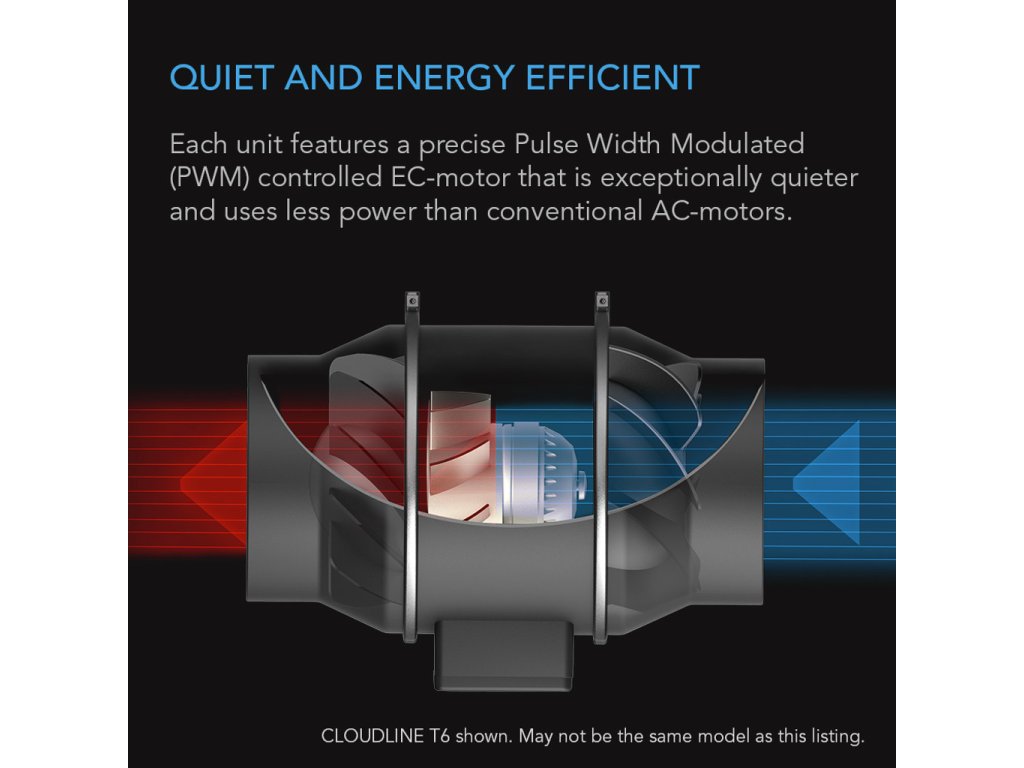

Quiet and energy-efficient design
The mixed-flow design with stator blades and two hydrodynamic air ducts guarantees a high air flow even with limited air movement. Double ball bearings ensure a long service life (~67,000 hours). Protected to IP44 - reliable even in demanding environments.
Areas of application

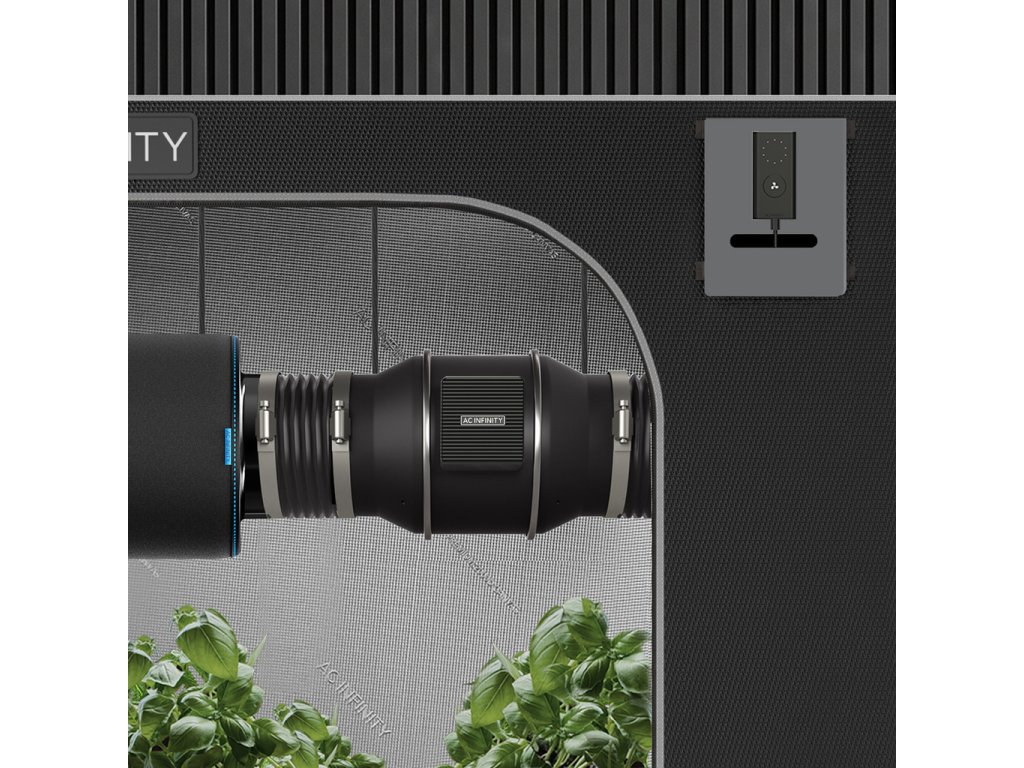

This fan system is suitable for AV cabinets, racks, technical rooms and, thanks to the quiet, intelligent control, also for grow tents, bathrooms, attics and a wide range of recirculation and exhaust air projects.
| Manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE S4 |
| Product model | AI-CLS4 |
| UPC code | 819137020290 |

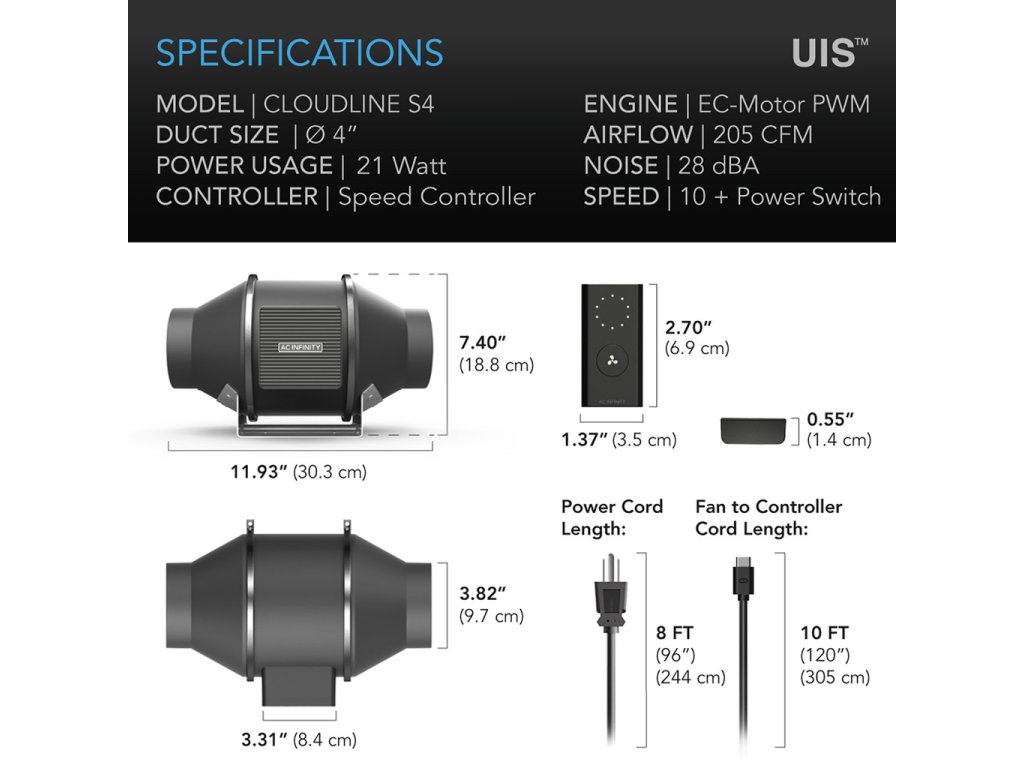

| Product and installation dimensions - Fan unit | |
| Pipe/hose size | 100 mm (4″) |
| Overall dimensions | 188 × 303 × 176 mm (7.40 × 11.93 × 6.93 in.) |
| Hole-to-hole mounting distance | 80 × 60 mm (3.15 × 2.36 in.) |
| Screw hole size | Ø 5.0 mm (Ø 0.197 in.) |
| Cable length to the controller | 3.05 m (120 in., 10 ft) |
| Product and assembly dimensions - Controller | |
| Overall dimensions | 85 × 36 × 13 mm (3.34 × 2.95 × 0.51 in.) |
| Performance and technical data | |
| Air flow rate (total) | 348 m³/h (205 CFM) |
| Noise level (total) | 28 dBA |
| Maximum speed | 2800 rpm |
| Static pressure | 223 Pa |
| Tension | 100-240 V AC |
| Frequency | 50/60 Hz |
| Maximum power consumption | 28 W |
| Average power consumption | 21 W |
| Amperage | 0,4 A |
| Mains plug type | EU plug (country-specific, type C/F) |
| Operating humidity | 35-85 % RH |
| Operating temperature | 0-60 °C (32-140 °F) |
| Protection class | IP 44 |
| Warehouse | Double ball bearing |
| Mounting positions | Horizontal or vertical |
| L10 service life | 67,000 hours |
| CE certification (complete product) |  PDF |
| ETL certificate (complete product) | PDF |
| RoHS certificate (entire product) | PDF |
| SAA certificate (complete product) | PDF |
| IC certificate (complete product) | PDF |
| Operating instructions | |
| Product manual | English German |
Additional parameters
| Category: | Inline Fan Systems |
|---|---|
| EAN: | 819137020290 |
