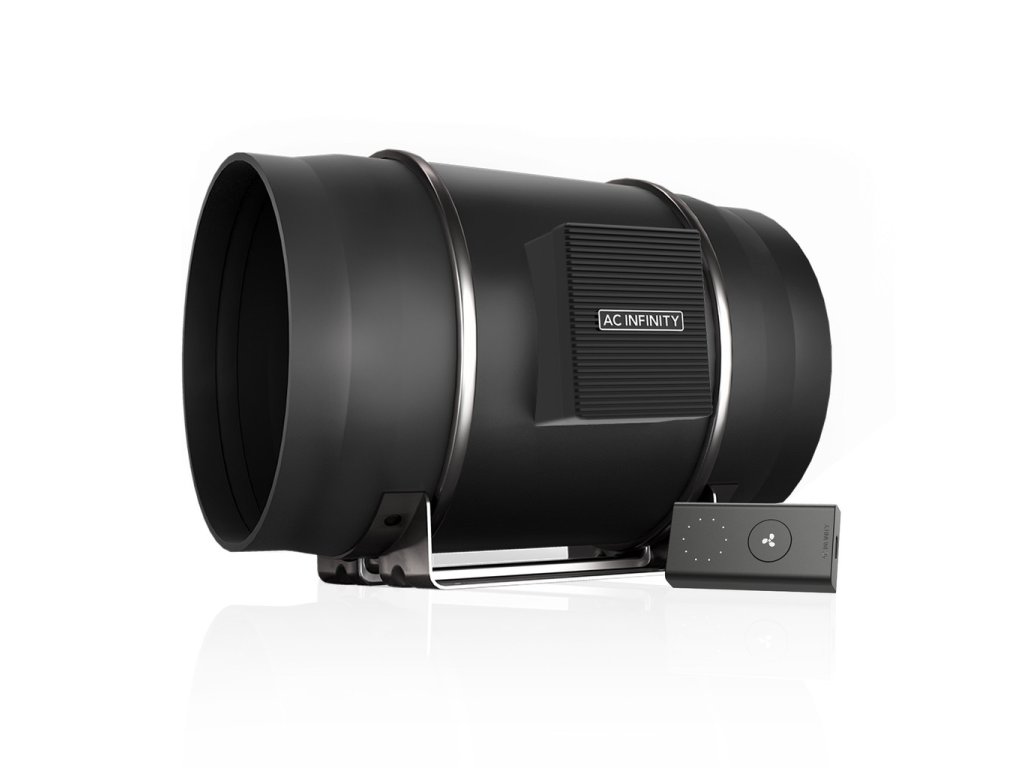

AC Infinity CLOUDLINE S10, Quiet Inline Fan System with Speed Controller, 250mm
Code: AI-CLS10Product detailed description
- For low-noise ventilation of grow tents, for transferring heating/cooling air, for supplying fresh air and for cooling AV cabinets.
- Includes wired 10-step speed controller; also compatible with all UIS controllers with intelligent programming.

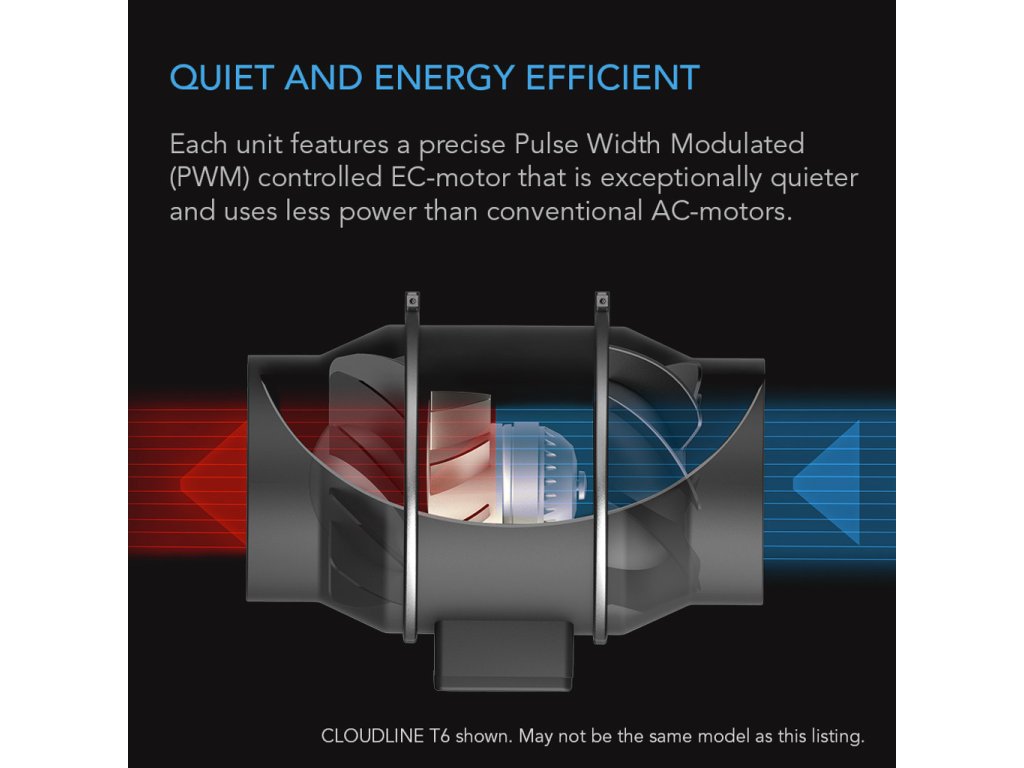

- The PWM-controlled EC motor ensures quiet and energy-efficient operation with minimal heat and noise development.
- Mixed-flow design with stator blades and hydrodynamic air ducts delivers air performance even with high resistance.
- Connection size: 250 mm | Dimensions: 287 × 384 × 286 mm | Air flow: 2042 m³/h | Noise level: 48 dBA | Bearing: double ball bearing
Product description

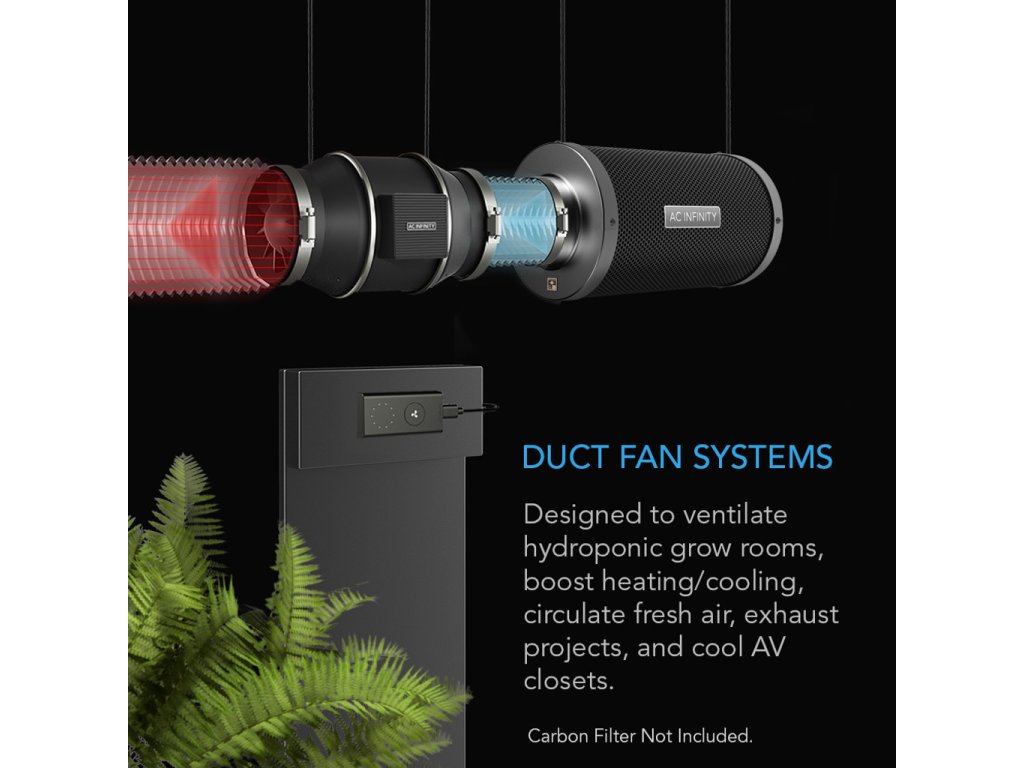

This intelligent inline tube fan is designed to quietly ventilate grow rooms, boost heating/cooling air, supply fresh air, support exhaust projects and cool AV cabinets. The inline mixed flow design maintains air performance even at high static pressure. The EC motor with PWM control enables quiet, energy-efficient operation. The motor housing is removable for cleaning. The controller offers dynamic climate and time programs and can be connected to multiple UIS devices; as part of the UIS™ platform, the system can be seamlessly integrated into smart grow setups.

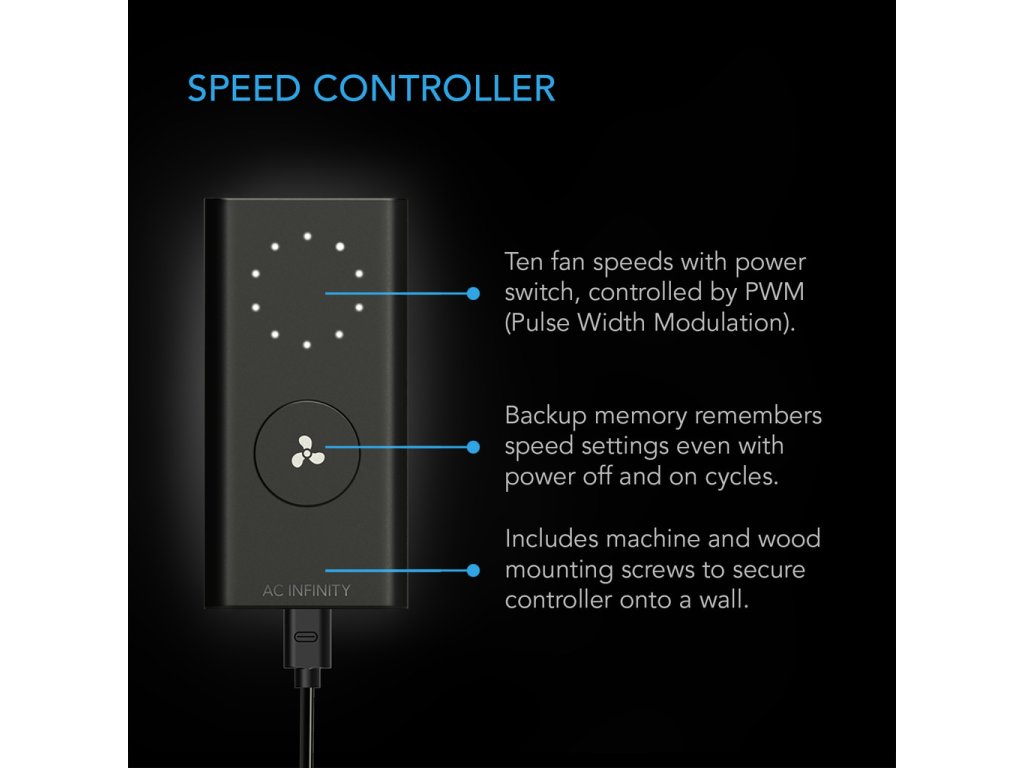

Precise speed controller
The speed controller provides ten speed levels to optimally adapt the airflow and noise level to different environments. PWM enables smooth running at very low speeds without motor noise. A memory function automatically restores the last setting after a power failure.
Quiet and energy-efficient design
The mixed-flow design with stator blades and two hydrodynamic air ducts ensures high air flow even with limited air movement. Double ball bearings are designed for approx. 67,000 hours. With IP44 protection, the device is reliably protected against dust and splash water.
| Manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE S10 |
| Product model | AI-CLS10 |
| UPC code | 819137020856 |
| Product and installation dimensions - Fan unit | |
| Pipe/hose size | 250 mm (10″) |
| Overall dimensions | 287 × 384 × 286 mm (9.81 × 15.20 × 11.30 in.) |
| Hole-to-hole mounting distance | 150 × 150 mm (5.90 × 5.90 in.) |
| Screw hole size | Ø 12.0 mm (Ø 0.472 in.) |
| Cable length to the controller | 3.05 m (120 in., 10 ft) |
| Cable length to mains plug | 2.44 m (96 in., 8 ft) |
| Product and assembly dimensions - Controller | |
| Overall dimensions | 85 × 36 × 13 mm (3.34 × 2.95 × 0.51 in.) |
| Performance and technical data | |
| Air flow rate (total) | 2042 m³/h (1201 CFM) |
| Noise level (total) | 48 dBA |
| Static pressure | 1059 Pa |
| Tension | 100-240 V AC |
| Frequency | 50/60 Hz |
| Maximum power consumption | 255 W |
| Average power consumption | 136 W |
| Amperage | 2,7 A |
| Mains plug type | EU plug (country-specific, type C/F) |
| Operating humidity | 35-85 % RH |
| Operating temperature | 0-60 °C (32-140 °F) |
| Protection class | IP 44 |
| Warehouse | Double ball bearing |
| Mounting positions | Horizontal or vertical |
| L10 service life | 67,000 hours |
| CE certification (complete product) |  PDF |
| ETL certificate (complete product) | PDF |
| RoHS certificate (entire product) | PDF |
| SAA certificate (complete product) | PDF |
| IC certificate (complete product) | PDF |
| Operating instructions | |
| Product manual | English German |
Additional parameters
| Category: | Inline Fan Systems |
|---|---|
| EAN: | 819137020856 |
