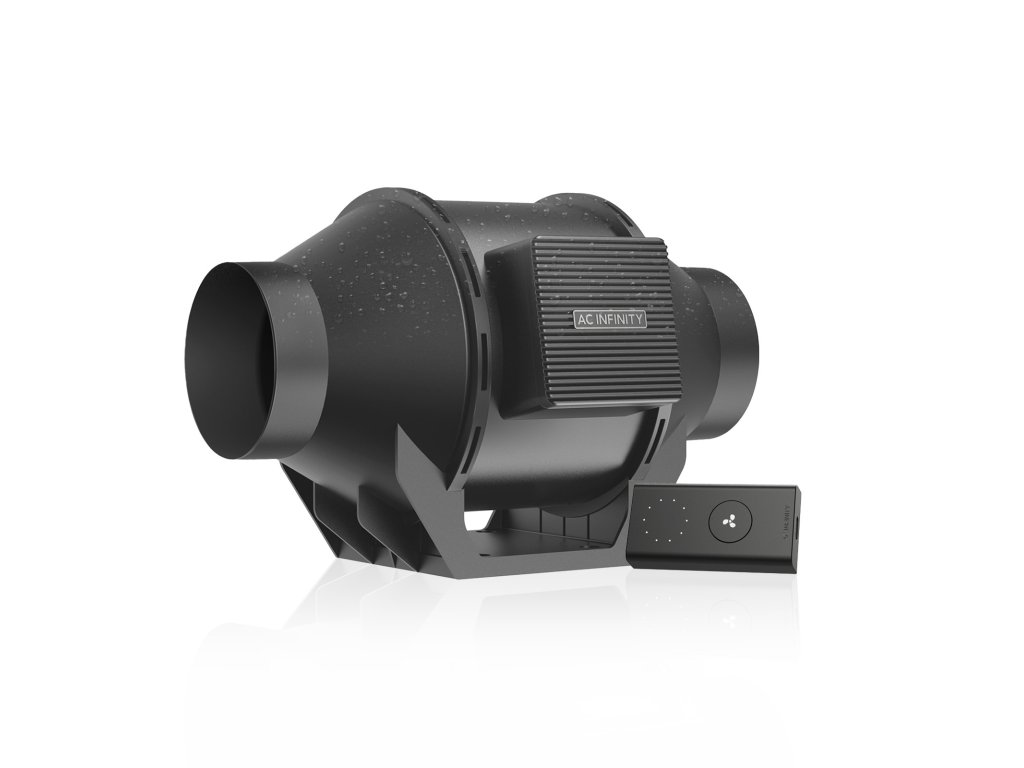

AC Infinity CLOUDLINE H4, Humidity-Proof IP65 Inline Fan with Speed Controller - 100mm
Code: AI-CLH4Product detailed description
- Specially developed for mushroom cultivation to quietly ventilate growing rooms and keep the indoor climate stable.
- IP65-certified for reliable performance in high humidity environments; resistant to dust, dirt and moisture.
- Includes wired speed controller with precise 10-stage control for optimum air flow and to prevent CO₂ build-up.
- EC motor with PWM control ensures particularly quiet and energy-efficient operation with constant fresh air exchange.
- Connection size: 100 mm | Dimensions: 175 × 302 × 188 mm | Air flow: 360 m³/h | Noise level: 27 dBA | Bearing: double ball bearing
Product description

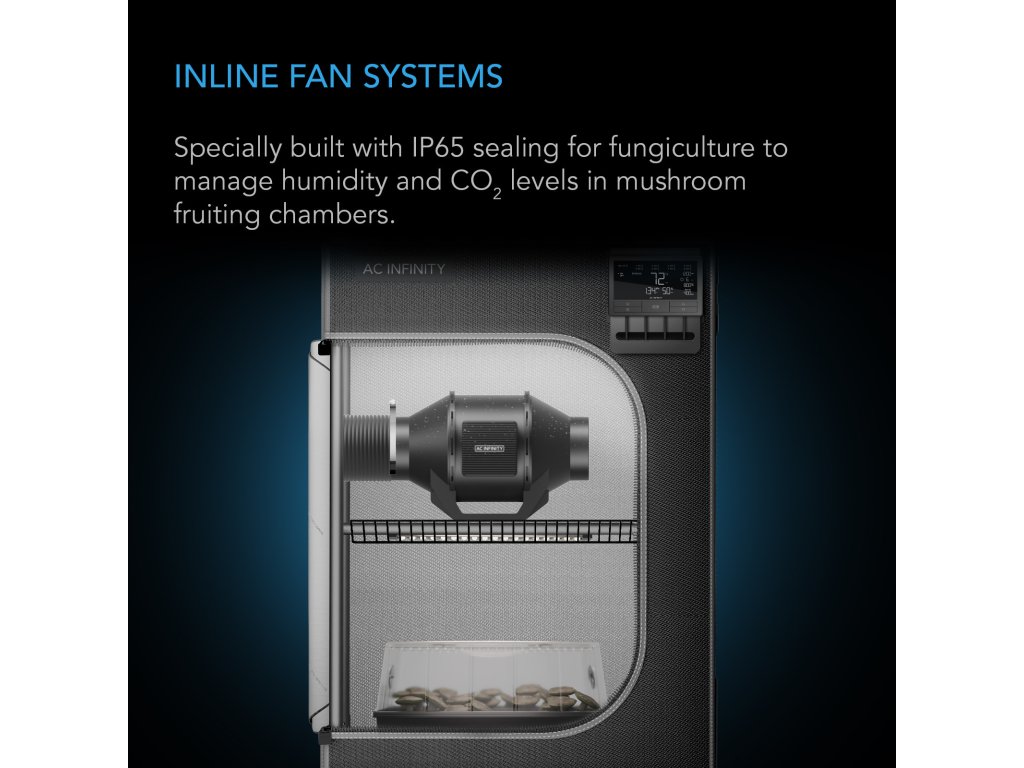

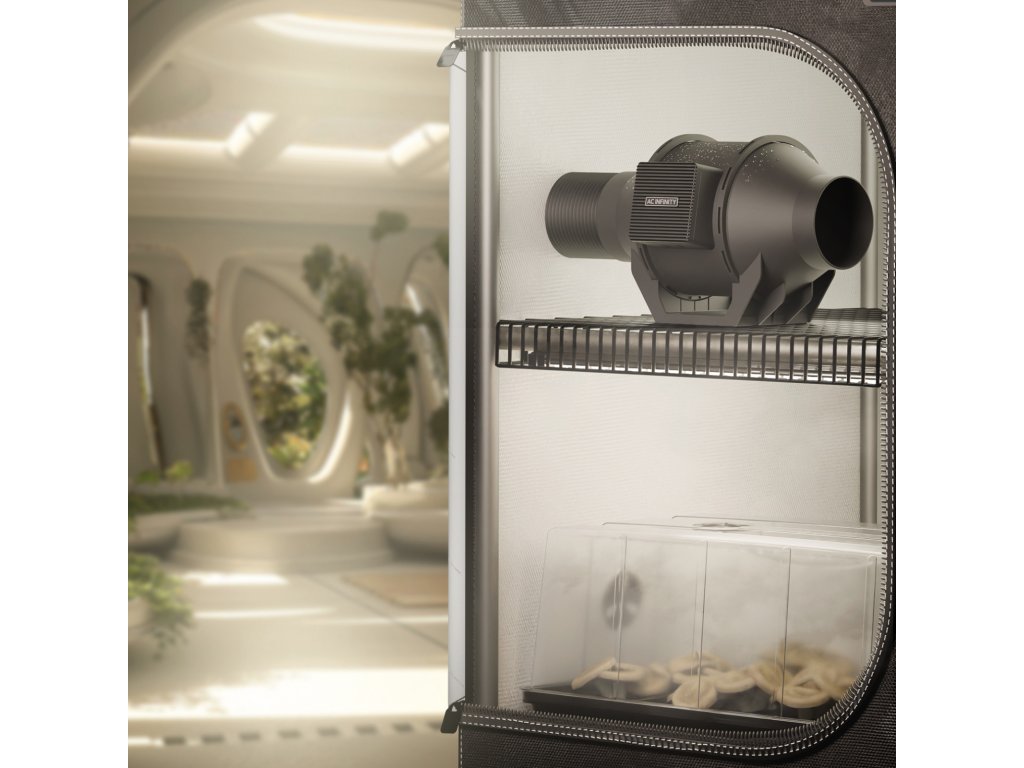

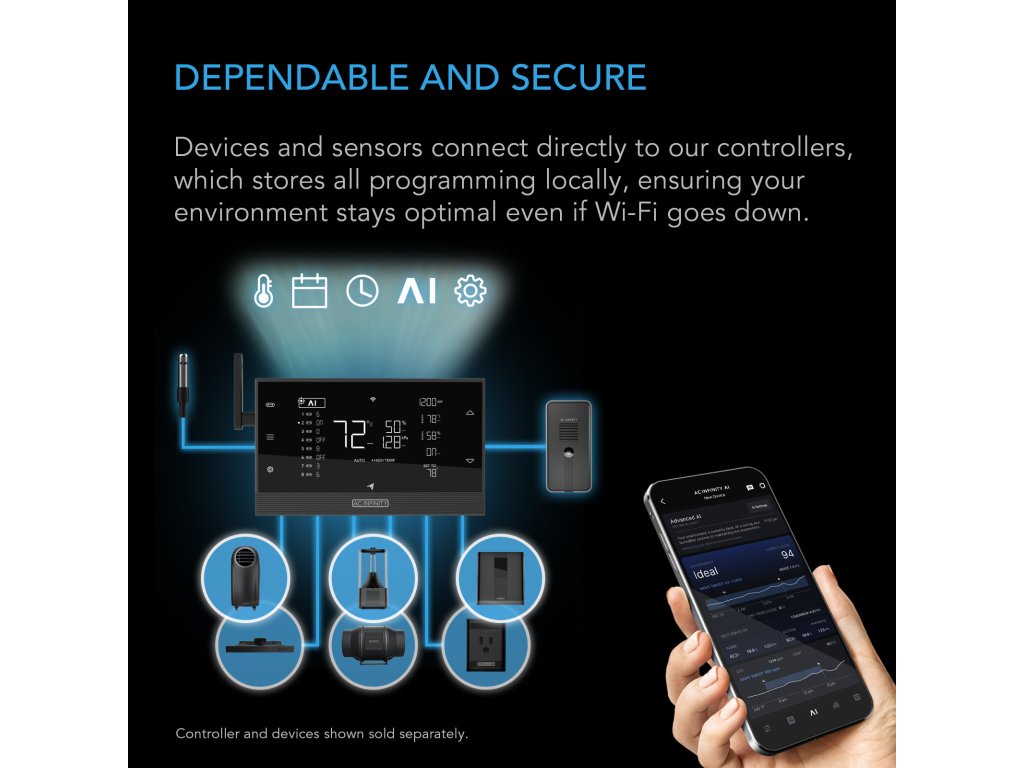

This inline tube fan was specially developed for mushroom cultivation and ventilates grow tents, grow rooms and fruiting rooms quietly and reliably. With its help, humidity and CO₂ values can be kept stable while ensuring a continuous exchange of fresh air. The device is sealed to IP65 and therefore optimally protected against moisture, dust and spores - ideal for demanding environments. With the integrated speed controller, ten precise levels can be set to match the air flow exactly to the requirements. This is driven by the energy-efficient EC motor with PWM control, which enables particularly quiet operation with constant performance. This product is part of the UIS™ platform for grow devices and smart controllers and can be connected to the AC Infinity app via Wi-Fi to create an ideal climate for mushroom cultivation.
Controller/regulator

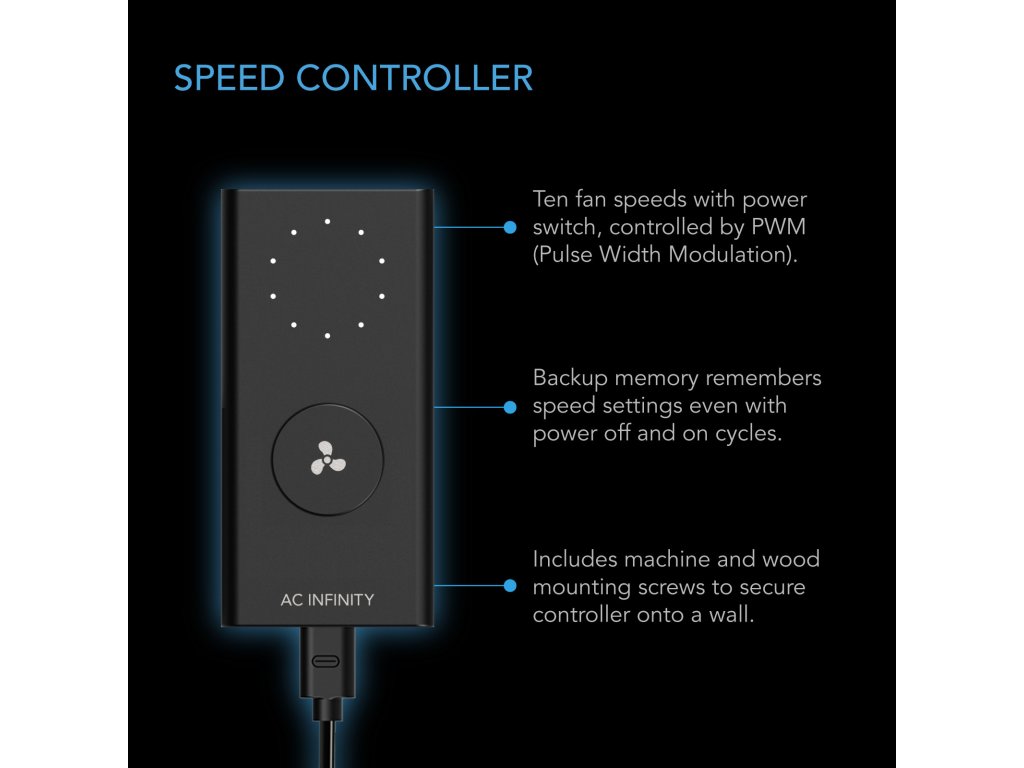

The supplied controller enables the fine adjustment of ten fan speeds so that the airflow and noise level can be optimally adapted to mushroom growing environments. The precise airflow control is based on the EC motor with PWM technology, which operates stably and without motor noise even at very low speeds. In addition, the controller has a memory function that automatically restores the last setting after a power failure.
Quiet and energy-efficient design

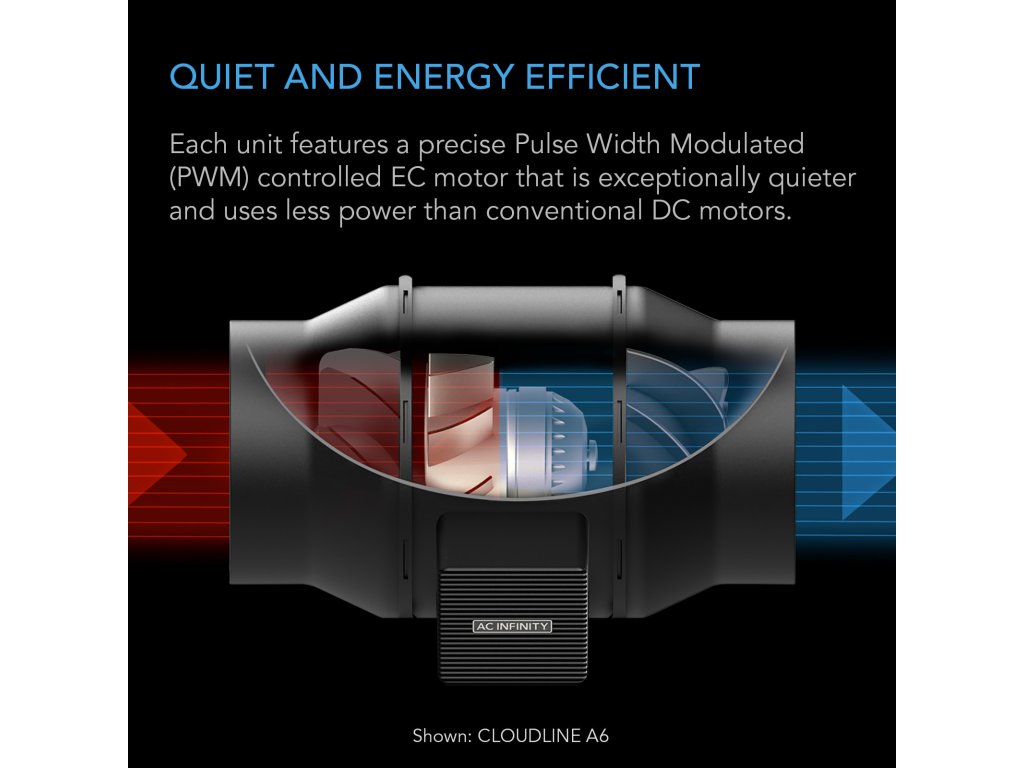

The mixed-flow design with stator blades and two hydrodynamic air ducts enables a high static pressure so that the air flow remains constant even in environments with limited air movement. The motor is equipped with double ball bearings (service life approx. 67,000 hours) and can be mounted in any orientation. The motor housing with rotor and blades can be removed from the frame, which makes cleaning and maintenance particularly easy.
| Product identification | |
| Manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE H4 |
| Model number | AI-CLH4 |
| UPC code | 819137024595 |

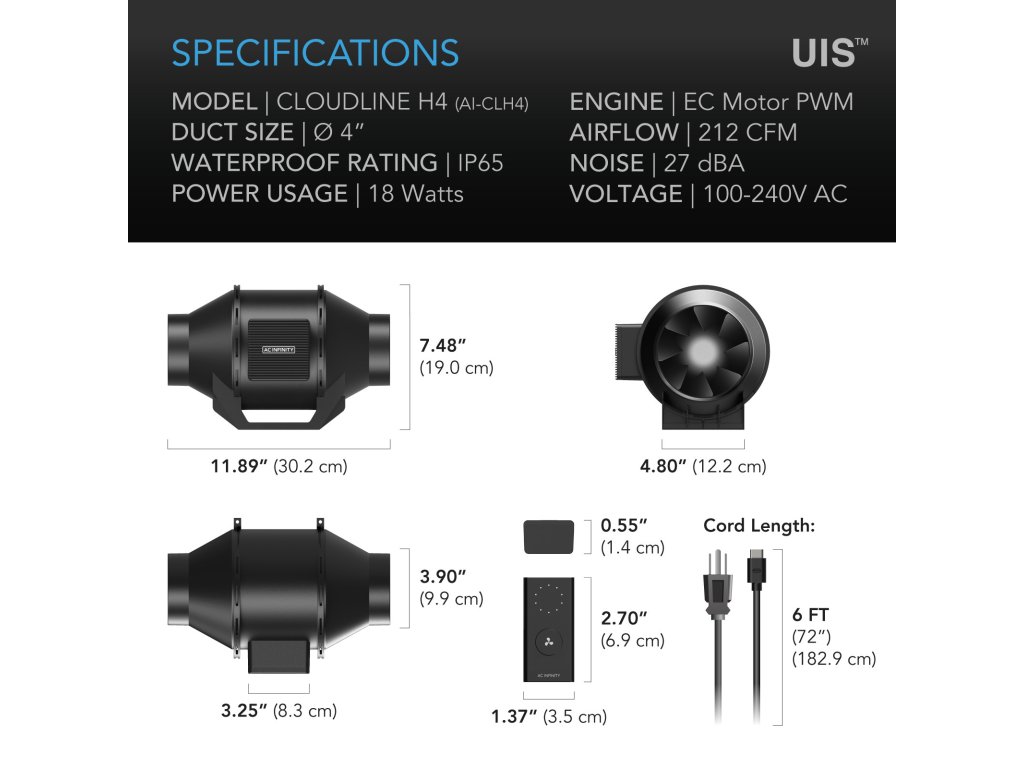

| Product and installation data - Fan unit | |
| Pipe size | 100 mm (4") |
| Overall dimensions | 190 × 302 × 176 mm (7.48 × 11.89 × 6.93 in.) |
| Distance between fixing holes | 80 × 60 mm (3.15 × 2.36 in.) |
| Screw hole size | Ø 5.0 mm (Ø 0.197 in.) |
| Cable length to the controller | 1.83 m (72 in. / 6 ft) |
| Cable length to plug | 1.83 m (72 in. / 6 ft) |
| Product and assembly data - Controller | |
| Overall dimensions | 85 × 36 × 13 mm (3.34 × 2.95 × 0.51 in.) |
| Performance and technical data - Fan unit | |
| Air flow | 360 m³/h (212 CFM) |
| Noise level | 27 dBA |
| Maximum speed | 3000 rpm (RPM) |
| Static pressure | 324 Pa |
| Tension | 100-240 V AC |
| Frequency | 50/60 Hz |
| Max. Power consumption | 35 W |
| Average consumption | 18 W |
| Amperage | 0,55 A |
| Mains connection | US plug (NEMA 1-15 type A) |
| Operating humidity | 35-95 % RH |
| Operating temperature | 0-60 °C (32-140 °F) |
| Protection class | IP 65 |
| Warehouse | Double ball bearing |
| Mounting positions | Horizontal or vertical |
| L10 Service life | 67,000 hours |
| ETL certificate (complete product) |  PDF |
| RoHS certificate (entire product) | PDF |
| IC certificate (complete product) | PDF |
| Manual | |
| Product manual | English German |
Additional parameters
| Category: | Inline Fan Systems |
|---|---|
| EAN: | 819137024595 |
