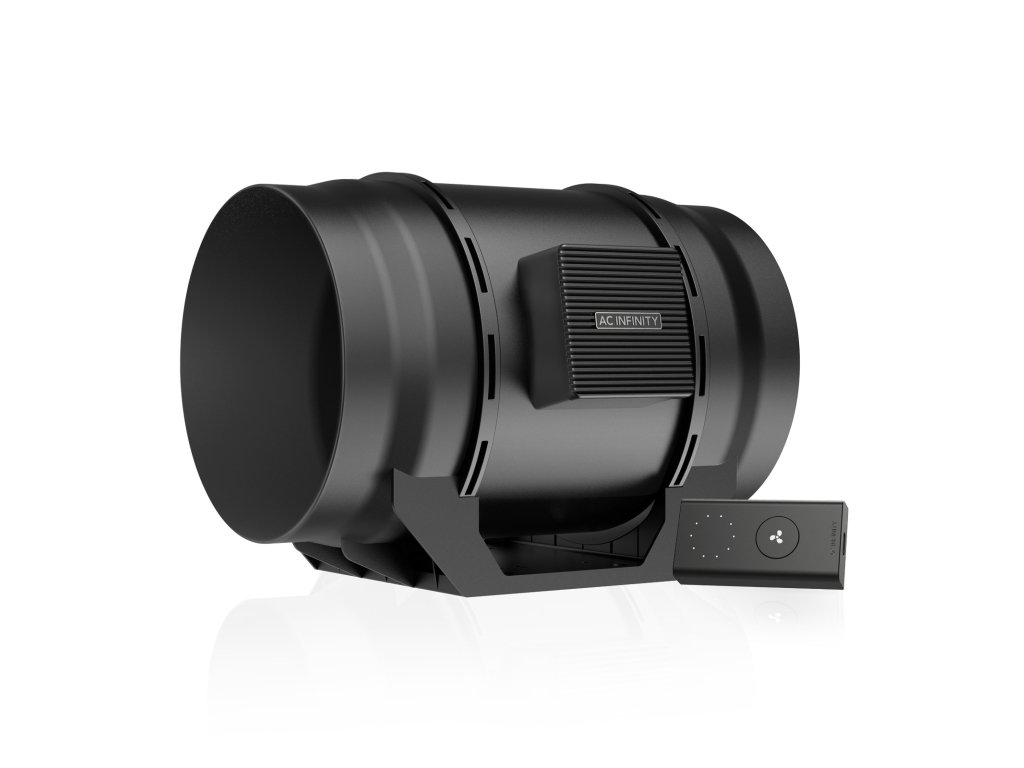

AC Infinity CLOUDLINE A8, Quiet Inline Duct Fan with Speed Controller - 200mm

Product detailed description

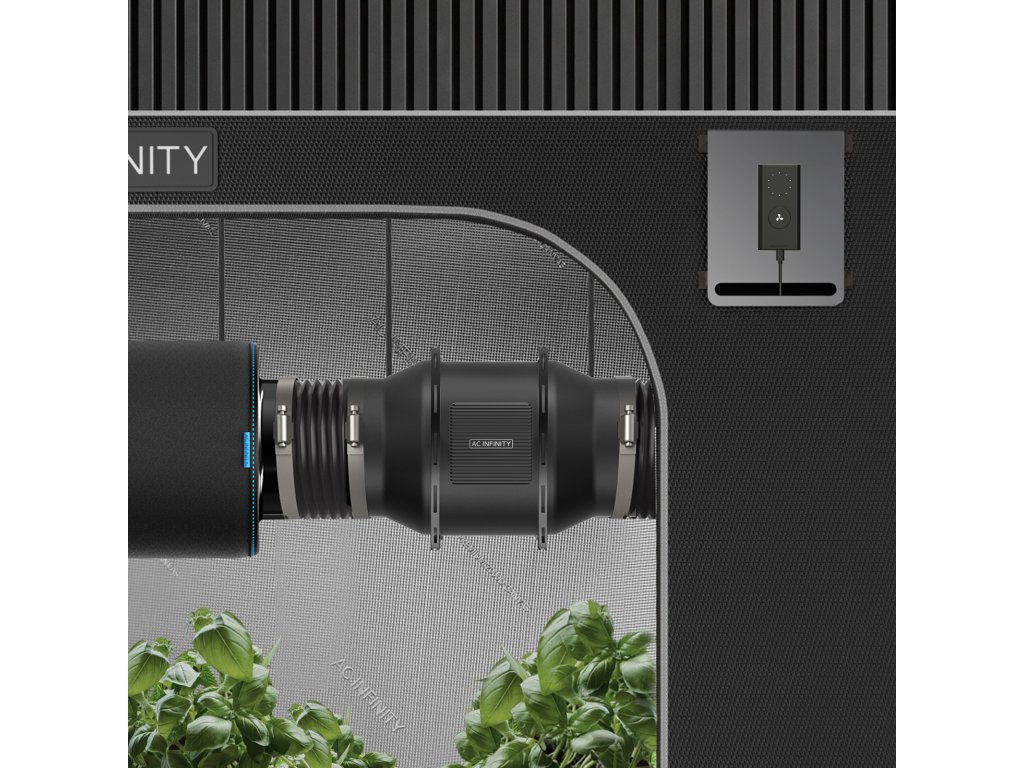

• For low-noise ventilation of grow tents - dissipates heat and cold, provides fresh air.
• The same construction quality and innovations as the CLOUDLINE series - in an affordable package.
• Including 10-stage speed controller, compatible with all Smart Controllers in the CLOUDLINE series.
• Mixed-current design and EC motor for particularly quiet, efficient operation.
• Connection size: 200 mm | Dimensions: 310 × 254 × 239 mm | Air flow: 1230 m³/h | Noise level: 42 dBA | Bearing: double ball bearing

Product description

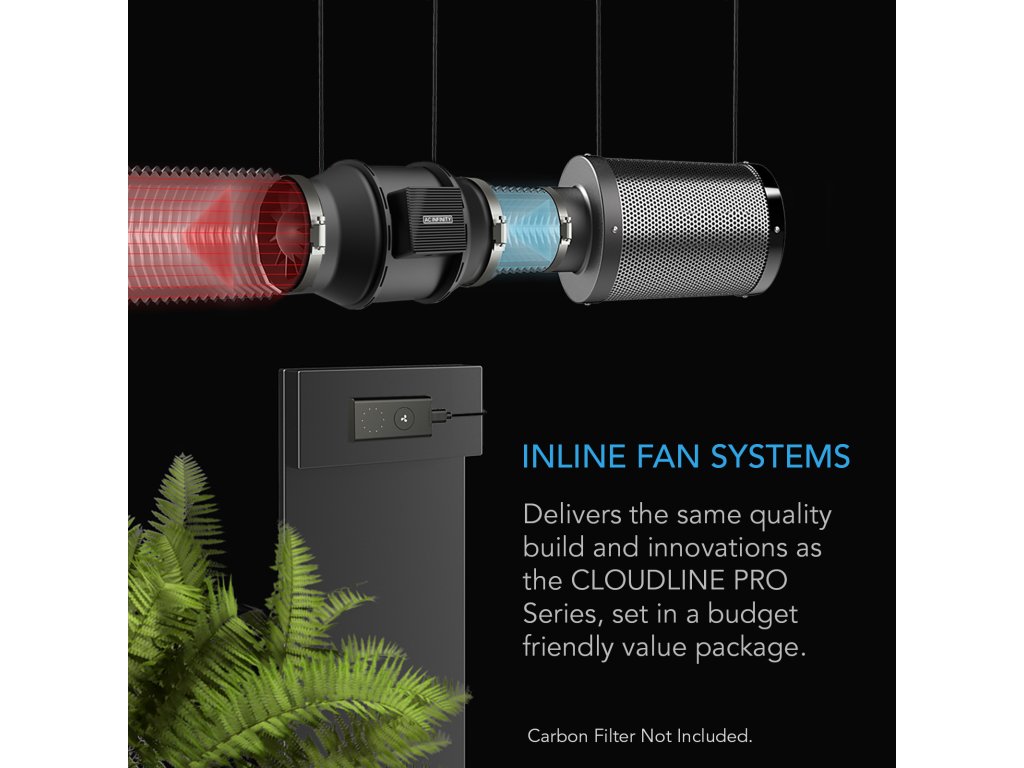

This inline fan system combines the most important innovations of the CLOUDLINE series with high-quality workmanship, offering a particularly attractive overall package. It was developed to quietly cool grow tents, rooms, and cabinets and to ensure reliable ventilation in a wide variety of recirculation and exhaust air projects. Thanks to the inline mixed-flow design, the airflow remains consistently strong even at high static pressure. The motor housing with impeller and rotor blades can be removed from the frame, which makes cleaning and maintenance much easier. This product is part of the UIS™ platform for grow equipment and smart controllers, which can be seamlessly combined to create an optimal growing climate.

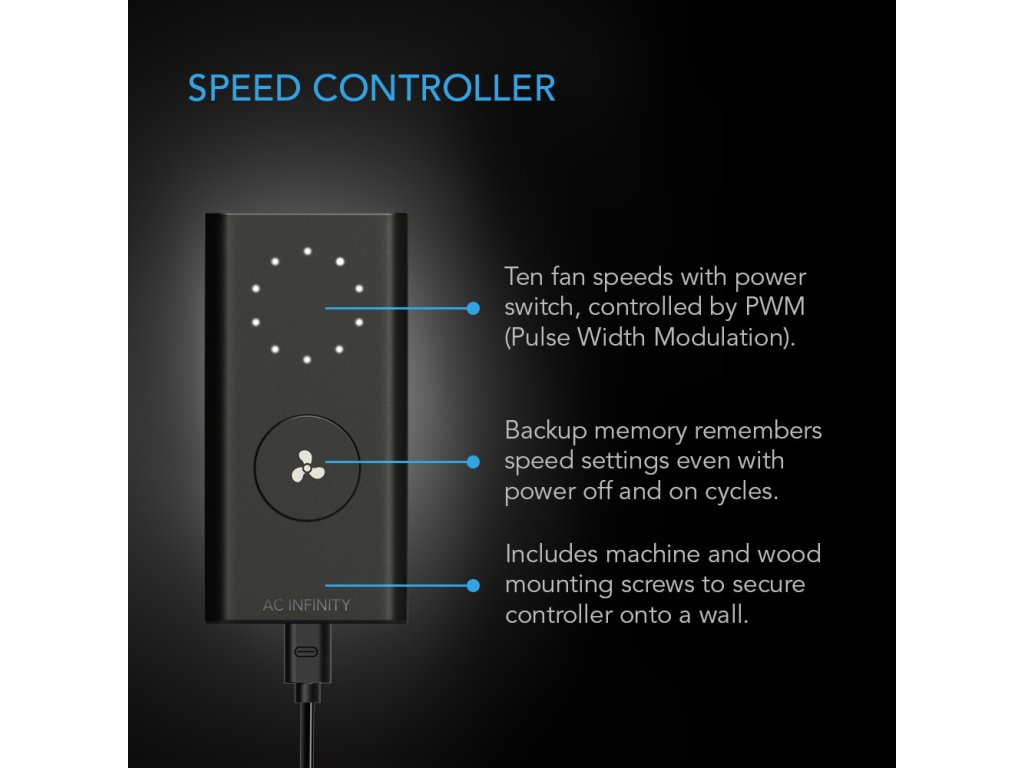

Precise speed controller

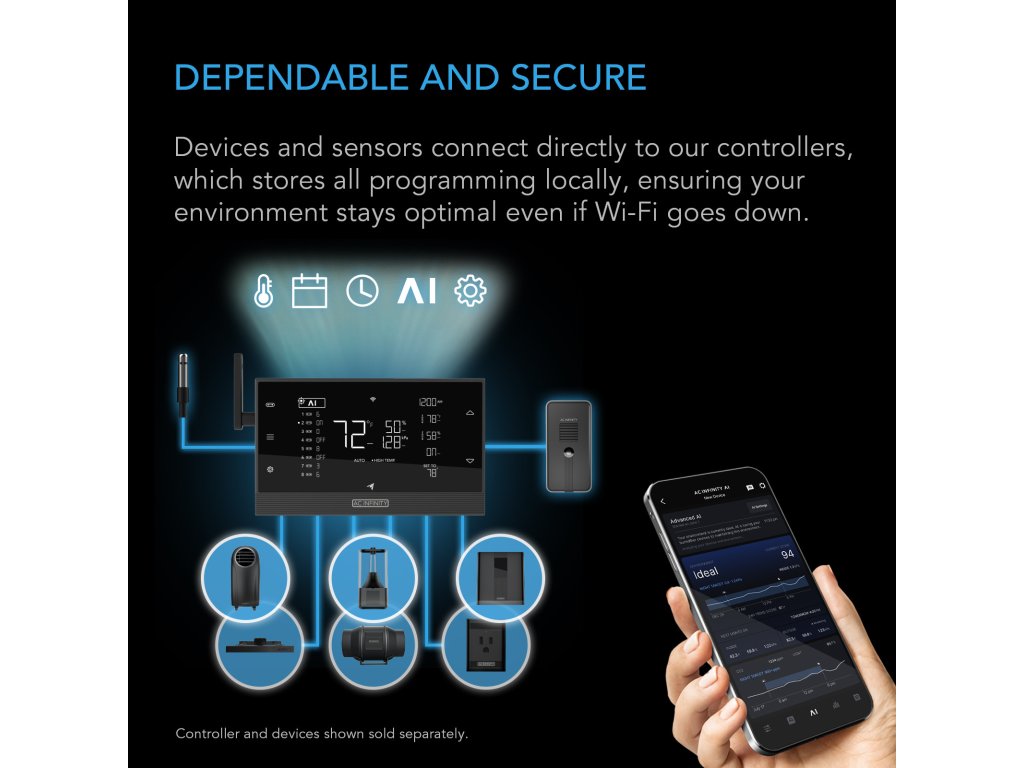

The speed controller supplied makes it possible to adjust the speed of the tube fan precisely to the respective requirements - for an ideal ratio of air flow and noise level. The fan is equipped with the same EC motor as the models in the CLOUDLINE series, which is precisely controlled via PWM (pulse width modulation). This means that it runs smoothly and without disturbing motor noise, even at very low speeds. Ten speed levels are available, supplemented by an on/off switch and a memory function for the last selected setting. In addition, this model can be connected to various Smart Controllers to share programs and power supply with other EC motor CLOUDLINE fans - including:

• B-Series temperature controller
• T-Series temperature and humidity controller
• Controller 69
• Controller 67

Quiet and energy-efficient design

The mixed-flow design of the fan combines a stator blade with two hydrodynamic air ducts. This design provides high static pressure and ensures that the airflow is maintained even when air movement is restricted. The motor is equipped with double ball bearings, which are designed for a service life of around 67,000 hours and enable installation in any position. A plastic mounting base additionally reduces vibrations and therefore noise. The housing is certified to IP44 and reliably protected against dust and splash water - ideal for use even in demanding environments.

Product identification
Manufacturer	AC Infinity Inc.
Product name	CLOUDLINE A8
Product model	AI-CLA8
UPC code	819137021761

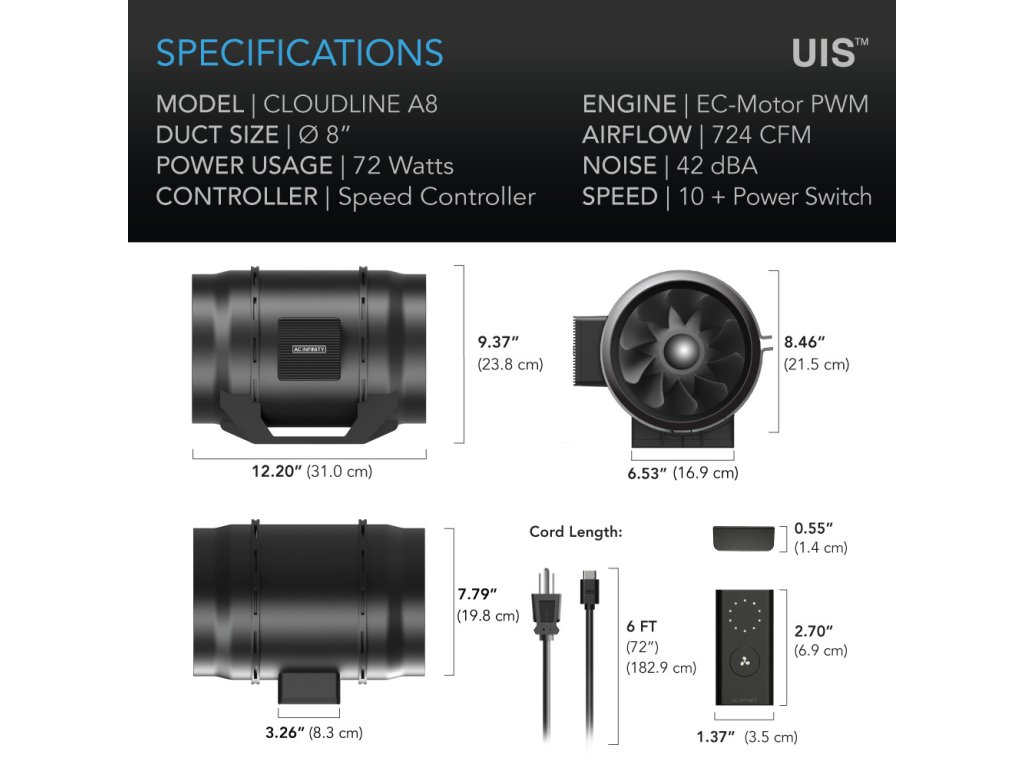

Product and installation dimensions - Fan unit
Pipe/hose size	200 mm (8″)
Overall dimensions	310 × 254 × 239 mm (12.20 × 10 × 9.37 in.)
Hole-to-hole mounting distance	90 × 50 mm (3.54 × 1.96 in.)
Screw hole size	Ø 5.5 mm (Ø 0.217 in.)
Cable length to the controller	1.83 m (72 in., 6 ft)
Cable length to mains plug	1.83 m (72 in., 6 ft)
Product and assembly dimensions - Controller
Overall dimensions	69 × 35 × 14 mm (2.70 × 1.37 × 0.55 in.)
Performance and technical data
Air flow rate (total)	1230 m³/h (724 CFM)
Noise level (total)	42 dBA
Static pressure	746 Pa
Tension	100-240 V AC
Frequency	50/60 Hz
Maximum power consumption	190 W
Average power consumption	72 W
Amperage	2,80 A
Mains plug type	US plug (NEMA 1-15 type A)
Operating humidity	35-85 % RH
Operating temperature	0-60 °C (32-140 °F)
Protection class	IP 44
Warehouse	Double ball bearing
Mounting positions	Horizontal or vertical
L10 service life	67,000 hours
ETL certificate (complete product)	PDF
RoHS certificate (entire product)	PDF
IC certificate (complete product)	PDF
Operating instructions
Product manual	English   German
