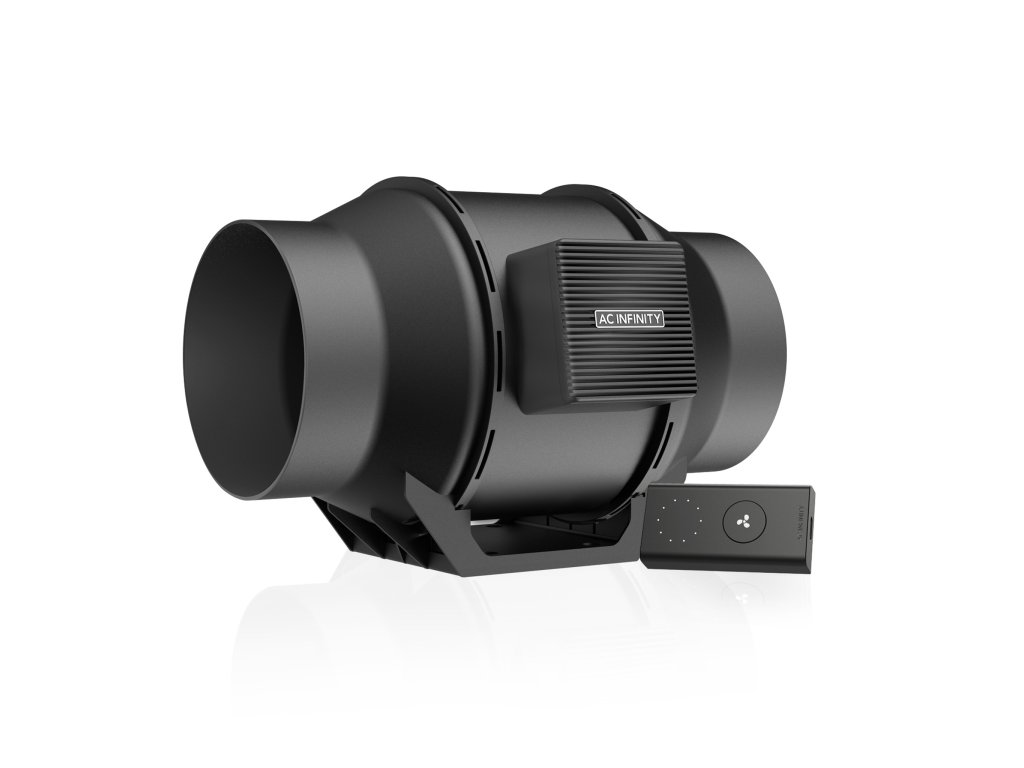

AC Infinity CLOUDLINE A6, Quiet Inline Fan with Speed Controller, 150mm

Product detailed description

• • For low-noise ventilation of grow tents - dissipates heat and cold, provides fresh air.
  • The same construction quality and innovations as the CLOUDLINE series - in an affordable package.
  • Including 10-stage speed controller, compatible with all Smart Controllers in the CLOUDLINE series.
  • Mixed-current design and EC motor for particularly quiet, efficient operation.
  • Connection size: 150 mm | Dimensions: 200 × 320 × 212 mm | Air flow: 598 m³/h | Noise level: 34 dBA | Bearing: double ball bearing

  Product description

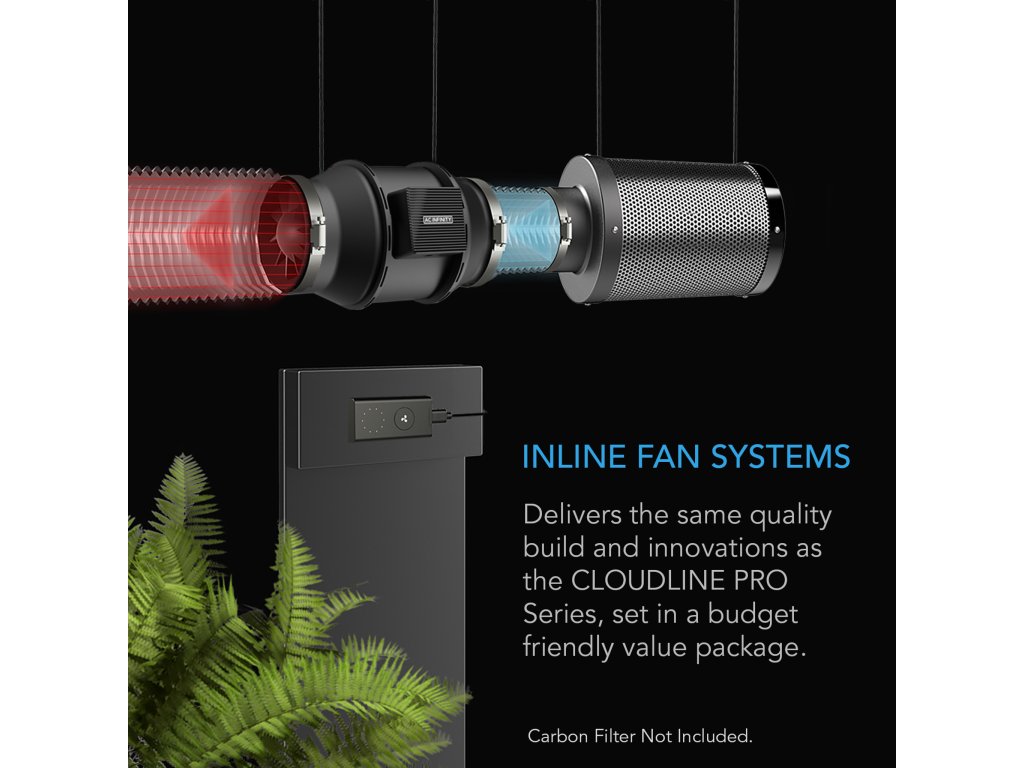

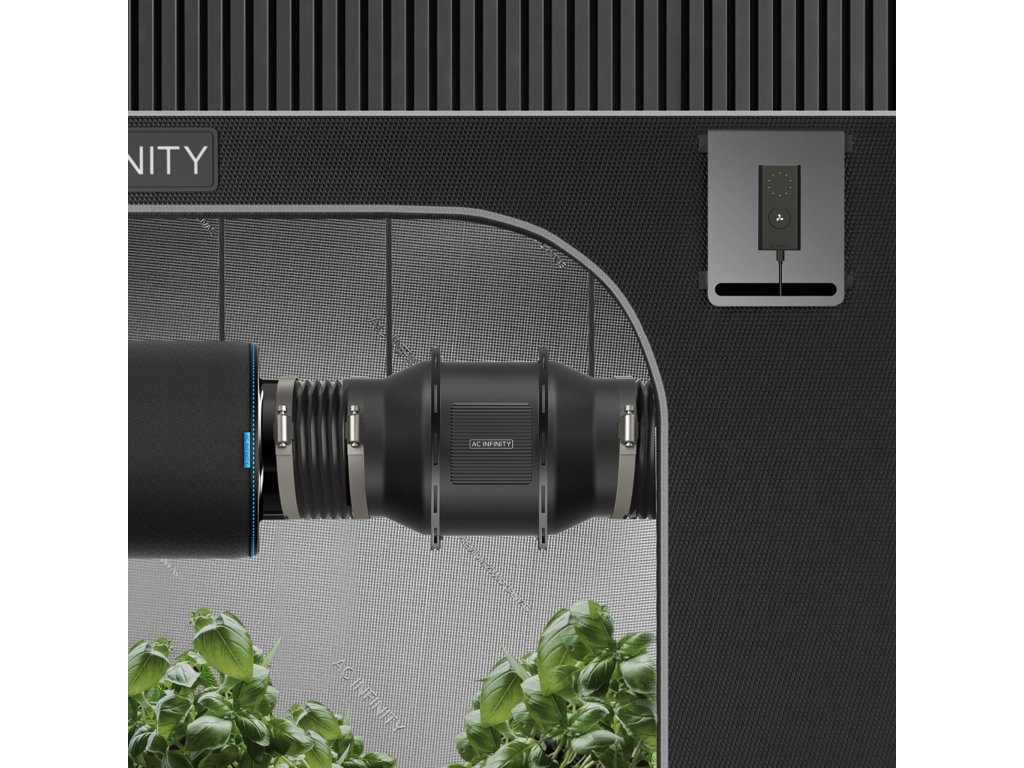

  This inline fan system combines the most important innovations of the CLOUDLINE series with high-quality workmanship, offering a particularly attractive overall package. It was developed to quietly cool grow tents, rooms, and cabinets and to ensure reliable ventilation in a wide variety of recirculation and exhaust air projects. Thanks to the inline mixed-flow design, the airflow remains consistently strong even at high static pressure. The motor housing with impeller and rotor blades can be removed from the frame, which makes cleaning and maintenance much easier. This product is part of the UIS™ platform for grow equipment and smart controllers, which can be seamlessly combined to create an optimal growing climate.

  Precise speed controller

  The speed controller flexibly adjusts the fan speed for an ideal ratio of airflow and noise level. The EC motor of the CLOUDLINE series is PWM-controlled for smooth, quiet operation - even at low speeds. Ten levels with on/off switch and memory function. Compatible with: B-Series temperature controller, T-Series temperature and humidity controller, CONTROLLER 69 and CONTROLLER 67.

  Quiet and energy-efficient design

  Mixed-flow design with stator blades and two hydrodynamic ducts ensures high pressure and constant air flow. Double ball bearing for long service life (approx. 67,000 h), mounting in any position. Plastic mounting base for less vibration and noise. IP44 housing - reliable protection against dust/splash water.

Manufacturer	AC Infinity Inc.
Product name	CLOUDLINE A6
Product model	AI-CLA6
UPC code	819137021754

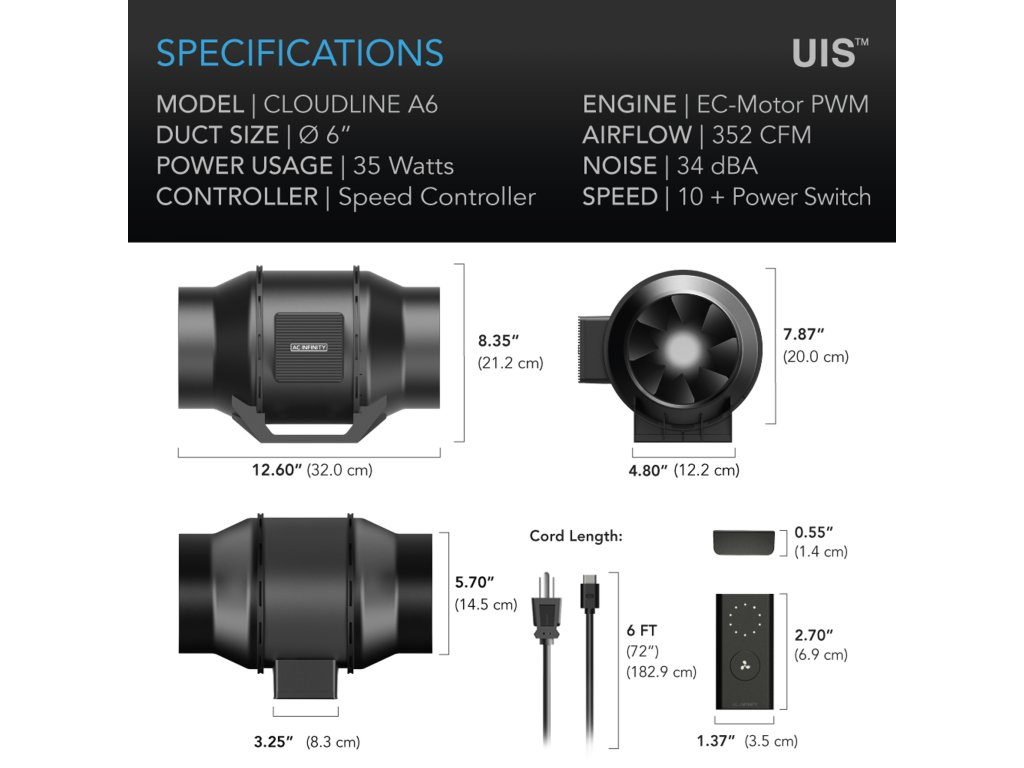

Product and installation dimensions - Fan unit
Pipe/hose size	150 mm (6″)
Overall dimensions	212 × 320 × 200 mm (7.87 × 12.60 × 8.35 in.)
Hole-to-hole mounting distance	80 × 60 mm (3.15 × 2.36 in.)
Screw hole size	Ø 6.0 mm (Ø 0.236 in.)
Cable length to the controller	1.83 m (72 in., 6 ft)
Cable length to mains plug	1.83 m (72 in., 6 ft)
Product and assembly dimensions - Controller
Overall dimensions	69 × 35 × 14 mm (2.70 × 1.37 × 0.55 in.)
Performance and technical data
Air flow rate (total)	598 m³/h (352 CFM)
Noise level (total)	34 dBA
Static pressure	394 Pa
Tension	100-240 V AC
Frequency	50/60 Hz
Maximum power consumption	65 W
Average power consumption	35 W
Amperage	0,95 A
Mains plug type	EU plug (country-specific, type C/F)
Operating humidity	35-85 % RH
Operating temperature	0-60 °C (32-140 °F)
Protection class	IP 44
Warehouse	Double ball bearing
Mounting positions	Horizontal or vertical
L10 service life	67,000 hours
ETL certificate (complete product)	PDF
RoHS certificate (entire product)	PDF
IC certificate (complete product)	PDF
Operating instructions
Product manual	English   German
