AC Infinity Air Filtration Kit PRO 200mm, Inline Fan with Smart Controller, Carbon Filter & Ducting Combo

Product detailed description

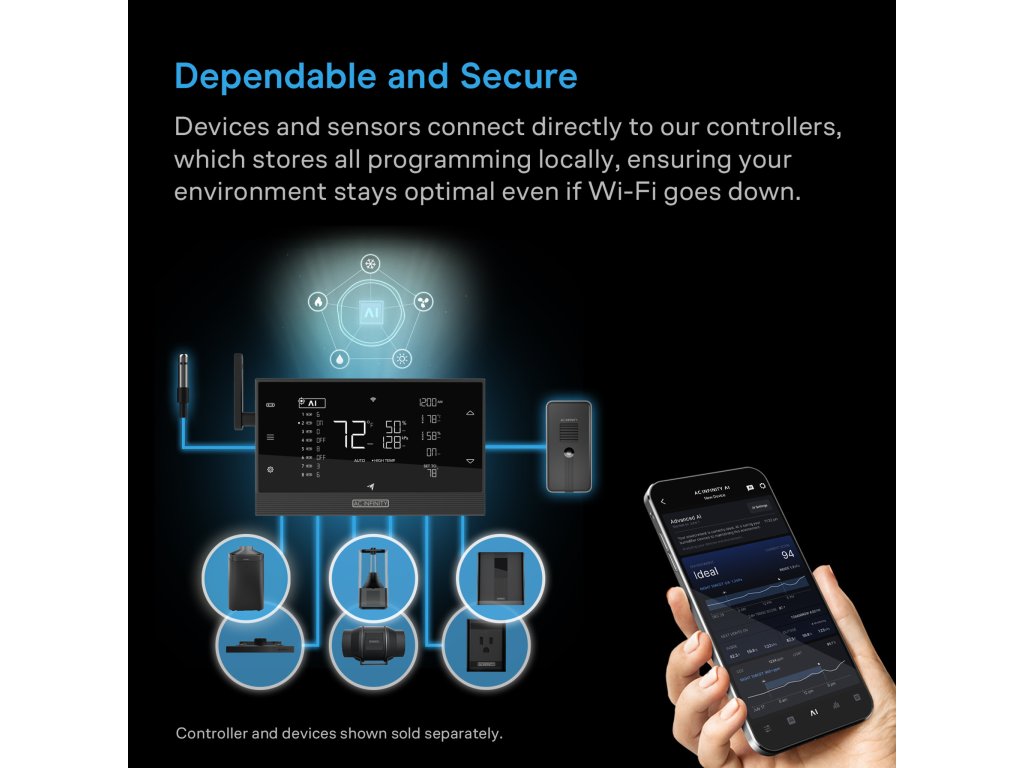

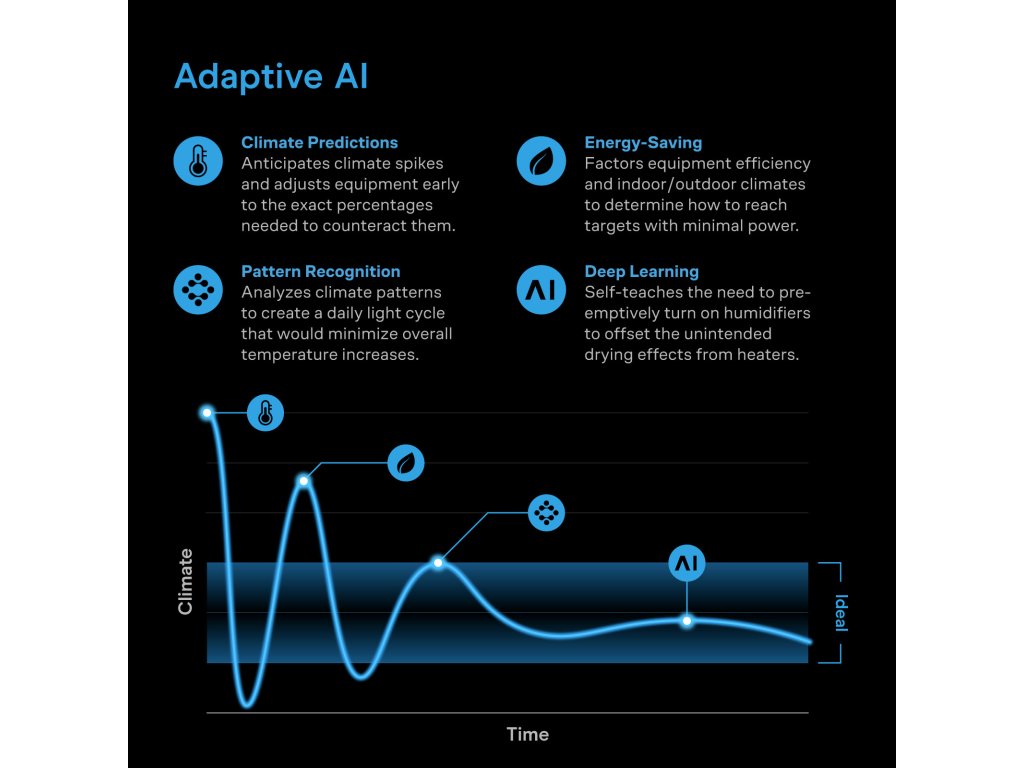

Intelligent Programming
The CONTROLLER 69 PRO distributes intelligent programming to the silent inline fan, helping to maintain temperature, humidity, and VPD under control, creating the optimal environment. Set dynamic programs that go beyond simple on/off controls and adjust the fan speed according to the changing climate inside. Minimum base settings keep the fan running at low speeds for consistent airflow, while timer, cycle, and schedule modes add custom activation on demand. Safely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere during the day. Remotely access devices, unlock advanced programs, set alarms, notifications, view historical graphs, and export CSV data.

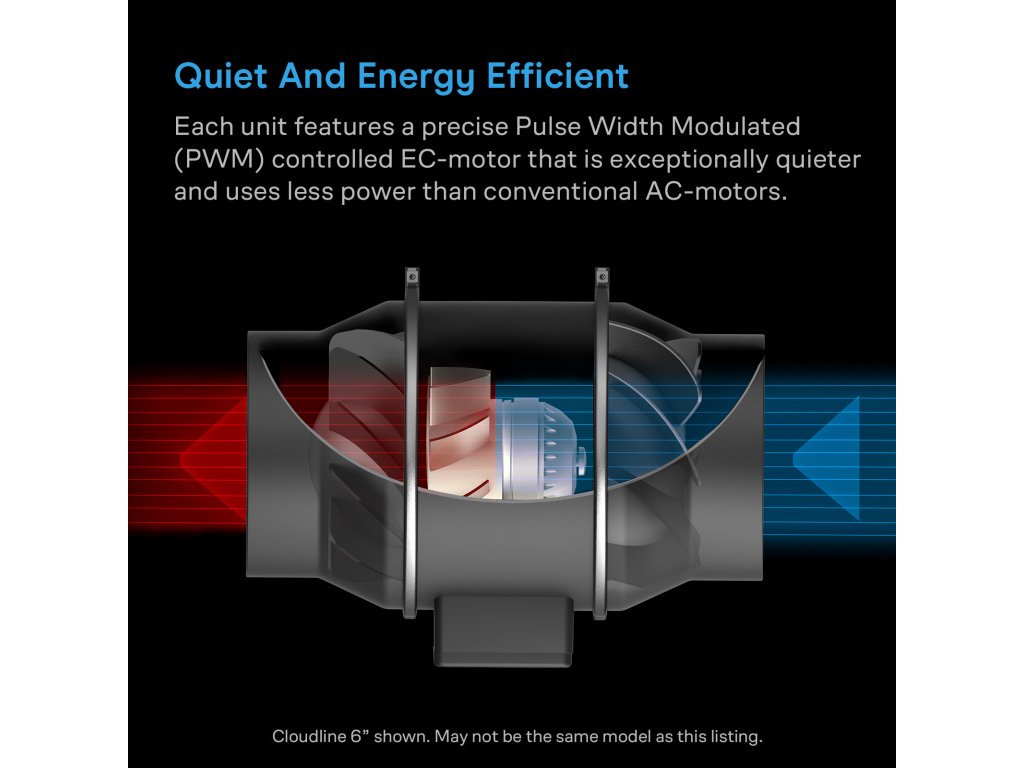

Quiet and Energy-Efficient Design
The kit includes the CLOUDLINE PRO Series inline fan, which uses a PWM-controlled EC motor, allowing for smooth operation at low speeds without additional heat or noise. It delivers high performance, making it ideal for grow tents due to its mixed-flow design and the use of stator blades and hydrodynamic air currents. The double ball bearings ensure a fan lifespan of up to 67,000 hours, backed by its IP-44 rating, which protects it from dust and water splashes.

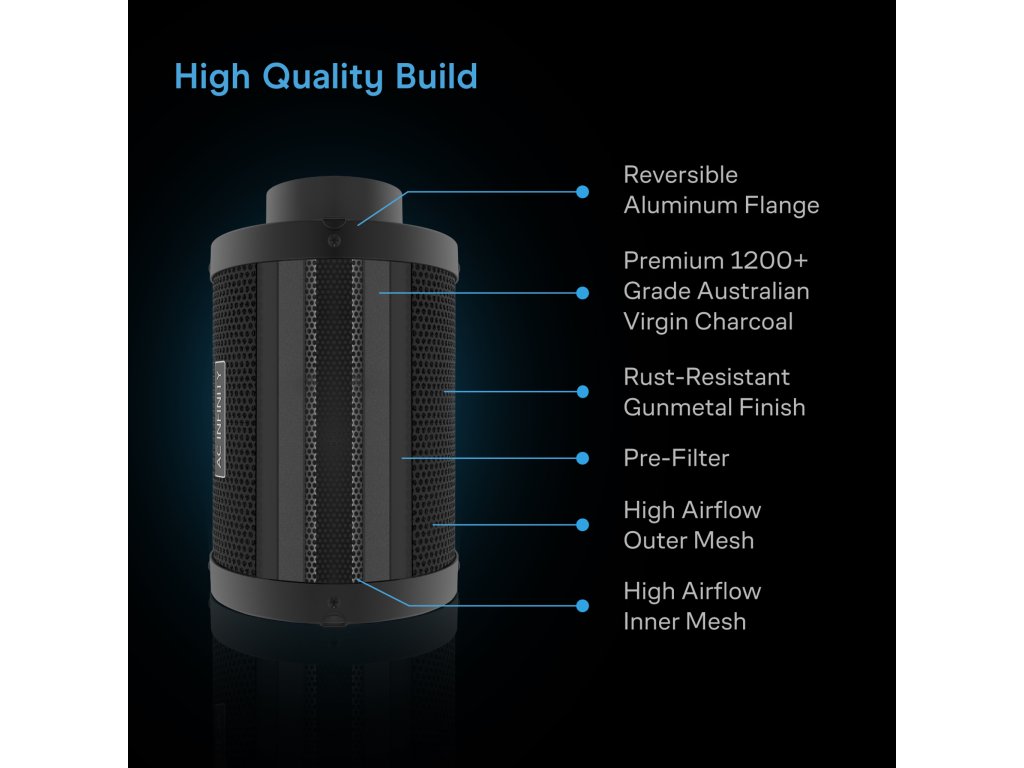

Premium Carbon Filtration
The carbon filter efficiently blocks undesirable odors and chemicals thanks to its layer of high-quality Australian carbon. The active carbon with a 1200+ IAV rating ensures a cleaner airflow more efficiently, thanks to increased adsorption capacity and extended lifespan. The durable steel frame of the filter is coated with a gunmetal-colored powder coating, offering better rust and corrosion resistance in high-humidity environments.

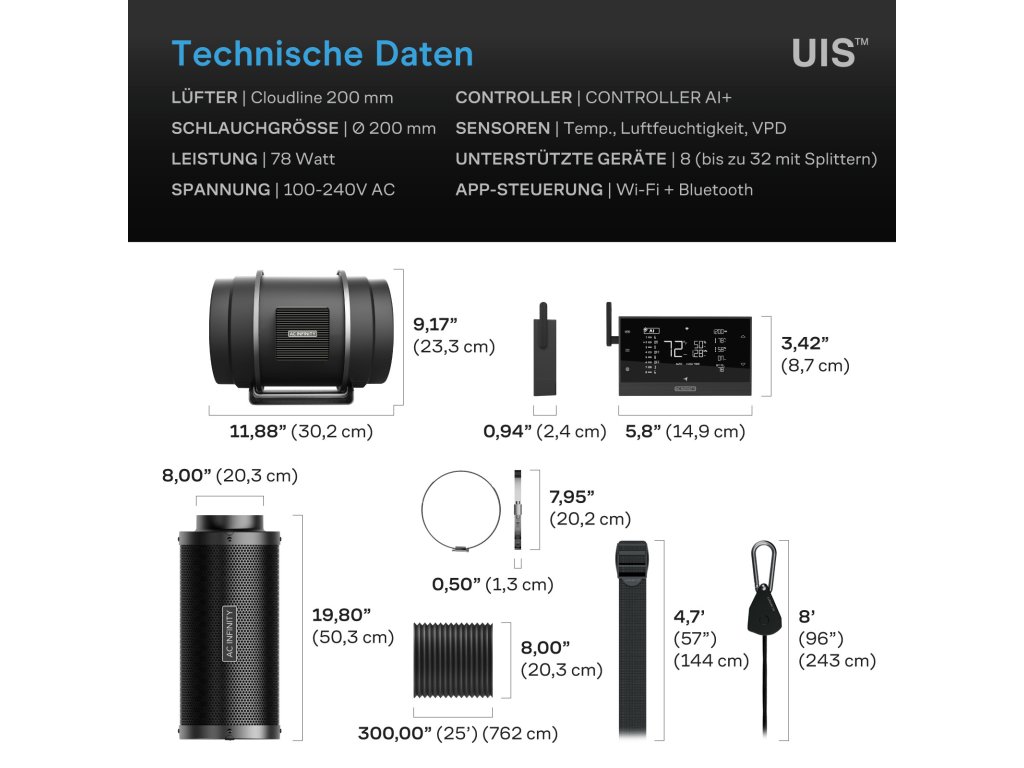

Product Dimensions and Mounting - Fan

• Duct Size: 200mm

• Overall Dimensions: 21.7 x 30.2 x 12.3 cm

• Distance Between Mounting Holes: 10.0 x 9.4 cm

• Mounting Hole Size: Ø 0.55 cm

• Cable Length to Controller: 1.83m

• Cable Length to Power Outlet: 1.83m

Product Dimensions and Mounting - Controller

• Overall Dimensions: 13.2 x 7.4 x 2.7 cm

Technical Specifications and Performance - Fan

• Total Airflow: 1378 m³/h

• Noise Level: 39 dBA

• Static Pressure: 746 Pa

• Voltage: 100-240V AC

• Frequency: 50/60Hz

• Maximum Power Consumption: 180 W

• Average Power Consumption: 78 W

• Current: 2.3 A

• Power Connector Type: EU Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35–85% RH

• Operating Temperature: 32–140°F

• Ingress Protection: IP 44

• Fan Bearings: Double Ball Bearings

• Mounting Options: Horizontal or Vertical

• Estimated Lifespan (L10): 67,000 hours

• Fan Quality Certifications: CE, RoHS

Product Dimensions and Mounting - Carbon Filter

• Duct Hole Size: 200mm

• Overall Dimensions: 50.3 x 27.8 cm

• Flange Length: 8.6 cm

Technical Specifications and Performance - Carbon Filter

• Flange Material: Aluminum

• Flange Design: Reversible

• Mesh Material: Galvanized Steel

• Carbon Type: Australian Virgin RC412

• Carbon Quality: 1200+ IAV

• Carbon Filter Thickness: 38 mm

• Maximum Airflow: 1308 m³/h

Product Dimensions - Duct

• Duct Size: 200mm

• Length: 7.62m

Technical Specifications and Performance - Duct

• Outer Layer: PVC Thermoplastic

• Inner Material: Aluminum Foil

• Inner Structure: Spiral Steel Reinforcement
