AC Infinity Air Filtration Kit PRO 150mm, Inline Fan with Smart Controller, Carbon Filter & Ducting Combo

Product detailed description

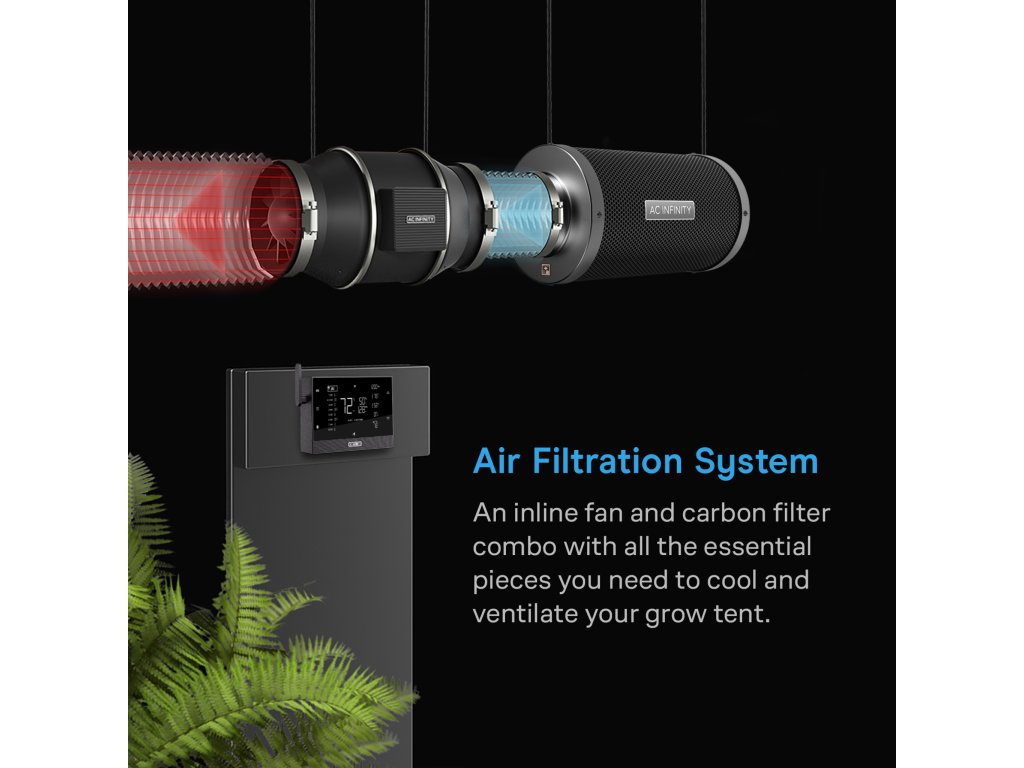

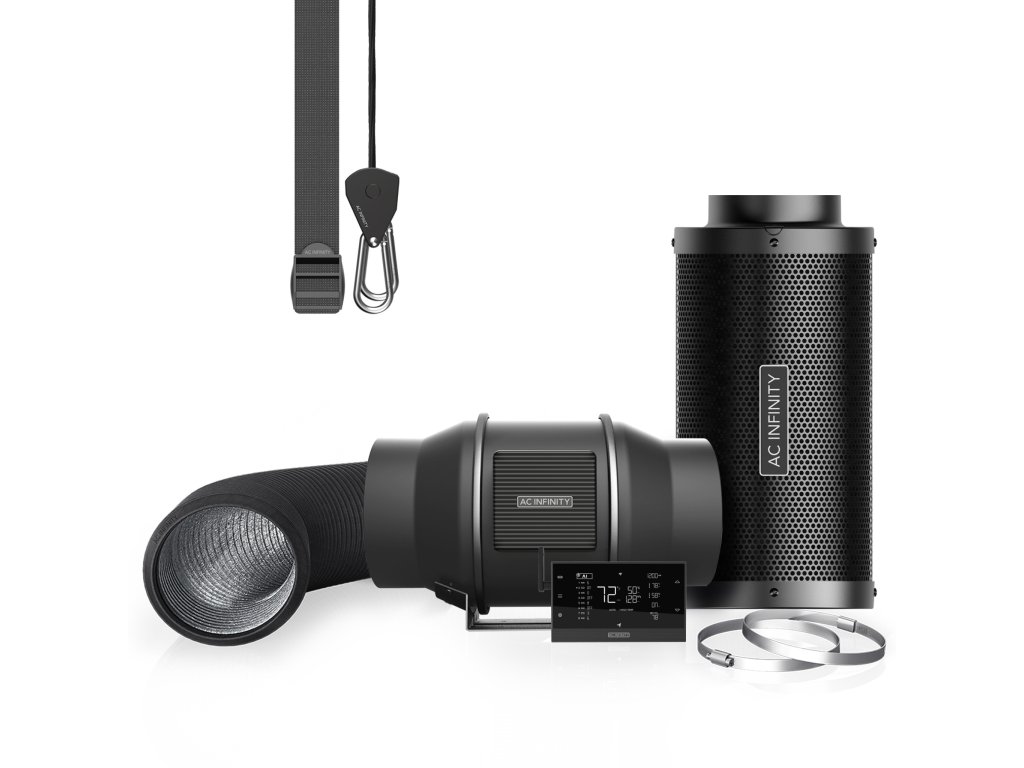

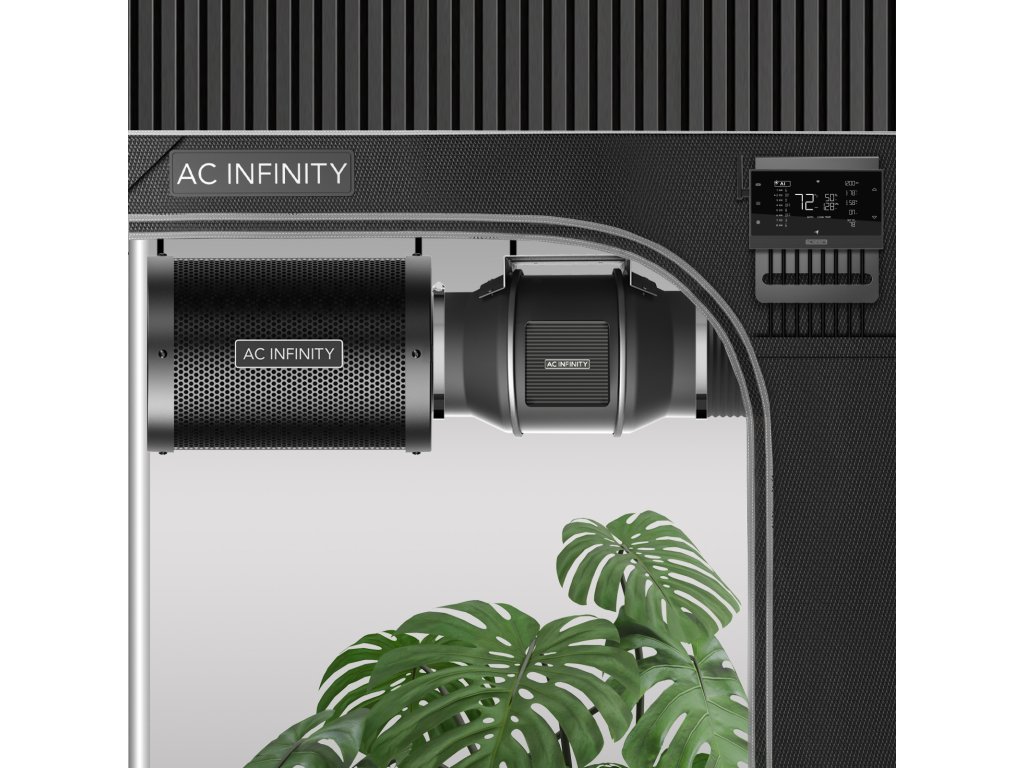

Complete Air Filtration Kit for Grow Tent

This all-in-one kit contains all the necessary components for cooling, ventilation, and odor control in your growing space. It includes the CLOUDLINE PRO inline fan with PWM-controlled EC motor for quiet and energy-efficient ventilation. The kit also includes a smart controller for setting triggers, schedules, and growth cycles, which you can control remotely via a WiFi app for automation.

The kit also features an Australian carbon filter with a flexible hose that captures odors while venting stale air from your grow tent.

Kit Specifications:

• Hose Size: 150mm

• Fan Airflow: 684 m³/h

• Noise Level: 32 dBA

• Carbon Thickness: 38 mm

• Hose Length: 7.62m

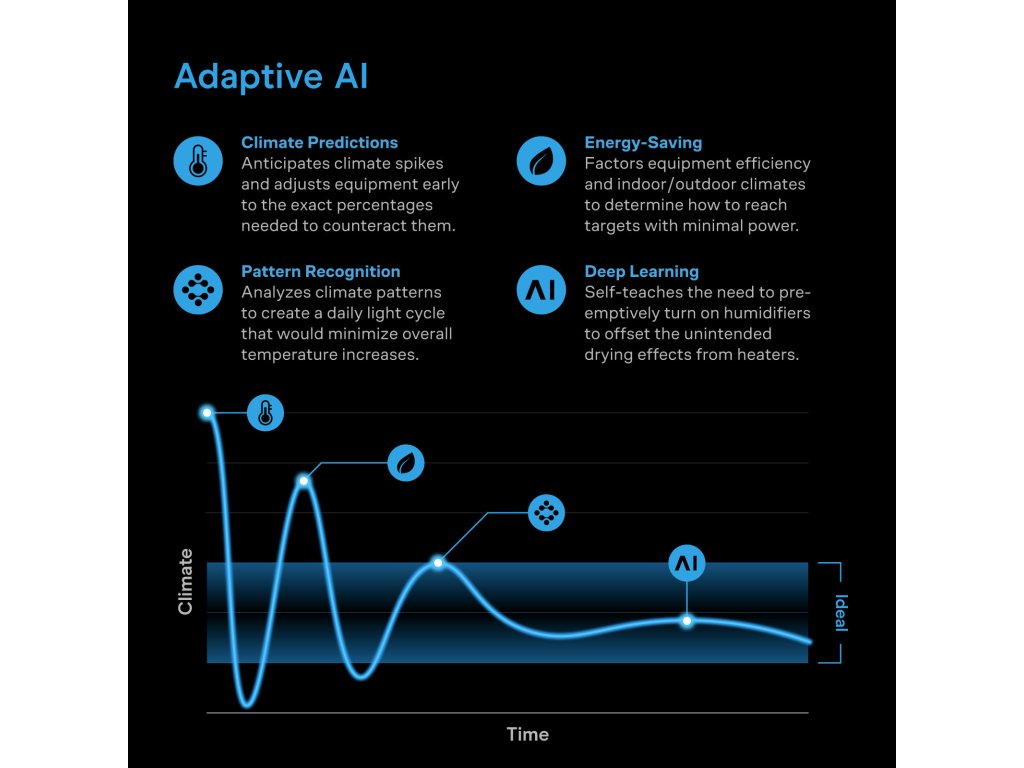

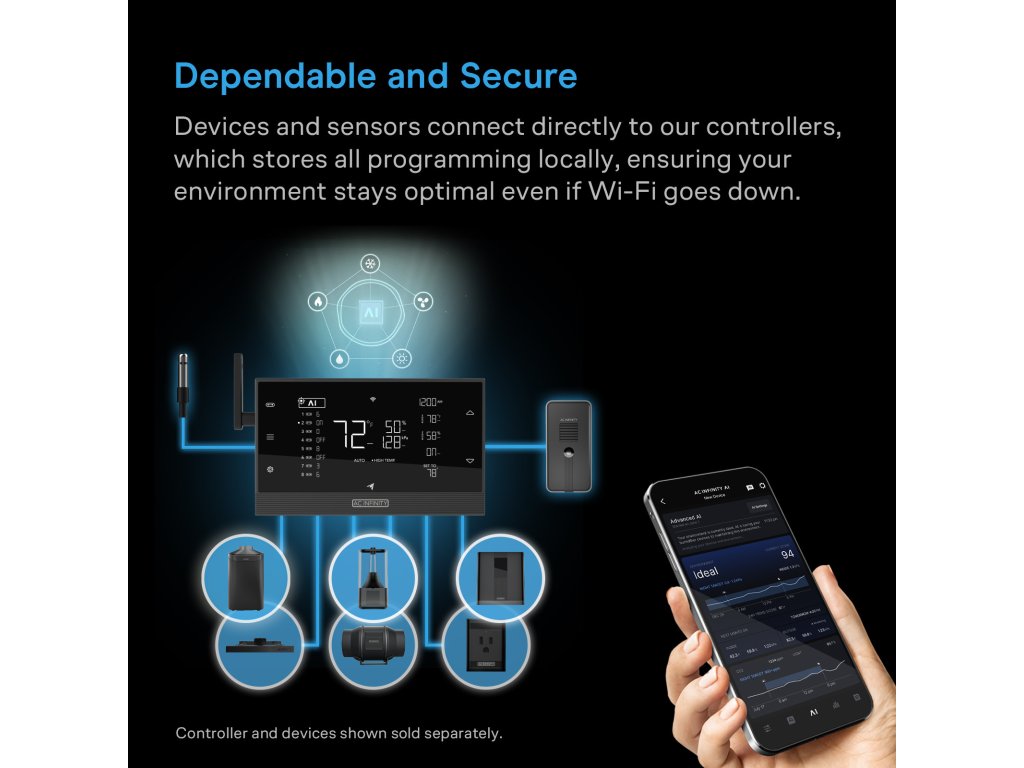

Intelligent Programming

The CONTROLLER 69 PRO provides intelligent programming for the fan to maintain optimal temperature, humidity, and VPD conditions. You can set programs so the fan responds to changes in the internal climate, running at low speeds for consistent airflow. Timers, cycles, and schedules allow for customized activation as needed. With the AC Infinity app over WiFi, you can control your equipment remotely, use automation, set alarms, notifications, view historical graphs, and export CSV data.

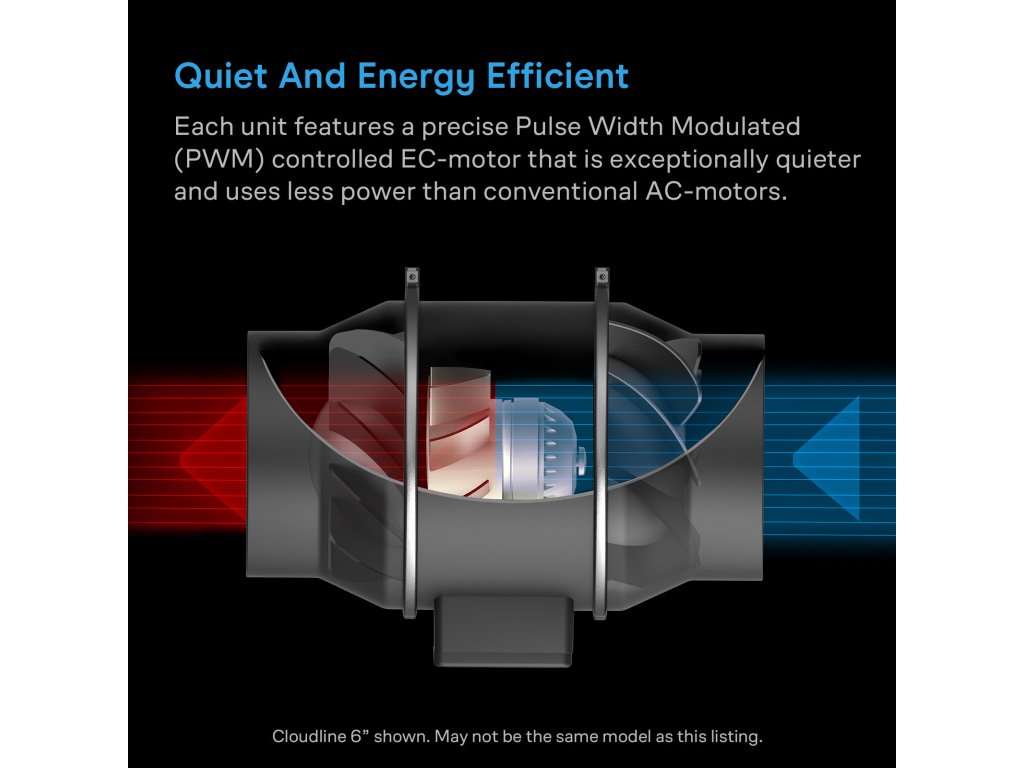

Quiet and Energy-Efficient Design

The CLOUDLINE PRO Series fan is equipped with a PWM-controlled EC motor that ensures smooth operation at low speeds with minimal noise and heat. The mixed-flow design and use of stator blades provide high performance and efficiency. Dual ball bearings offer a long lifespan (up to 67,000 hours), and the IP-44 protection ensures the fan is safeguarded from dust and water splashes.

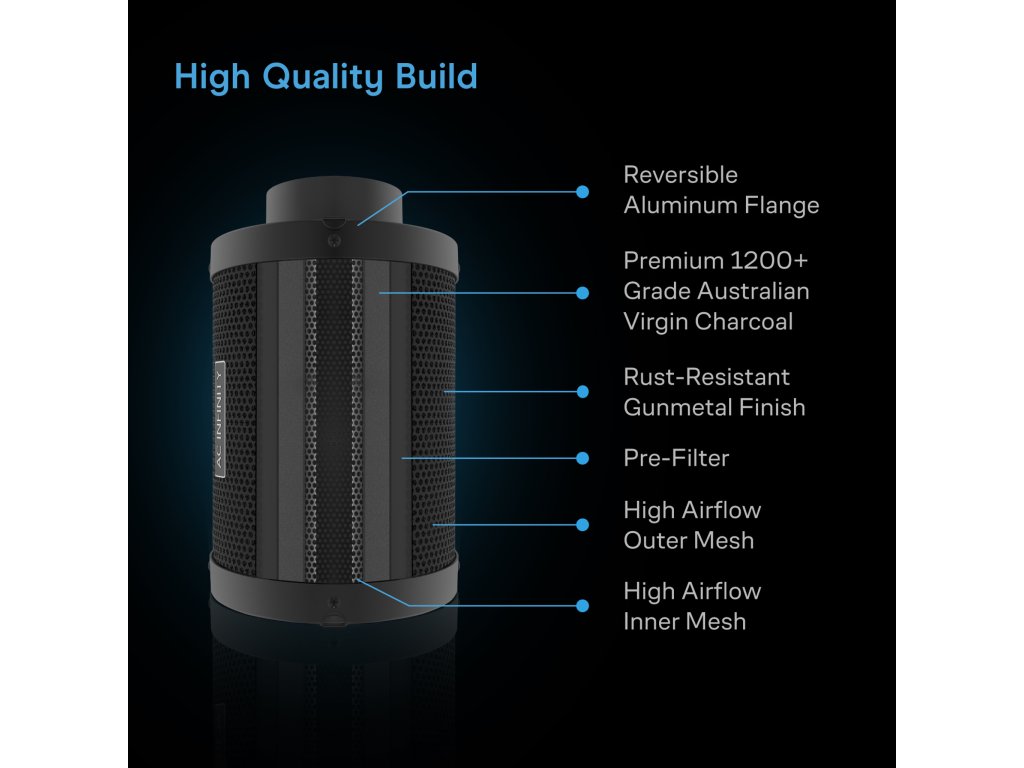

Premium Carbon Filter

The carbon filter in the kit uses Australian virgin carbon, which effectively blocks odors and chemicals thanks to its high adsorption capacity. With a 1200+ IAV rating, it ensures clean air for extended periods. The filter has a steel body coated with a gunmetal powder coating for enhanced corrosion resistance in high-humidity environments.

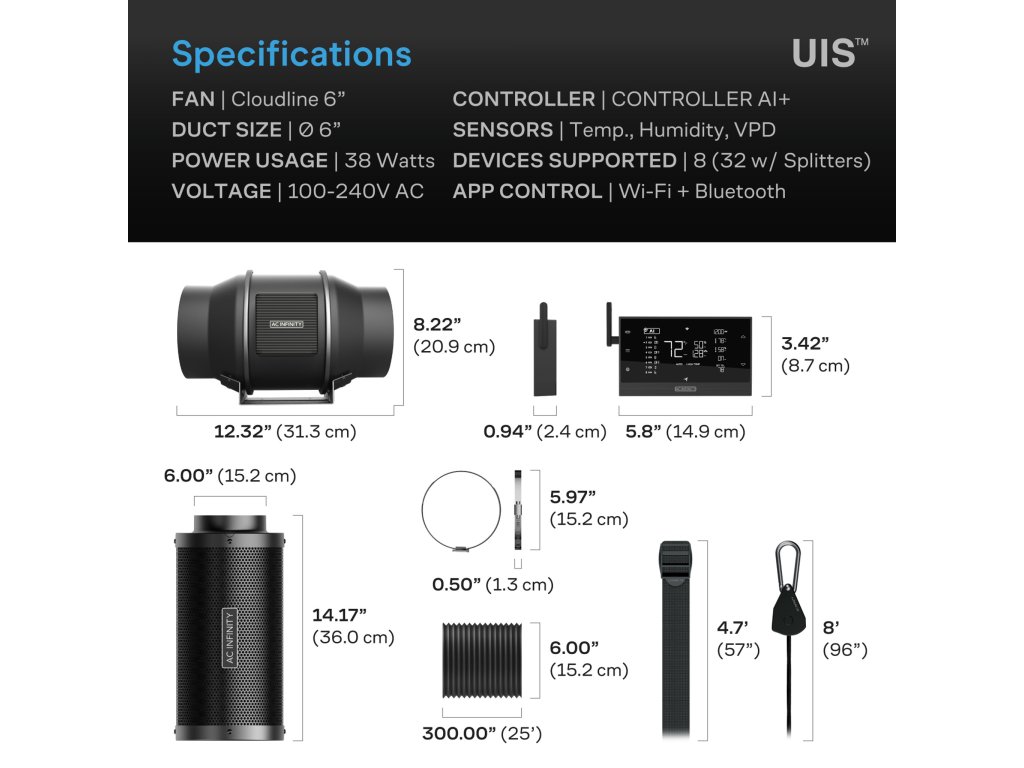

Fan Dimensions and Mounting Details

• Hose Size: 150mm

• Overall Dimensions: 21.2 x 32.0 x 20.0 cm

• Distance Between Mounting Holes: 8.0 x 6.0 cm

• Screw Hole Size: Ø 0.6 cm

• Cable Length to Controller: 1.83m

• Cable Length to Socket: 1.83m

Controller Dimensions

• Overall Dimensions: 13.2 x 7.4 x 2.7 cm

Fan Performance and Technical Specifications

• Total Airflow: 684 m³/h

• Noise Level: 34 dBA

• Max RPM: 2800 RPM

• Static Pressure: 394 Pa

• Voltage: 100-240V AC

• Frequency: 50/60Hz

• Max Power Consumption: 70 W

• Average Power Consumption: 38 W

• Current: 0.94 A

• Power Connector Type: EU Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35–85% RH

• Operating Temperature: 0–140 °F

• Ingress Protection: IP 44

• Fan Bearings: Dual Ball

• Mounting Options: Horizontal or Vertical

• L10 Lifespan Estimate: 67,000 hours

• Fan Quality Approval: CE, RoHS

Carbon Filter Dimensions and Mounting Details

• Hose Hole Size: 150mm

• Overall Dimensions: 40.5 x 22.7 cm

• Flange Length: 4.0 cm

Carbon Filter Performance and Technical Specifications

• Flange Material: Aluminum

• Flange Design: Reversible

• Mesh Material: Galvanized Steel

• Carbon Type: Australian Virgin RC412

• Carbon Class: 1200+ IAV

• Carbon Thickness: 60 mm

• Max Airflow: 697 m³/h

Hose Product Dimensions

• Hose Size: 100mm

• Length: 7.62m

Hose Performance and Technical Specifications

• Outer Layer: PVC Thermoplastic

• Inner Material: Aluminum Foil

• Inner Structure: Spiral Steel Wire
