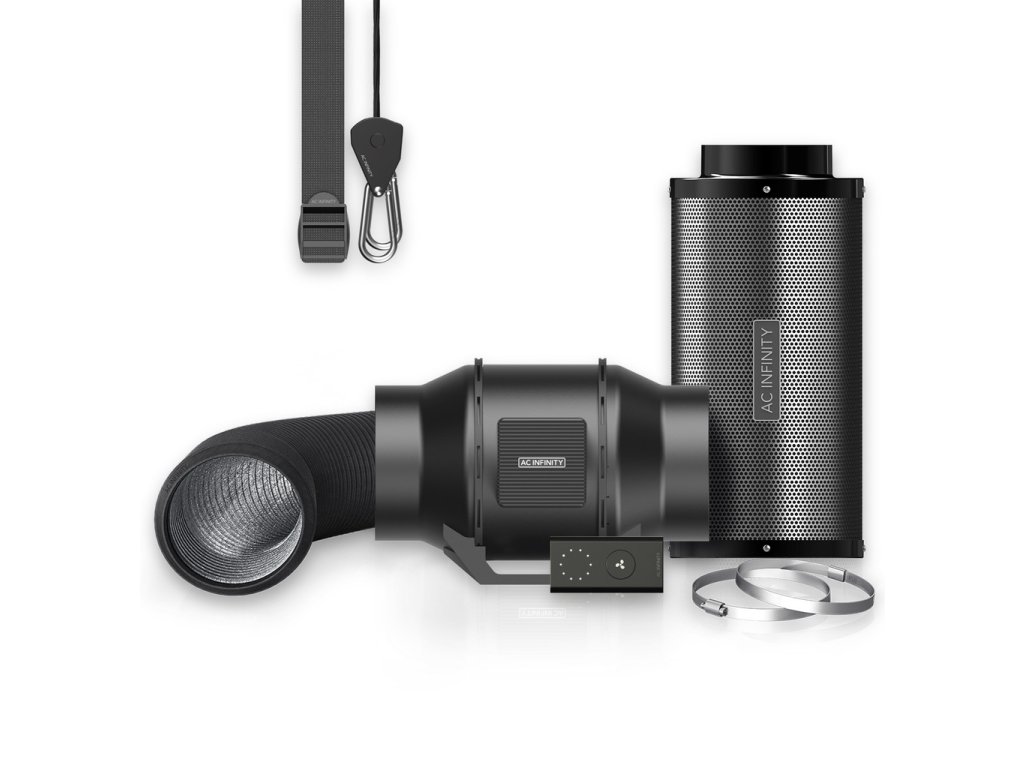

AC Infinity Air Filtration Kit 150mm, Inline Fan with Speed Controller, Carbon Filter & Ducting Combo

Product detailed description

Air Filtration Kit
A complete kit for cooling, ventilation, and odor control in your grow space.
This kit includes the CLOUDLINE fan with a speed controller for quiet and efficient performance.
The carbon filter with pre-filter fabric and 1200+ IAV active carbon effectively blocks odors.
The flexible four-layer duct connects the fan and filter to the grow tent and directs air flow.

Pipe Size: 150mm | Airflow: 598 m3/h | Noise: 34 dBA | Carbon Thickness: 38 mm | Duct Length: 7.62m

Inline Fan
The kit includes the CLOUDLINE fan with a 10-speed controller. It uses stator blades and double hydrodynamic wind rings that allow high performance even in demanding applications. The motor housing is removable for easy cleaning and maintenance. This fan has a long lifespan, with bearings rated for 67,000 hours, and an IP-44 rating that protects it against dust and water.

Carbon Filter
The carbon filter is equipped with a 38mm thick active carbon layer made of Australian virgin carbon, ensuring high efficiency in odor blocking. This filter is rated 1200+ IAV with RC412 microporosity for maximum adsorption of odor molecules. It also includes a pre-filter that extends the lifespan of the filter.

Duct
The flexible four-layer duct connects the fan and filter to the grow tent, effectively venting air. The duct is made from PVC thermoplastic and aluminum foil, ensuring long durability and resistance to wear. The duct is 25 feet (7.6 m) long, providing flexibility in installation.

Dimensions and Installation - Fan

• Pipe Size: 150mm

• Overall Dimensions: 21.2 x 32.0 x 20.0 cm

• Mounting Hole Distance: 8.0 x 6.0 cm

• Mounting Hole Size: Ø 0.6 cm

• Cable Length to Controller: 1.8m

• Cable Length to Power Outlet: 1.8m

Dimensions and Installation - Controller

• Overall Dimensions: 6.9 x 3.5 x 1.4 cm

Performance and Technical Specifications - Fan

• Total Airflow (Fan Only): 598 m3/h

• Total Noise: 34 dBA

• Static Pressure: 394 Pa

• Voltage: 100-240V AC

• Frequency: 50/60 Hz

• Maximum Power Consumption: 65 W

• Average Power Consumption: 35 W

• Current: 0.95 A

• Power Connector Type: EU Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35 to 85% RH

• Operating Temperature: 0 to 140 °F

• Ingress Protection: IP 44

• Fan Bearings: Dual Ball

• Mounting Options: Horizontal or Vertical

• Expected Lifetime L10: 67,000 hours

• Fan Quality Approval: CE, RoHS

Dimensions and Installation - Carbon Filter

• Pipe Size: 150mm

• Overall Dimensions: 40.5 x 22.7 cm

• Flange Length: 4.0 cm

Performance and Technical Specifications - Carbon Filter

• Flange Material: Aluminum

• Flange Design: Reversible

• Mesh Material: Galvanized Steel

• Carbon Type: Australian Virgin RC412

• Carbon Quality: 1200+ IAV

• Carbon Thickness: 38 mm

• Maximum Airflow: 696 m3/h

Dimensions - Duct

• Duct Size: 150mm

• Length: 7.62m

Performance and Technical Specifications - Duct

• Outer Layer: PVC Thermoplastic

• Inner Material: Aluminum Foil

• Inner Structure: Steel Spiral Wire Construction
