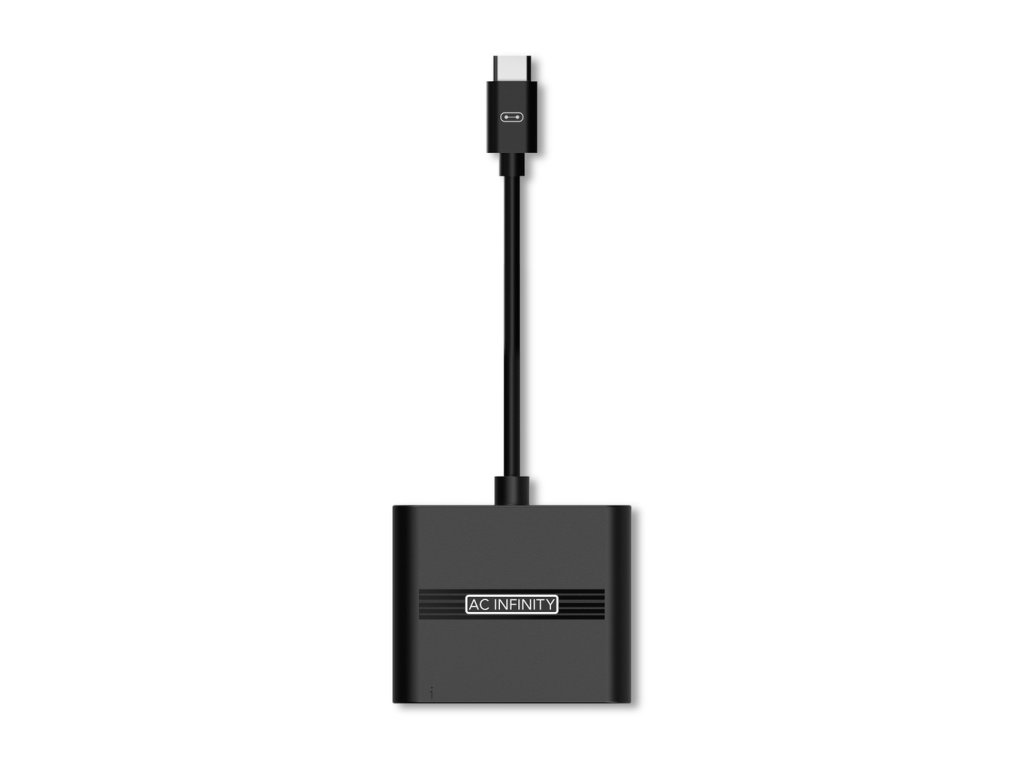

AC Infinity UIS Splitter Hub 4-Port, Adapter Dongle for Shared Programming
Code: AC-ADS7Product detailed description
- A splitter hub that connects similar grow devices with UIS™ controllers to follow a common programming.

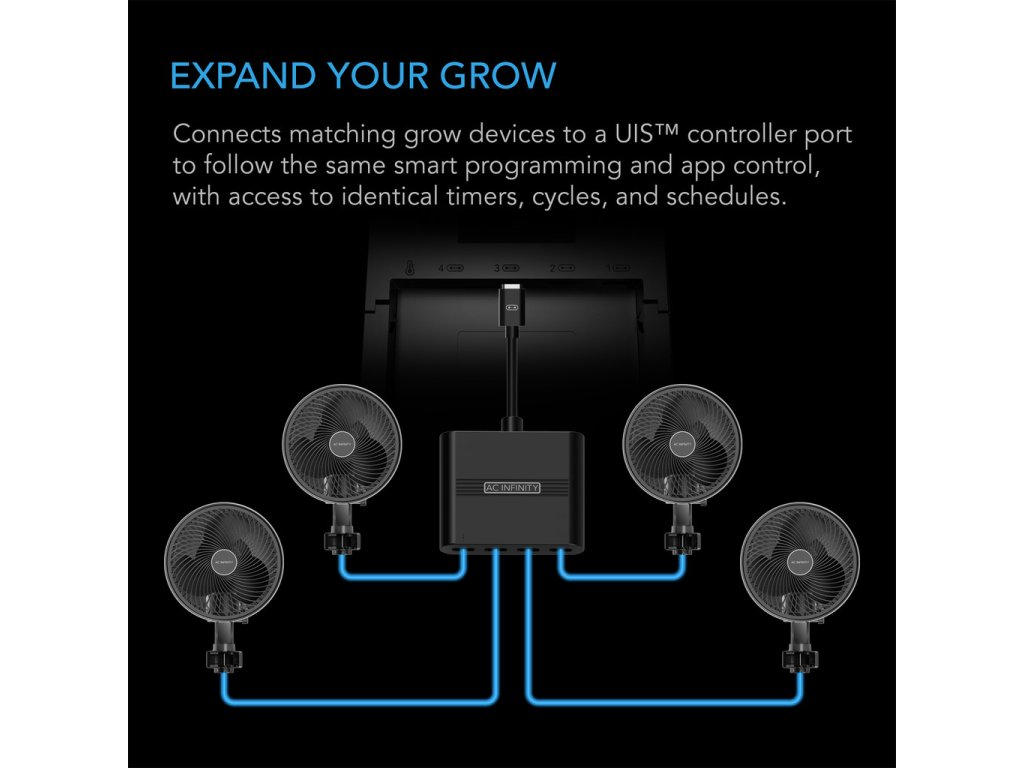

- Distributes programming from a single connection to up to four UIS devices that are controlled together.
- Compatible with digital smart controllers such as CONTROLLER 69, CONTROLLER 69 PRO and others.
- Connects grow equipment such as inline fans, humidifiers and LED grow lights under common programming.

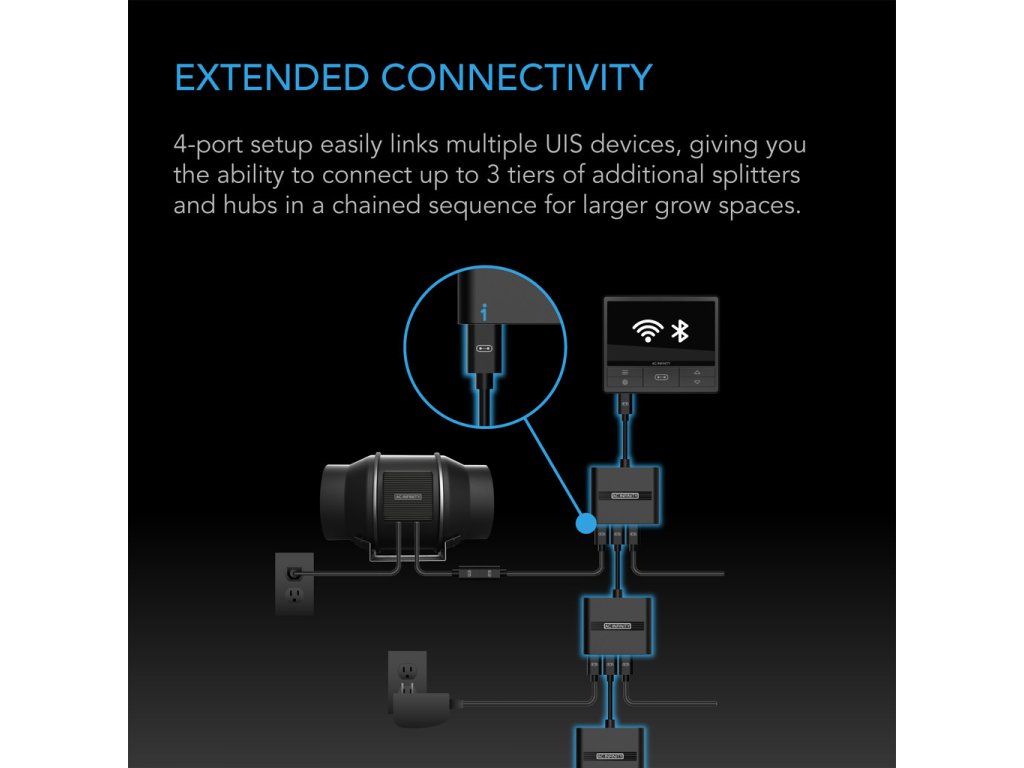

- Enables the connection of UIS devices and additional hubs in up to three levels in a multi-level arrangement.
Product description

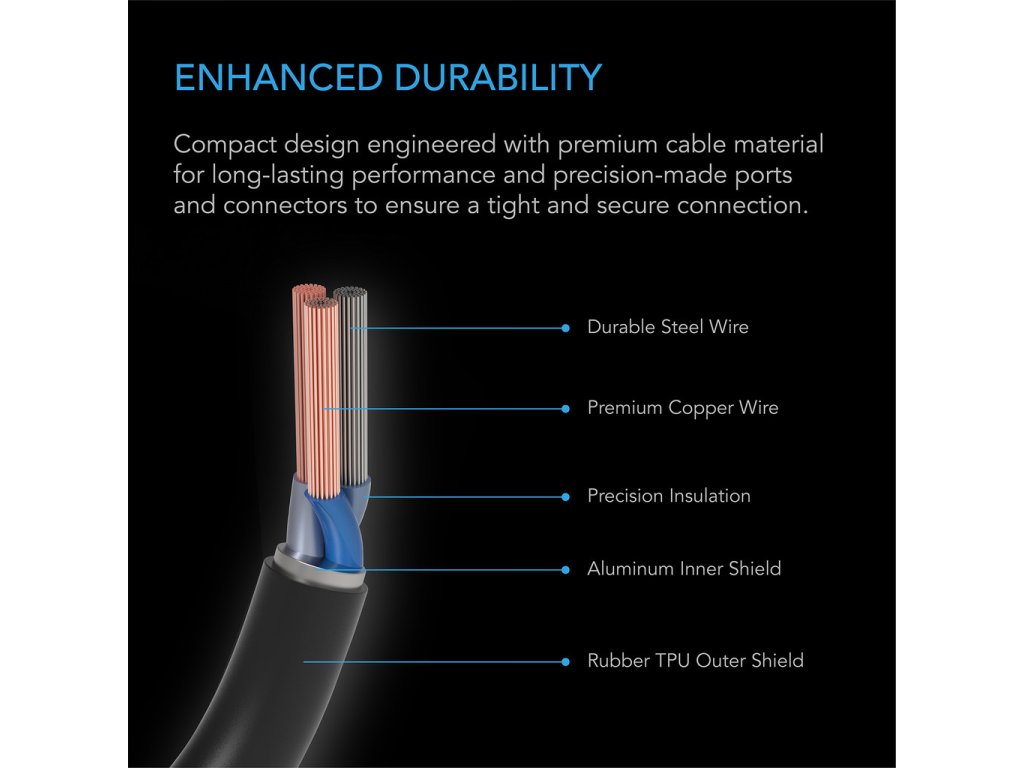

A 4-port splitter hub designed to split the UIS controller programming between several similar grow devices. With this connector you can expand your grow setup and distribute the programming from one port to all connected devices. Each connected device follows programming from a single port of a UIS controller. Connect up to 3 levels of grow equipment such as EC motor fans, ambient humidifiers, LED lighting systems and more with additional splitters and hubs. The hub's heavy-duty construction is equipped with high-quality cables to ensure a solid connection with UIS ports and connectors. Compatible with AC Infinity controllers such as CONTROLLER 69, CONTROLLER 69 PRO, CONTROLLER 69 PRO+ and future UIS controllers. Not compatible with RJ11/12 Type-A and Type-B adapters.

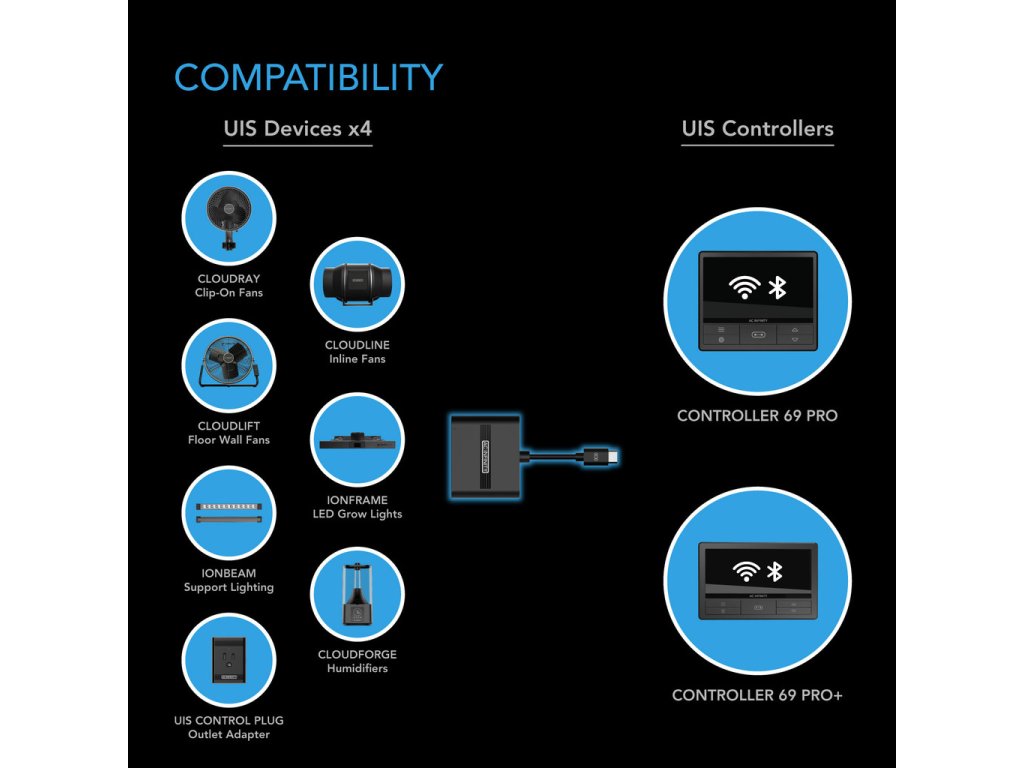

Compatibility
This splitter hub connects similar UIS devices to your digital smart controller. Designed for use with the male-to-male cables supplied with UIS devices, which are also available separately. Compatibility includes future UIS devices and the following:
- Controller AI+ - AI-controlled controller
- Controller 69 PRO/PRO+ - Grow tent controller
- CLOUDFORGE series - Ambient air humidifiers
- CLOUDLINE series - Inline duct fans
- CLOUDLIFT series - Floor/wall circulation fans
- CLOUDRAY series - Clip-on circulation fans
- CLOUDWAY series - Whole house fans
- AIRLIFT series - louvre exhaust fans
- AIRBLAZE series - Chimney blower fans
- AIRTITAN series - Crawl space & cellar fans
- IONFRAME series - LED grow lamps in bar style
- IONBOARD series - LED grow light boards
- IONBEAM series - LED grow light bars
- TERRAFORM series - Air conditioning systems
- THERMOFORGE series - Heating appliances
- Socket devices via UIS Outlet Control Plug

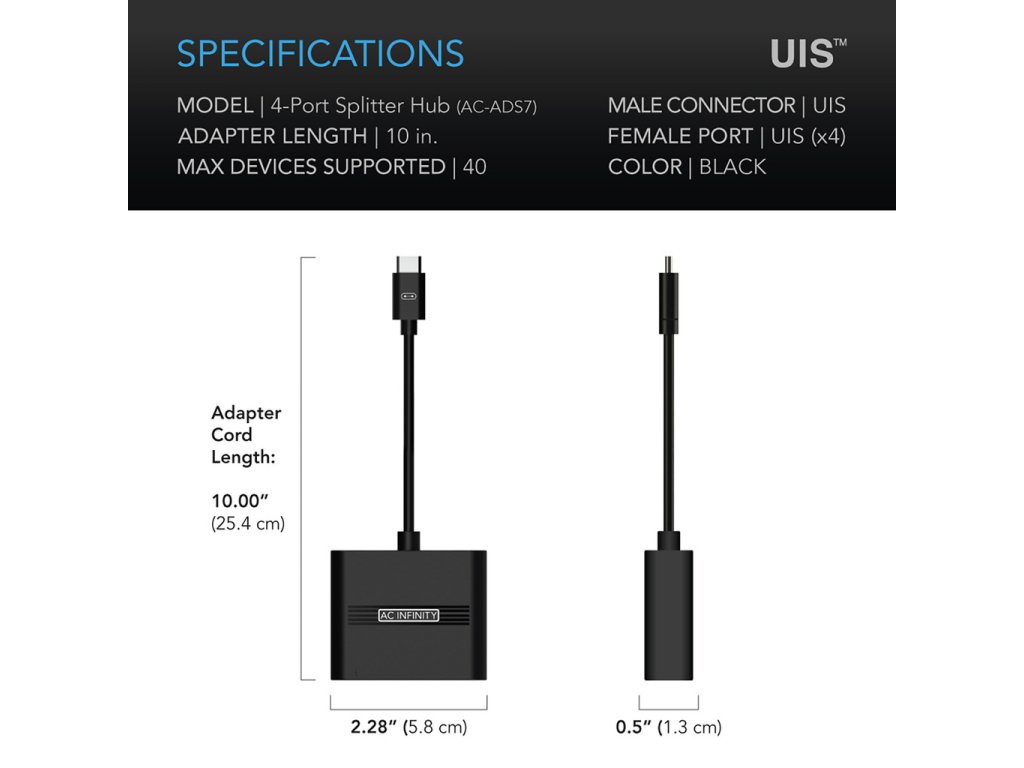

| Manufacturer | AC Infinity Inc. |
| Product name | UIS Splitter Hub |
| Product model | AC-ADS7 |
| UPC code | 819137024137 |
| Product dimensions | |
| Total length | 25.4 cm |
| Total width | 5.8 cm |
| Product features and technical data | |
| Plug (male) | UIS |
| Socket (female) | UIS (x4) |
| Maximum supported devices | 40 |
Additional parameters
| Category: | AI Controllers and Sensors |
|---|---|
| EAN: | 819137024137 |
