AC Infinity IONFRAME EVO10, Samsung LM301H EVO LED Grow Light 1000W - 150x150cm

Product detailed description

• Equipped with Samsung LM301H EVO LEDs, each with an efficiency of 3.14 µmol/J PPE, the highest efficiency of the LM301B, LM301H and Bridgelux 3030 chips.
• Programmed with schedule control, dimming at sunrise and sunset and 10 brightness levels; UIS™ platform compatible for control via WiFi app.

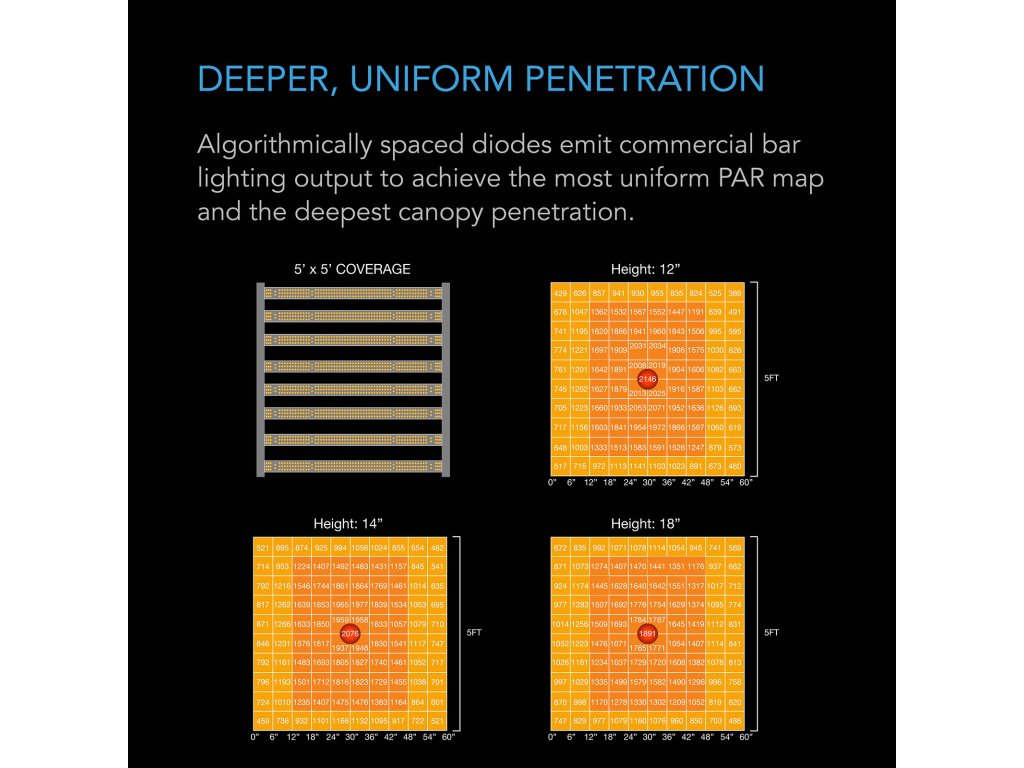

• Rod-shaped form factor with algorithmically arranged diodes optimized for uniform coverage, deep canopy penetration and hotspot reduction.
• The LED driver with passive cooling is removable to balance heat dissipation; also supports daisy chaining with up to 80 grow lights.
• Cover up to 150 x 150 cm | | Samsung LM301H EVO Chips | 3710 Diodes | 1000W | 2146 PPFD | ETL Cert. 5021417

Product description

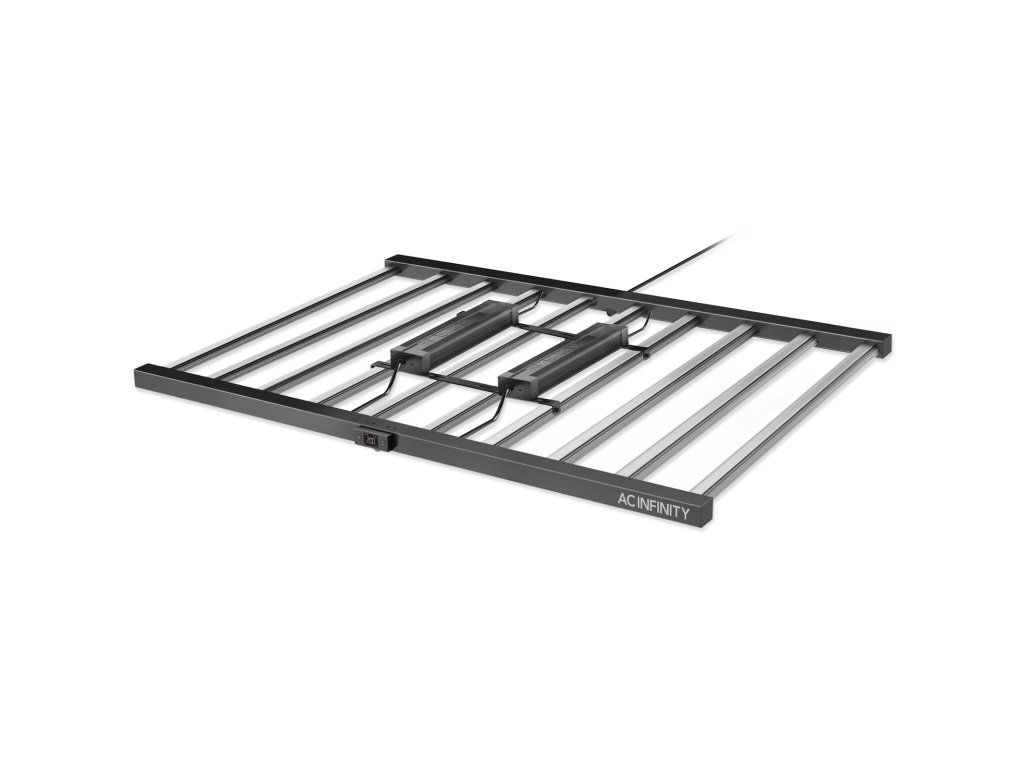

An indoor plant light designed for grow tents and large grow rooms to improve the growth rate and yield of your plants. Uses Samsung LM301H EVO diodes algorithmically arranged on a rod-shaped form factor to evenly distribute light coverage and minimize hotspots. The modular design allows you to remove the driver to mount it away from the luminaire and optimize heat dissipation. This heat dissipation is aided by the steel and aluminum construction, which allows for magnetic mounting and is IP-65 certified to withstand humid environments. This Grow Light complies with ETL standards (certificate no. 5021417) for the safety of electrical equipment, ensuring safe use in lighting applications. The included Smart Controller allows programming of schedules and supports daisy chaining of multiple LED Grow Lights in a linear arrangement using splitter dongles (sold separately). This product is part of the UIS™ platform of attachments and smart controllers that are designed to integrate with each other to create your ideal environment.

Industry-leading LED chips

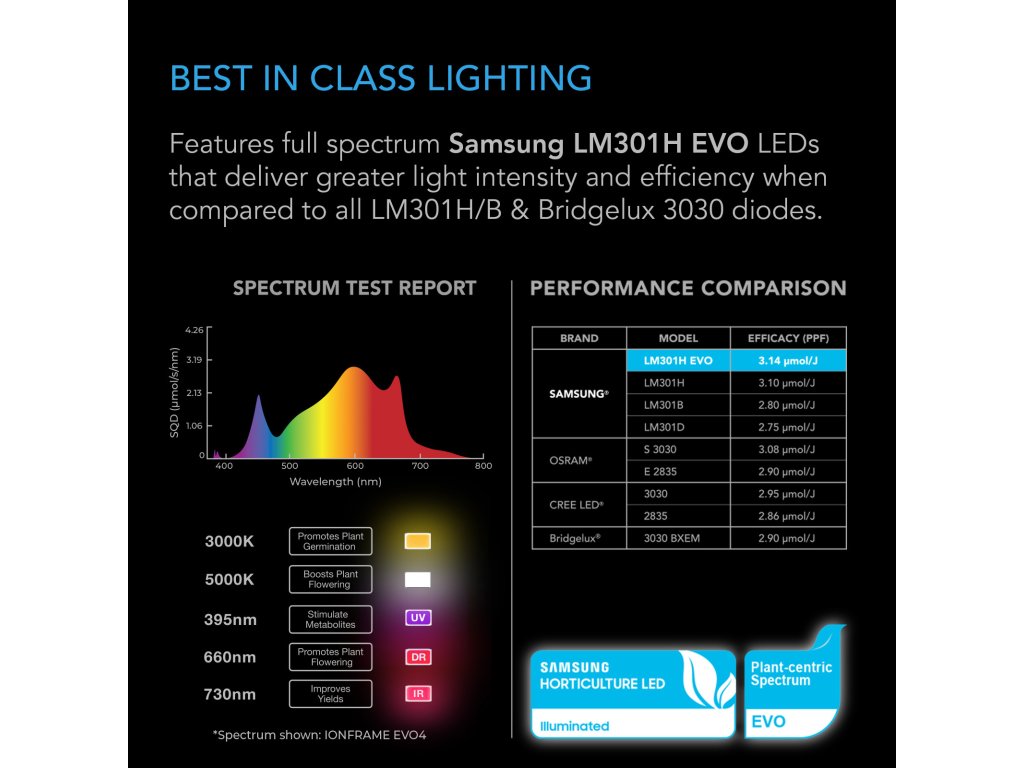

Each IONFRAME light is equipped with original Samsung LM301H EVO diodes, the latest horticultural lighting technology that produces intense brightness with higher efficiency. This performance is superior to the leading Samsung LM301H and LM301B LEDs as well as Bridgelux 3030 and other previous generation LEDs. EVO diodes contribute to better plant growth by emitting better light quality and higher light output per diode with a higher blue spectrum and higher efficiency compared to non-EVO diodes. The IONFRAME EVO4 is supported by an array of (4) 395 nm UV diodes, (28) 660 nm OSRAM red diodes and (4) 730 nm OSRAM red diodes to complete its light output across the spectrum.

Schedule and brightness control

The digital timer supplied can automatically adjust the light to the time of day. It has 10 light intensity levels and a schedule mode that activates the light cyclically. You can customize this daily cycle with the innovative sunrise and sunset setting that gradually brightens and dims the light to closely mimic the movement of the sun. Use this grow light with an advanced UIS controller such as the CONTROLLER 69 PRO to fully automate it by integrating it into the UIS platform. This allows further access to remote control via WiFi and advanced programming such as automation and grow recipes when you connect to the AC Infinity app.

Manufacturer	AC Infinity Inc.
Product name	IONFRAME EVO10
Product model	AC-IF10K
UPC code	819137024083
Product and assembly dimensions
Luminaire dimensions	112.0 × 113.0 × 8.6 cm
Driver dimensions	18.2 × 4.0 cm
Performance and technical data
Cover	1,5 × 1,5 m
Diodes	Samsung LM301H EVO
Spectrum	395 nm, 660 nm, 730 nm, 3000K, 5000K
Total number of chips	3710
Chip count (EVO 3000K)	2360
Chip count (EVO 5000K)	1200
Chip number (Seoul 395 nm)	10
Chip count (OSRAM 660 nm)	130
Chip number (OSRAM 730 nm)	10
LED driver	SOSEN-1000W
Efficiency (single diode)	3.14 µmol/J
PPFD	2146 µmol/m²/s
Power consumption	1000 W
Tension	100-277 V AC
Frequency	50/60 Hz
Power consumption	approx. 4.35 A (x2 at 230 V)
Controller	Schedule controller
Power plug type	EU plug (type C/F)
Operating humidity	35 to 85 % RH
Operating temperature	0 to 60 °C
Water protection class	IP65
Service life	50,000 hours
ETL certification	PDF
Product manual
Manual	English German
