AC Infinity IONBOARD S33, Samsung LM301H LED Grow Light 260W - 90x90cm
Code: AC-IBS33Product detailed description
- Dimmable grow light for 90 × 90 cm with optimized light spectrum for maximum yields.
- Powerful Samsung LM301H full spectrum LEDs ensure maximum light output - ideal for all growth phases.

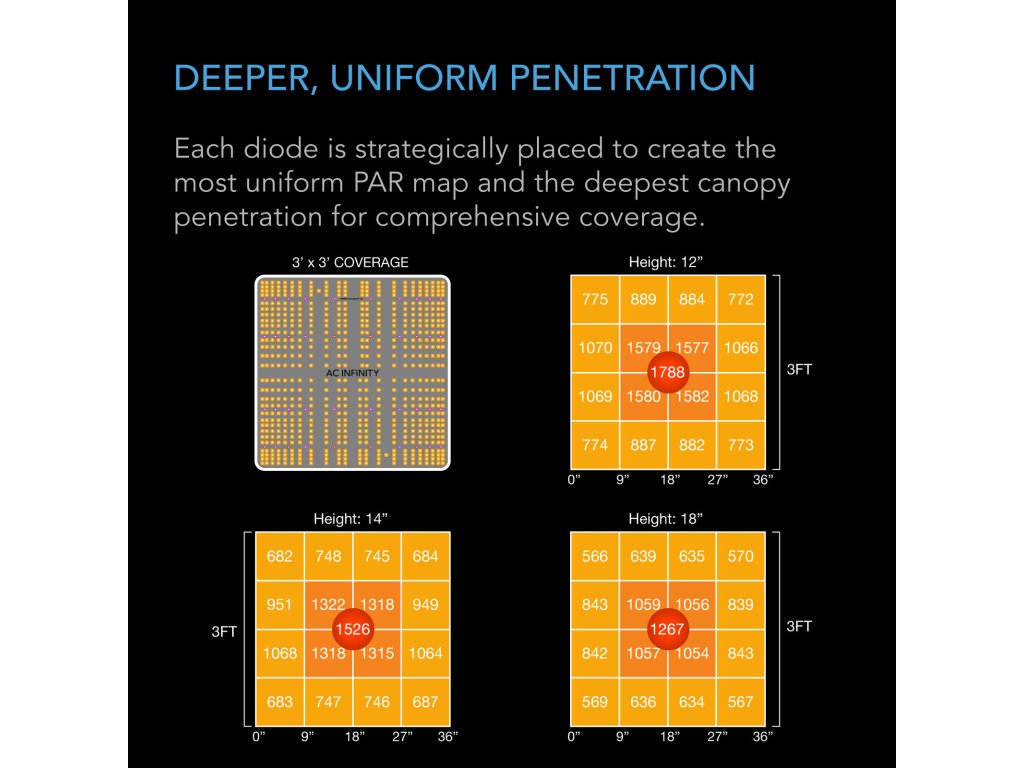

- Algorithmically placed diodes for uniform PAR coverage and maximum light output right up to the tips of the blades.
- Precise light control: 0-100 % dimmable, compatible with smart controllers for schedules, growth cycles and app control.
- Robust unibody aluminum construction without fan - IP65-certified for humid and heat-intensive installation environments.
Product description
A full spectrum LED grow light equipped with algorithmically positioned Samsung LM301H diodes, designed to maximize plant yield. The optimized diode arrangement ensures uniform PAR coverage and deep illumination down to the leaf tips to optimally support all growth phases - from germination to flowering.
The integrated proprietary ballast enables precise light control from 0-100 % and is compatible with smart controllers for automated control of schedules, growth cycles and app functions. The Grow Light can be connected to other Grow Lights via expansion adapters (sold separately).

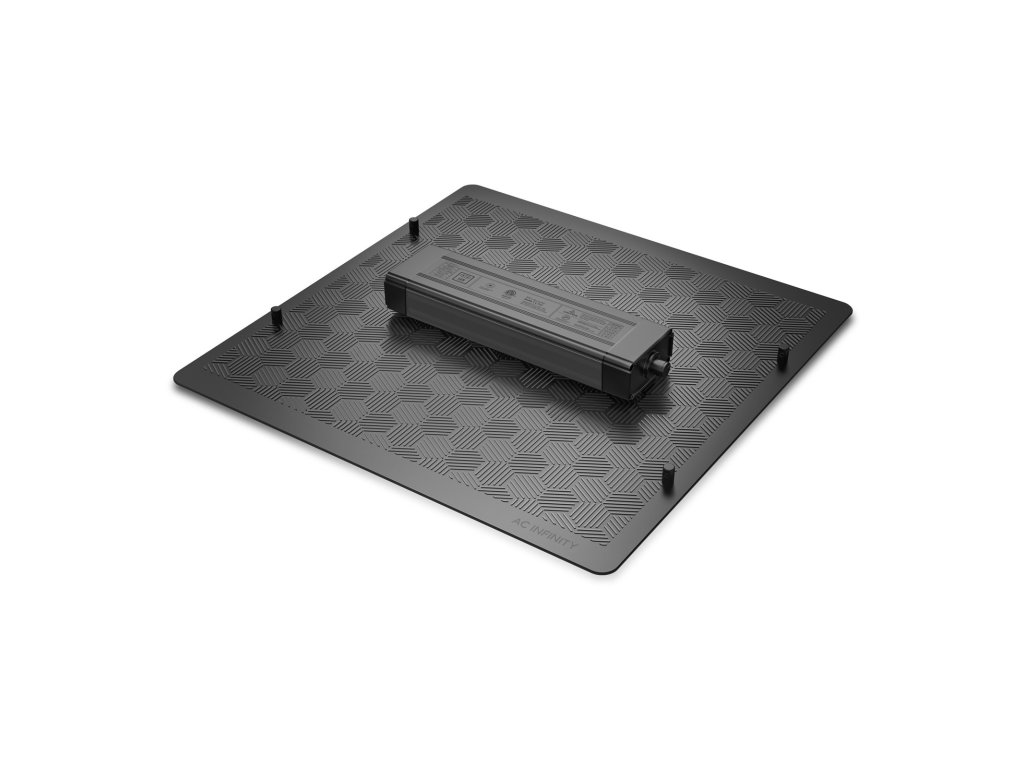

The device consists of a fanless unibody aluminum housing, which ensures efficient heat dissipation and thus extends the service life of the diodes. All components are IP65-certified and therefore reliably protected against dust and moisture - ideal for use in environments with high humidity and temperature.

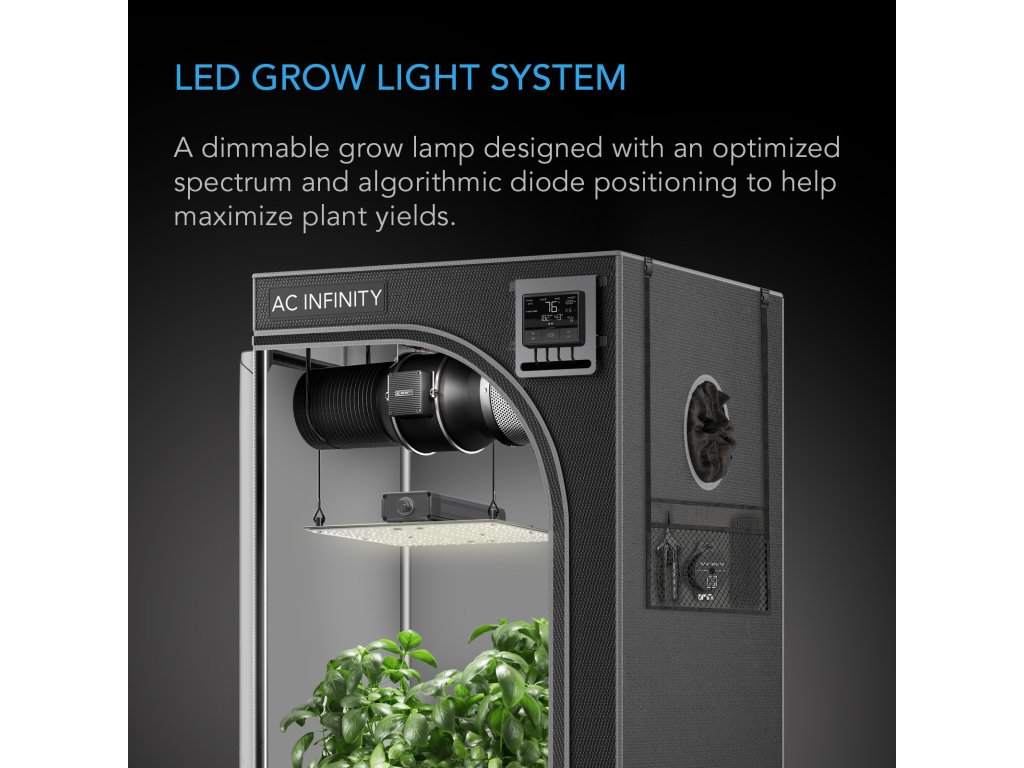

Metal brackets and adjustable rope suspensions are included for easy and secure installation. This LED Grow Light is designed for grow tents with reflective Mylar inner lining and is suitable for growing herbs, vegetables, fruit and other types of plants indoors.

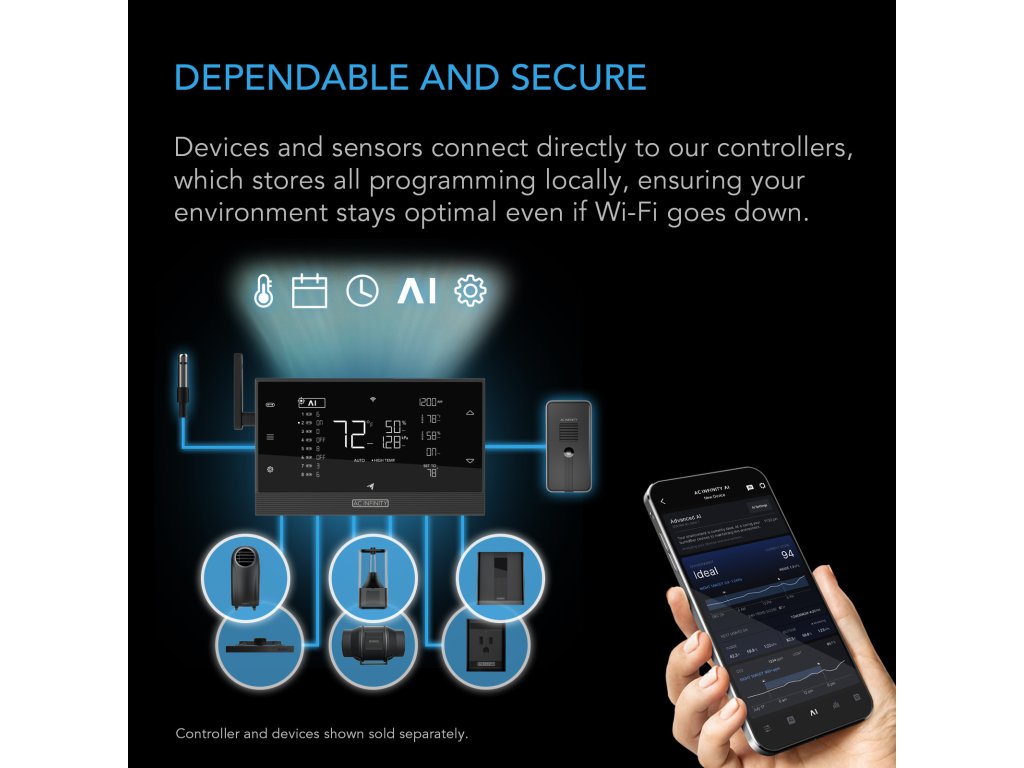

The product is part of the UIS™ platform of attachments and smart controllers and can be connected to the AC Infinity app via Wi-Fi for automated and centralized control of your ideal cultivation environment.

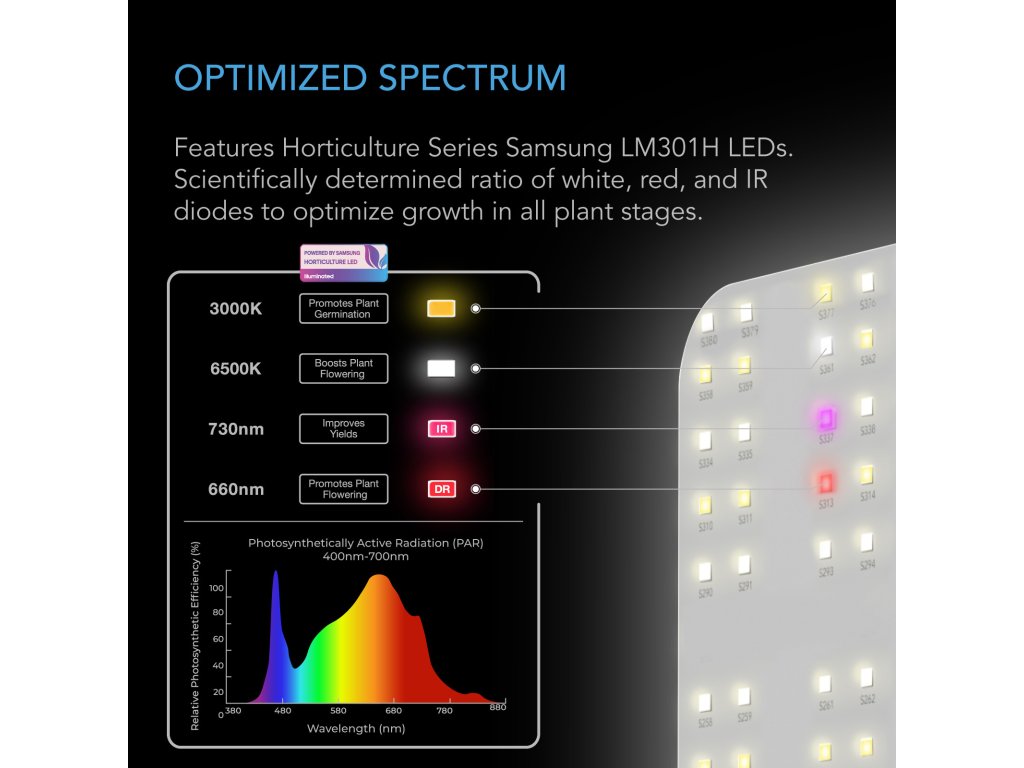

Optimized light spectrum
Each light is fitted with Samsung LM301H Horticulture Series LEDs in a matched ratio of white (3000K & 5000K), red and IR diodes to maximize plant growth and yields. The diodes are arranged algorithmically on the board to achieve an even PAR distribution and maximum light output right up to the tips of the leaves. Ideal for the germination phase, the vegetative phase and the flowering phase - for strong, healthy plants from start to harvest.
Future-proof

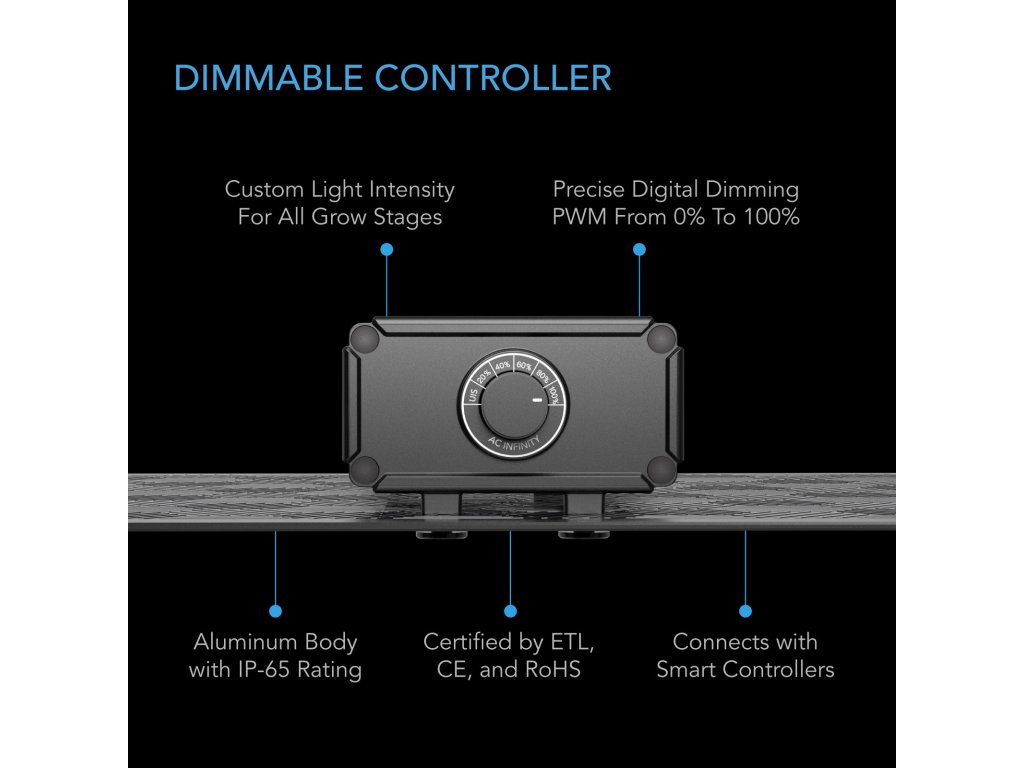

The specially developed LED driver enables gradual dimming from 0-100 % via a rotary control in 20 % increments. It also has a connection for daisy-chaining and is compatible with our smart controllers to access growth cycles, schedules, app control and other automation functions. Expand your system with additional grow lights, fans and controllers - all seamlessly connected for a fully automatable, optimized growing environment.
| Manufacturer | AC Infinity Inc. |
| Product name | IONBOARD S33 |
| Product model | AC-IBS33 |
| UPC code | 819137022539 |

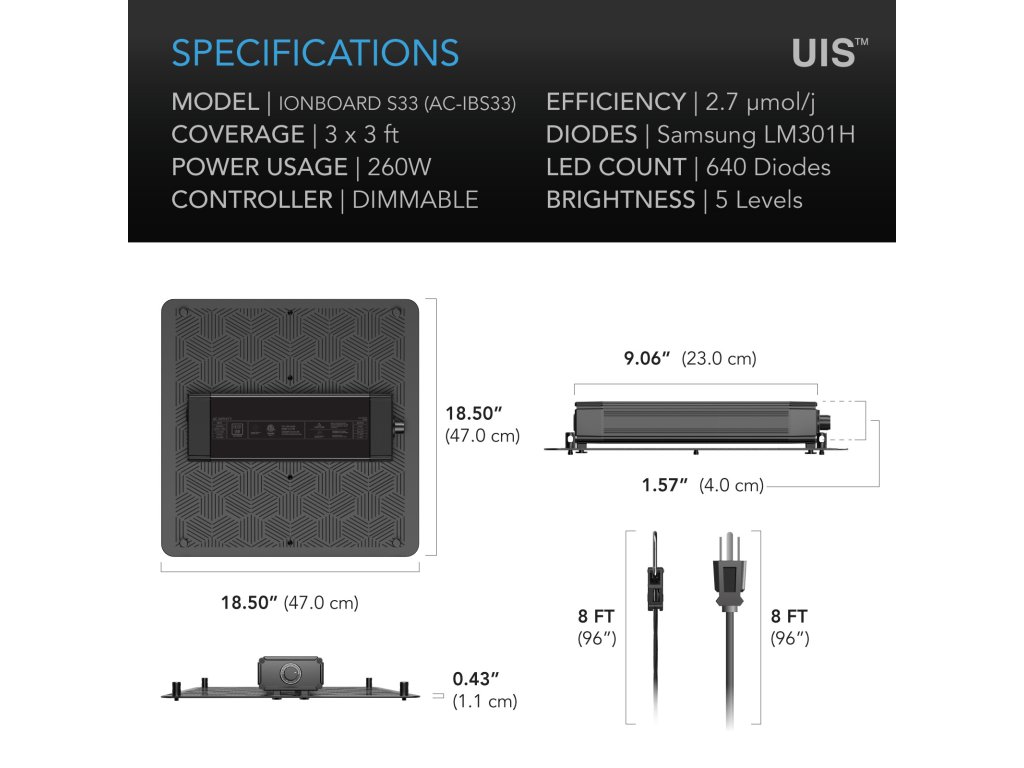

| Product and assembly dimensions | |
| Luminaire dimensions | 470 x 470 mm |
| LED board thickness | 11 mm |
| Driver dimensions | 230 x 40 mm |
| Product features and technical data | |
| Covering surface | 900 x 900 mm |
| Diodes | Samsung LM301H |
| Number of LED chips | 640 |
| LED driver | AC Infinity Proprietary driver IB-240 |
| Efficiency | 2.7 µmol/J |
| PPFD | 1.788 µmol/m²/s |
| Spectrum | 660 nm, 730 nm, 3000 K, 6500 K |
| Power consumption | 260 W |
| Tension | 100-277 V AC |
| Frequency | 50/60 Hz |
| Amperage | 1.13 A @ 230 V |
| Control system | Digital dimming timer |
| Mains plug type | EU plug |
| Operating humidity | 35 to 85 % RH |
| Operating temperature | 0 to 60 °C |
| Life expectancy | 50,000 hours |
| ETL-Zert. (entire product) |  PDF |
| Product instructions | |
| Product instructions | PDF |
Additional parameters
| Category: | LED Light Boards |
|---|---|
| EAN: | 819137022539 |
