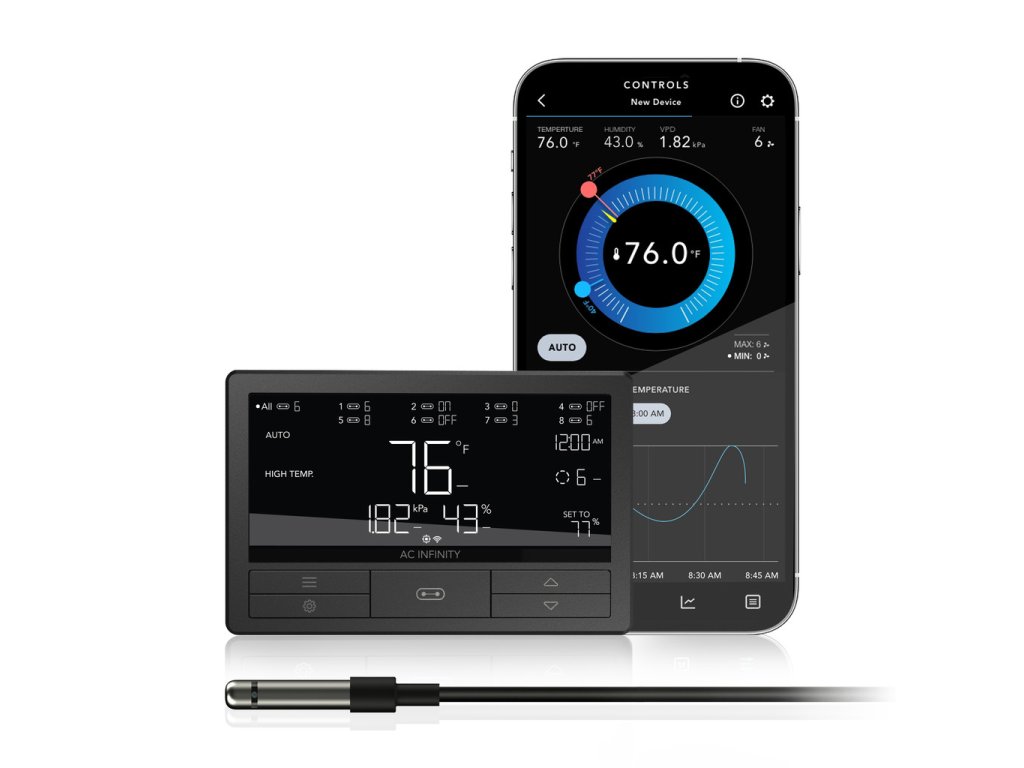

AC Infinity CONTROLLER 69 PRO+, Independent Programs for Eight Devices

Product detailed description

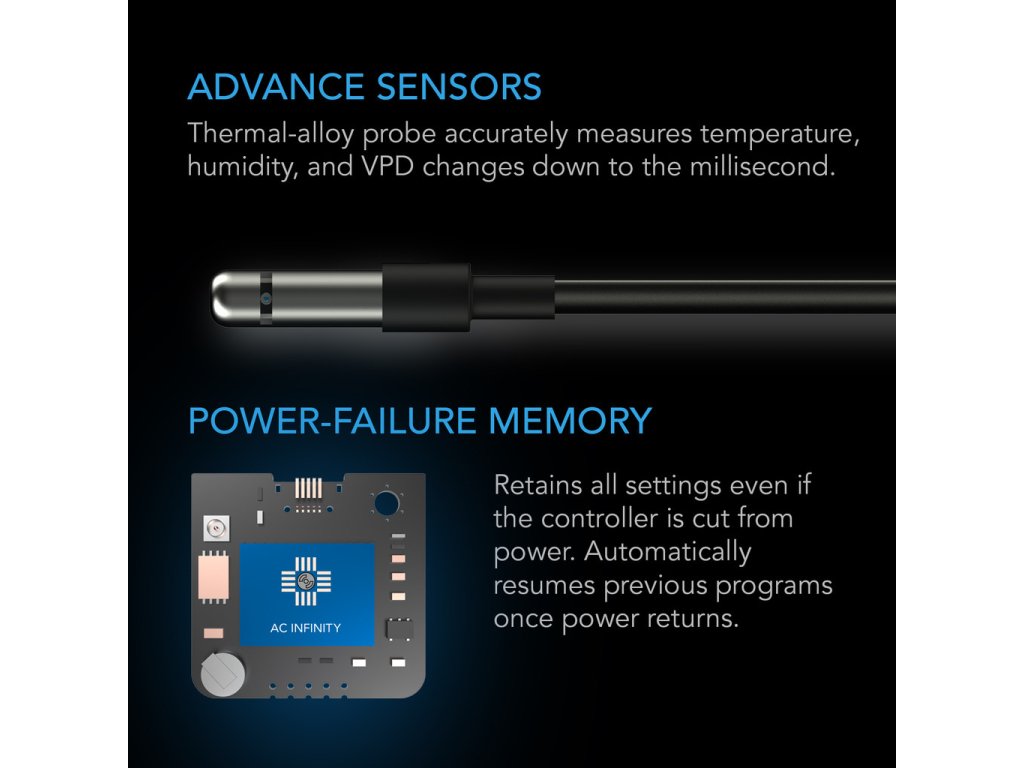

CONTROLLER 69™ PRO+ is an innovative digital thermostat that provides a smart and automated way to manage all AC Infinity devices. This controller is compatible with up to eight devices, allowing you to set independent climate and time programs for each connected product. With a backlit display showing temperature in Fahrenheit or Celsius, you can measure temperature, humidity, and VPD for more precise control of growth conditions. The thermally alloyed sensor measures current temperature and humidity with accuracy, ensuring optimal conditions for your plants. This controller also supports VPD detection, allowing you to control not just temperature and humidity, but also the temperature of the plant leaves to maintain ideal growth conditions.

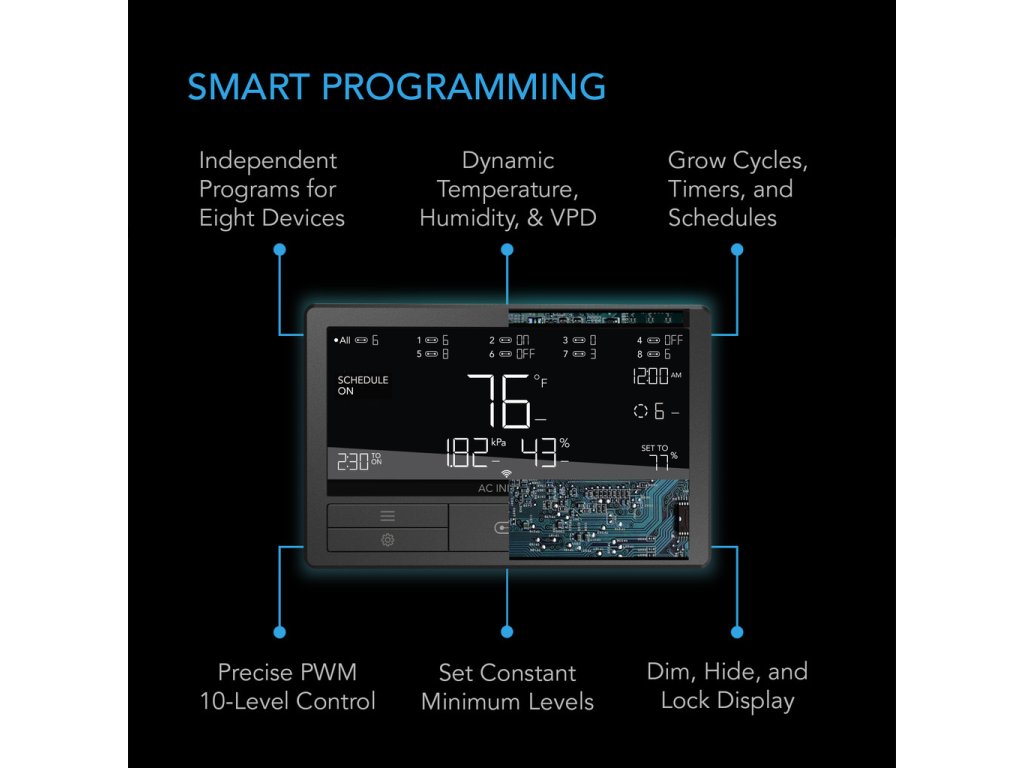

Smart Programming

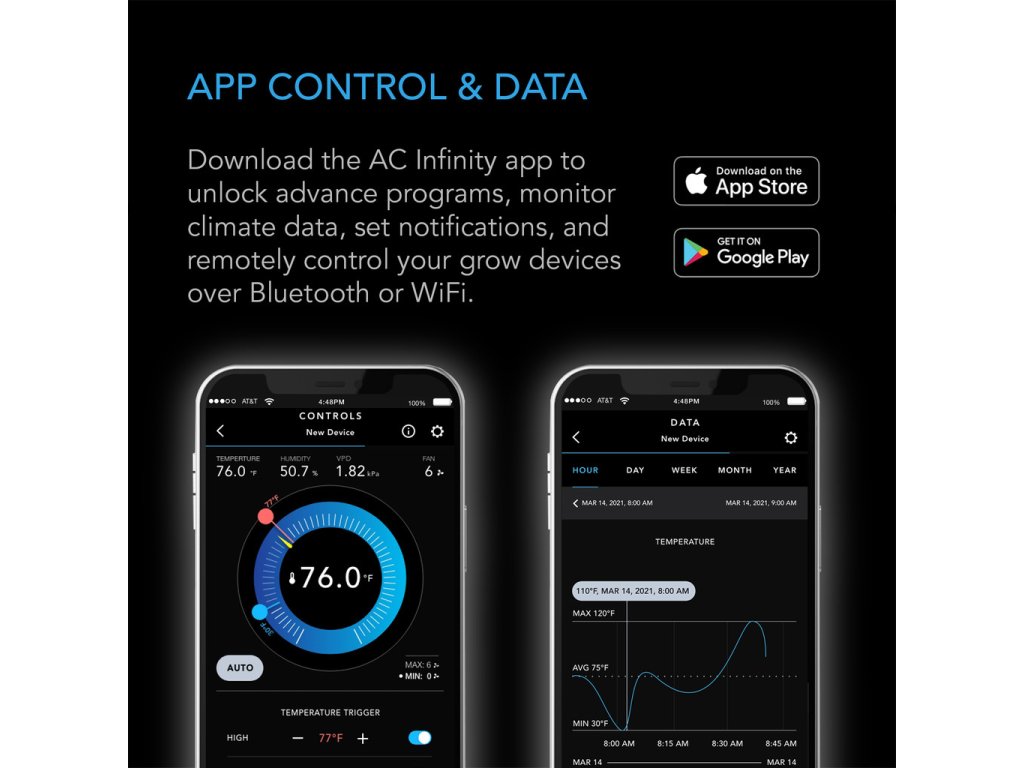

The CONTROLLER 69™ PRO+ allows you to connect up to 8 devices with independent programming options. Set dynamic programs for fans and lights that automatically adjust based on temperature, humidity, and VPD. You can also set minimum levels to keep devices running, increasing only when trigger points are activated. Timer programs, cycles, and schedules allow you to tailor device activation to your growth needs. For maximum convenience, all devices can be controlled through the AC Infinity app, which connects via Bluetooth or WiFi, providing remote access, alarms, notifications, and climate data analysis.

Compatibility
The CONTROLLER 69™ PRO+ is compatible with the entire UIS™ platform and AC Infinity devices such as:

• AIRLIFT Series – Exhaust fans with shutters
• CLOUDFORGE Series – Air humidifiers
• CLOUDLIFT Series – Floor and wall fans
• CLOUDLINE Series – Inline fans
• CLOUDRAY Series – Clip fans
• CLOUDWAY Series – Whole-house fans
• IONBEAM Series – LED grow light strips
• IONBOARD Series – LED grow light panels
• UIS Control Plug – Outlet device control (0=Off, 1-10=On)
• UIS Lighting Adapters – Control for third-party lights

Product Features

• Control up to 8 devices
• Backlit display (switching between °F/°C)
• Sensors for temperature, humidity, and VPD
• Bluetooth or WiFi connectivity
• Fully compatible with AC Infinity devices and the UIS™ platform
• Remote control and data analysis via the AC Infinity app

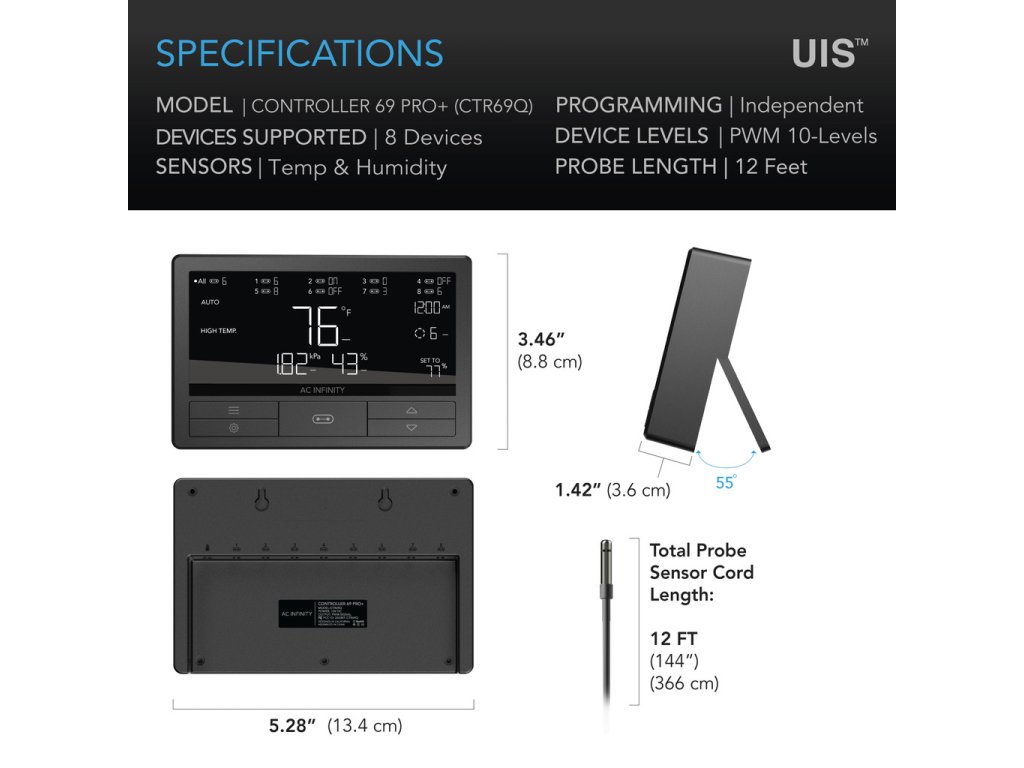

Product and Mounting Dimensions

• Total Dimensions: 5.28 x 3.46 x 1.42 in.
• Display Size: 4.56 x 1.96 in.
• Sensor Length: 12 ft

Performance and Technical Specifications

• Maximum Number of Controlled Devices: 8
• Temperature Settings: 32 °F to 140 °F (0 °C to 60 °C)
• Operating Voltage: 9 to 11V
• Power Consumption: 1.4 W
• Current: 0.14 A
• Power Supply: 10V from the connected device
• Operating Humidity: 35% to 85% RH
• App Connectivity: WiFi 2.4 GHz
