AC Infinity CLOUDRAY S9, Grow Tent Clip Fan 225mm, EC Motor, Automatic Oscillation, 10-Stage Dynamic Wind Modes and Fan Speeds
Code: 61FB4632Product detailed description
- A 225mm clip-on fan engineered for longer-lasting, tailored circulation in grow space environments.
- Larger brushless EC motor with carbon steel gears, dual-ball bearings, and is IP54-rated to maximize lifespan.
- 10 oscillation ranges can focus on targeted areas or achieve wide coverage while avoiding obstacles.
- Features 10 speeds and 10 dynamic wind modes to simulate outdoor airflow for optimal plant growth.
- Links with UIS controllers for WiFi app control and access to climate triggers, timers, and advance automation.
Product Description

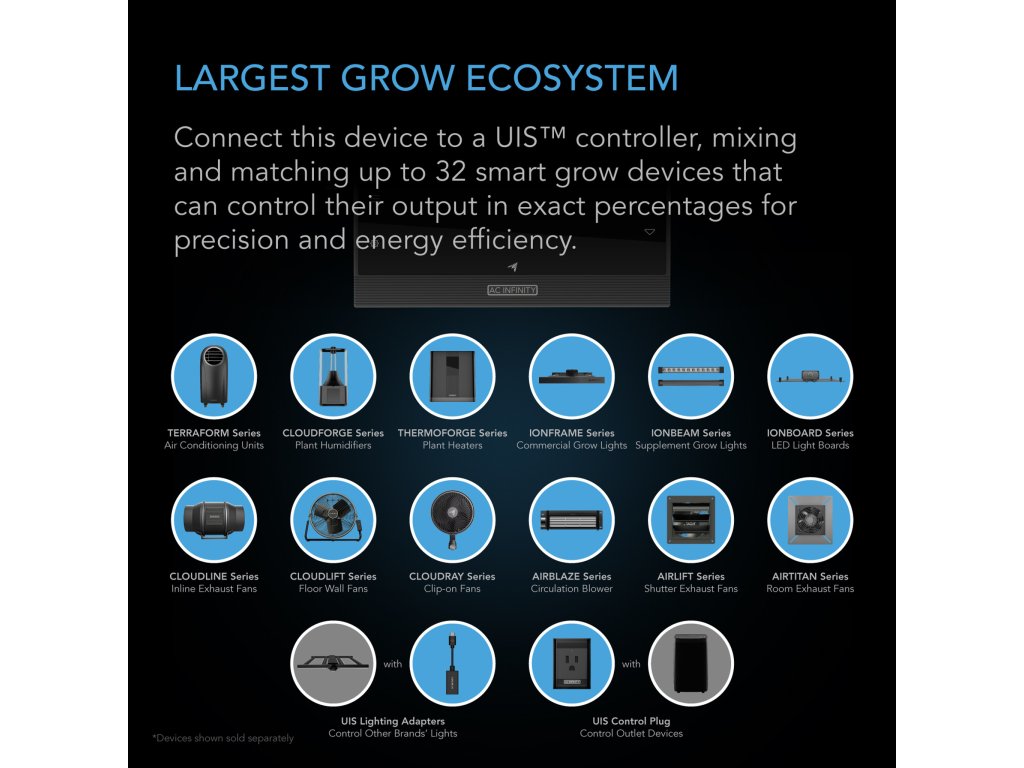

A highly innovative clip fan designed to deliver targeted circulation and optimize each stage of your plant’s grow cycle. Access ten digital speeds plus ten dynamic wind modes for customizable airflow that varies between levels to simulate an outdoor environment. For even greater control, utilize the ten oscillation levels that deliver focused circulation to specific spots or offer the widest reach possible. This circulation fan is IP54-rated to maintain peak performance during continuous use in high humidity and temperature. It also meets ETL standards (certificate #5027708) for electrical appliance safety, ensuring secure use in air circulation applications. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

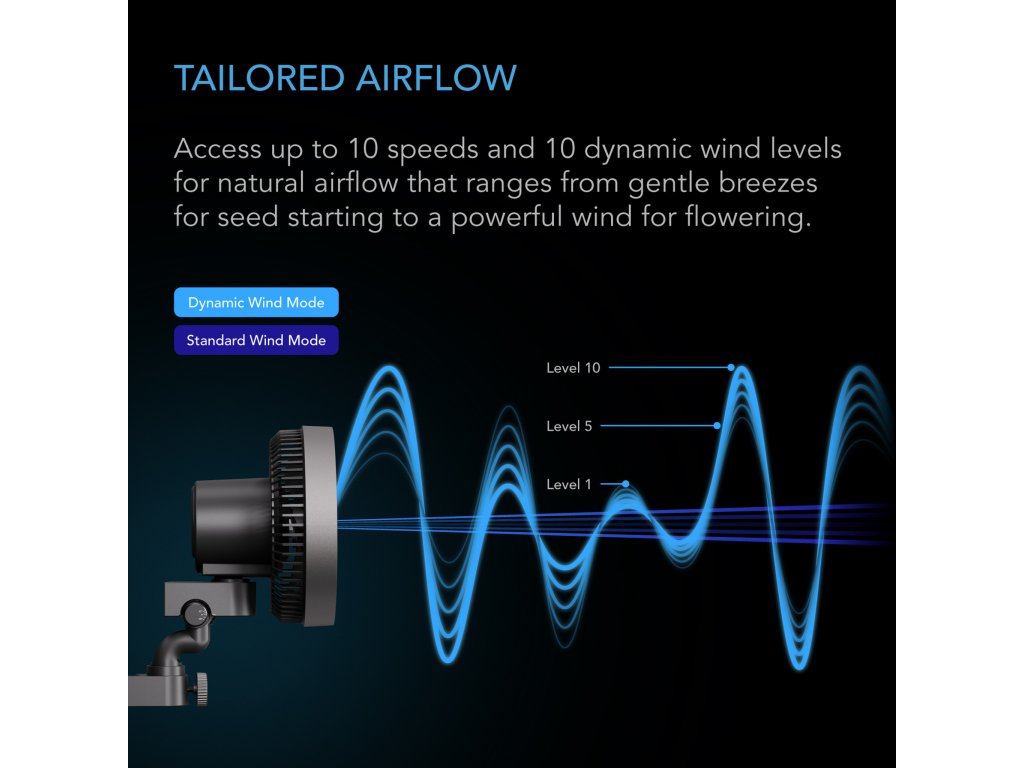

Tailored, Custom Airflow

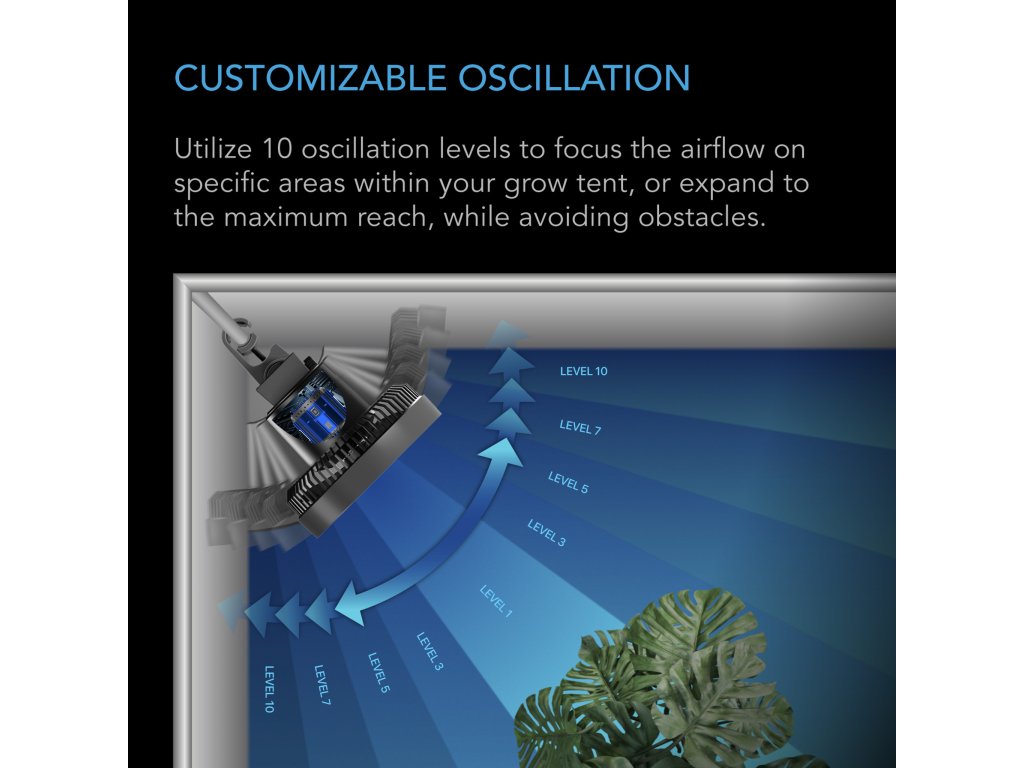

Get unprecedented customization capabilities for complete airflow control using this grow tent clip-on fan’s 10 speed levels, 10 dynamic wind modes, and 10 oscillation settings. Uniquely tailor each stage of development for a wholly personalized growing experience. Our wide selection of dynamic modes lets you decide the maximum strength of your varying wind flow, ensuring healthier growth with reduced stress on your plants. The oscillation range offers total tent coverage, being able to avoid obstacles. With this, you can set precise circulation for any plant growth stage, from ultra-gentle breezes for germination and seedlings to a powerful airflow for vegetative and flowering.

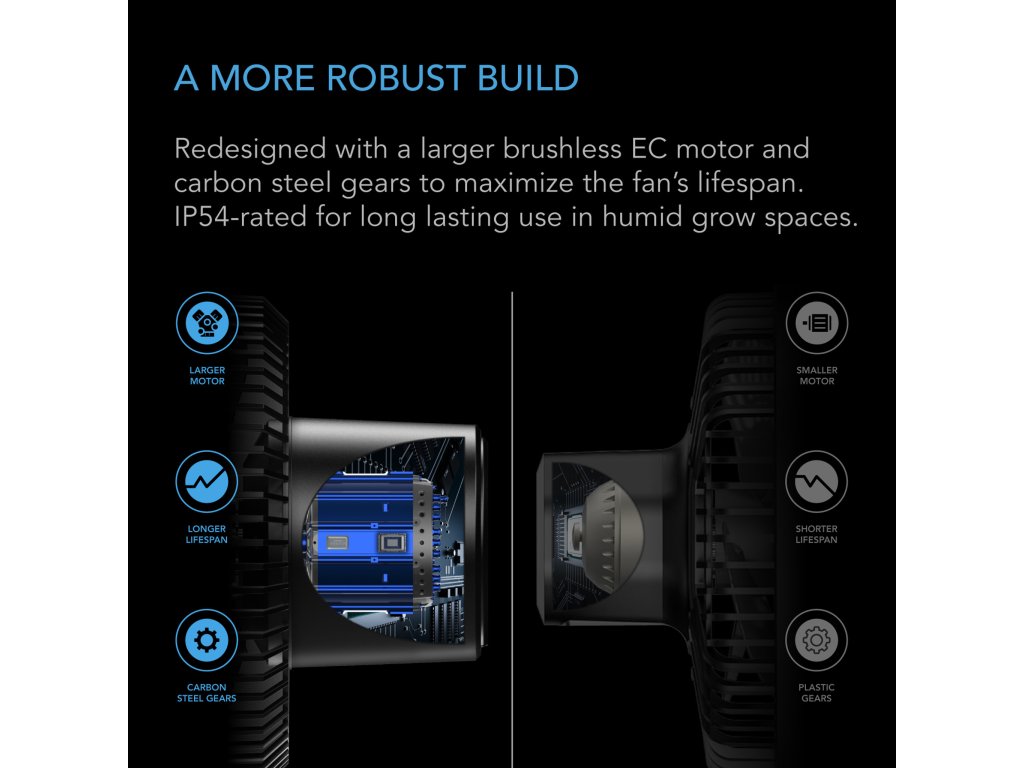

Redesigned Motor
This clip fan features a robust EC motor specially designed in size and construction to lengthen oscillation lifespan. Its clamp is re-engineered with a compact metal build that saves space in your grow tent and uses a vise grip-like design for greater security on tent poles. Other reinforced features include a brushless motor design, resilient carbon steel gears, and dual-ball bearings for omnidirectional mounting. These components create the heaviest-duty clip fan that is long-lasting, energy-efficient, and can generate powerful circulation.
| Manufacturer | AC Infinity Inc. |
| Product Name | CLOUDRAY S9 |
| Product Model | AC-CCS9 |
| UPC Code | 819137022461 |
| Product and Mounting Dimensions - Fan Unit | |
| Impeller Size | 9.0" |
| Total Dimensions | 10.43 x 13.85 in. (26.5 x 35.2 cm) |
| Cord Length to Plug | 96 in. (8 feet) |
| Product Performance and Technical Specs | |
| Maximum Airflow | 405 CFM |
| Total Noise | 35 dBA |
| Static Pressure | 25 Pa |
| Operating Voltage | 100-240V AC |
| Power | 11 W |
| Current | 0.15 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-54 |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Oscillation | Automatic Oscillation |
| Fan Bearings | Dual Ball Bearing |
| Mounting Positions | Horizontal or Vertical |
| Life Expectancy | 67,000 Hours |
| ETL Cert. (Whole Product) |  PDF |
| Product Manual | |
| Product Manual | PDF |
