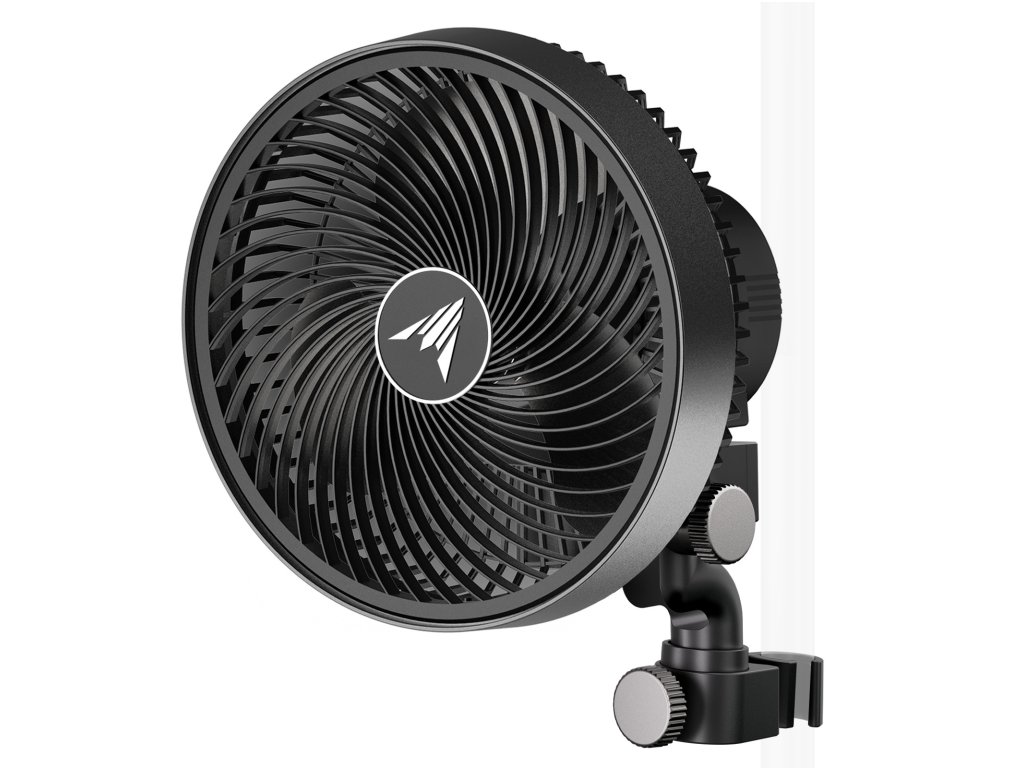

AC Infinity CLOUDRAY A9, Grow Tent Clip Fan 225mm, EC Motor, 10-stage Dynamic Wind Modes and Fan Speeds

Product detailed description

• Newly developed fan with clip attachment for longer-lasting, customized air circulation in growing areas.
• The larger brushless EC motor with activated carbon steel gears and IP54 protection rating has been redesigned to maximize the service life of the fan.
• With 10 speeds and 10 dynamic wind modes to simulate outside air currents for optimum plant growth.
• IP-54 certified, especially for the growing environment, to be resistant to high humidity and heat.
• Connect to UIS controllers for control via a Wi-Fi app and access to climate factors, timers and advanced automation. Fan impeller: 225 mm | Air flow: Up to 688 m³/h | Suitable for all tent pole sizes

Product description

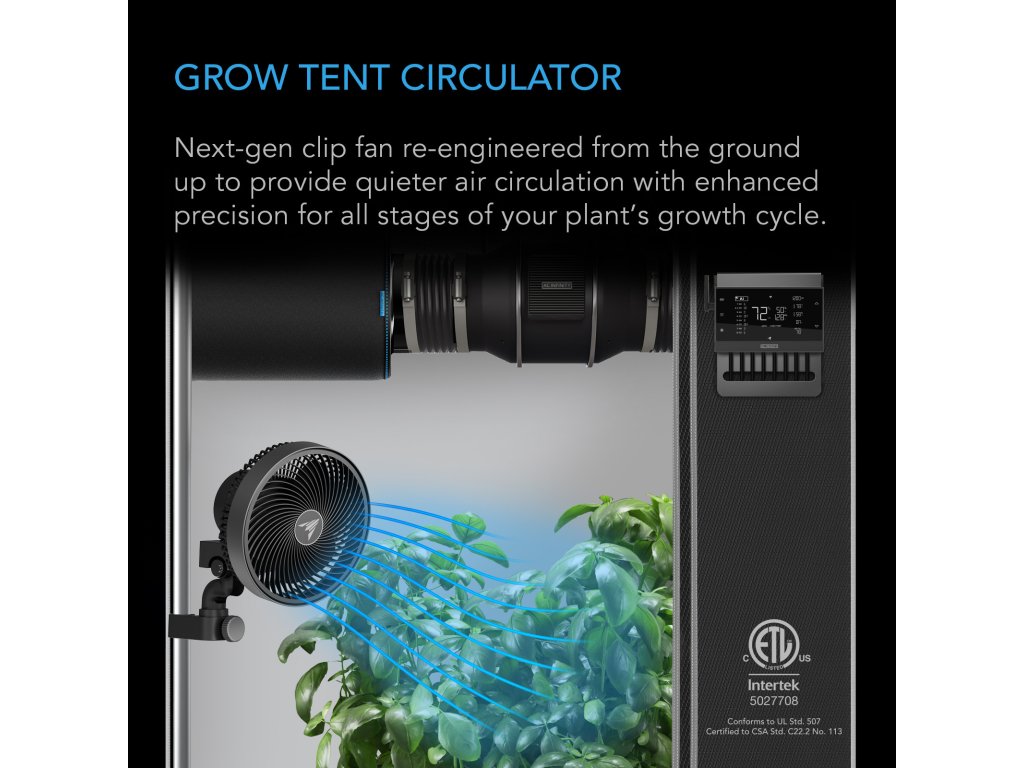

A highly innovative clip fan that has been completely redesigned to provide targeted air circulation and optimize every stage of your plants' growth cycle. Access ten digital speeds and ten dynamic wind modes to create a customizable airflow that varies between stages to simulate an outdoor environment. This recirculation fan is IP54 certified to ensure maximum performance in continuous operation, even in high humidity and temperature conditions. It also complies with CE and ETL standards (certificate no. 5027708) for the safety of electrical equipment, ensuring safe use in air circulation applications. This product is part of the UIS™ platform of attachments and smart controls designed to connect to the AC Infinity app via Wi-Fi to create the ideal environment.

Tailor-made, individual air circulation

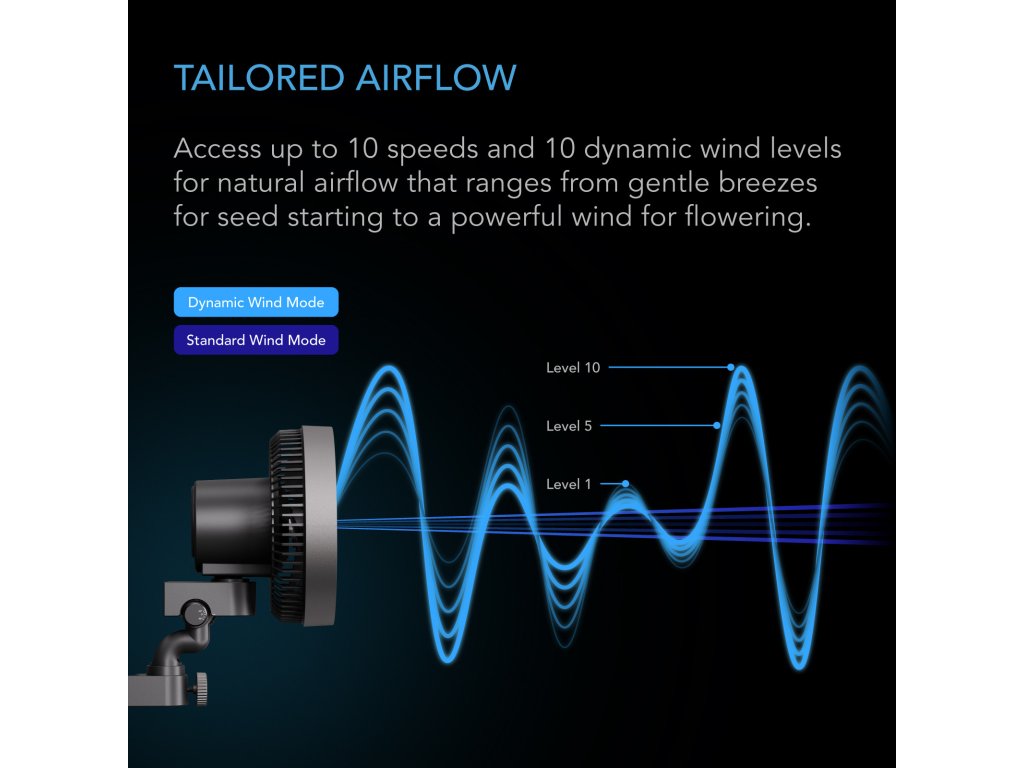

The 10 speed settings and 10 dynamic wind modes of this clip-on fan for grow tents give you unprecedented customization options for complete control of air circulation. Customize each stage of development for a fully personalized growing experience. With our wide range of dynamic modes, you can determine the maximum strength of your varying wind flow, ensuring healthier growth with less stress on your plants. This allows you to precisely adjust the air circulation for each stage of plant growth, from ultra-gentle breezes for germination and seedlings to a strong airflow for the vegetative and flowering stages.

Revised engine

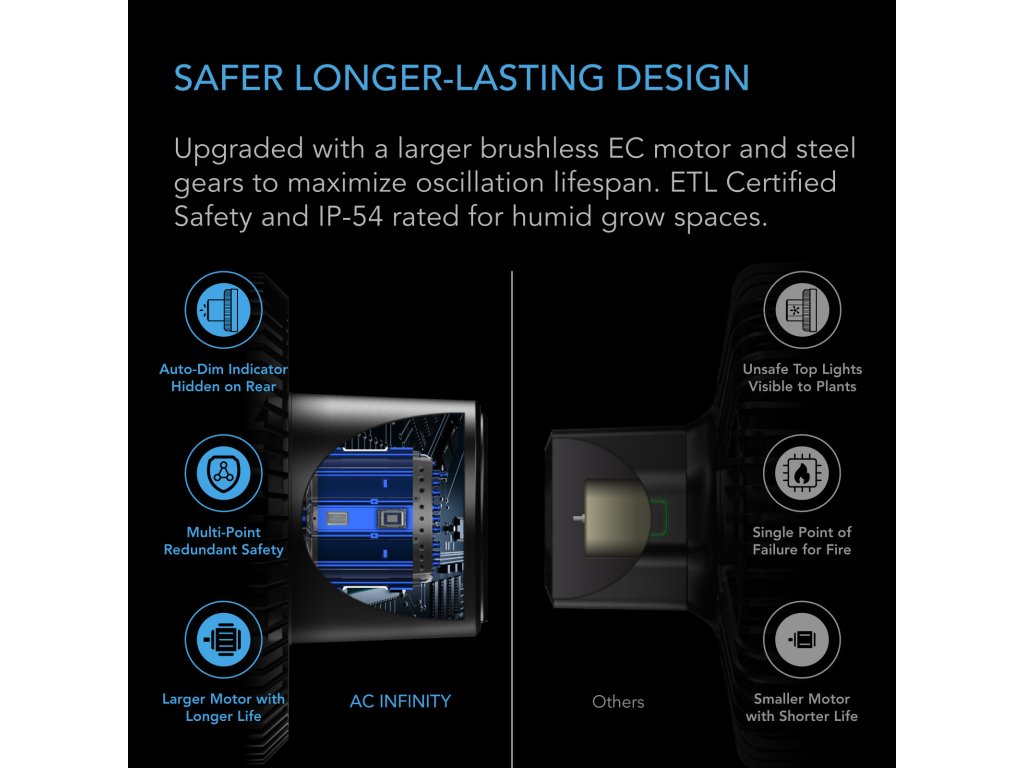

With a robust EC motor that has been specially redesigned in size and construction to extend its service life. It features a brushless motor design, robust carbon steel gears and double ball bearings for omnidirectional mounting. It is also IP54 protected to withstand even the wettest growing environments. These components combine to create the most robust clip fan that is durable, energy efficient and capable of generating powerful air circulation.

Manufacturer	AC Infinity Inc.
Product name	CLOUDRAY A9
Product model	AC-CCA9
UPC code	819137022454

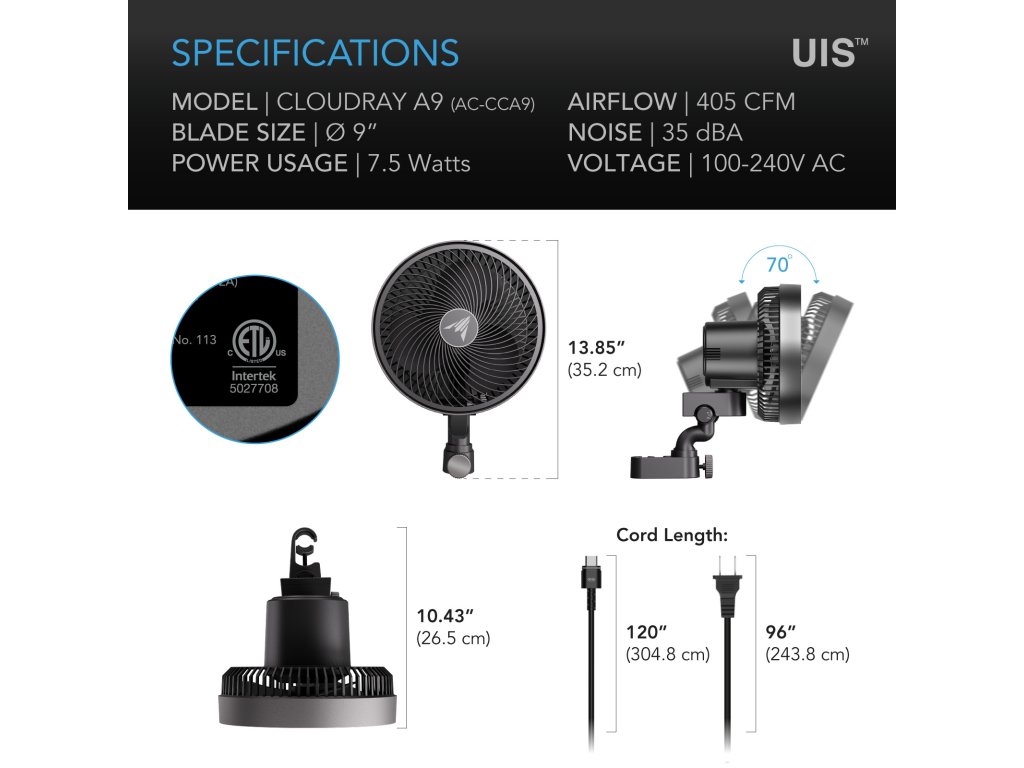

Product and installation dimensions - Fan unit
Wheel size	225 mm (9")
Overall dimensions	26.5 × 35.2 cm (10.43 × 13.85 in.)
Cable length to plug	2.44 m (8 feet)
Product performance and technical specifications
Maximum airflow	688 m³/h (405 CFM)
Noise level	35 dBA
Static pressure	25 Pa
Operating voltage	100-240 V AC
Performance	7,5 W
Electricity	0,14 A
Operating humidity	35 to 85 % RH
Operating temperature	0 to 60 °C (32 to 140 °F)
Watertightness	IP-54
Rotation range	90 °
Tilt angle	55 °
Oscillation	Manually adjustable inclination
Fan bearing	Double ball bearing
Mounting positions	Horizontal or vertical
Life expectancy	67,000 hours
Product manual
Product manual	PDF
