AC Infinity AI+ Grow Tent System PRO 120x120x200cm

Product detailed description

• An advanced AI grow tent kit with dynamic control and integrated components - everything you need to achieve the perfect grow, packed into a state-of-the-art tent.
• The AI-powered controller detects climate changes using real-time and historical data and automatically adjusts connected devices to create optimal growing conditions. Connect the controller to the Wi-Fi app to access AI analytics, guidance, chatbot and more anytime, anywhere.
• Connect the controller to the Wi-Fi app to access AI analytics, instructions, chatbot and more anytime, anywhere.
• Included: EC inline fan 150 mm, oscillating clip fan 150 mm and full spectrum LED grow light with Samsung LM301H EVO LEDs.
• The advanced grow tent features lab-tested reflective Mylar film for maximum light efficiency, higher viewing windows for clear visibility and improved light block technology.

Product description

An advanced grow tent system with intelligent control that automatically regulates your growing conditions to ensure an optimal climate and a successful harvest. The inline fan, refillable activated charcoal filter and air hoses control temperature, humidity and odors by reliably removing heat, moisture and odors from the tent. The innovative activated charcoal filter has a patented, environmentally friendly design that eliminates the need for a complete filter change - you simply replace the filling material. Air circulation is provided by the new clip fan with oscillation control, which delivers a targeted, gentle air flow directly to your plants over a longer period of time. On the grow light frame, Samsung LM301H EVO diodes are algorithmically arranged to produce powerful, evenly distributed light that simulates natural sunlight and optimizes growth. These LEDs are industry-leading - offering higher light intensity and energy efficiency per diode than LM301H, LM301B, Bridgelux 3030 and other popular models. All components are housed in a robust grow tent made of dense Oxford fabric, with a sturdy steel frame and reflective Mylar walls to create a fully climate-controlled growing environment.

Intelligent control

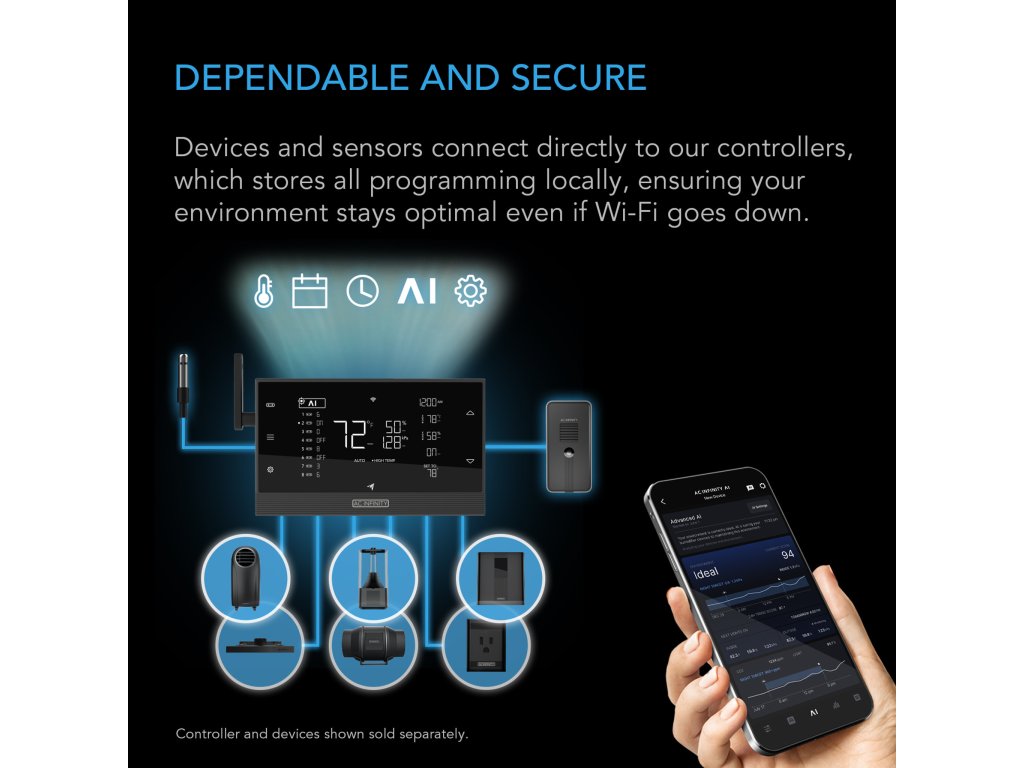

The heart of the system is the CONTROLLER AI+, which continuously monitors your grow tent and communicates with the fan, clip fan and LED lighting to make automatic adjustments and ensure a stable climate. Unlike conventional controllers that only use on/off signals or timers, the controller is constantly learning, analyzing past results and thus avoiding over- or under-control - for maximum climate control efficiency. Via the AC Infinity app you can choose between: Two AI-controlled modes that adjust automatically, or Manual fine-tuning for precise control. You also get access to growing guides, recipes, articles, video tutorials and a chatbot to help you expand your knowledge and take your grow to the next level.

Complete set

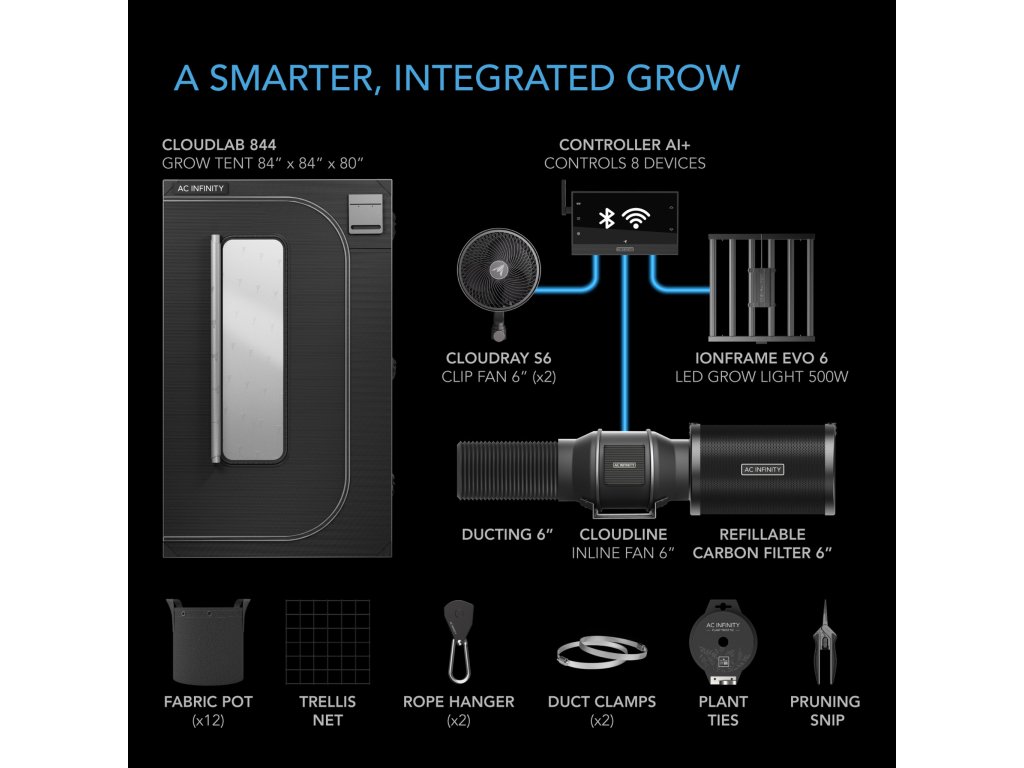

This package contains all the essential components to get started with your indoor grow right away - no guesswork when shopping. Included are:

• CLOUDLAB 844 – Advance Grow Tent 120 x 120 x 200 cm (1x)
• CONTROLLER AI+ - Intelligent grow tent controller (1x)
• CLOUDLINE PRO 6 - Inline fan Ø 150 mm (1x)
• IONFRAME EVO6 – LED Grow Light 500 W (1x)
• CLOUDRAY S6, Gen 2 - Oscillating clip fan Ø 150 mm (2x)
• Refillable activated charcoal filter Ø 150 mm (1x)
• Flexible hose Ø 150 mm, 240 cm long (1x)
• Hanging frame (2x)
• Rope Clip Hanger (2x)
• Suspension straps 150 mm (2x)
• Duct tape (1x)
• Velcro ties (10x)
• US male-to-male controller cable (1x)
• L-shaped US male-to-male controller cable (1x)
• Fabric pots 19 liters (8x)
• Elastic plant net 120 x 120 cm (1x)

Manufacturer	AC Infinity Inc.
Product name	Advance Grow System C44
Model	AC-PKC44
UPC code	819137024335
Operating instructions
Operating instructions	English  German
Grow tent | inline fan | clip fan | controller | LED plant lamp | activated charcoal filter | hose

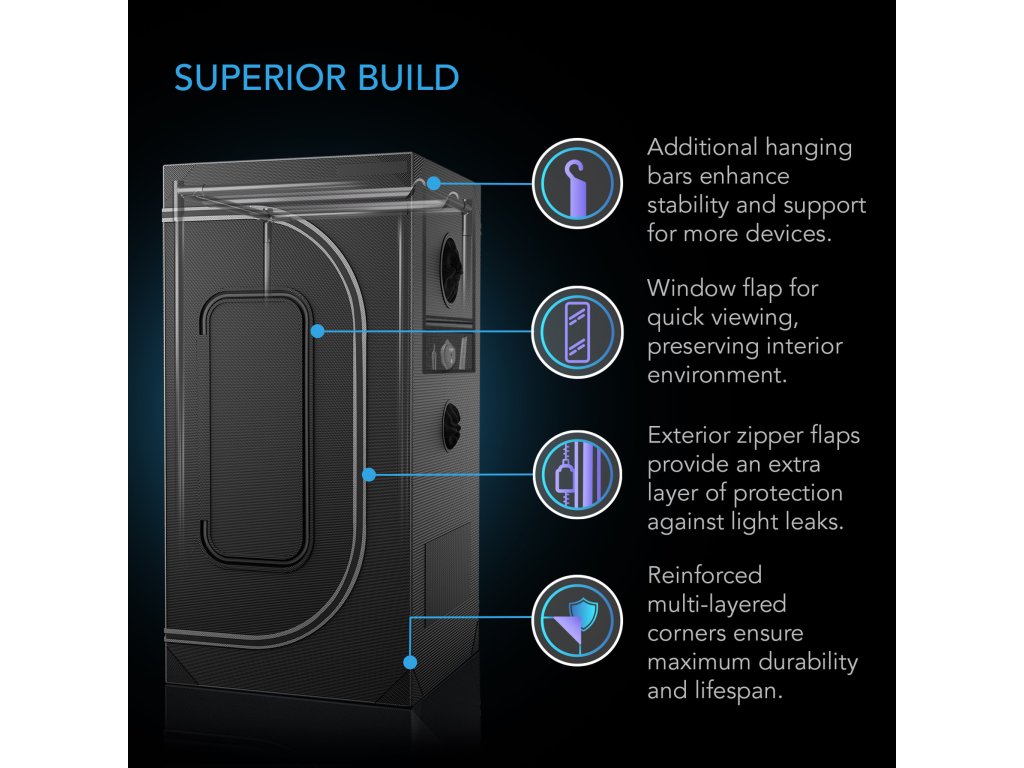

Product and assembly dimensions - Grow tent
Tent dimensions	120 × 120 × 200 cm
Sizes of the duct openings	150 mm, 200 mm
Viewing window size	30.0 × 30.0 cm
Rear air inlet opening	15.0 × 35.0 cm
Side air inlet opening	15.0 × 35.0 cm
Length of the mounting straps	16.5 cm
Performance and technical data - Grow tent
Outer material	Oxford
Inner material	Mylar
Bar material	Steel
Bar thickness	22 mm
Load capacity crossbeam	≈ 68 kg
Plant capacity	4
Product and installation dimensions - Inline fan
Channel size	150 mm
Overall dimensions	21.2 × 32.0 × 20.0 cm
Mounting hole spacing	8.0 × 6.0 cm
Screw hole Ø	≈ 6 mm
Cable length to the controller	3,05 m
Cable length to plug	2,44 m
Performance and technical data - Inline fan
Volume flow (max.)	≈ 683 m³/h
Noise level (total)	34 dBA
Static pressure	394 Pa
Tension	100-240 V
Frequency	50/60 Hz
Max. Power consumption	65 W
Ø Power consumption	35 W
Current (max.)	0.30 A (at 230 V)
Plug type	EU plug (country-specific, type C/F)
Operating humidity	35-85 % RH
Operating temperature	-18 to 60 °C
Protection class	IP44
Storage	Dual ball bearing
Mounting positions	Horizontal or vertical
L10 service life	67,000 hours
Quality approvals	CE, RoHS
CE certificate (complete product)	PDF
RoHS certificate (entire product)	PDF
Product and installation dimensions - Clip fan
Propeller/impeller size	165 mm
Overall dimensions	22.2 × 26.6 cm
Cable length to plug	2,44 m
Performance and technical data - Clip fan
Maximum volume flow	≈ 552 m³/h
Noise level (total)	31 dBA
Static pressure	25 Pa
Operating voltage	100-240 V
Performance	11 W
Electricity	0.05 A (at 230 V)
Operating humidity	35-85 % RH
Operating temperature	0 to 60 °C
Water resistance	IP44
Swivel range	90°
Tilt angle	55°
Oscillation	Automatic
Storage	Dual ball bearing
Mounting positions	Horizontal or vertical
Service life	67,000 hours
ETL certificate (complete product)	PDF
Product and mounting dimensions - Controller
Overall dimensions	14.9 × 8.7 × 2.4 cm
Display size	4.5 inches
Sensor cable length	3,66 m
Performance and technical data - Controller
Max. Number of controllable devices	4
Max. supported power	10 W
Programmable temperatures	0 to 60 °C
Operating voltage	9-18 V
Performance	1 W
Electricity	0,1 A
Power supply	10 V from the device
Operating humidity	35-85 % RH
FCC certificate (complete product)	PDF
Product and installation dimensions - LED plant lamp
Illuminated dimensions	82.0 × 83.0 × 8.6 cm
Product performance and technical data - LED plant lamp
Cover	120 × 120 cm

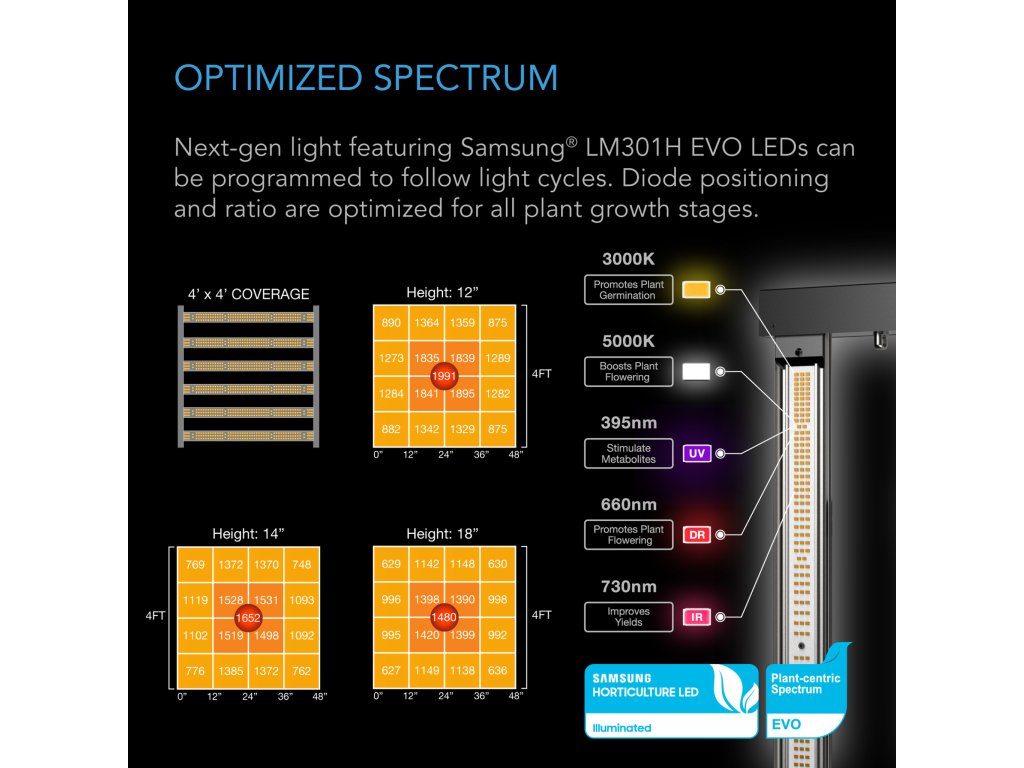

Diodes	Samsung LM301H EVO
Spectrum	395 nm, 660 nm, 730 nm, 3000 K, 5000 K
Number of chips (total)	1680
Number of chips (EVO 3000K)	1074
Number of chips (EVO 5000K)	540
Number of chips (Seoul 395 nm)	6
Number of chips (OSRAM 660 nm)	54
Number of chips (OSRAM 730 nm)	6
LED driver	SOSEN-500W
Efficiency (single diode)	3.14 µmol/J
PPFD	2013 µmol/m²/s
Power (watts)	500 W
Tension	100-277 V AC
Frequency	50/60 Hz
Electricity	2.2 A (at 230 V)
Mains plug type	EU plug (country-specific, type C/F)
Humidity range	35-85% RH
Operating temperature	0-60°C
Protection class	IP-65
Service life	50,000 hours
Product and installation dimensions - Activated charcoal filter
Channel opening	150 mm
Overall dimensions	40.5 × 22.7 cm
Flange length	4.0 cm
Performance and technical data - Activated charcoal filter
Flange material	Aluminum
Flange design	Reversible
Grille material	Galvanized steel
Carbon type	Australian Virgin Coal RC412
Carbon quality	1200+ IAV
Carbon layer thickness	38 mm
Maximum volume flow	≈ 697 m³/h
Product dimensions - Hose
Hose diameter	150 mm
Length	2,44 m
Performance and material data - Hose
Outer layer	PVC thermoplastic
Inner layer	Aluminum foil
Interior structure	Spiral steel wire
