AC Infinity Advance Grow Tent System 60x60x180cm, 1-Plant Kit, WiFi-Integrated Controls

Product detailed description

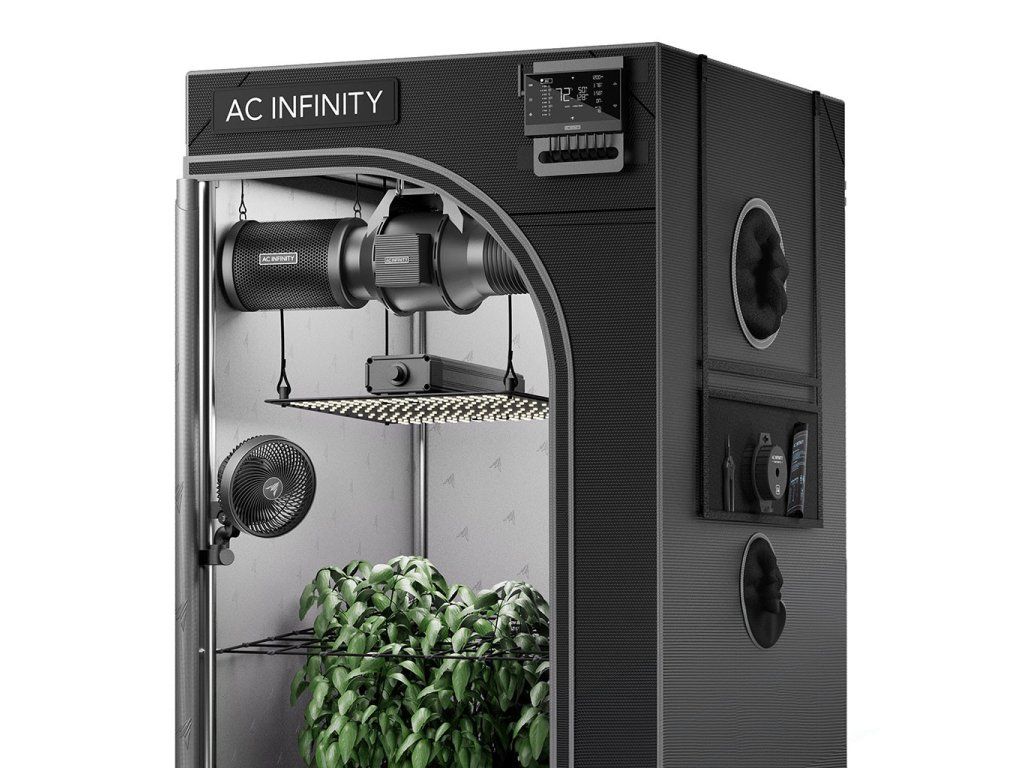

Advanced Grow Tent System with Smart Control and Integrated Components for Indoor Growing

Features:

• Automated Control: The controller automates each fan and light with individual programs for dynamic speed and brightness adjustment.

• Mobile App Connectivity: Connect your mobile device to the app via WiFi and automate and monitor your grow tent's climate from anywhere.

• Next Generation Inline Fan: EC motor 100mm, clip fan 150mm, and 100W full-spectrum grow light with Samsung LM301H diodes.

• Premium Tent Construction: Made from 2000D Mylar, 24”x24”x72”, includes Australian carbon filter, ducting, fabric pots, pruning scissors, and more.

Product Description: This advanced grow tent system is designed to create ideal growing conditions and includes everything you need for a successful harvest:

• Inline Fan, Carbon Filter, and Ducting: Manages the tent's climate by expelling heat, moisture, and odors.

• Next Generation Clip Fan with Oscillation Control: Custom airflow for long-lasting air circulation.

• LM301H LED Grow Light: Strong LED lighting simulates natural sunlight, optimizing plant growth.

• High-Density Oxford Tent with Steel Frame and Mylar Walls: Creates a climate-controlled growing space.

Smart Programming: The CONTROLLER 69 PRO allows centralized control of all devices, with the ability to set dynamic programs based on temperature, humidity, and VPD (vapor pressure deficit). You can remotely monitor and control your grow setup from anywhere using the AC Infinity app.

Complete Kit Includes:

• CLOUDLAB 722 – Advanced Grow Tent 60x60x180cm

• CONTROLLER 69 PRO – Controller for Grow Tent

• CLOUDLINE LITE 4 – Inline Fan 100mm

• IONBOARD S22 – 100W LED Grow Light

• CLOUDRAY S6, Gen 2 – Clip Fan with Oscillation

• 100mm Carbon Filter

• 100mm Flexible Ducting (200mm long)

• Steel Clamps 100mm (x2)

• Duct Tape (5')

• Velcro Loops (x10)

• Fabric Pots (5 gallons, x2)

• Elastic Mesh 2x2'

• Black Twist Ties

• Micro-Sharp Pruning Scissors

Tent Dimensions & Setup

• Tent Size: 60 x 60 x 180 cm

• Duct Hole Sizes: 100mm, 150mm

• Observation Window Size: 25 x 25 cm

• Side Entrance Size: 15 x 36 cm

• Mounting Strap Length: 140 cm

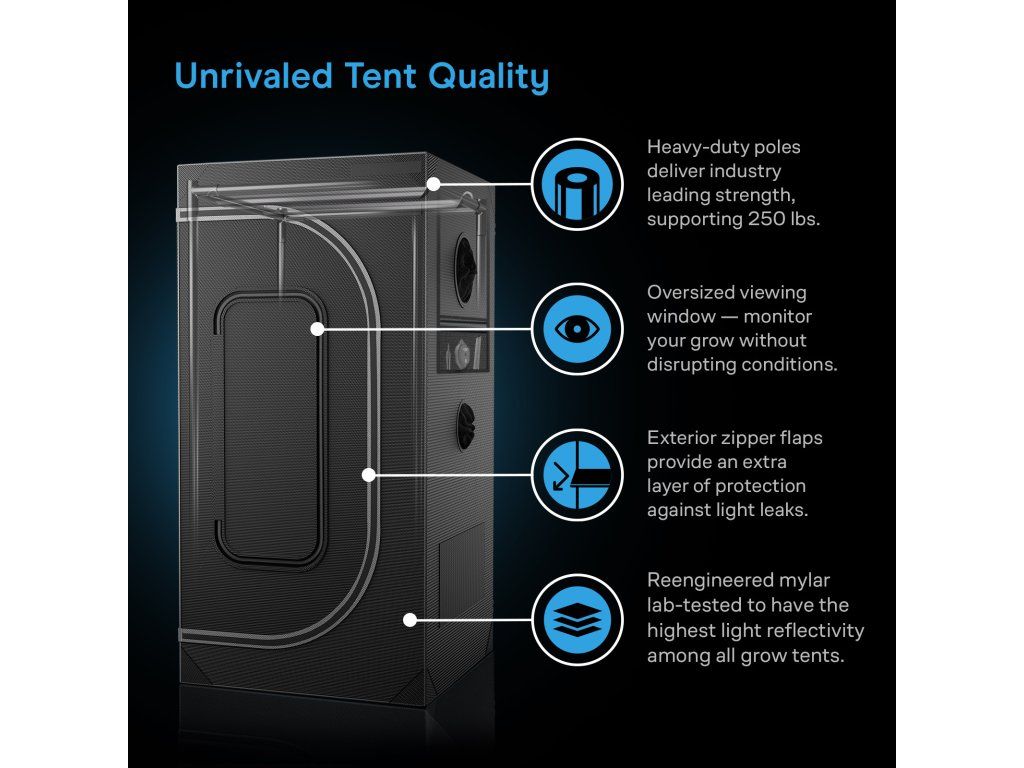

Tent Material & Specifications

• Outer Material: Oxford

• Inner Material: Mylar

• Pole Material: Steel

• Pole Diameter: 22 mm

• Beam Load Capacity: 68 kg

• Plant Capacity: 1

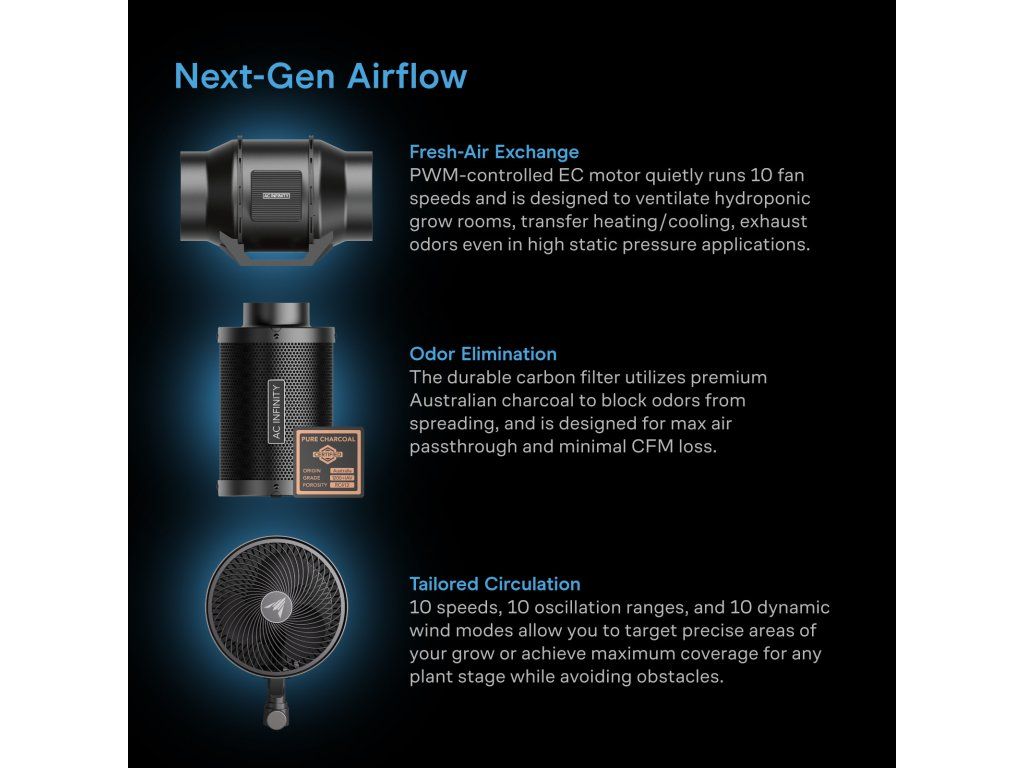

Inline Fan Dimensions & Setup

• Duct Size: 100mm

• Overall Dimensions: 19 x 30.2 x 17.6 cm

• Mounting Hole Spacing: 8.0 x 6.0 cm

• Screw Hole Size: Ø 0.5 cm

• Cable Length to Controller: 3.05 m

• Cable Length to Power Socket: 2.44 m

Inline Fan Technical Specifications

• Airflow: 280 m3/h

• Noise Level: 29 dBA

• Max Speed: 2800 RPM

• Static Pressure: 324 Pa

• Voltage: 100-240V AC

• Frequency: 50/60Hz

• Max Power Consumption: 35 W

• Average Power Consumption: 18 W

• Current: 0.55 A

• Plug Type: EU Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35-85% RH

• Operating Temperature: 0-60°C (32-140°F)

• IP Rating: IP-44

• Fan Bearings: Dual Ball

• Mounting Position: Horizontal or Vertical

• Fan Lifetime (L10): 67,000 hours

• Fan Quality Certifications: CE, RoHS

Clip Fan Dimensions & Setup

• Blade Size: 160mm

• Overall Dimensions: 22.2 x 26.6 cm

• Cable Length to Power Socket: 2.44 m

Clip Fan Technical Specifications

• Max Airflow: 552 m3/h

• Noise Level: 31 dBA

• Static Pressure: 25 Pa

• Operating Voltage: 100-240V AC

• Power Consumption: 11 W

• Current: 0.15 A

• Operating Humidity: 35-85% RH

• Operating Temperature: 0-60°C (32-140°F)

• Water Protection: IP-44

• Rotation Range: 90°

• Tilt Angle: 55°

• Oscillation: Automatic Oscillation

• Fan Bearings: Dual Ball Bearing

• Mounting Position: Horizontal or Vertical

• Fan Lifetime: 67,000 hours

• Product Certifications: ETL

Controller Dimensions & Setup

• Overall Dimensions: 13.2 x 7.4 x 2.7 cm

• Mounting Hole Spacing: 12.0 x 6.7 cm

• Screw Hole Size: Ø 0.3 cm

• Display Size: 9 x 3.5 cm

• Sensor Probe Length: 4.57 m

Controller Technical Specifications

• Max Devices Controlled: 4

• Max Supported Power: 10 W

• Operating Temperature for Programming: 0-60°C (32-140°F)

• Operating Voltage: 9-18V

• Power Consumption: 1 W

• Current: 0.1 A

• Power Supply: 10V from Device

• Operating Humidity: 35-85% RH

• FCC Certification

LED Grow Light Dimensions & Setup

• Light Dimensions: 30.0 x 30.0 cm

• LED Panel Thickness: 1.1 cm

• Controller Dimensions: 18.2 x 4.0 cm

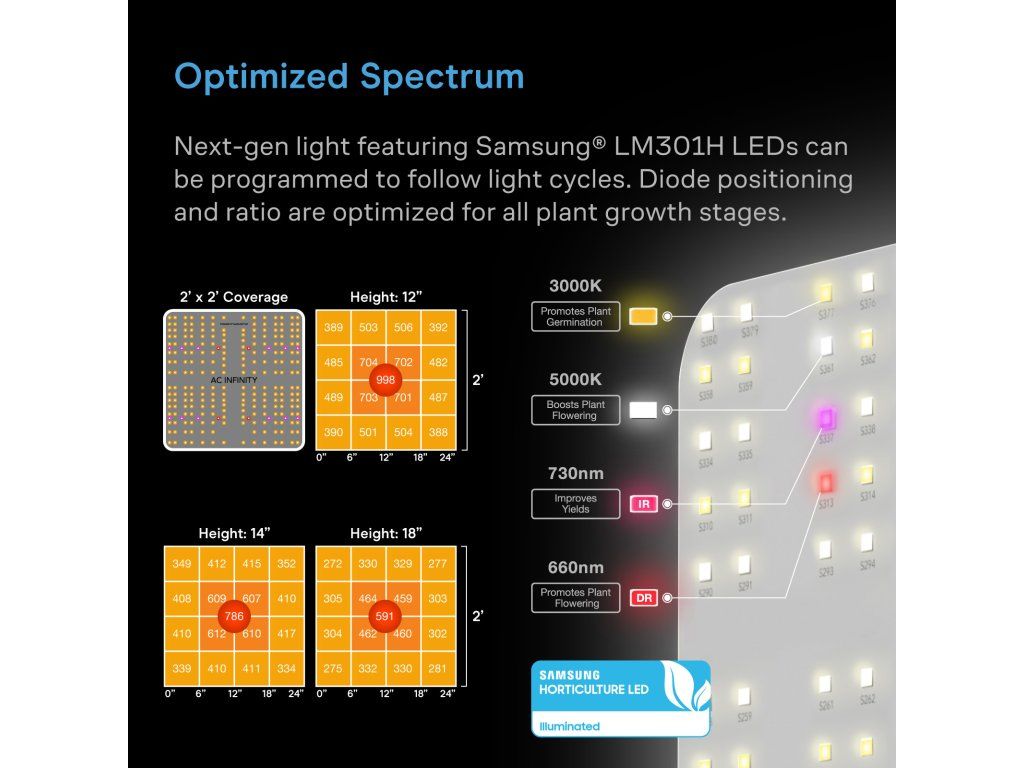

LED Grow Light Technical Specifications

• Coverage: 2 x 2 ft.

• Diodes: Samsung LM301H

• Number of LED Chips: 272

• LED Driver: AC Infinity Proprietary Driver IB-150

• Efficiency: 2.7 µmol/j

• PPFD: 998 PPFD

• Spectrum: 660nm, 730nm, 3000K, 5000K

• Power Consumption: 100 W

• Voltage: 100-277V AC

• Frequency: 50/60 Hz

• Current: 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V

• Controller: Digital Dimmer with Timer

• Power Plug Type: EU Plug (NEMA 1-15 Type-A)

• Operating Humidity: 35-85% RH

• Operating Temperature: 0-60°C (32-140°F)

• Lifetime: 50,000 hours

• Product Certifications: ETL

Carbon Filter Dimensions & Setup

• Duct Hole Size: 100mm

• Overall Dimensions: 33.3 x 17.7 cm

• Flange Length: 3.7 cm

Carbon Filter Technical Specifications

• Flange Material: Aluminum

• Flange Design: Dual-Sided

• Mesh Material: Galvanized Steel

• Carbon Type: Australian Virgin RC412

• Carbon Class: 1200+ IAV

• Carbon Thickness: 38 mm

• Max Airflow: 356 m3/h

Ducting Dimensions & Setup

• Duct Size: 100mm

• Length: 2.4 m

Ducting Technical Specifications

• Outer Layer: PVC Thermoplastic

• Inner Material: Aluminum Foil

• Internal Structure: Spiral Steel Wire Construction
