AC Infinity AI+ Grow Tent System 60x120x180cm

Product detailed description

• An advanced grow tent kit with smart controls and integrated components - everything you need to start your indoor grow setup right away.
• The AI-powered controller detects climate changes using real-time and historical data and automatically adjusts connected devices to create optimal growing conditions. Connect the controller to the Wi-Fi app to access AI analytics, guidance, chatbot and more anytime, anywhere.
• Connect your smartphone to our app via WiFi to control and monitor your grow tent climate from anywhere.
• Included: EC motor inline fan Ø 150 mm, clip fan Ø 150 mm, and a 220W full-spectrum grow light with Samsung LM301H LEDs.
• Premium 2000D Mylar tent 60 × 120 × 180 cm, Australian activated charcoal filter, hose, fabric pots, precision scissors and much more.

Product description

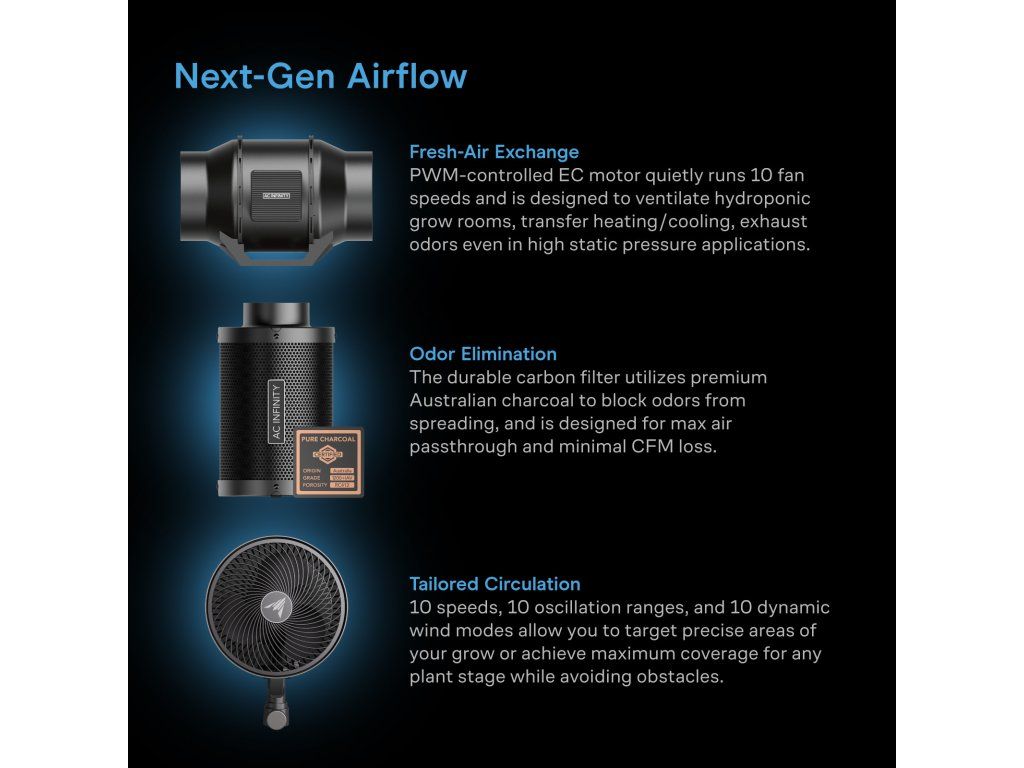

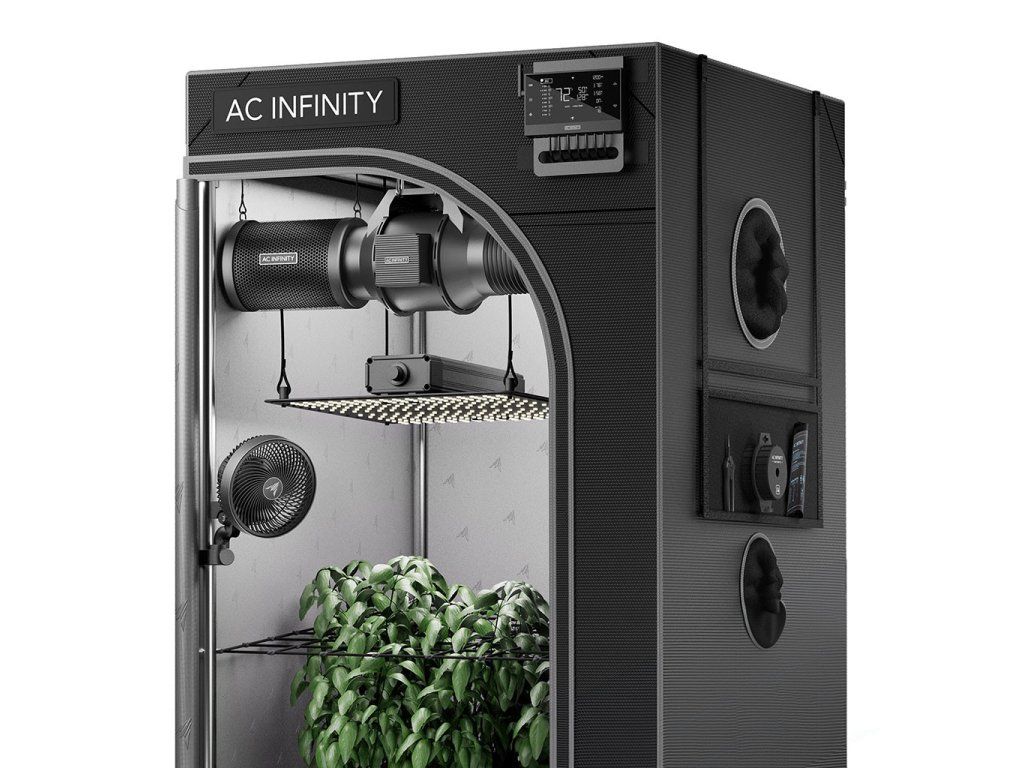

The Advance Grow Tent System with intelligent control ensures that your grow setup always has the ideal conditions for a successful harvest. The inline fan, activated carbon filter and hose regulate the climate in the tent by reliably dissipating heat, moisture and odors. Air circulation is controlled by the Next-Gen clip fan with oscillation range control - newly developed to deliver a tailored, adapted airflow for your plants over longer periods of time. The algorithmically selected and arranged LM301H diodes on the LED board deliver strong light with wide coverage, simulating sunlight and optimizing growth. All devices are housed in the high-quality Oxford grow tent. The tent comes with sturdy steel frames and Mylar walls that create an optimal grow environment.

Intelligent control

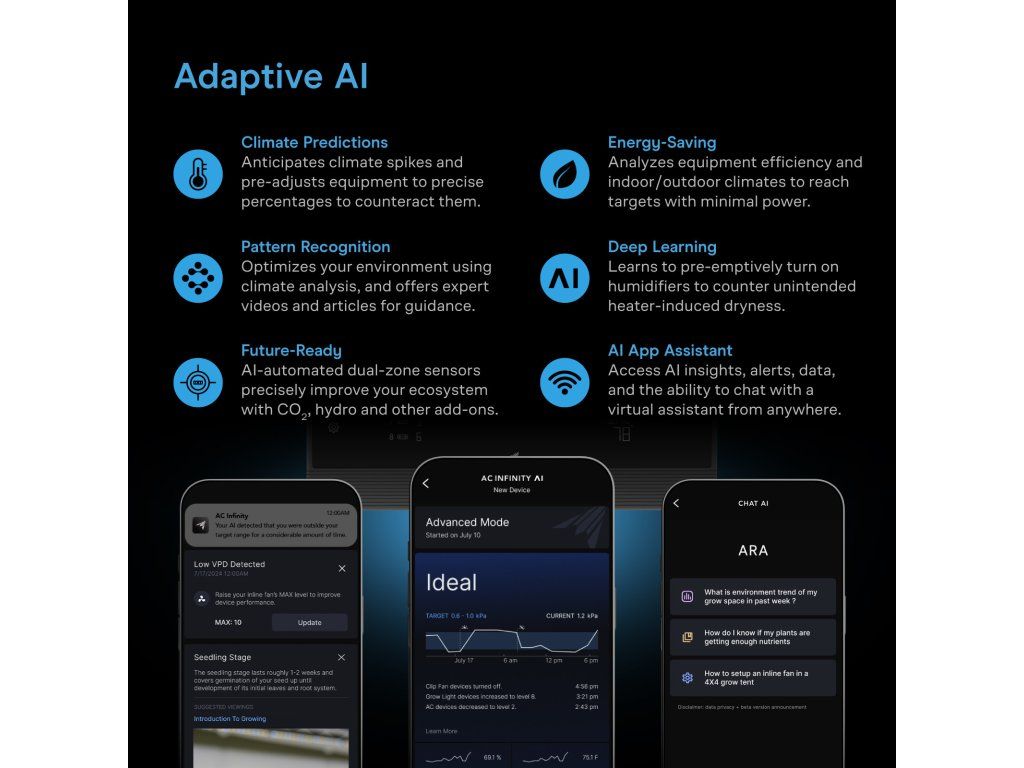

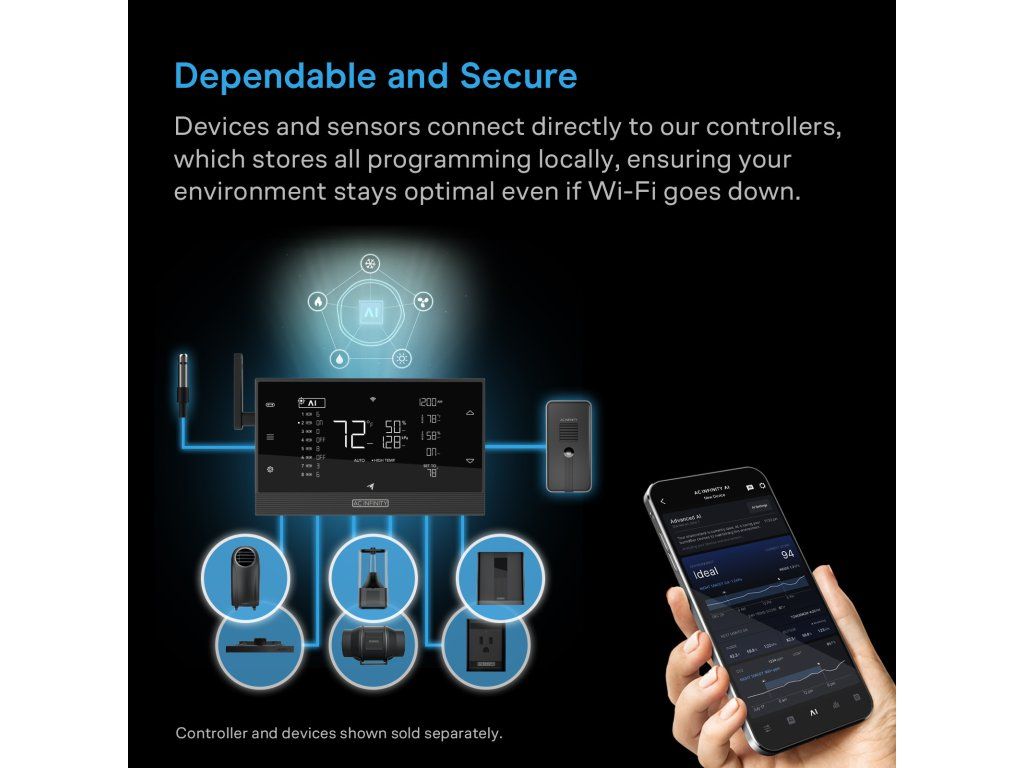

The heart of the system is the CONTROLLER AI+, which continuously monitors your grow tent and communicates with the fan, clip fan, and LED lighting to automatically make adjustments and ensure a stable climate.Unlike conventional controllers, which only use on/off signals or timers, the controller constantly learns, analyzes past results, and thus avoids over- or under-control—for maximum climate control efficiency. With the AC Infinity app, you can choose between: Two AI-controlled modes that adjust automatically, or Manual fine-tuning for precise control. You also get access to growing guides, recipes, articles, video tutorials, and a chatbot to help you expand your knowledge and take your grow to the next level.

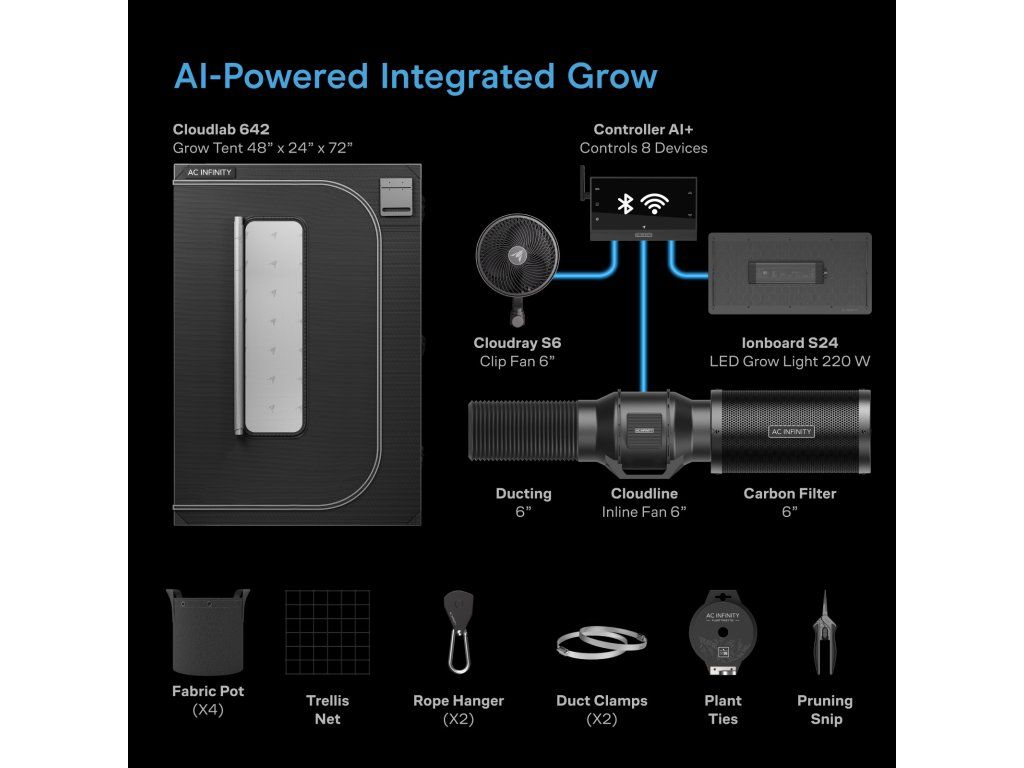

Complete set

This package contains all the essential components to get started with your indoor grow right away - no guesswork when buying individually. Included are:

• CLOUDLAB 642 - Advance Grow Tent 60 × 120 × 180 cm (1x)
• CONTROLLER AI+ – Grow tent controller (1x)
• CLOUDLINE LITE 6 - Inline fan Ø 150 mm (1x)
• IONBOARD S24 – LED Grow Light Board 220W (1x)
• CLOUDRAY S6, Gen 2 - Oscillating clip fan Ø 150 mm (1x)
• Activated charcoal filter Ø 150 mm (1x)
• Flexible hose Ø 150 mm, 240 cm long (1x)
• Hanging strap (2x)
• Rope Clip Hanger (2x)
• Steel clamps Ø 150 mm (2x)
• Adhesive tape (duct tape) 150 cm (1x)
• Velcro binder (10x)
• UIS male-to-male controller cable 180 cm (1x)
• L-shaped UIS male-to-male controller cable 180 cm (1x)
• Fabric pots 19 liters (4x)
• Elastic plant net 60 × 120 cm (1x)
• Black wire ties (1x)
• Precision scissors with fine tip (1x)

Manufacturer	AC Infinity Inc.
Product name	Advance Grow System B24
Product model	AC-PKB24
UPC code	819137022843
Operating instructions
Operating instructions	English   German
Grow tent | inline fan | clip fan | controller | LED plant lamp | activated charcoal filter | ventilation hose
Product and assembly dimensions - Grow tent
Tent dimensions	120 × 60 × 180 cm
Hose openings (Ø)	Ø 100 mm, Ø 150 mm, Ø 200 mm
Viewing window size	30 × 30 cm
Rear intake opening size	150 × 350 mm
Side intake opening size	150 × 280 mm
Mounting strap length	165 mm
Product performance and technical data - Grow tent
Outer material	Oxford
Inner material	Mylar
Bar material	Steel
Bar thickness	22 mm
Load capacity cross beam	up to 68 kg
Plant capacity	3
Product and installation dimensions - Inline fan
Hose size (Ø)	Ø 150 mm
Overall dimensions	21.2 × 32.0 × 20.0 cm
Cable length to the controller	3,05 m
Cable length to plug	2,44 m
Performance and technical data - Inline fan
Total air flow rate	approx. 598 m³/h
Noise level (total)	34 dBA
Static pressure	394 Pa
Tension	100-240 V AC
Frequency	50/60 Hz
Max. Power consumption	65 W
Average performance	35 W
Current (max.)	0.15 A (at 230 V)
Mains plug type	EU plug (country-specific, type C/F)
Operating humidity	35-85% RH
Operating temperature	0-60°C
Protection class	IP-44
Storage	Double ball bearing
Mounting positions	Horizontal or vertical
L10 service life	67,000 hours
Approvals	CE, RoHS
CE certification (complete product)	PDF
RoHS cert. (complete product)	PDF
Product and installation dimensions - Clip fan
Impeller size (Ø)	Ø 165 mm
Overall dimensions	222 × 266 mm
Cable length to plug	2,44 m
Product performance and technical data - Clip fan
Maximum air flow rate	approx. 552 m³/h
Noise level (total)	31 dBA
Static pressure	25 Pa
Operating voltage	100-240 V AC
Performance	11 W
Electricity	0,15 A
Operating humidity	35-85% RH
Operating temperature	0-60°C
Protection class	IP-44
Turning area	90°
Tilt angle	55°
Oscillation	Automatic oscillation
Storage	Double ball bearing
Mounting positions	Horizontal or vertical
Service life	67,000 hours
ETL-Zert. (complete product)	PDF
Product and mounting dimensions - Controller
Overall dimensions	132 × 74 × 27 mm
Display size	90 × 35 mm
Sensor probe length	3,66 m
Product performance and technical data - Controller
Max. Number of devices	4
Max. supported power	10 W
Programmable temperatures	0-60°C (32-140°F)
Operating voltage	9-18 V
Performance	1 W
Electricity	0,10 A
Power input	10 V from the device
Operating humidity	35-85% RH
FCC certification	PDF

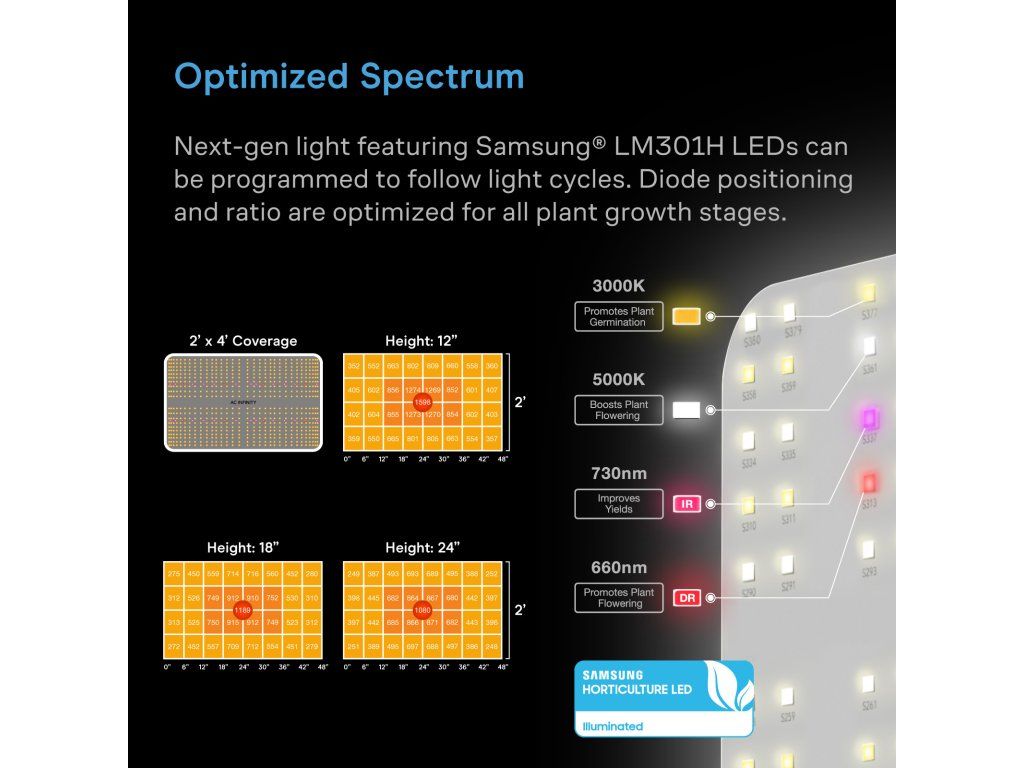

Product and installation dimensions - LED Grow Light
Illuminated dimensions	30 × 60 cm
LED panel thickness	11 mm
Driver dimensions	21.9 × 4.0 cm
Product performance and technical data - LED Grow Light
Cover	60 × 120 cm
Diodes	Samsung LM301H
Number of LED chips	544
LED driver	AC Infinity proprietary driver IB-200
Efficiency	2.65 µmol/J
PPFD	1598 µmol/m²/s
Spectrum	660 nm, 730 nm, 3000 K, 5000 K
Power (watts)	220 W
Tension	100-277 V AC
Frequency	50/60 Hz
Electricity	0.96 A (at 230 V)
Controller	Digital dimming timer
Mains plug type	EU plug (country-specific, type C/F)
Operating humidity	35-85% RH
Operating temperature	0-60°C
Service life	50,000 hours
ETL certificate	PDF
Product and installation dimensions - Activated charcoal filter
Hose opening (Ø)	Ø 150 mm
Overall dimensions	405 × 227 mm
Flange length	40 mm
Product performance and technical data - Activated charcoal filter
Flange material	Aluminum
Flange design	Reversible
Grille material	Galvanized steel
Activated carbon type	Australian activated carbon (Virgin) RC412
Activated carbon quality	1200+ IAV
Activated carbon thickness	38 mm
Maximum air flow rate	approx. 697 m³/h
Product dimensions - Ventilation hose
Hose size (Ø)	Ø 150 mm
Length	2,44 m
Product performance and technical data - Ventilation hose
Outer layer	PVC thermoplastic
Inner material	Aluminum foil
Interior structure	Spiral steel wire
