OCR XXL Premium 480 - 240x480x225cm
Code: D8135F6BProduct detailed description
Our flagship tent – built for high-end closed-loop systems with air conditioning, CO₂, and precision airflow.
Key features

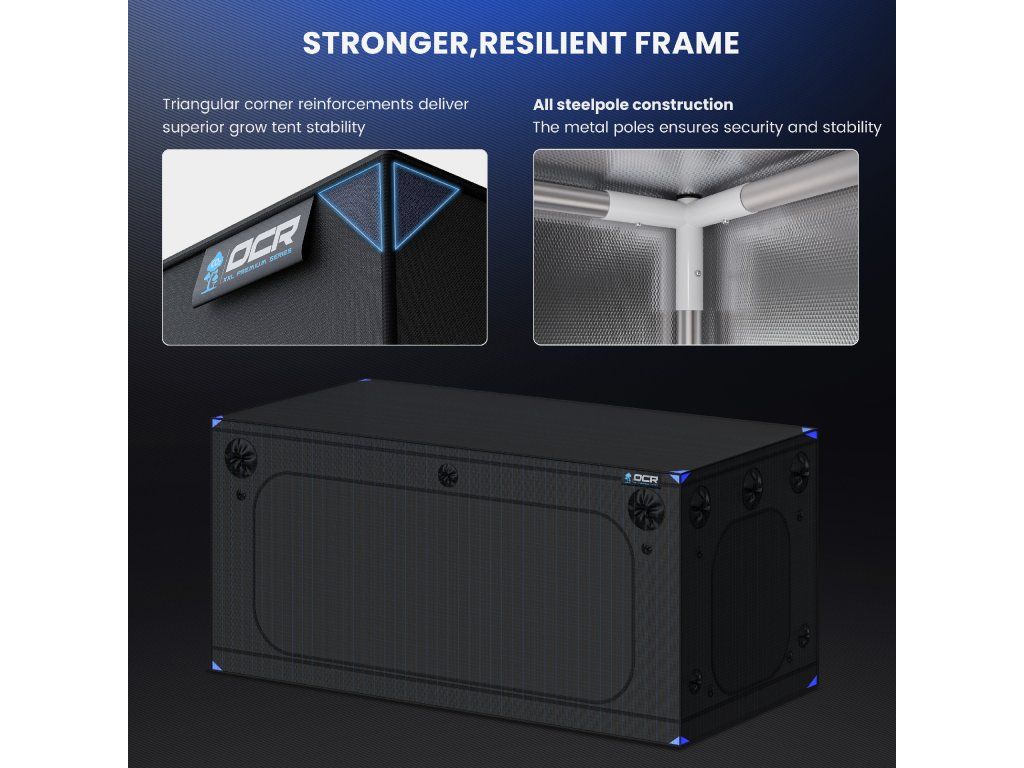

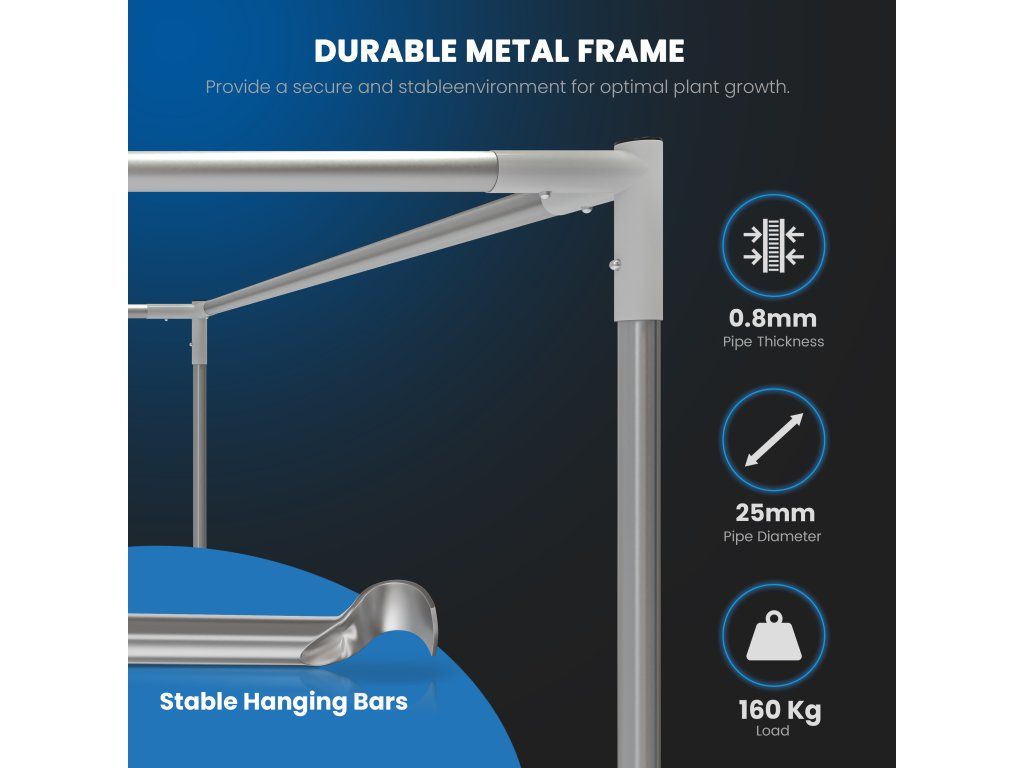

25mm steel frame
Extra-strong steel corners

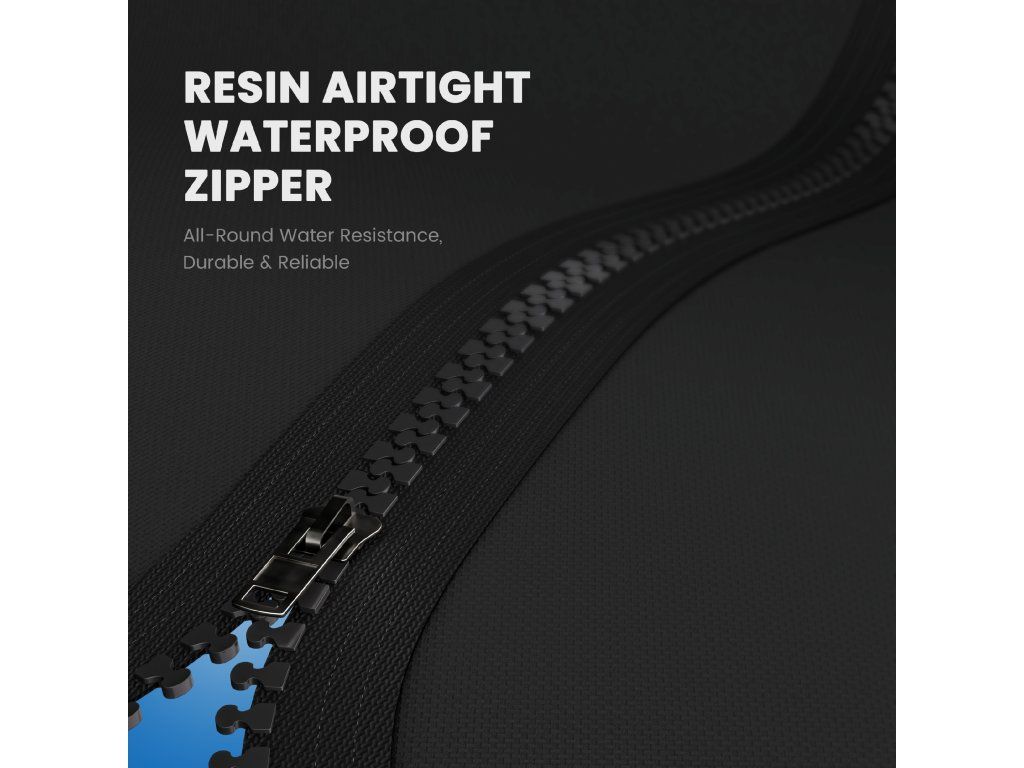

Industrial-grade zippers

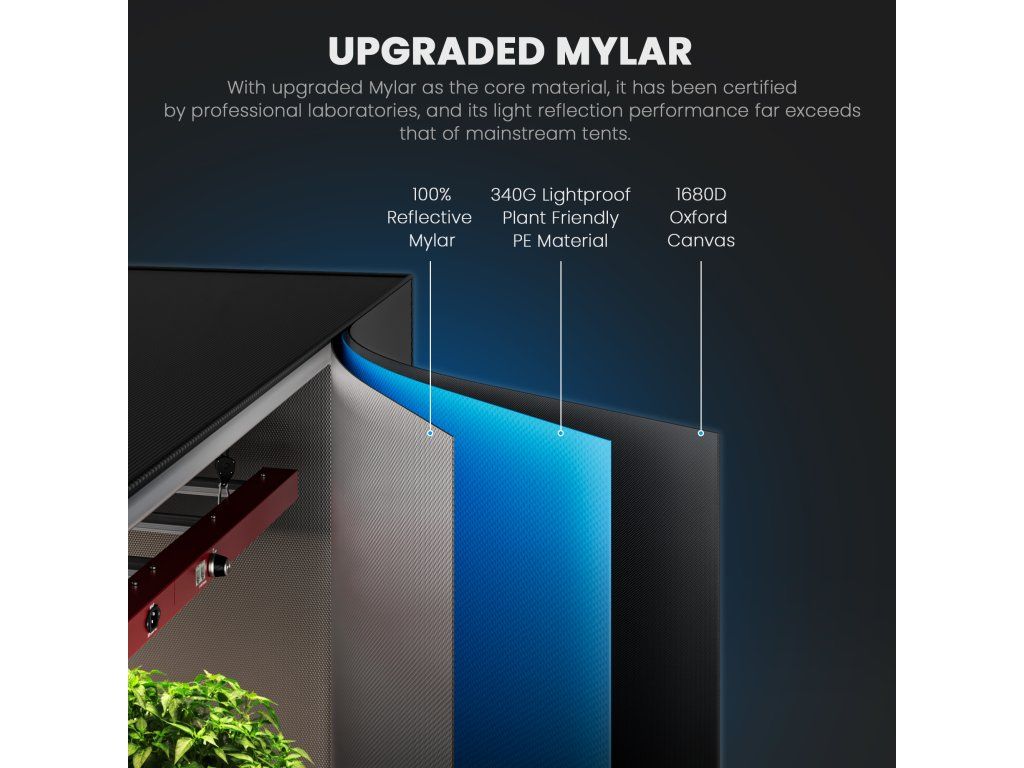

Ultra-thick 1680D reflective mylar
Frame designed with Dialux to eliminate hot spots
0.5mm PVC pond liner floor – removable & flood table compatible
Material is washable inside and out
Tool-free setup. Plug & Grow simplicity
Ventilation ports optimized for AC systems like Opticlimate
Ideal for sealed systems with climate and CO₂ control
100% lightproof design
| Specification | Details |
|---|---|
| Dimensions | |

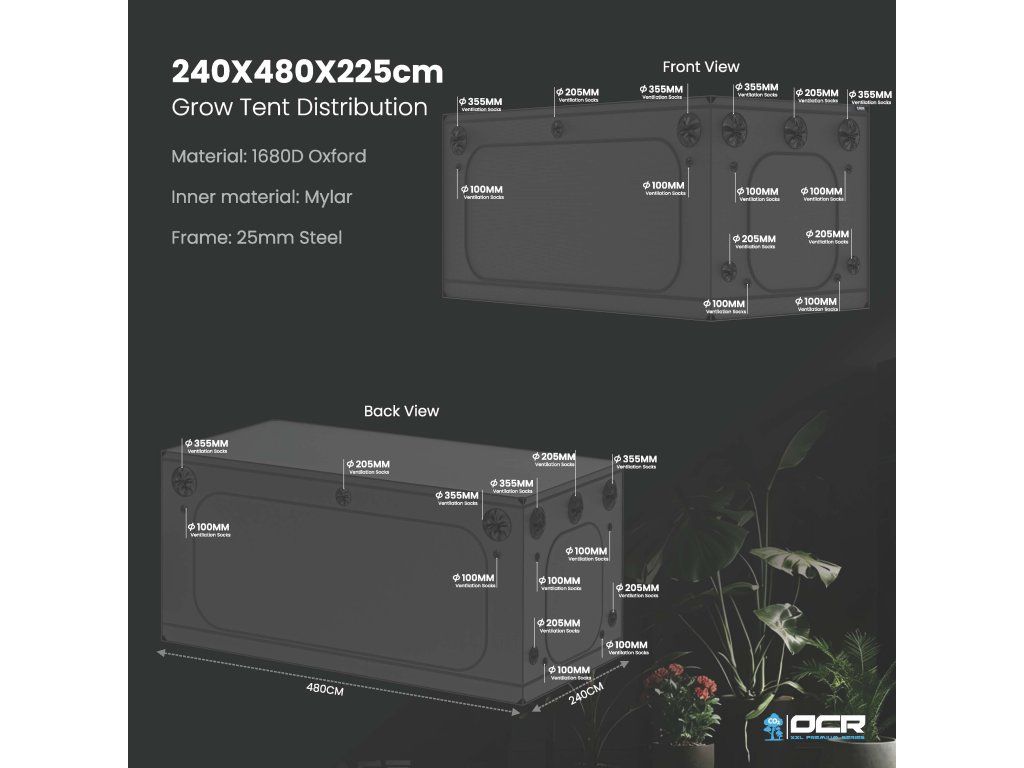

| External Dimensions (W × D × H) | 240 x 480 x 225 cm |
| Internal Volume | 25,92 m³ |
| Materials | |
| Fabric Material | Reflective mylar 1680D |
| Frame Diameter | 25 mm |
| Frame Material | Powder-coated steel |
| Corner Connectors | Powder-coated steel |
| Bars | |
| Shallow bars | 4 x |
| Deep bars | 2 x |
| Access & Ventilation | |
| Front Door | Yes |
| Rear Back Door | Yes |
| Left Door | Yes |
| Right Door | Yes |
| Cable Ports | 12 × 100 mm |
| Ventilation Inlets | Optimized for AC Opticlimate; 4 x 205 mm |
| Ventilation Outlets | 10 × 355 mm |
| Ventilation Outlets for overpressure | 2 x 205 mm |
| Air Conditioning Compatibility | Fully compatible |
| Floor & Interior | |
| Removable Floor Tray | 0.5 mm PVC pond liner – flood system compatible |
| Light Optimization | Dialux-optimized frame |
| Hotspot Reduction | Yes |
| Day/Night Dual Tent Setup Support | Yes (tent A/B airflow setup) |
Additional parameters
| Category: | OCR XXL Premium |
|---|---|
| EAN: | 8721398467757 |
