GSE Controller with LCD display for 2 EC fans

Product detailed description

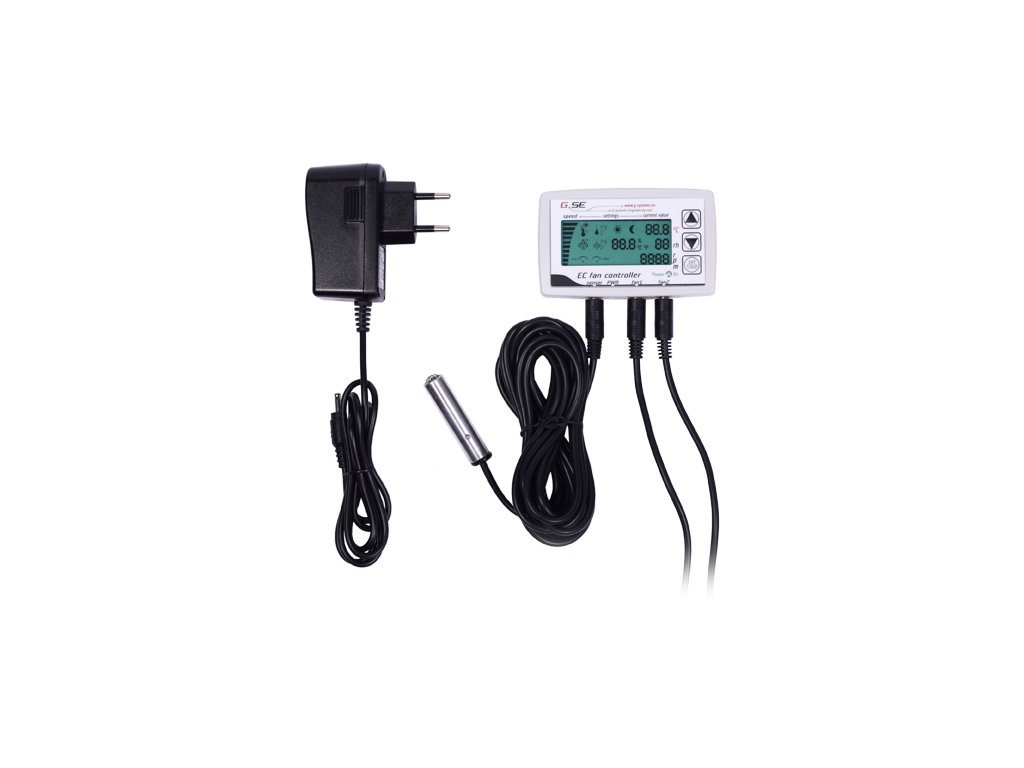

This EC fan controller with LCD display, keyboard and power LED allows a very easy setting and reading of all the information's given by the fan such as actual set speed, temperature, humidity day/night, negative pressure of the intake fan and rounds per minute of the exhaust fan. A built in light sensor in the probe recognize day/night modes. The EC fan controller comes with power adapter 1m cable, a 4m sensor cable and 2x 4m fan cable including all connectors 4pole 3.5mm jack. It ready to use. You can program 15 individual settings with only three buttons:

Features:

• Temperature day

• Temperature hysteresis day

• Humidity day

• Humidity hysteresis day

• Minimum speed day

• Maximum speed day

• Temperature night

• Temperature hysteresis night

• Humidity night

• Humidity hysteresis night

• Minimum speed night

• Maximum speed night

• Negative pressure setting

• Switch sensor level

• Switch over time day/night



LCD display:-Graphic and digital display of speed rpm constant

• Temperature display constant

• Humidity display constant

• Set point select able not constant, over input keys



Sizes and technical data:
Housing: Height = 61mm, Wide 98mm, height 20mm
Weight: 2.5kg
Voltage: 12VDC
Power: 35mA
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Humidity accuracy +/-3%RH max tolerance @55%
Protection class: IP 20

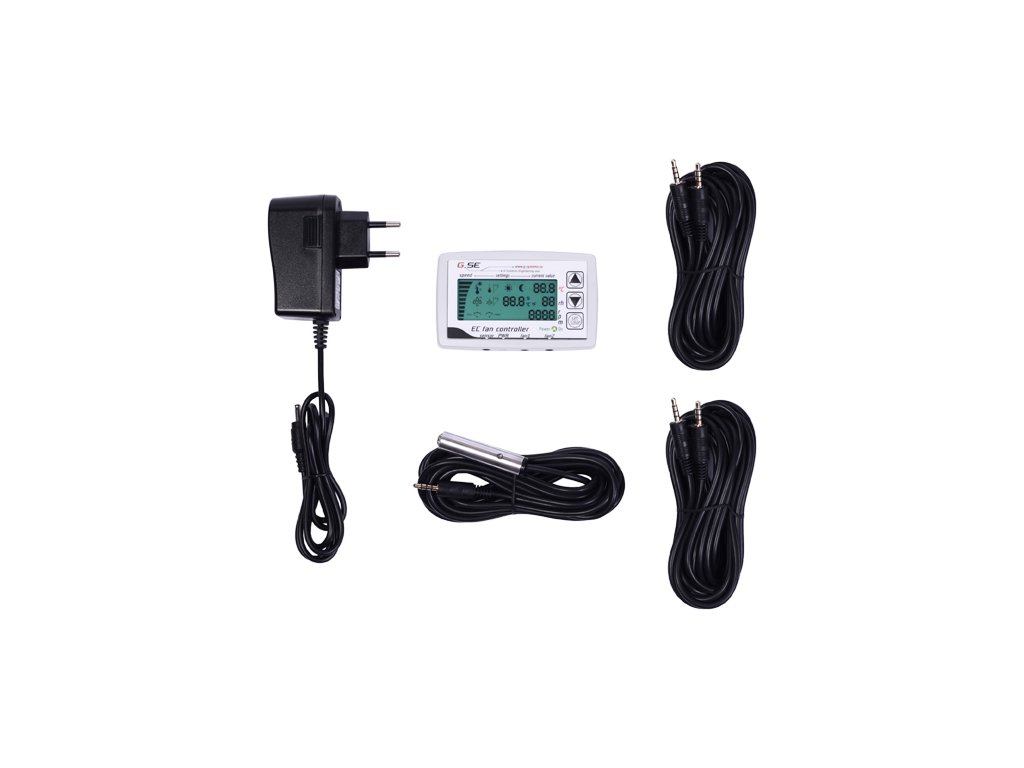

Packing contains:
1x EC fan controller
1x Power supply
1x Temp. humidity and light sensor
2x 4m Cable Stereo-jack 3.5mm 4pole black
2x 4m Cable Stereo-jack 3.5mm to RJ45 black
2x Adapter
1x User manual

Settings range:
Temperature: 15C° to 35C°, Hyst 1 to 5C°
Humidity setting: 0-100%, Hyst 1 to 20%
Minimum speed: off, 1% to 100%
Maximum speed: 10% to 100%
Negative pressure: 0% to -50%
