GSE Digital temperature - humidity - vacuum controller and min. speed - 2x5A

Code: FC12-210FR
Sale
Brand: GSE
€184,46 €152,45 excl. VAT
Usually in stock within one day

Digital humidity, temperature and vacuum regulator regulates the speed of two motors with air flow in and out of the room.

Detailed information

Product detailed description

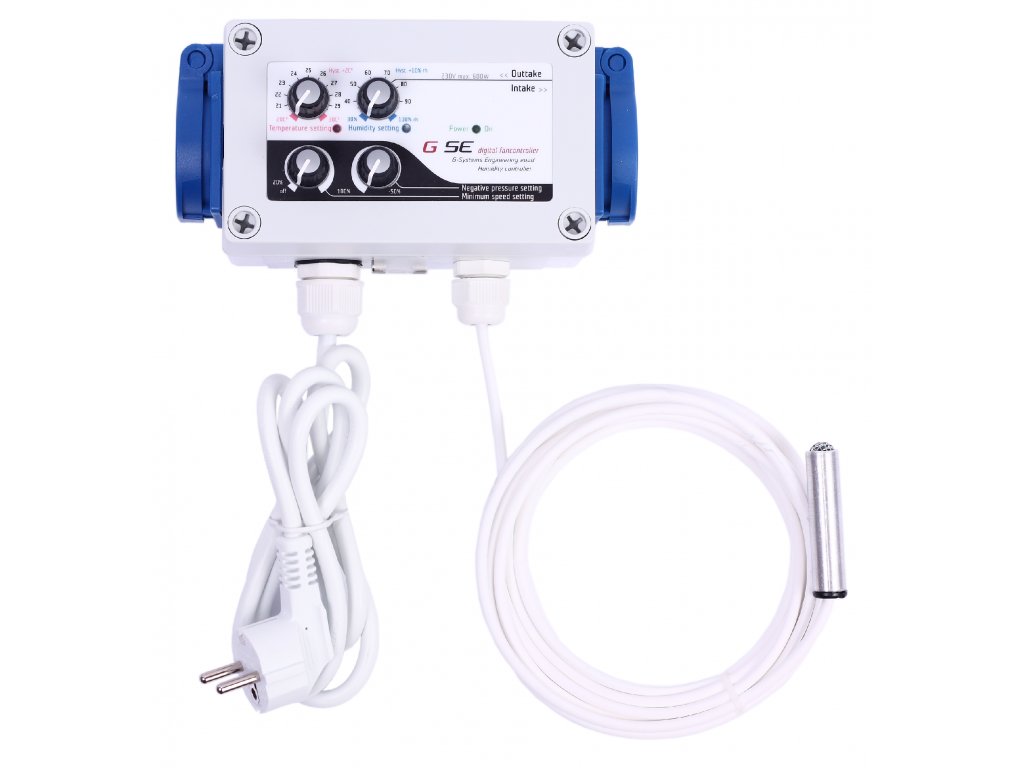

The controller maintains the humidity in the room, constant temperature + vacuum. It can be easily controlled, set the desired humidity, temperature, min. speed and vacuum your room with four knobs. Three LEDs for status control.
This controller can also be used as a single air regulator for two engines, as long as there is a natural supply of fresh air inside the room.

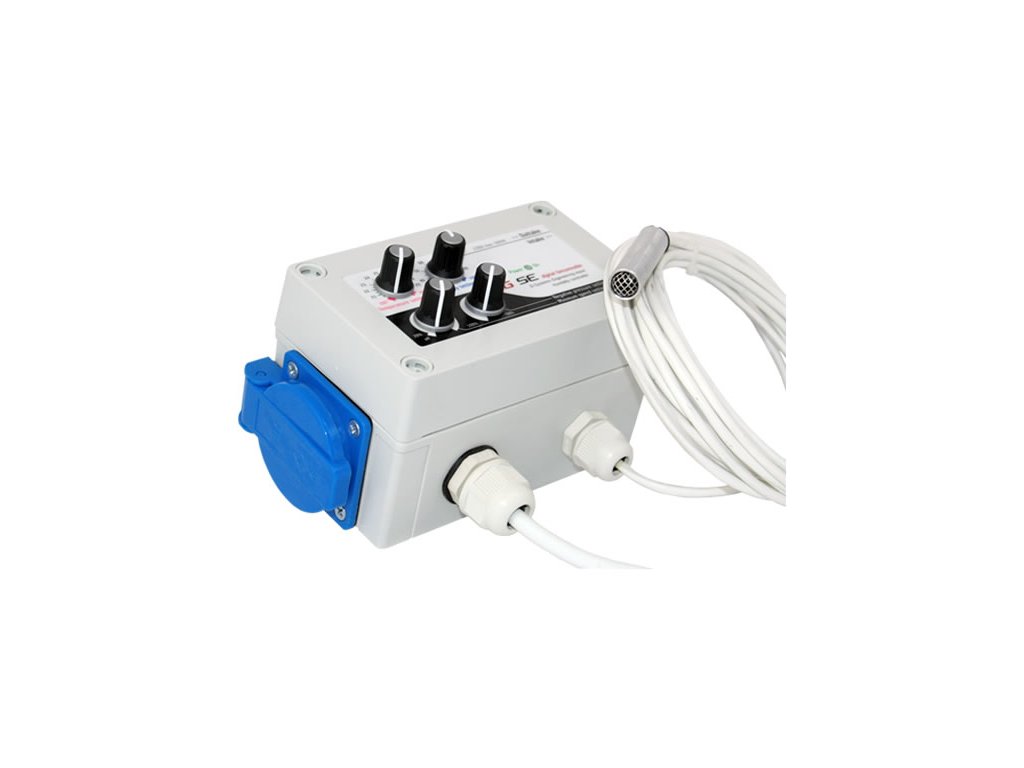

The controller is delivered as a finished part and is ready for use. This reliable ventilation controller comes in a closed, water-resistant housing, the drawers have a flap, so it is ideal for humid areas. The sensor is equipped with a 4 m long cable.

Dimensions and technical data:
WxHxD = 130x80x70mm
WxHxD = 160x100x90mm
Designed for: 2x200W / TRIAC 2x16A
V: 230V / 50Hz
5V Digital Sensor Measures temperatures from -55 ° C to +125 ° C (-67 ° F to 257 ° F)
0.5 ° C accuracy from -10 ° C to +85 ° C
humidity accuracy ± 4.5% rv
Protection class IP44

Settings range:
Temperature: 20C° - 30C°
Humidity: 30% - 100%
Minimum speed: off, 20% - 100%
Negative pressure: 100% - 50%
