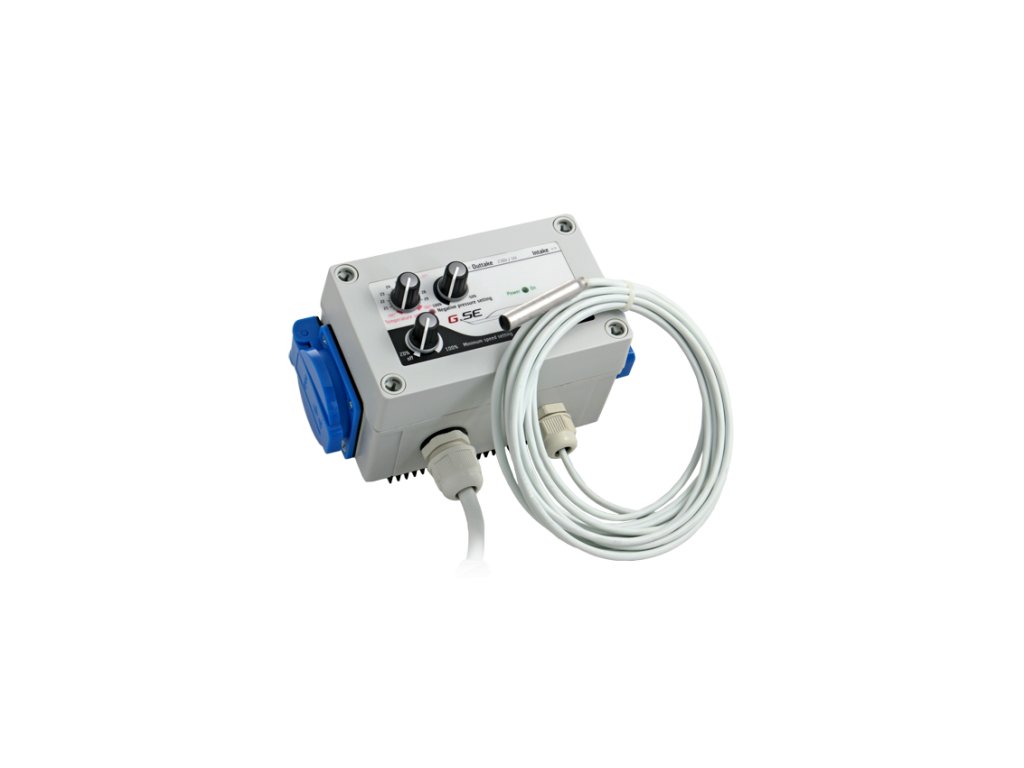

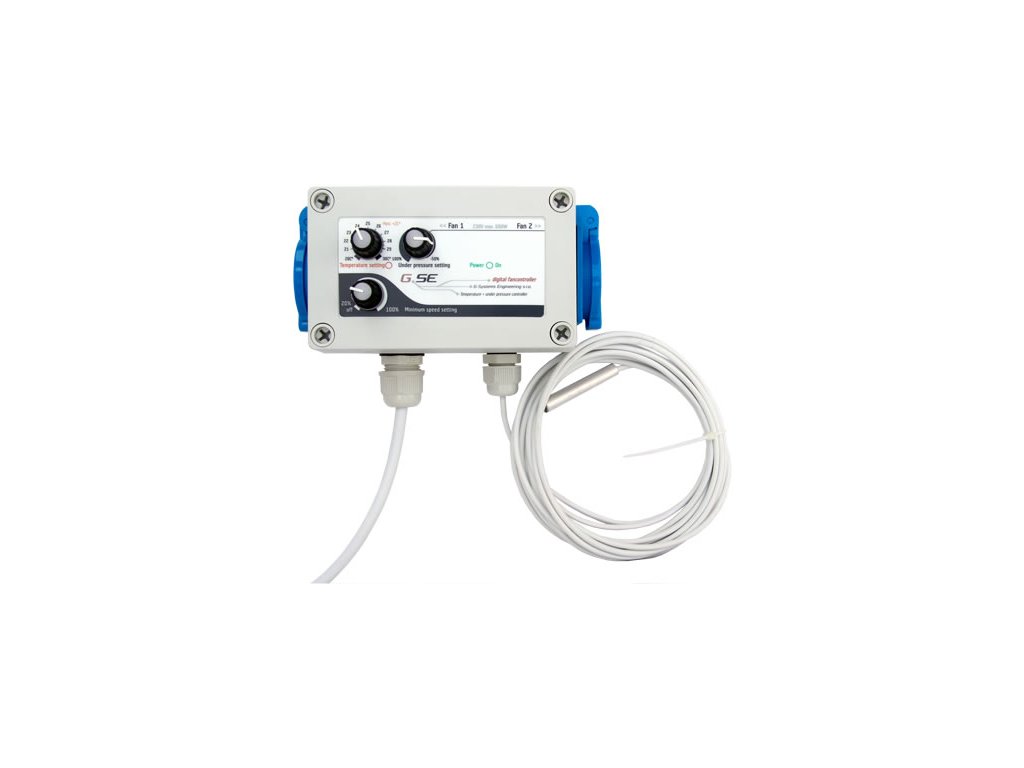

GSE Digital temperature controller - vacuum and min. speed - 2A

Code: FC11-202FR
Sale
Brand: GSE
€114,09 –7 %

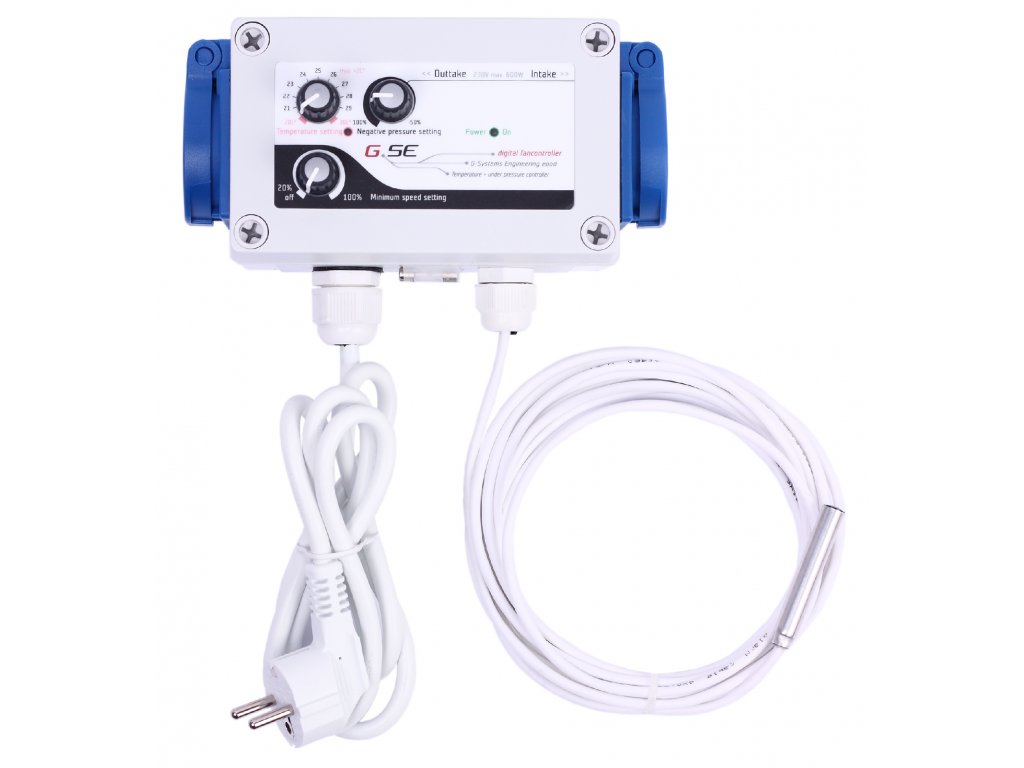

Temperature negative pressure controller 2A front 300dpi
€114,09 –7 % €106,22 €87,79 excl. VAT
In stock

The controller is used to maintain a stable climate in growing rooms or operations with intensive ventilation. Used in combination with an exhaust and supply fan, the stable difference between the value of the supplied and exhaust air ensures a constant negative pressure, which prevents the escape of undesirable odors.

Detailed information

Product detailed description

The digital fan controller is a temperature dependent speed controller for rooms with air flow in and out. The fan controller keeps the room temperature constant and under pressure to prevent odour from escaping. It can be easily controlled, adjusting the required temperature, minimum speed and the pressure of your room on four knobs. This fan controller can by used also as only air out regulator on two fans if there is a nature way of air in.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 50meters.

Sizes and technical data's:
Case: WxHxD = 130x80x70mm
Controller: WxHxD = 160x100x90mm
Designed for: 2A / 2x200W / TRIAC 2x16A
Volts: 230V / 50HZ
Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)
0.5°C accuracy from –10°C to +85°C
Protection class IP54

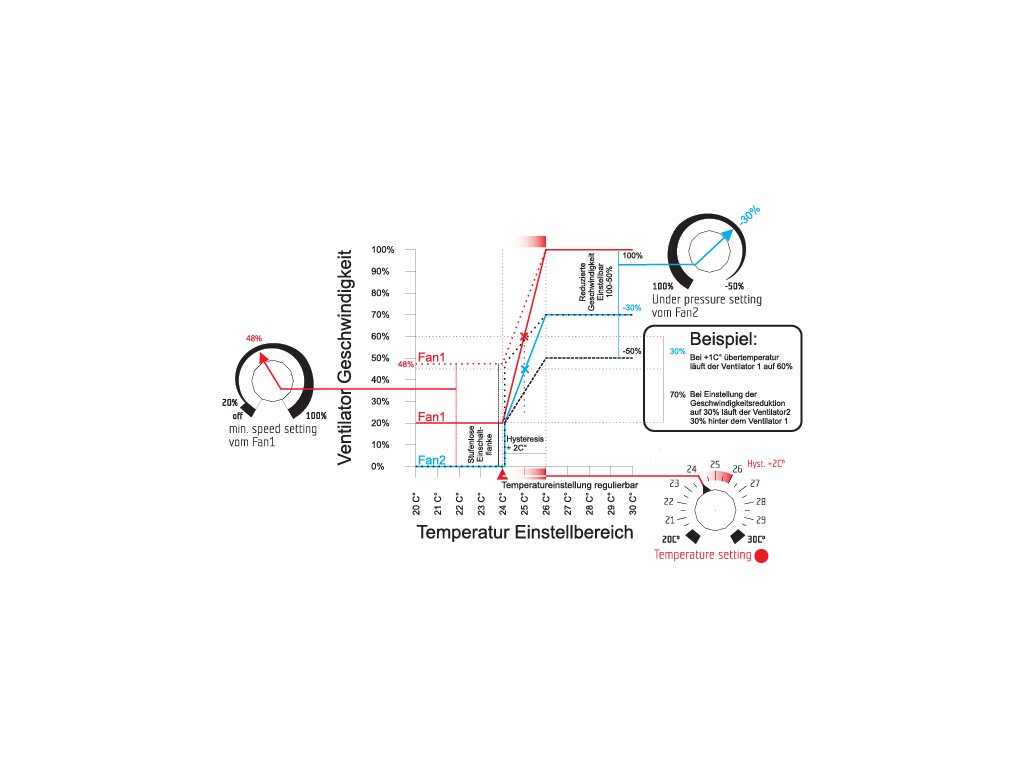

Settings range:
Temperature: 20C° to -30C°
Minimum speed: off, 20% to -100%
Negative pressure: 100% to -50%
