GSE Digital temperature controller and min. speed - 1A

Code: FC01-201FR
Sale
Brand: GSE
€90,16 –9 %

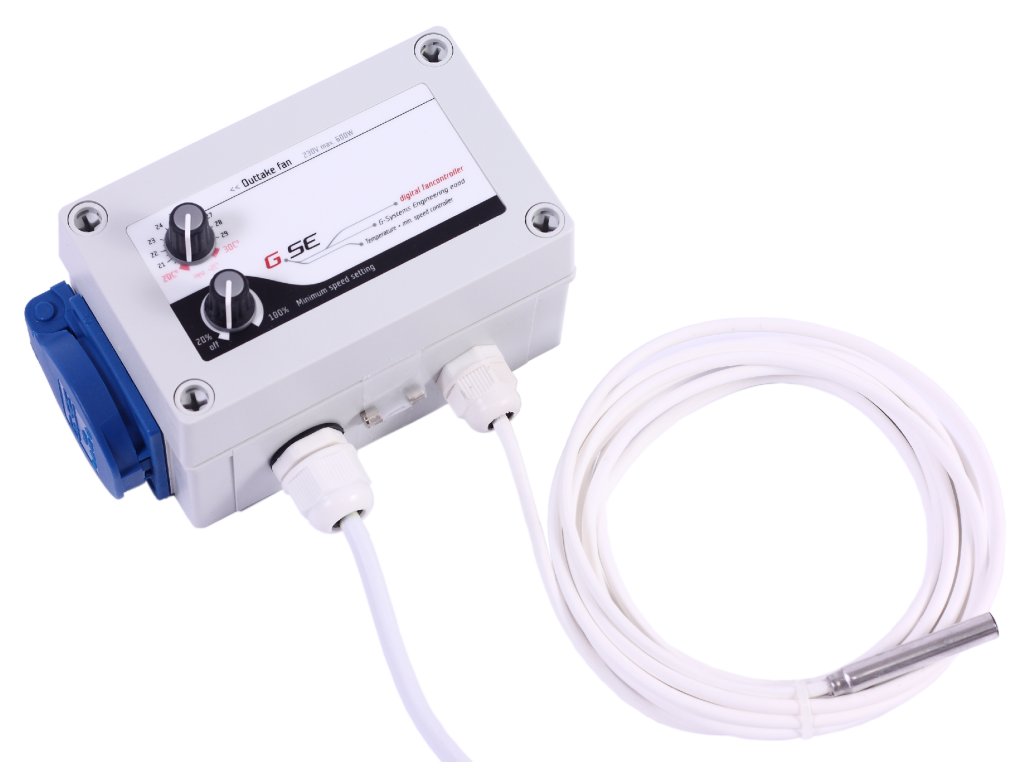

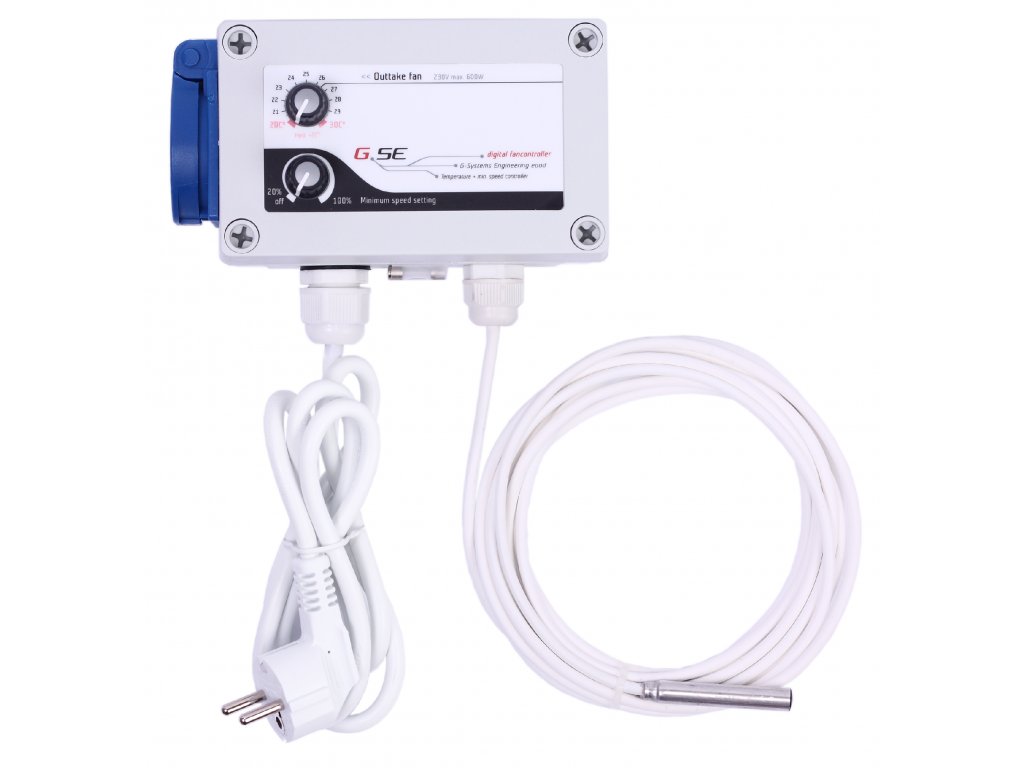

Temperature minimum speed controller 1A front 300dpi
€90,16 –9 % €81,96 €67,74 excl. VAT
Usually in stock within one day

 The controller is used to maintain a stable climate in growing rooms or operations with intensive ventilation.



Detailed information

Product detailed description

It is used in combination with an exhaust and supply fan or with only one exhaust fan.
The minimum speed controller keeps the room temperature constant and prevents the speed from falling below the set minimum.
It is easy to control, you can set the temperature and the minimum speed with just two knobs.
The controller is a high quality, complete product ready for immediate use.

Technical specification of the controller:
Voltage / frequency: 230 V / 50 Hz
Cover dimensions: 130 x 80 x 70 mm
Device dimensions: 160 x 100 x 90 mm
Designed for: 1 x 200 W / TRIAC 1 x 1A
5V digital sensor range: - 55 ° C to + 125 ° C (–67 ° F to + 257 ° F)
Sensor accuracy: 0.5 ° C in the temperature range -10 ° C to + 85 ° C
Safety class: IP54

Product manual
