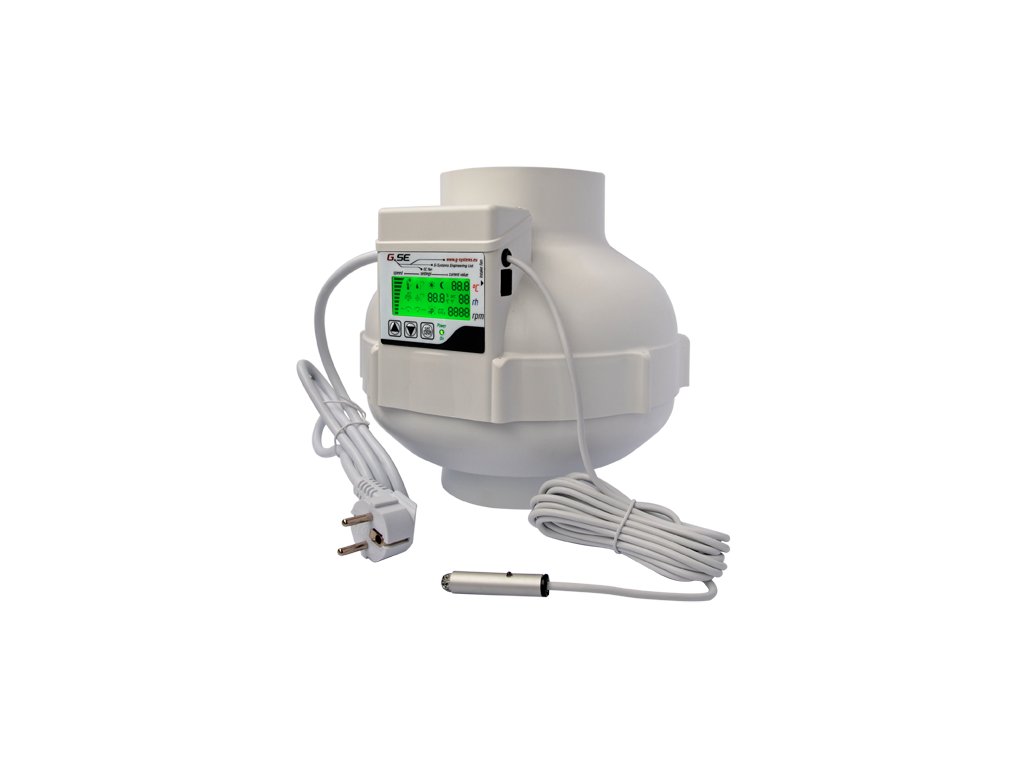

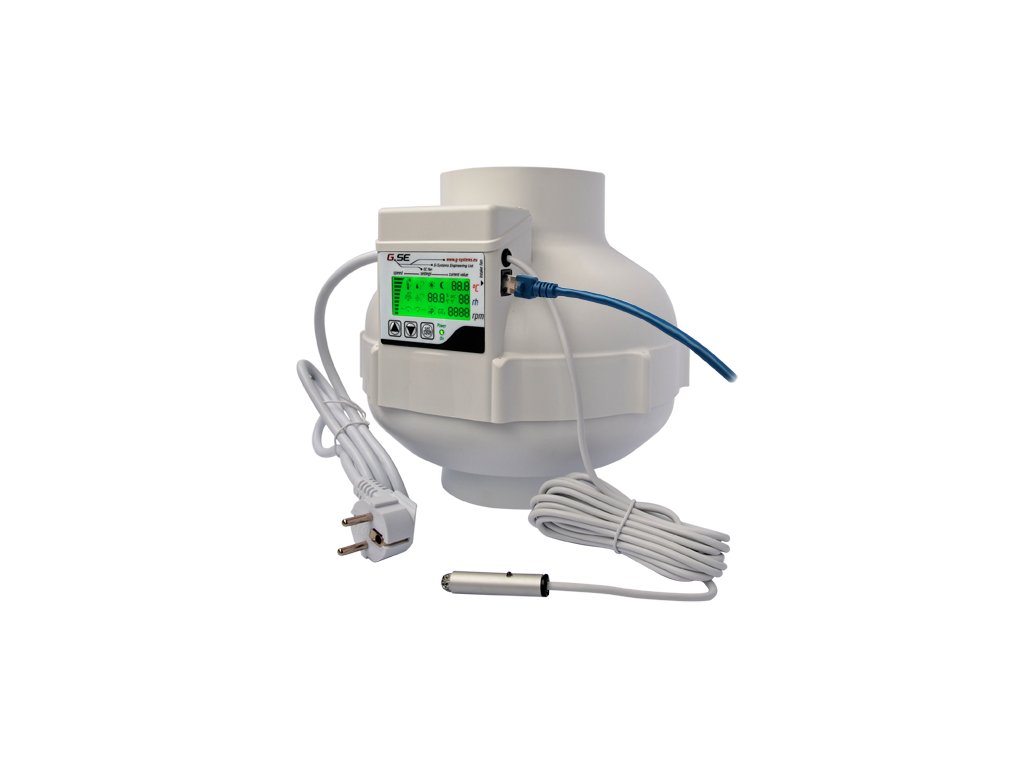

GSE EC 800m3/h - Ø125mm with digital temperature and humidity controller

Code: ED11-201EU/FR
Sale
Brand: GSE
€389,46 –19 %
EC fan 125mm hu 5767e18634d3d
€389,46 –19 % €315,66 €260,88 excl. VAT
In stock

Detailed information

Product detailed description

The EC-fan (electronically commutated motors) has a diameter of 125mm, it is a very powerful fan with 800m3/h at 0[Pa]. The EC fan has the characteristic that he makes no hum on the low rotation and fulfills the required efficiency law by 2018. A built in LCD display with keyboard and power led allows a very easy setting and reading of all the information given by the fan such as actual set speed, temperature, humidity day/night and rounds per minute of the motor. A built in light sensor in the probe recognizes day/night modes. The Ventilator comes with 1.5m power cable and 4m sensors cable, it is ready to use. You can program 14 individual settings with only three buttons:

Features:
-Temperature day
-Temperature hysteresis day
-Humidity day
-Humidity hysteresis day
-Minimum speed day
-Maximum speed day
-Temperature night
-Temperature hysteresis night
-Humidity night
-Humidity hysteresis night
-Minimum speed night
-Maximum speed night
-Switch sensor level
-Switch over time day/night

LCD display:
-Graphic and digital display of speed rpm constant
-Temperature display constant
-Humidity display constant
-Set point select able not constant, over input keys

Sizes and technical data:
Housing: Height = 244mm D = 260mm
Connection: D = 125mm
Weight: 2.5kg
Motor technology: EC
Voltage: 200-240V
Frequency: 50-60HZ
Power: 170W
Current: 1.5-1.25A
Airflow at 0[Pa] = 800m/3
Ambient temperature: -30 to +60°C
Protection class: IP54
