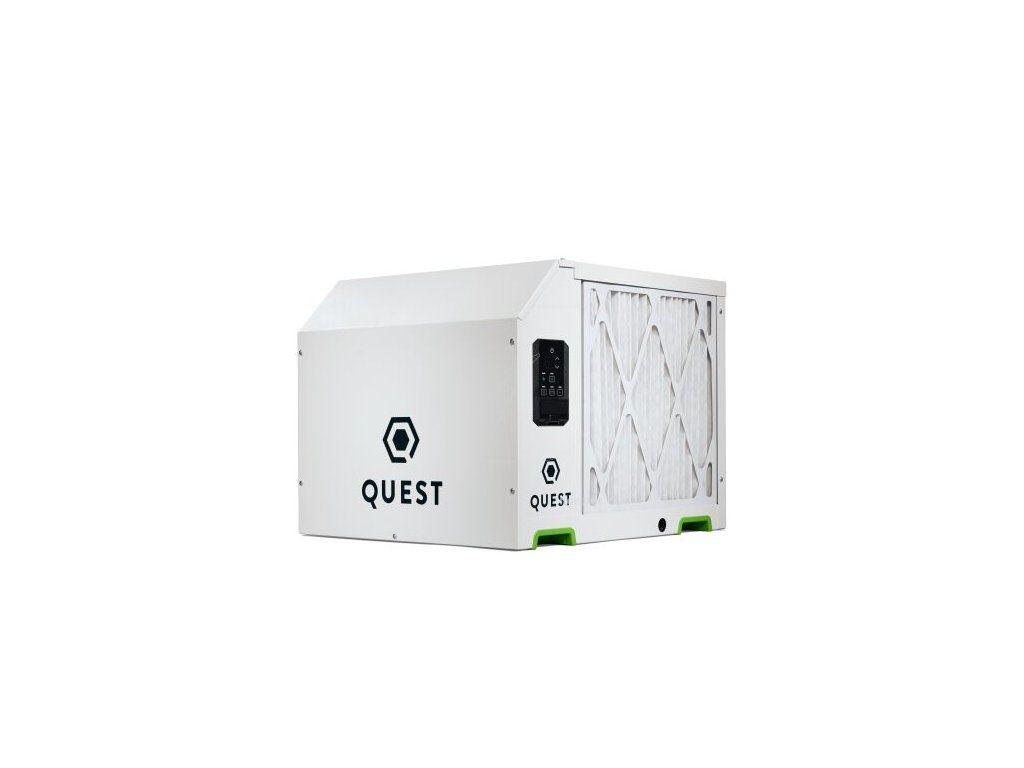

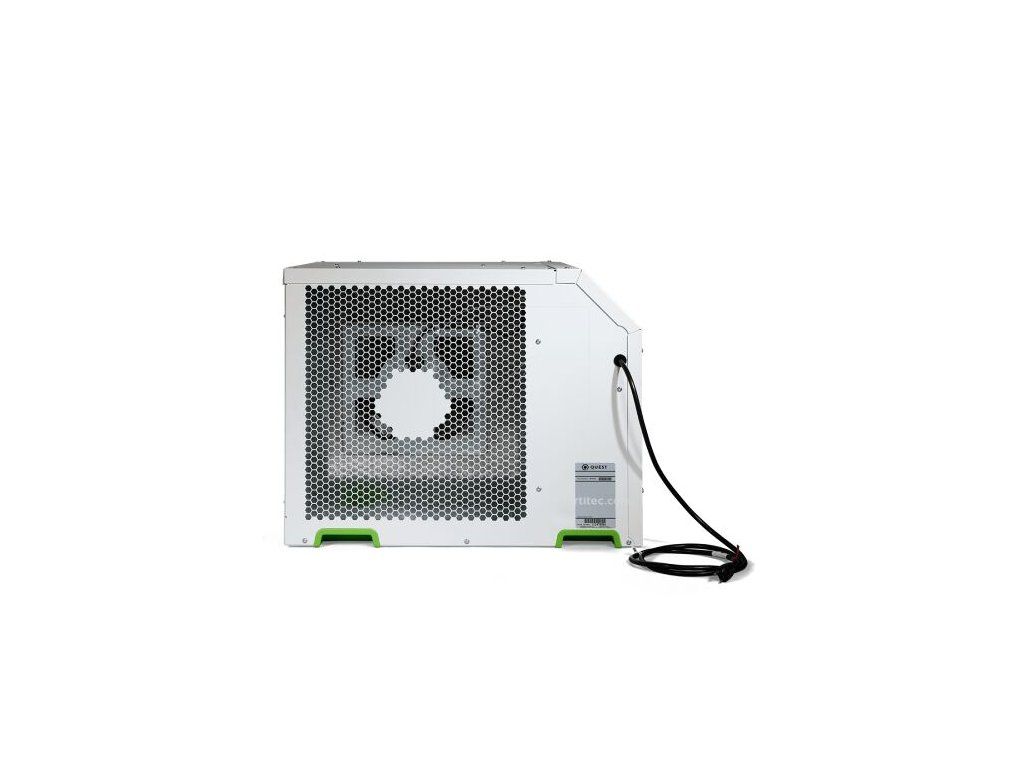

Quest Dehumidifier 200 - 90l/day
Code: AD8EDD6DProduct detailed description
The Quest 200 50Hz dehumidifier delivers the perfect balance of high-capacity moisture removal and exceptional energy efficiency, making it a smart solution for growers and facility operators needing dependable moisture control in moderate-sized environments. Built for 50Hz regions, this unit excels where space, performance, and energy use must align.
Powered by Quest’s proprietary M‑CoRR Technology, the Quest 200 50Hz dehumidifier delivers superior efficiency, pulling 3.9 L/kWh. Its high efficiency and reduced heat output contribute to operational cost savings. Quality-built with a compact footprint, makes the Quest 200 easy to integrate without compromising valuable space or environmental stability.
With this next generation of product, Quest has eliminated the need for a separate hang kit, making installation simpler than ever. Simply insert threaded rod into the built-in lift and hang points for easy installation.
A robust digital control system enables fine-tuned RH setpoints, preventative maintenance notifications, diagnostic feedback, and a dark mode setting to support low-light environments.
Engineered and assembled in the USA and backed by a 3-year warranty, the Quest 200 50Hz is a reliable, space-conscious, high-performance solution for facilities looking to maximize environmental control and operations.
Performance data
@ 26.7 °C | 60 % RH
Water Removal: 90 L/day
Efficiency: 8.3 pints/kWh
Energy Factor: 3.9 L/kWh
Current Draw: 4.2 A
Power: 1,220 W
BTU (Total): 11,900 BTU
BTU (Heat of Condensation): 8,600 BTU
BTU (Motor Load): 3,300 BTU
@ 23.9 °C | 50 % RH
Water Removal: 57.7 L/day
Efficiency: 5.8 pints/kWh
Energy Factor: 2.7 L/kWh
Current Draw: 3.8 A
| Parameter | Value |
|---|---|
| Part Number | 4046100‑NC |
| Dehumidifier Type | Refrigerant dehumidifier |
| Airflow | 500 CFM ≈ 1,415 m³/h |
| Operating Temperature | 13 °C – 35 °C |
| Supply Voltage | 230 V |
| Unit Dimensions | 68 × 60 × 53 cm |
| Unit Weight | 58.9 kg |
| Control Type | Onboard digital controls + LV terminal block |
| Air Filter MERV Rating | MERV 13 |
| Air Filter Dimensions | 45.7 × 45.7 × 5.1 cm |
| Recommended Breaker (UK) | 13 A |
| Recommended Breaker (EU, AU, ZA) | 10 A |
| Power Cord | 3 m FEM IEC 60320‑C13 |
| Refrigerant Type | R454B |
| Refrigerant Amount | 1,445 g (51 oz) |
| Drain Port Connection | 1.9 cm threaded NPT |
| Fans | Single‑speed impeller |
| Warranty | 3‑year limited |
COMPACT UNIT
For mobility and a small footprint that won’t interfere with operations
OVERHEAD OR GROUND PLACEMENT
Built to fit what works for your space
MERV 13 FILTRATION
Superior filtration removes more harmful contaminants from the air such as dust, pollen and mold as well as bacteria and some viruses
INTEGRATED HANDLES & HANGING POINTS
For easier movement and installation
PLUG-N-PLAY
No installation required
HIGH EFFICIENCY
No dehumidifier is more efficient
AUTO RESTART
Unit automatically defaults to prior settings in the event of a power outage
WIDEST OPERATING RANGE
Of temperature and relative humidity
ASSEMBLED IN MADISON, WISCONSIN
Built to last.
Digital Controls
Precise RH Setpoints
Fine-tune humidity control in 1% increments
system status Indicators
Visual indicators during defrost, and self-diagnostics, helping to simplify service and maintenance
maintenance alerts
Including filter change reminders after 2,000 fan hours
Optional dark mode
Disables all display lights to reduce light pollution in sensitive environments
Fan Mode Selection
Select “Auto” for on-demand circulation or “On” for continuous airflow
external control Capability
Via a 24V terminal input, disabling the onboard RH sensor when active
