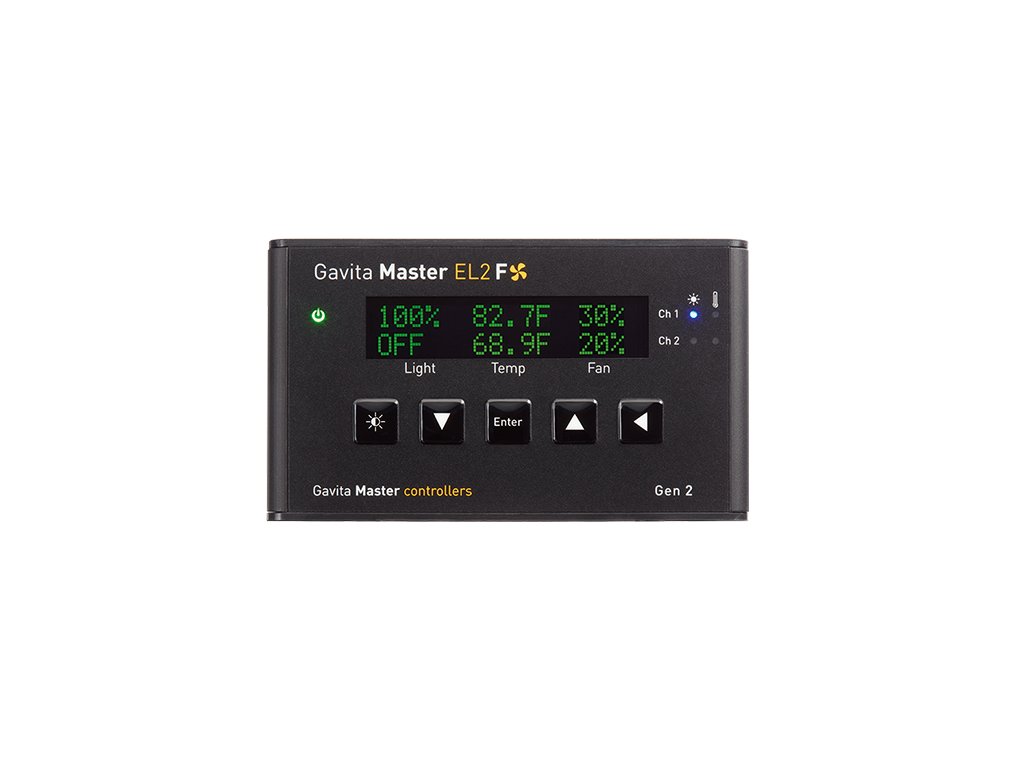

Gavita Master Controller EL2F GEN 2

Code: GAV-EL2F
Brand: Gavita
€364,32 €301,09 excl. VAT
On Order
Delivery offer

The EL F controllers are new to the family. Not only do they offer everything the Gen 2 controller has to offer in control and safety, but they also provide integrated, intelligent fan control, based on a PID algorithm.

Detailed information

Product detailed description

No longer do you need separate high-power speeds controllers to regulate your extraction and intake fans: This little intelligent controller can control them all, more precise, quieter and with a much better performance. Whether you want to move 1 cf/s or 1,000 cf/s: this controller can handle any size EC fan.

  • 0-10V EC fan control
  • Intelligent PID fan control
  • Non-volatile memory
  • Event logging
  • Independent sunrise and sunset settings
  • Independent light cycles on the EL2

Easy
The Master Controllers are extremely easy to set-up. The two-line green OLED display is sharp and easy to read, even in a high light intensity environment, and all menu items are in plain text. The 4-button control of the menu system is intuitive. A special fifth button is added to directly set the output of your fixtures. Red and blue LEDs show you the output status of your controller ports and give you a quick view of any errors.
The wiring system is plug-and-play with all the cables you need already included with each e-series fixture. The manual describes how you can make custom cables for any length. Different lengths of control cables are available as original Gavita accessories. Be aware that the Gen 2 Master controller comes with a 15 V power cord which differs from the 5 V power cord that is being used with Gen 1 Master controllers.  The controller is easy to mount with the supplied bracket. Two screws are all you need to install it and the controller clicks right in. This enables you easy access to the wiring at the bottom of the controller.

Safe
The most important and valued features of the Master controller are the temperature safety features. Your lamps will automatically dim when your climate control is no longer able to maintain the correct temperature. Or will even shut down your lamps when a maximum temperature is reached. These features have saved many crops already!
The control signal is a safe, analog and low voltage signal, and the controller is protected from signal shortcuts in the wiring. Wiring faults will not kill your controller.
Last but not least, the EL2F offers you alarm contacts (NO and NC) to seamlessly integrate your controller in your alarm and monitoring systems. Whenever there is a calamity (power outage, emergency shutdown or sensor failure) the alarm contacts will switch, notifying you of the fact that you need to take action.

Flexible
Whether you control two fixtures or 1000, the Master Controller will do the job. Standard, each output channel can control 40 fixtures (Single Bus e-series) up to 500 fixtures (Repeater Bus e-series), without the addition of booster modules. The EL2F has even more features. On top of the double output ports, you can connect our ECM units which allow you to switch auxiliary equipment, such as CO2 units and heaters, during the lights-on and light-off periods.

Sexy
The anodized aluminum extrusion housing is rugged and compact. No more standard grey plastic installation boxes with cluttered buttons and lights. The controller is compact, clean, and some even find it sexy.
