FAN VDL TT 125 - 280/220m3/h - Ø125mm

Code: 20002
Brand: VDL
€45,06 €37,24 excl. VAT
Delivery to:
Delivery offer

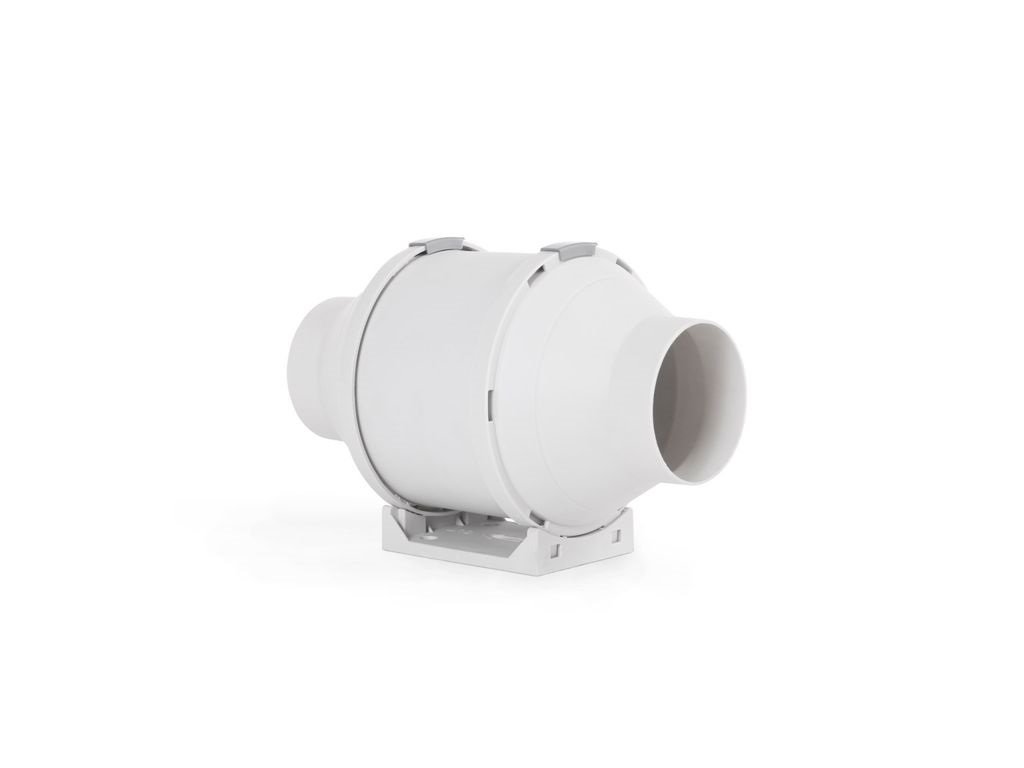

The small plastic fan TT 125, 220/280m3/h is designed for ventilation pipes with a diameter of 125 millimeters. TT fans combine quality parameters of axial and radial fans in a wide range.


Detailed information

Product detailed description

Main characteristics of the duct fan TT 125, 220/280m3/h

Single-phase two-speed motor with ball bearings and a service life of up to 40,000 hours
The cover is made of high quality ABS plastic
Semiradial plastic blades
Special clamps with locks for easy assembly and disassembly
Motor overheat protection with automatic restart
It allows connection at any angle and anywhere in the piping system
Maximum air capacity (output) 220/280m3/h
Consumption (power consumption) 23/37W
1960/2500 rpm
Sound pressure level 29/36 dbA
Compatible with round pipes with a diameter of 125mm
Weight 1.4kg
IP X4 protection
Max. operating temperature 60 ° C

Why are TT plastic fans attractive and popular?

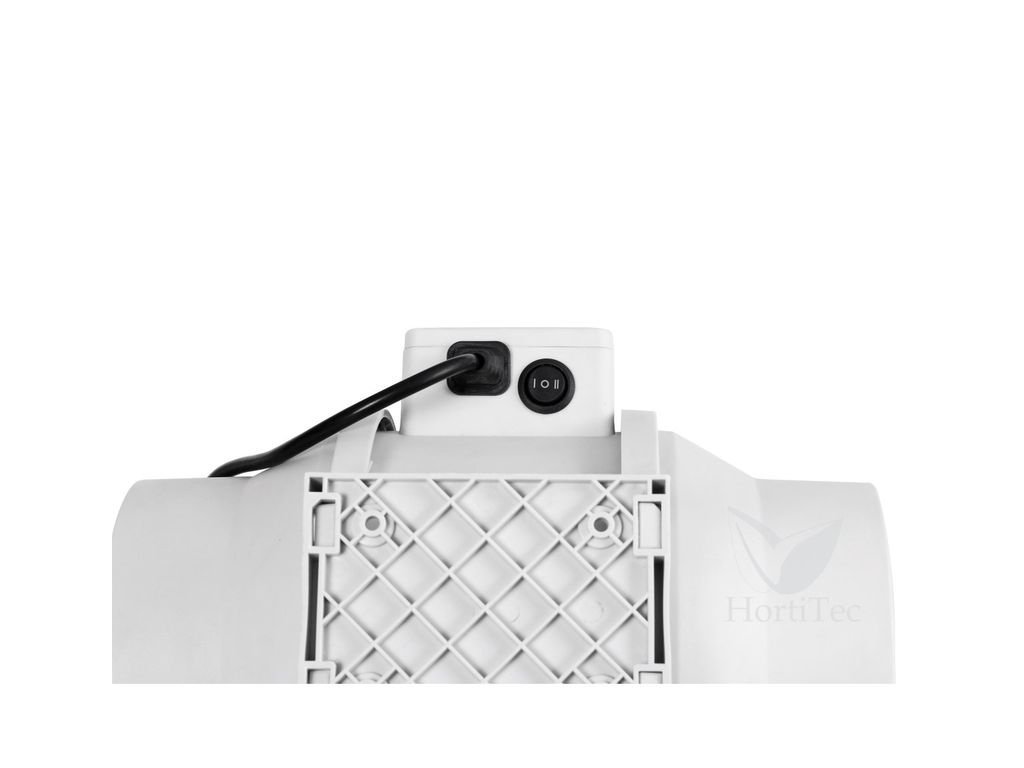

Affordable yet reliable duct fans TT are designed for ventilation systems that operate at high pressure and require minimal noise. Their versatility allows use in all small spaces that require frequent or continuous air exchange (offices, kitchens, bathrooms, greenhouses, workshops or growing spaces). There is a mounting plate on the plastic body of the fan for wall mounting.

An adjustable timer can be purchased for this model. Speed ​​and power can be regulated using an external switch, which is not included in the package and must be purchased. Detailed instructions for connection and use can be found in the Czech manual.
