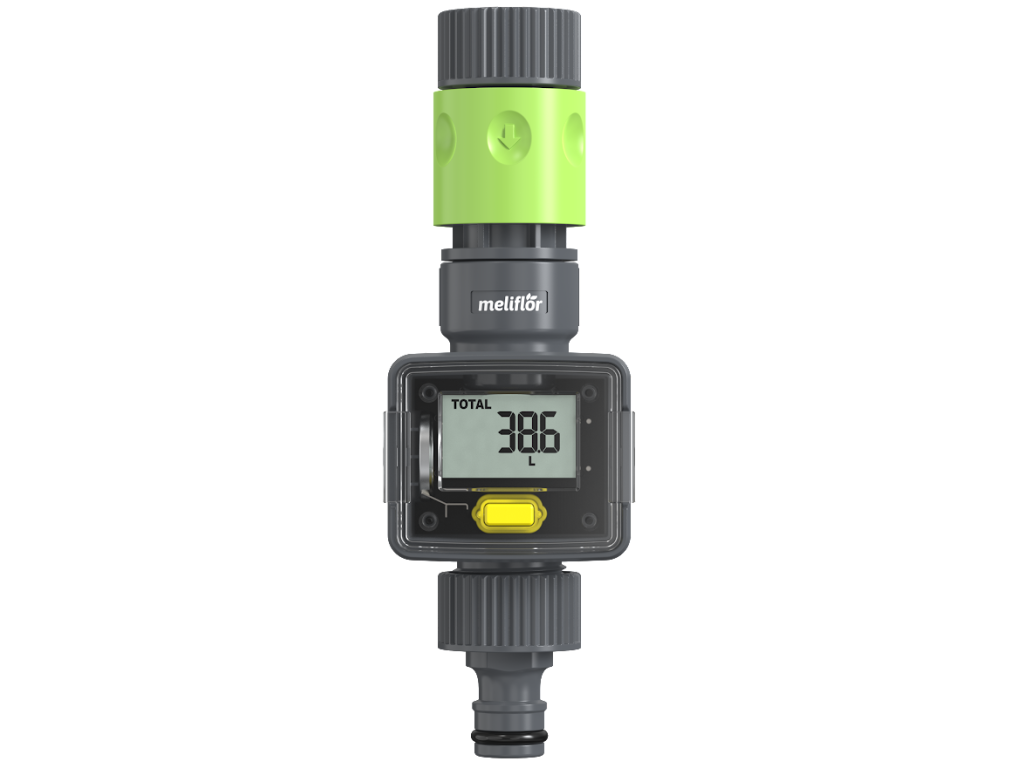

Meliflor Digital Flow Meter

The Meliflor aqualimetro is delivered pre-assembled and ready for use. Includes one CR2032 battery to power a display screen where you can see the recorded data.

It is made of quality materials that are resistant to rust and corrosion, so it can withstand the prolonged contact with fertilizers. At one end it has a ¾" NH key connector joined to a BSP adapter with gray thread, also ¾", followed by a metal grill that acts as a filter to prevent that no particles obstruct the device. At the other end, another ¾" key BSP connector.

Its operation is extremely simple and intuitive, (instructions inside). Allows reading of data in both liters and gallons.

In the center, just below the screen, a single yellow button allows you to switch between the four modes of measurement available:

• Flow Mode: The flow of water circulating inside is displayed in real time in liters or gallons per minute.
• Consumption mode: Shows the total consumption. The measurement resets itself after 30 seconds without water flow or press the button again.
• Average mode: Indicates the average water consumption occurred in the last 7 days.
• Total mode: Shows the total water consumption occurred until its reset.

In addition, it has a series of special integrated functions, such as the "standby" function, which allows saving energy by auto shutting off the unit after 1 minute without water flow or without pressing the button modes. With the reset function, any record can be reset by simply holding the button down for 2 seconds. in the selected mode. The measurement is reset to the zero value. Lastly, a low battery indicator will be displayed on the screen before it is completely depleted.

Dosage:

• IPX6 water resistance
• Water flow measurement 1 ~ 40 L/min (0.3~10.6 GPM)
• Limit of measurement 9,999.9 L or 9,999.9 Gal
• Pressure 0.5bar8bar (7.25116PSI)
• Max Flow 2400 L/H (10.6GPM)
• Accuracy level ±5%
• Water temperature 5 - 40ºC
• Compatible with standard ¾" wrenches.
