Bluelab PeriPod M4

Code: 96109
€1 200 €991,74 excl. VAT Measure price:
On Order
Delivery options

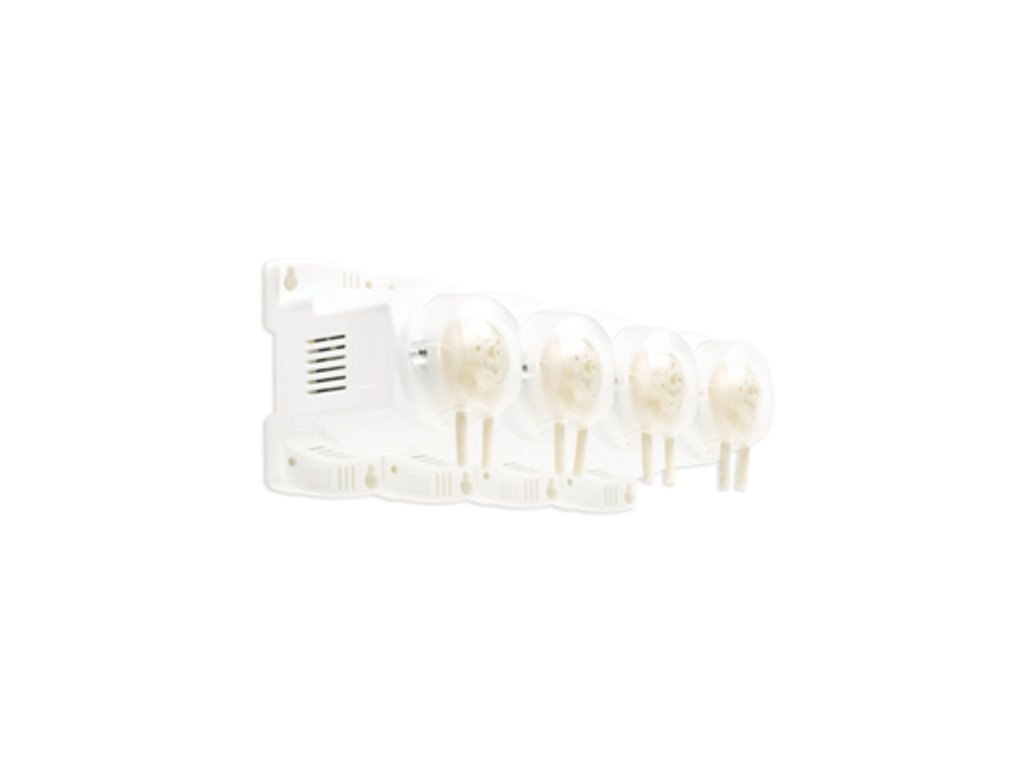

The Bluelab PeriPod M4 is a wall-mounted dosing unit with four peristaltic pumps, designed for commercial hydroponics. Each pump delivers up to 120 ml/min. Connected to the Bluelab Pro Controller Wi-Fi, the PeriPod automatically doses pH adjusters and nutrient stock solutions into the reservoir as needed, keeping pH and nutrient strength (EC) stable without manual spot checks and adjustments.

Detailed information

Product detailed description

The Bluelab PeriPod M4 is a wall-mounted dosing unit with four peristaltic pumps, designed for commercial hydroponics. Each pump delivers up to 120 ml/min. Connected to the Bluelab Pro Controller Wi-Fi, the PeriPod automatically doses pH adjusters and nutrient stock solutions into the reservoir as needed, keeping pH and nutrient strength (EC) stable without manual spot checks and adjustments.

Several PeriPods can be linked together to run multi-part nutrient schedules, with up to 12 pumps in one system. In the Edenic app you set individual nutrient ratios and configure each pump for either pH or nutrient dosing. The system can be fine-tuned in steps as small as 0.1 pH and 0.1 EC. Each pump can be primed and calibrated individually, including calibration to the viscosity of the specific nutrient, so the flow rate stays consistent.

The pumps are medical-grade peristaltic pumps built for long-term precision, and the pumps, cassettes and tubing are all replaceable, which keeps running costs down. The unit is compact, quiet and fan-cooled. Opaque nutrient tubing prevents algae growth, and the doser can be mounted lower than the injection point. Designed and assembled in New Zealand.

Note: the PeriPod M4 can be combined with the PeriPod M3, but not with the PeriPod L3.

Specifications:

  • Number of pumps: 4
  • Flow rate per pump: up to 120 ml/min
  • Flow rate accuracy: ±10% (at 25 °C)
  • Maximum system size: 12 pumps
  • Solution temperature: 5–40 °C
  • Ambient temperature: 5–40 °C
  • Acid concentration: less than 80% phosphoric, 35% nitric, 30% sulphuric or 20% citric acid by volume
  • Control: Bluelab Pro Controller Wi-Fi (BCTPRC02) or the discontinued Pro Controller (CONTPRO), Edenic app
  • Mounting: wall-mounted
  • Warranty: 2 years (6 months on cassettes and tubing)

Package contents:

  • 1× Bluelab PeriPod M4
  • 1× 4 m high-strength acid/alkali-resistant tubing (for pH up/down)
  • 3× 4 m food-grade tubing (for nutrient stock solutions)
  • 1× Getting Started Guide

The Pro Controller Wi-Fi is not included and must be purchased separately.
