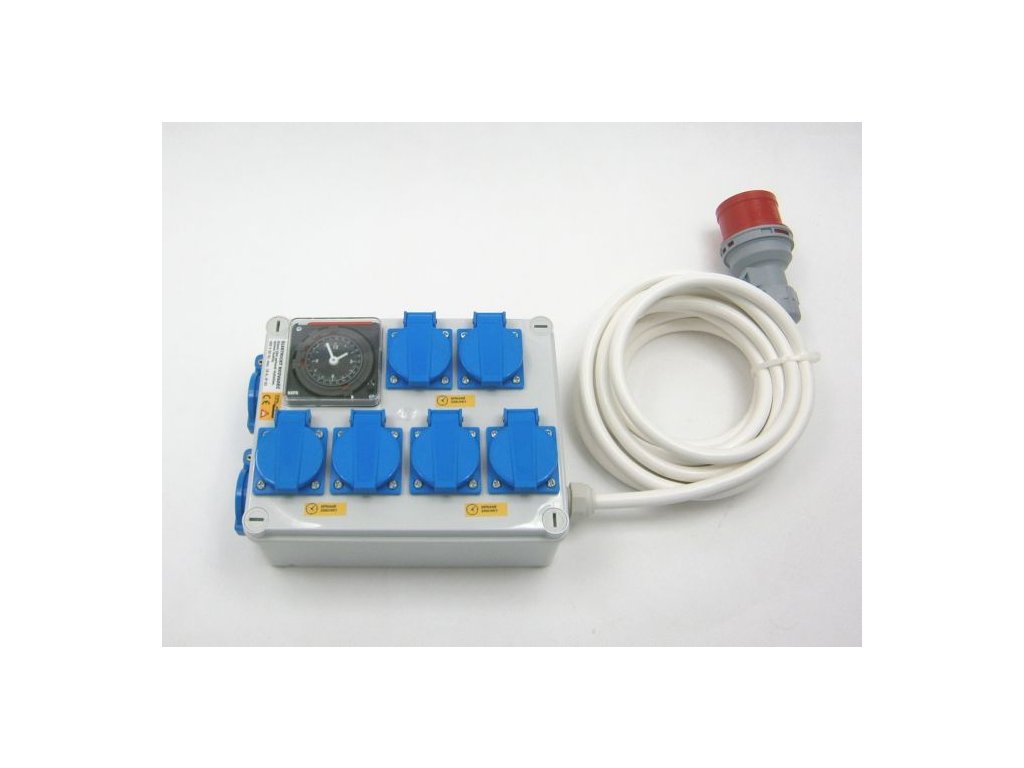

Malapa switchboard 6x 1200W (6+1+1), 400V 16A KL03Code: KL03
Product detailed description
Powers and switches inductive and resistive loads.
It can be used, for example, in switching lighting or re-lighting the greenhouse, starting pumps, motors for WWTPs, advertising banners, heating or cooling and many other periodic activities.
The switching on and off of the sockets on this device is controlled by means of a power contactor and is designed for the switching powers of the given switchboard.
Switching contacts composed of precious metal alloys make it possible to switch inductive loads such as high-pressure discharge lamps.
The timer controls all switched sockets of this switchboard, you can connect a maximum load of 1x 1200W (2x 600W) to each socket.
The switchboard also has one night socket, this socket is switched on when the other sockets are switched off, it is suitable, for example, for powering the heating.
To supply other devices, the switchboard has an integrated one unswitched socket, which is under constant voltage.
The switchboard has an integrated thermal protection of the contactor (switches off all switched sockets).
The timer with a built-in backup power supply guarantees operation even in the event of a power failure for up to 200 hours.
The timer is programmed by sliding it out and to switch it off by inserting the pins around the circumference of the dial.
You can also switch the switchboard manually. The timer is immune to electromagnetic waves or induction fields.
You can hang the device on the wall using the handle. Long-term and flawless operation even under extreme conditions, over design.
Division of sockets:
6x switched socket controlled by a timer for lighting (each socket max. 1x 600W)
1x night switched socket controlled by a timer (max. 3000W)
1x unswitched socket, under constant voltage
Technical data of KL03 switchboard:
Power supply - 400V AC 50Hz
Maximum load - resistive 3x 3600W (3x16A)
6x switched socket - a total of 6x 1200W or 12x 600W inductive loads (each socket max. 1x 1200W or 2x 600W)
1x switched socket - night (max. 3000W)
1x unswitched socket under constant voltage
Operation - manual / automatic
Adjustable time - minimum 20 minutes, maximum 24 hours
Switching cycle - 12 hours
Programs - up to 72/24 hours
Accuracy + -1 second / 24 hours
Clock backup - battery up to 200 hours
Protection - thermal
Power cord with plug - 5 meters (16A, five-pin, 400V)
Mounting - wall (handle)
Total weight - 3045 grams
Diameters - length 225, width 180, height 100mm
Working temperature -20 ° to 70 ° C
Working humidity - 0% to 90% RH (non-condensing)
Storage temperature - 0 ° to 45 ° C
Protection - IP43
Box - ABS
